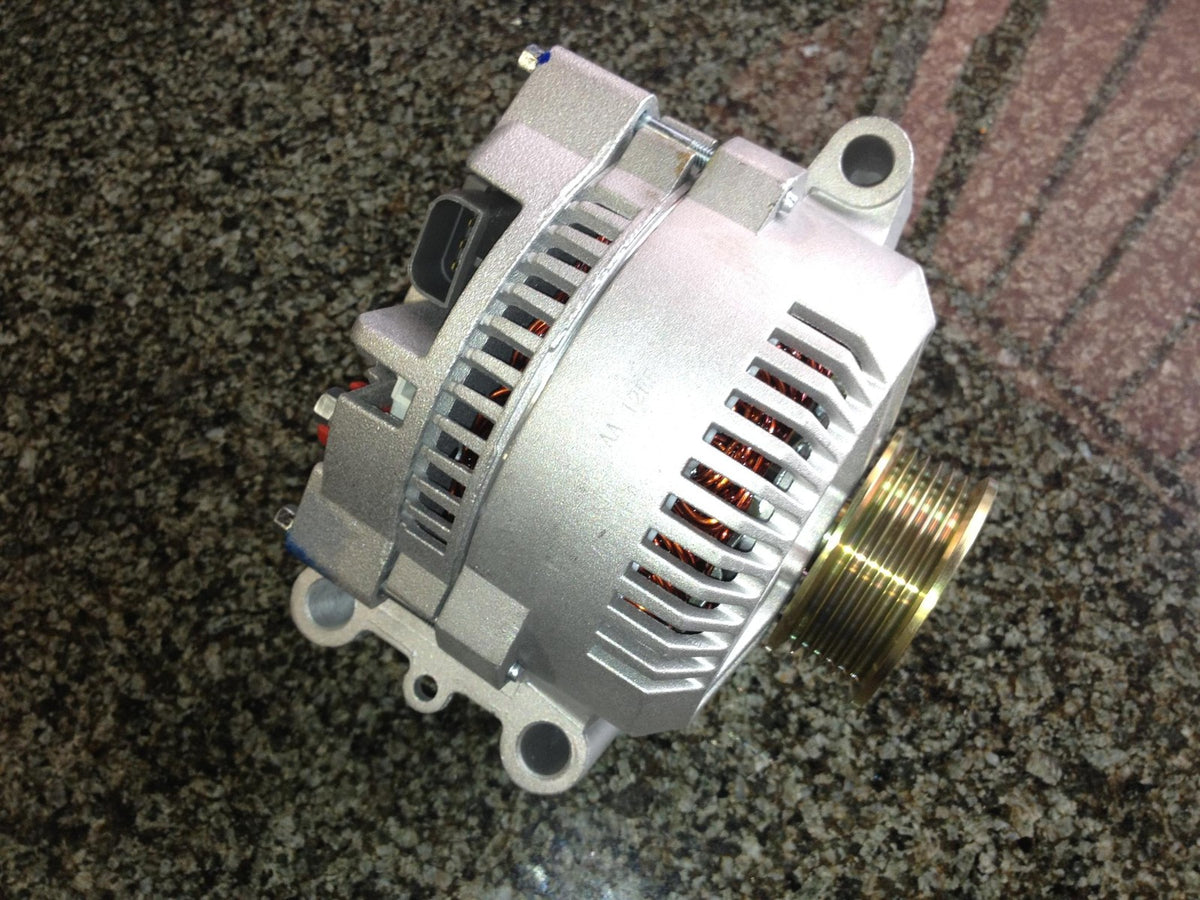

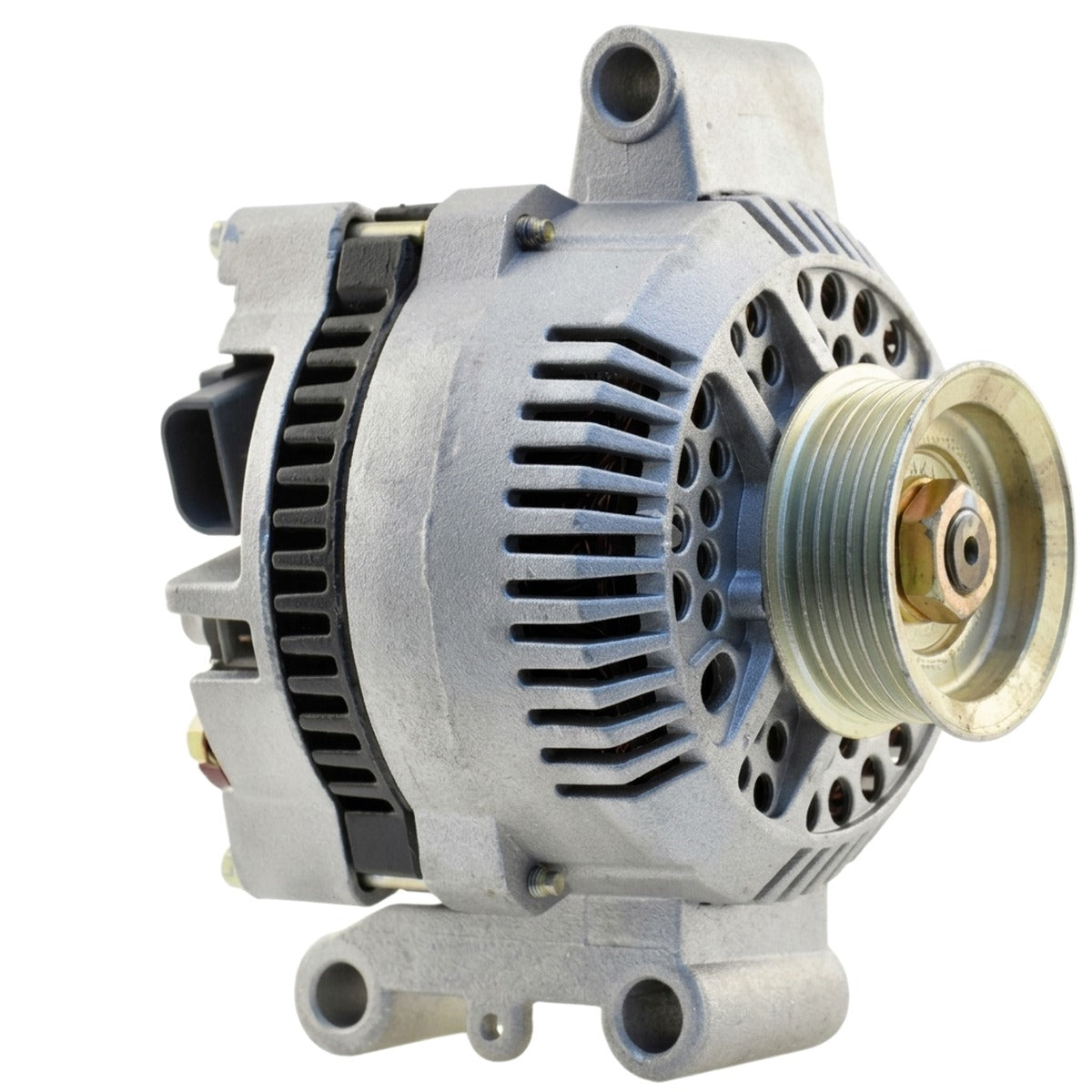

High Output Alternator for Ford Aerostar (1992-1993) 3.0L

High-Output 250A Alternator for 1992-1993 Ford Aerostar (VN1)

What it Does: The high-output alternator replaces the low-output factory charging unit on the 1992-1993 Aerostar to eliminate voltage sag, power auxiliary electronics, and stabilize DC current delivery across all RPM bands.

The Stock Ford Aerostar Charging System Limitations

Factory charging systems on the 1992-1993 Aerostar were engineered around modest 75-amp to 95-amp ratings sufficient only for stock baseline accessories. When subjected to continuous loads from modern electronics, auxiliary lighting, or high-draw rear climate control fans, the factory stator experiences thermal saturation. This leads to severe diode bridge breakdown, battery discharge during low-RPM idle, and eventual rotor coil failure. The cramped engine bay of the VN1 platform further accelerates heat soak, causing stock rectifiers to degrade and output voltage to plunge below nominal thresholds.

The Engineering Solution

This 250-amp heavy-duty charging unit provides maximum continuous electrical output without requiring custom bracket modifications on the Vulcan V6. Engineered with high-temperature, heavy-gauge copper windings, premium heavy-duty avalanche diodes, and high-efficiency internal heat sinks, it dissipates internal heat rapidly under heavy amperage demands. The precision-balanced rotor prevents high-RPM vibration wear, while the solid-state internal voltage regulator maintains a steady 14.4-volt charge curve from idle to redline. Replaces factory units like F07F-10300-AA and 7750 with genuine American-made reliability.

What's Included

• 1 x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 1992 Ford Aerostar Base / XL / XLT 3.0L Vulcan V6
• 1993 Ford Aerostar Base / XL / XLT 3.0L Vulcan V6

Frequently Asked Questions & Fitment Warnings

Does this fit the VN1 Aerostar?

Yes, this is a direct fit for the 1992-1993 Ford Aerostar equipped with the 3.0L Vulcan V6 engine. Does not fit 4.0L Cologne V6 models or 1994-and-later revisions due to alternate casing and bracket configurations.

Do I need to upgrade the main battery charging wire?

Yes, a heavy-gauge "Big 3" power cable upgrade (minimum 4-gauge or 1/0-gauge fused wire) is strongly recommended to safely carry 250 amps without overheating factory wiring harnesses.

The Ford Fleet & Hauling Standard

Engineered for work vans and passenger haulers that face continuous operation under severe duty cycles, this high-amperage upgrade maintains complete electrical reserve for winches, power converters, and high-draw accessory gear.
