High Output Alternator for Chevrolet Tahoe (2001-2004) 4.8L 5.3L

High-Output 300A Hairpin Alternator for 2001-2004 Chevrolet Tahoe (GMT800)

What it Does: The 300-amp high-output hairpin alternator replaces the factory charging unit on 2001-2004 Chevrolet Tahoe SUVs to eliminate voltage drop and reliably power high-draw auxiliary electrical accessories.

The Stock Chevrolet Tahoe Electrical Limitation

Factory GMT800 platforms powered by the Vortec 4.8L (LR4) and Vortec 5.3L (LM7) engines were factory-equipped with modest 105-amp or 145-amp Delco alternators. When loaded with aftermarket equipment such as high-output stereos, winches, air compressors, or heavy auxiliary trail lighting, these stock round-wire units quickly suffer from thermal saturation. Under elevated engine bay temperatures and low idle RPM, OEM alternators experience severe voltage sag below 12.8V, accelerating battery drain and straining critical electronic systems.

The Engineering Solution

This 300-amp unit utilizes advanced hairpin stator technology featuring dense, rectangular copper conductors. Hairpin windings drastically lower internal resistance, allowing the alternator to run cooler and maintain stable voltage even under continuous peak loads, while delivering exceptional low-RPM amperage output. Engineered in the USA with heavy-duty internal rectifiers, a precision 6-groove pulley, and a factory-matched 4-pin terminal plug, it bolts cleanly into factory mounting brackets to replace OEM part numbers 321-1798, 321-2104, 8247, 10480388, and 10464438.

What's Included

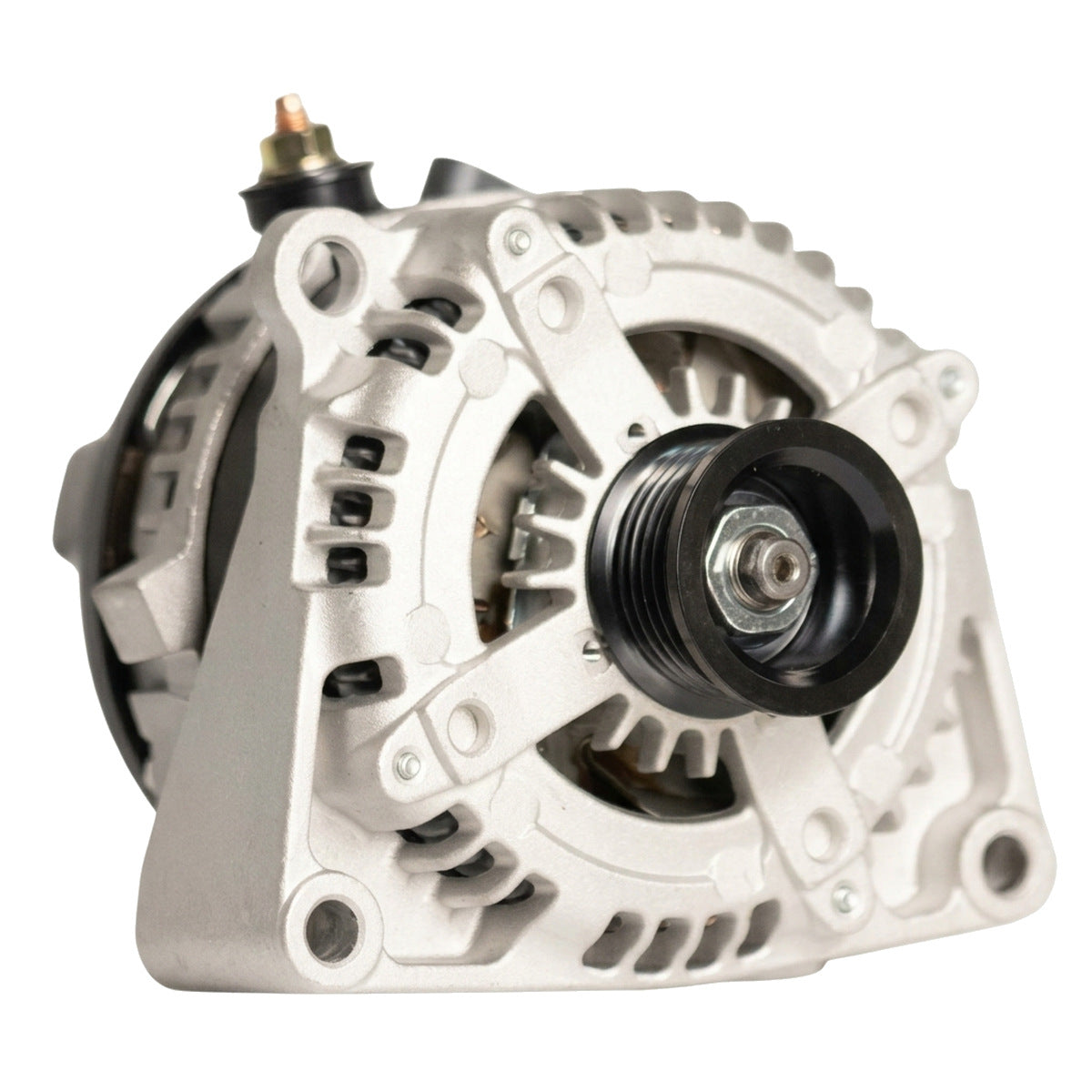

• 1x 300-Amp High Output Hairpin Alternator (12V, Clockwise Rotation, 6-Groove Pulley, 4-Pin Connector)

Technical Specifications

Compatibility

• 2001-2004 Chevrolet Tahoe 4.8L V8
• 2001-2004 Chevrolet Tahoe 5.3L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT800 Tahoe?

Yes, this is a direct fit for the 2001-2004 Chevrolet Tahoe equipped with the Vortec 4800 (LR4) or Vortec 5300 (LM7) V8. Does not replace the factory 124-amp alternator found on select sub-models.

Do I need upgraded wiring with this alternator?

A "Big 3" electrical upgrade using 0-gauge or 1/0-gauge copper power and ground cables is strongly recommended to handle 300 amps without thermal throttling or voltage drop.

The Chevrolet Truck Standard

Built for demanding towing, commercial hauling, and severe off-road duty, this alternator provides the stable voltage required to keep heavy-duty truck electronics operating without fault.
