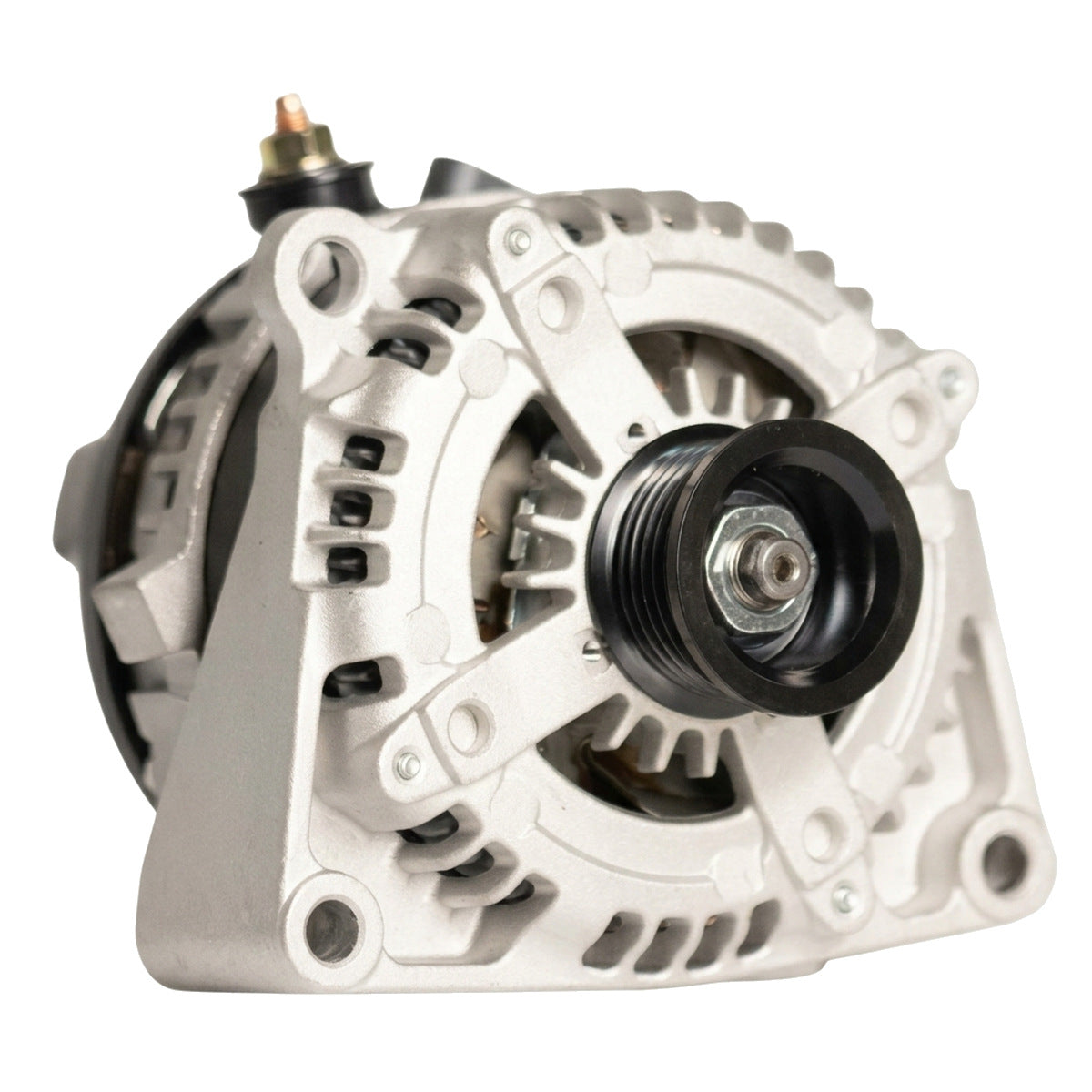

High Output Alternator for Chevrolet Suburban (2003-2004) 5.3L

High-Output 300A Hairpin Alternator for 2003-2004 Chevrolet Suburban (GMT800)

What it Does: The 300-amp hairpin high output alternator replaces the factory charging unit on 2003-2004 Chevrolet Suburban models to eliminate voltage drop and deliver stable electrical current under extreme auxiliary loads.

The Stock Chevrolet Suburban Charging Shortcoming

Factory GMT800 platforms equipped with the standard 105-amp or 145-amp units suffer significant voltage drop when powering aftermarket accessories such as winches, high-output stereo systems, overlanding gear, or auxiliary work lighting. The factory round-wire alternators produce low amperage at curb idle, causing thermal saturation within the internal diodes, premature brush wear, and insufficient charging across the dual-battery or high-draw setup.

The Engineering Solution

Engineered with heavy-duty hairpin stator architecture, this 300-amp unit dramatically reduces internal electrical resistance while dissipating heat more efficiently than conventional winding designs. The 12-volt, clockwise-rotation configuration features a pre-installed 6-groove serpentine pulley, heavy-duty internal rectifiers, and a direct-fit 4-pin connector. It sustains high-amperage output across low RPM ranges to protect the vehicle's electrical bus from damaging brownouts on the Vortec 5300 LM7 engine.

What's Included

• 1x 300 Amp High Output Hairpin Alternator

Technical Specifications

Compatibility

• 2003 Chevrolet Suburban 1500 (5.3L V8)
• 2004 Chevrolet Suburban 1500 (5.3L V8)

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT800 Suburban?

Yes, this is a direct fit for the 2003-2004 Chevrolet Suburban equipped with the Vortec 5300 LM7 engine. This alternator directly replaces factory 105-amp or 145-amp units, but does not fit models equipped with the factory 124-amp alternator.

Do I need to upgrade my main power cabling?

A 0-gauge or 4-gauge "Big 3" wiring upgrade is strongly recommended to safely carry 300 amps without excessive line resistance.

The Chevrolet Truck Reliability Standard

Built in the USA for heavy-duty hauling, recovery, and continuous load cycles, this high-output alternator delivers commercial-grade charging stability for your GMT800 truck under maximum towing stress.
