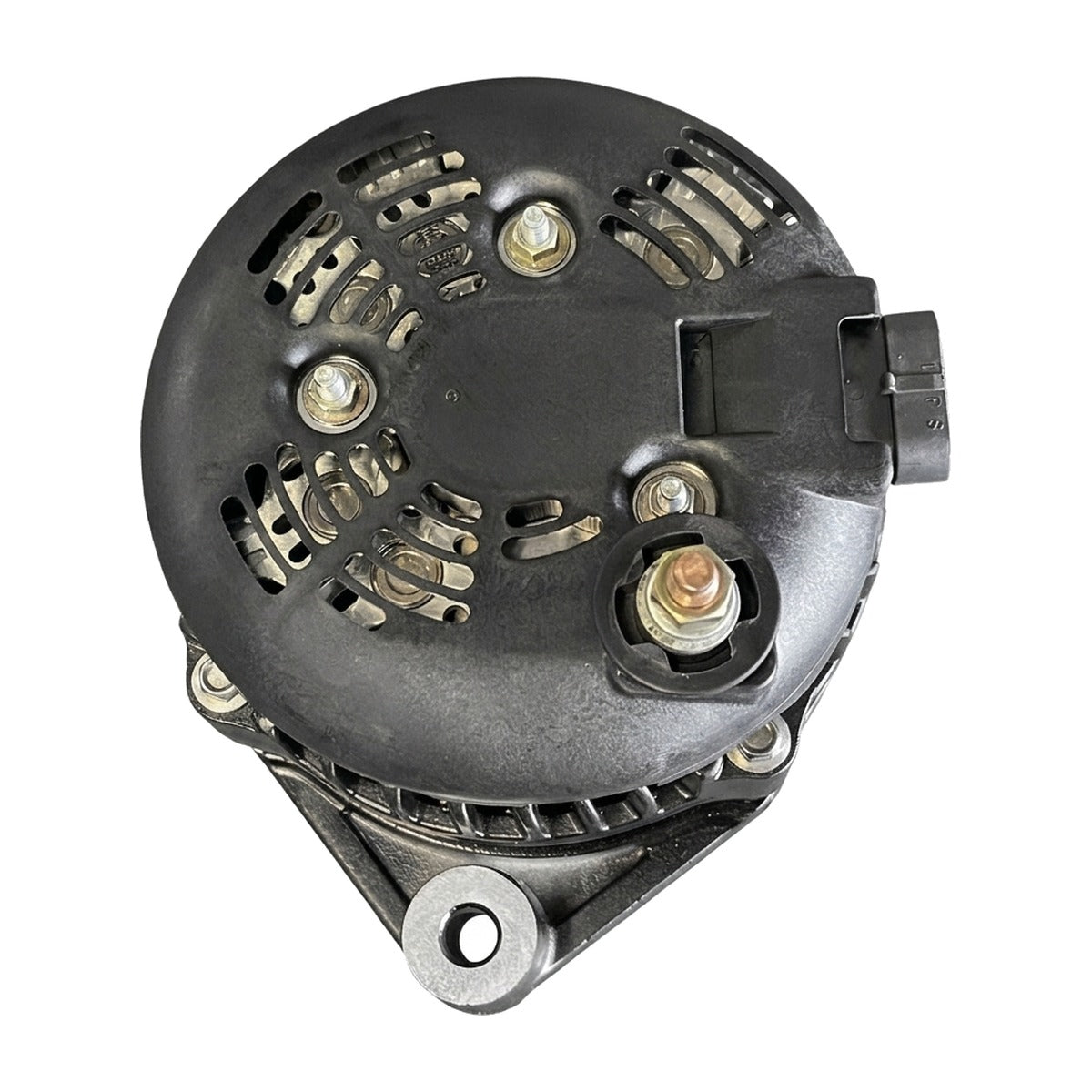

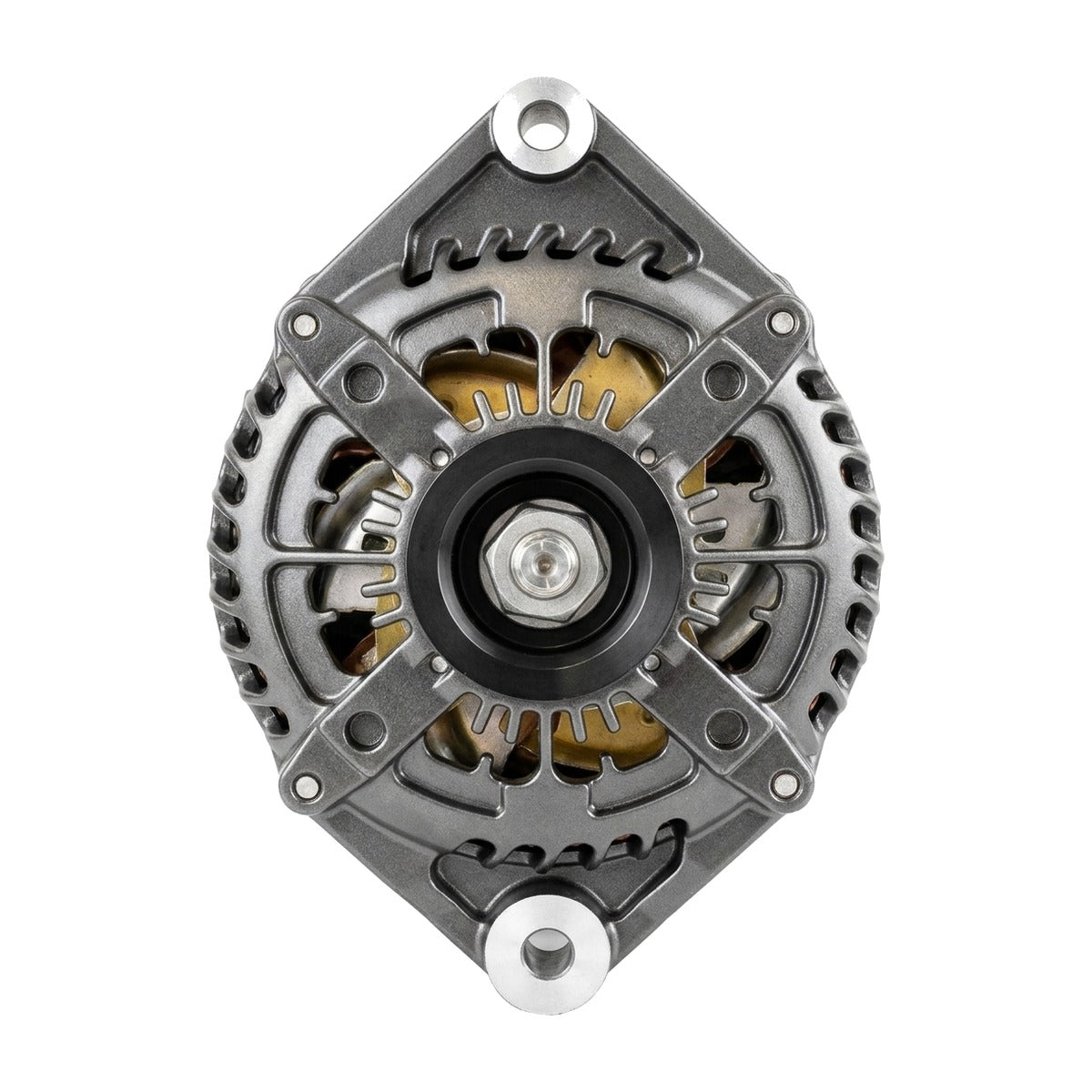

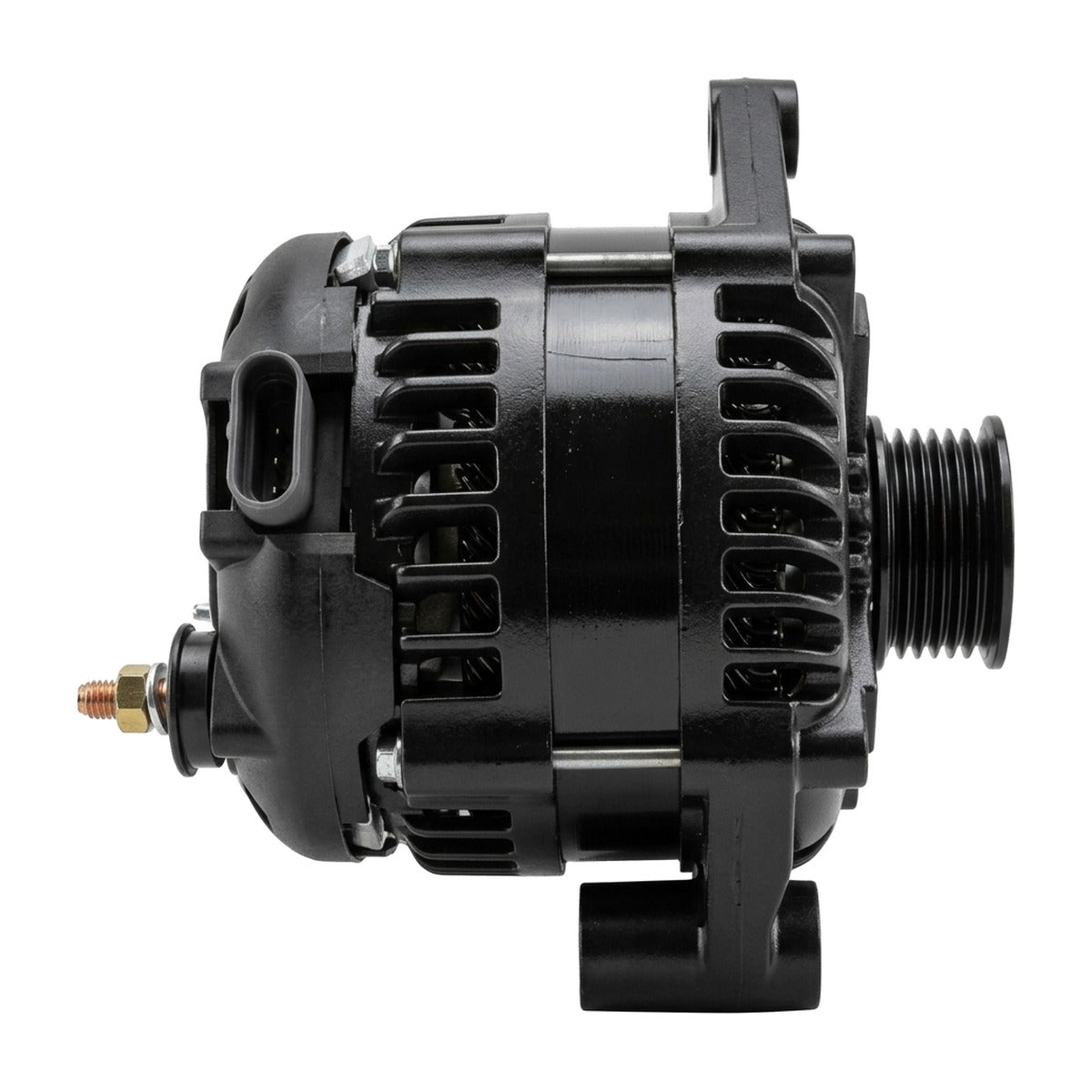

High Output Alternator for Chevrolet P30 (1992-1995) 5.7L

High-Amperage 400A Alternator for 1992-1995 Chevrolet P30 (P30 Chassis)

What it Does: The High Output 400 Amp Alternator replaces the factory Delco charging unit on the 1992-1995 Chevrolet P30 to stabilize electrical system voltage and provide sustained high-current capacity for heavy auxiliary loads.

The Stock Chevrolet P30 Electrical Bottleneck

Factory Delco-Remy alternators fitted to the commercial P30 chassis typically deliver between 100 and 140 amps, which proves inadequate when running heavy auxiliary equipment such as lift gates, high-draw inverters, refrigeration fans, or custom audio systems. Crucially, OEM units fall off sharply at idle (600–800 RPM), producing as little as 35 to 50 amps. This creates severe voltage drop, battery sulfation, and thermal stress on the internal rectifier diodes. Encapsulated within the forward-control engine doghouse of the P30, excessive under-hood heat soak regularly accelerates diode failure and causes premature rotor burn-out under sustained operational demand.

The Engineering Solution

This 400-amp hairpin-stator alternator is engineered to overcome severe duty cycles. By packing heavy-gauge copper stator windings into a high-density footprint, internal resistance is reduced while current transfer efficiency is drastically increased. It generates approximately 200 amps at engine idle and surges to a sustained 400 amps at 1,200 RPM. The unit integrates an internal one-wire 15.1-volt regulator, premium high-temperature sealed bearings, and a dynamically balanced rotor assembly to suppress harmonic vibration. It mounts directly into the factory accessory bracketry of the L05 small block engine while replacing OEM part numbers 10463386 and 10480024.

What's Included

• 1x High Output 400 Amp Alternator (Part # 8163-2)

Technical Specifications

Compatibility

• 1992-1995 Chevrolet P30 Base 5.7L V8 (Gasoline)
• 1992-1995 Chevrolet P30 Step Van / Commercial Forward Control 5.7L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the P30 chassis?

Yes, this is a direct fit for the 1992-1995 Chevrolet P30 equipped with the L05 5.7L small block V8 engine.

Are wiring modifications required to run this high-amperage alternator?

Yes, a dedicated 0-gauge all-copper positive charge cable and heavy ground are required to safely transfer 400 amps, along with a drive belt one size shorter than stock.

The Chevrolet Commercial Caliber

Engineered for rigorous fleet operations and commercial step van platforms, this heavy-duty charging upgrade ensures uninterrupted electrical delivery without thermal throttling under severe continuous duty.
