High Output Alternator for Chevrolet Malibu (2019-2020) 1.5L

High-Amperage 250A Alternator for 2019-2020 Chevrolet Malibu (E2XX)

What it Does: The 250 Amp High Output Alternator replaces the factory charging unit on the 2019-2020 Chevrolet Malibu to supply stable high-amperage 12V current, eliminating system voltage drop under heavy auxiliary electrical loads.

The Stock Chevrolet Malibu Charging Limitation

The OEM charging system on the E2XX platform Malibu is calibrated strictly for standard baseline electronics. When aftermarket audio amplifiers, lighting, or supplemental electrical accessories are added, the factory alternator cannot maintain target charging voltage at idle. Under continuous load and engine bay thermal stress, OEM rectifier diodes overheat, leading to intermittent voltage collapse below 13.5V, dimming headlamps, parasitic battery drain, and premature battery failure.

The Engineering Solution

Engineered as a direct bolt-on upgrade, this 250-amp unit utilizes heavy-gauge pure copper stator windings paired with a precision dynamically balanced rotor to maximize current density while minimizing internal resistance. Premium dual-sealed low-friction bearings withstand sustained high RPMs, and an internal heavy-duty solid-state voltage regulator ensures continuous 13.5V–14.5V output across all engine operating ranges. It utilizes the factory mounting architecture and harness connector for seamless integration without bracket fabrication.

What's Included

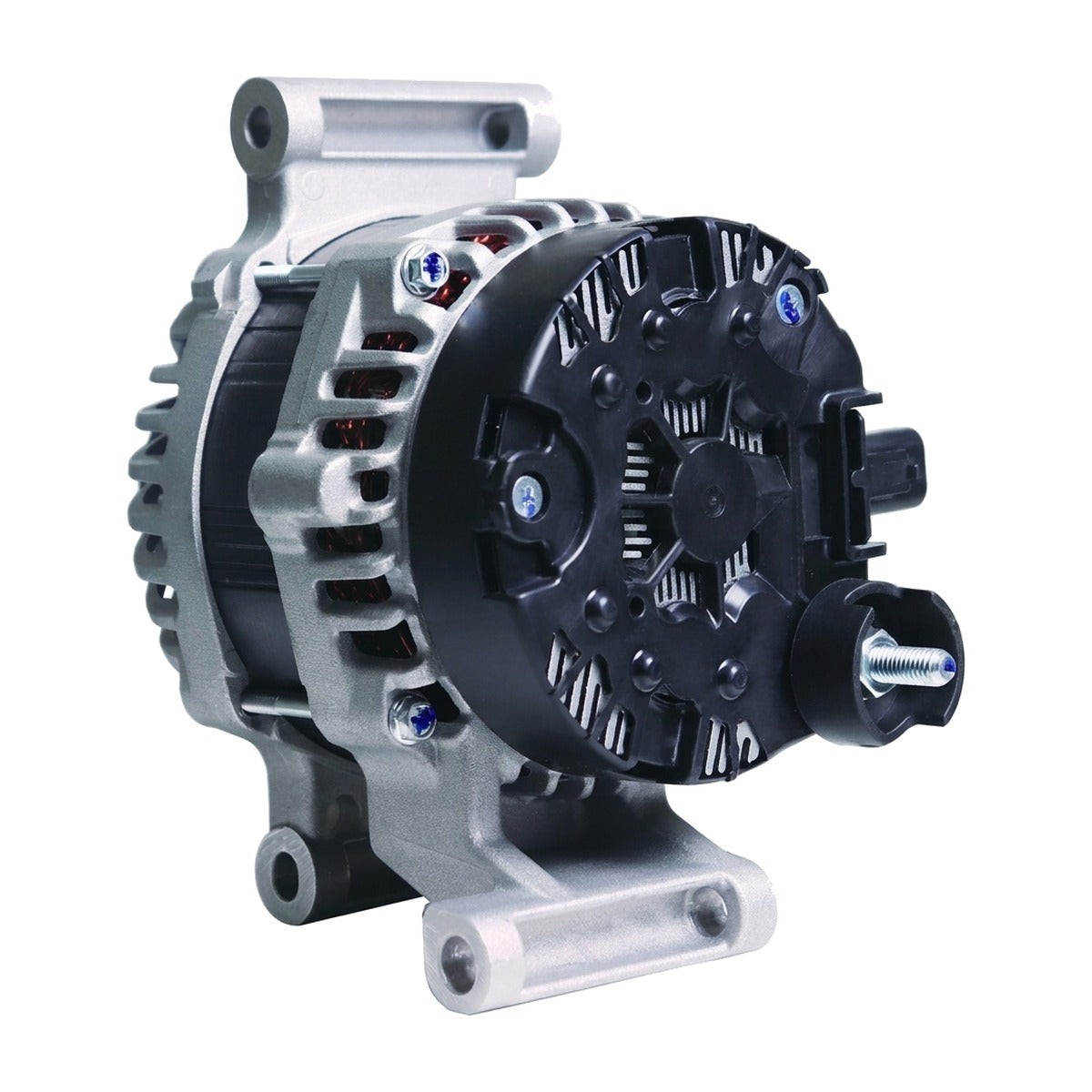

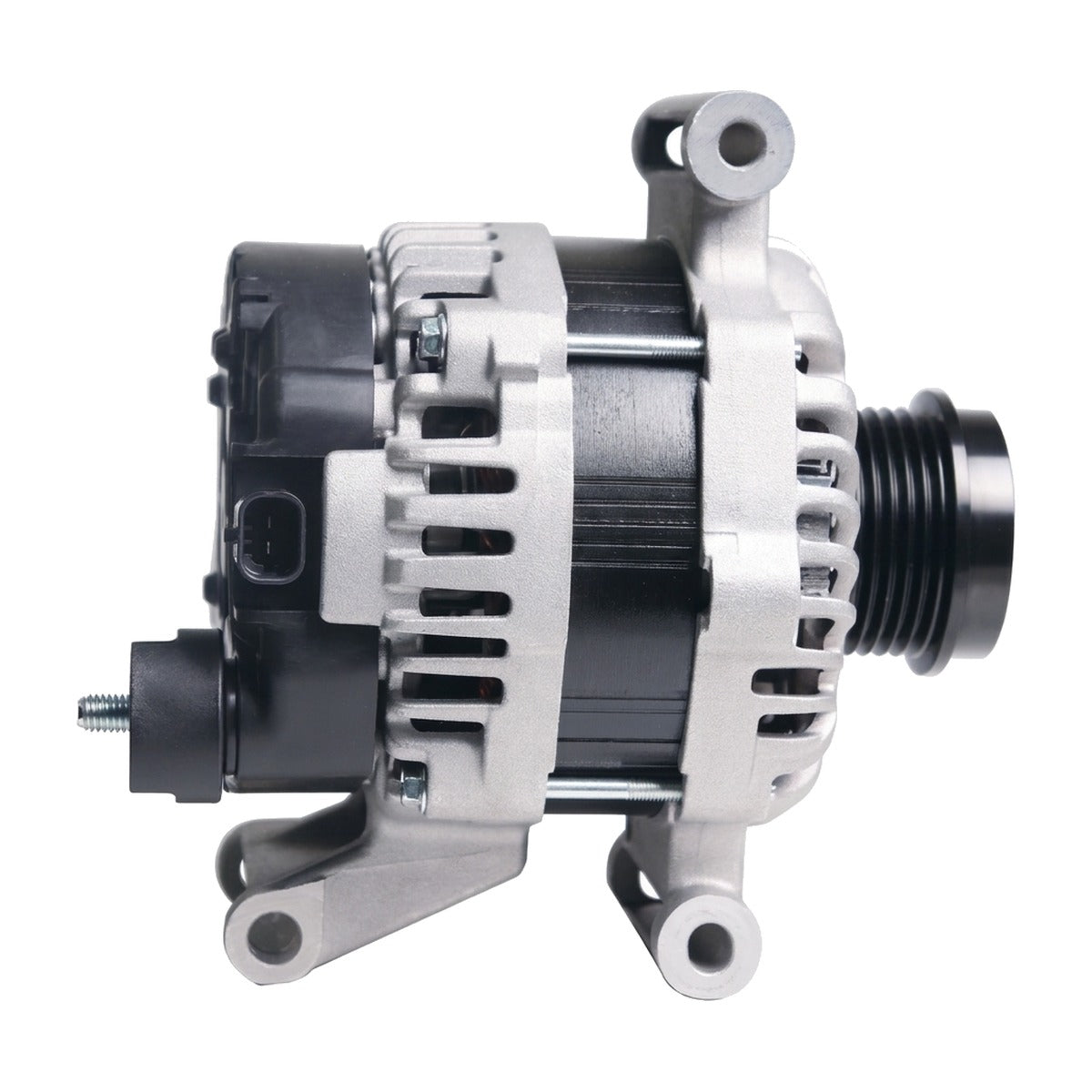

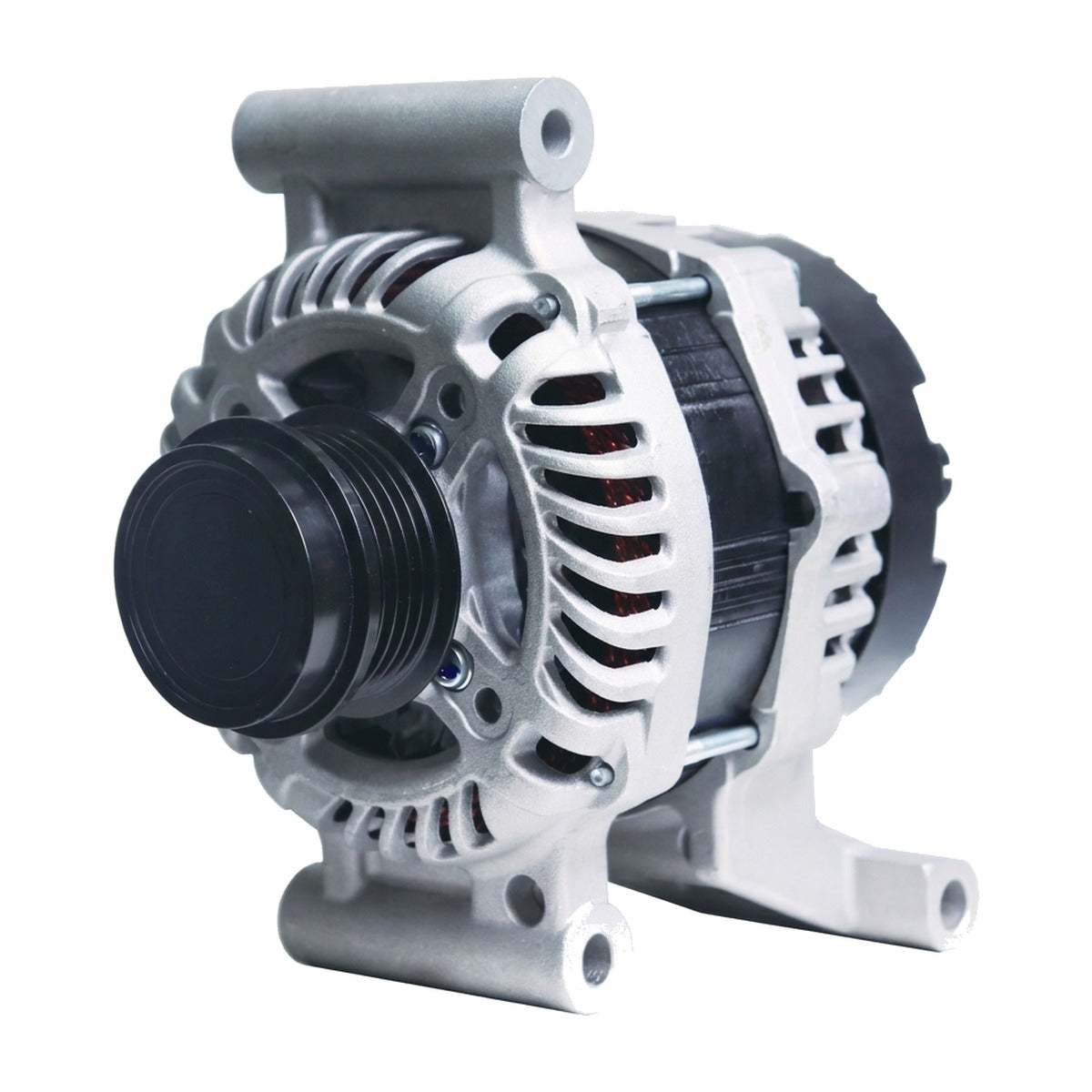

• 1x 250 Amp High Output Alternator (Part # 44002)

Technical Specifications

Compatibility

• 2019 Chevrolet Malibu 1.5L L4 Turbo (L, LS, RS, LT)
• 2020 Chevrolet Malibu 1.5L L4 Turbo (LS, RS, LT)

Frequently Asked Questions & Fitment Warnings

Does this fit the E2XX Malibu?

Yes, this is a direct fit for the 2019-2020 Chevrolet Malibu equipped with the 1.5L LFV turbo engine using factory interchange numbers 13534118 and A005TV0184ZC.

Do I need to upgrade the primary charging wire?

While the unit bolts directly into the factory location and plugs into the OEM harness, performing a "Big 3" upgrade with 4-gauge or 1/0-gauge charge and ground cables is recommended to achieve the full 250-amp output without thermal line losses.

The Chevrolet Reliability Standard

Built to exceed factory duty-cycle thresholds, this heavy-duty alternator provides the sustained amperage modern GM digital architectures and high-draw aftermarket components demand, bench-tested to guarantee steady voltage output under extreme engine thermal cycles.
