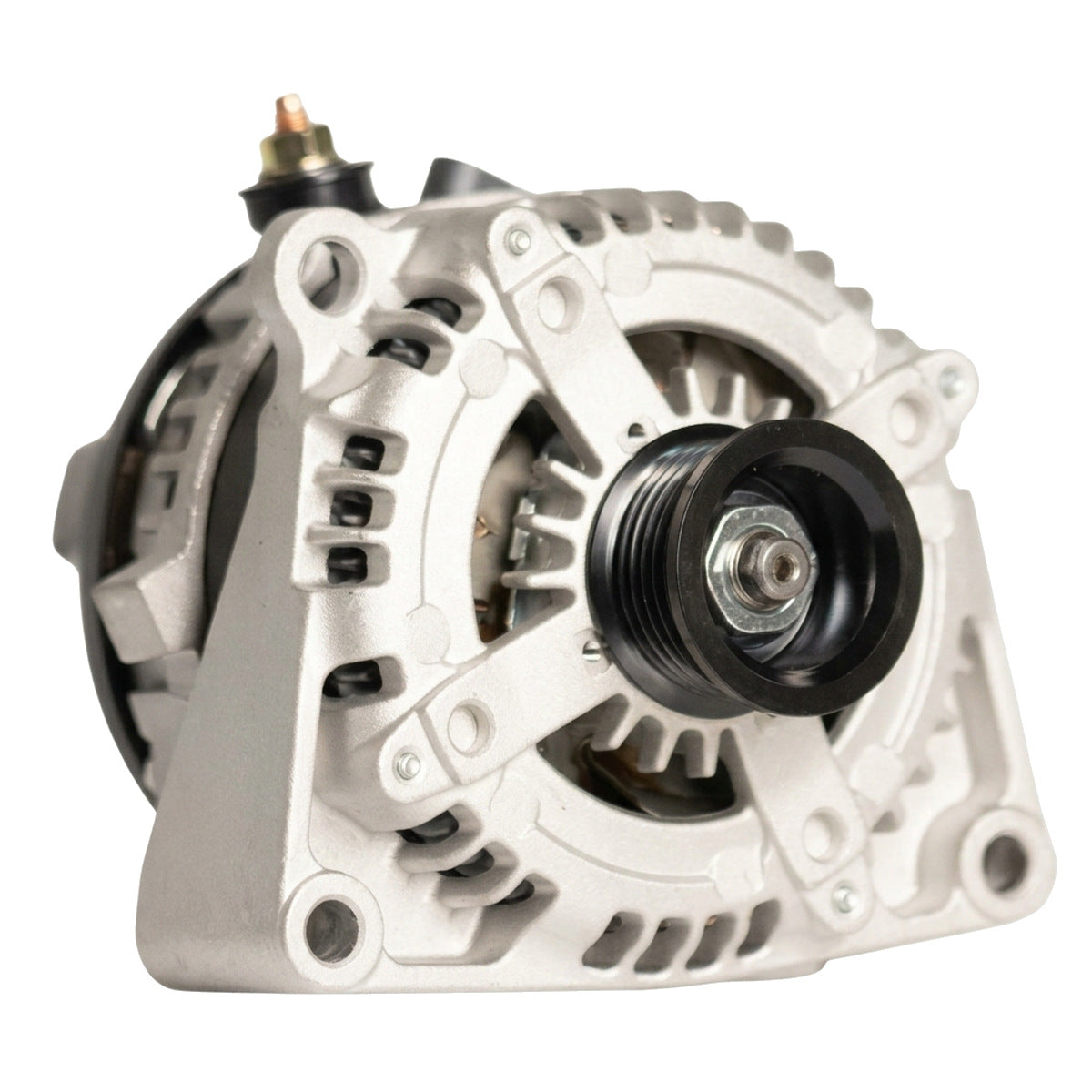

High Output Alternator for Chevrolet Express (2001-2002) 4.3L 5.0L 5.7L 6.5L 8.1L

High-Output 300A Alternator for 2001-2002 Chevrolet Express (GMT600)

What it Does: The 300-amp high-output alternator replaces the low-output factory charging unit on the 2001-2002 Chevrolet Express to eliminate severe voltage drops and reliably sustain heavy auxiliary electrical loads.

The Stock Chevrolet Express Electrical Bottleneck

Factory charging systems on the first-generation GMT600 platform typically rely on standard 100-amp to 105-amp factory units that struggle when subjected to continuous commercial duty. Under modern operating conditions—including power inverters, secondary battery banks, hydraulic liftgates, auxiliary work lighting, or high-draw sound equipment—the OEM alternator suffers rapid heat soak. High engine bay ambient temperatures combined with maximum stator saturation cause premature diode pack failure, regulator burnout, and system voltage drops below 12.5 volts at idle, which degrades battery service life and induces electrical noise across sensitive powertrain sensors.

The Engineering Solution

Engineered for high current delivery and thermal endurance, this 300-amp alternator features precision heavy-gauge copper windings, premium high-amperage internal rectifiers, and heavy-duty avalanche diodes that withstand extended elevated temperatures. Built in the USA, it provides exceptional output even at engine idle speeds, maintaining a stable 14.4-volt charge profile under heavy electrical draw. Designed as a direct bolt-on upgrade replacing OEM numbers 10480388, 10464438, 321-1798, and 8247, this unit integrates seamlessly with factory mounting brackets across both Vortec and Detroit Diesel powerplants.

What's Included

• 1x 300-Amp High Output Alternator

Technical Specifications

Compatibility

• 2001-2002 Chevrolet Express 4.3L V6 (LU3/L35)
• 2001-2002 Chevrolet Express 5.0L V8 (L30)
• 2001-2002 Chevrolet Express 5.7L V8 (L31)
• 2001-2002 Chevrolet Express 6.5L V8 Turbo Diesel (L65)
• 2001-2002 Chevrolet Express 8.1L V8 (L18)

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT600 Express?

Yes, this is a direct fit for the 2001-2002 Chevrolet Express equipped with the 4.3L, 5.0L, 5.7L, 6.5L, or 8.1L engine packages.

Do I need to upgrade charging cables for this 300A alternator?

Yes, a "Big 3" wiring upgrade utilizing minimum 1/0 AWG power and ground cables with inline fused circuit protection is required to safely carry 300 amps.

The Chevrolet Workhorse Standard

Engineered for high-demand fleet work, extended idling, and rigorous commercial hauling, this charging solution delivers the sustained current capacity needed to keep your heavy-duty Express running reliably without electrical brownouts.
