High Output Alternator for Chevrolet Astro (1996-1999) 4.3L

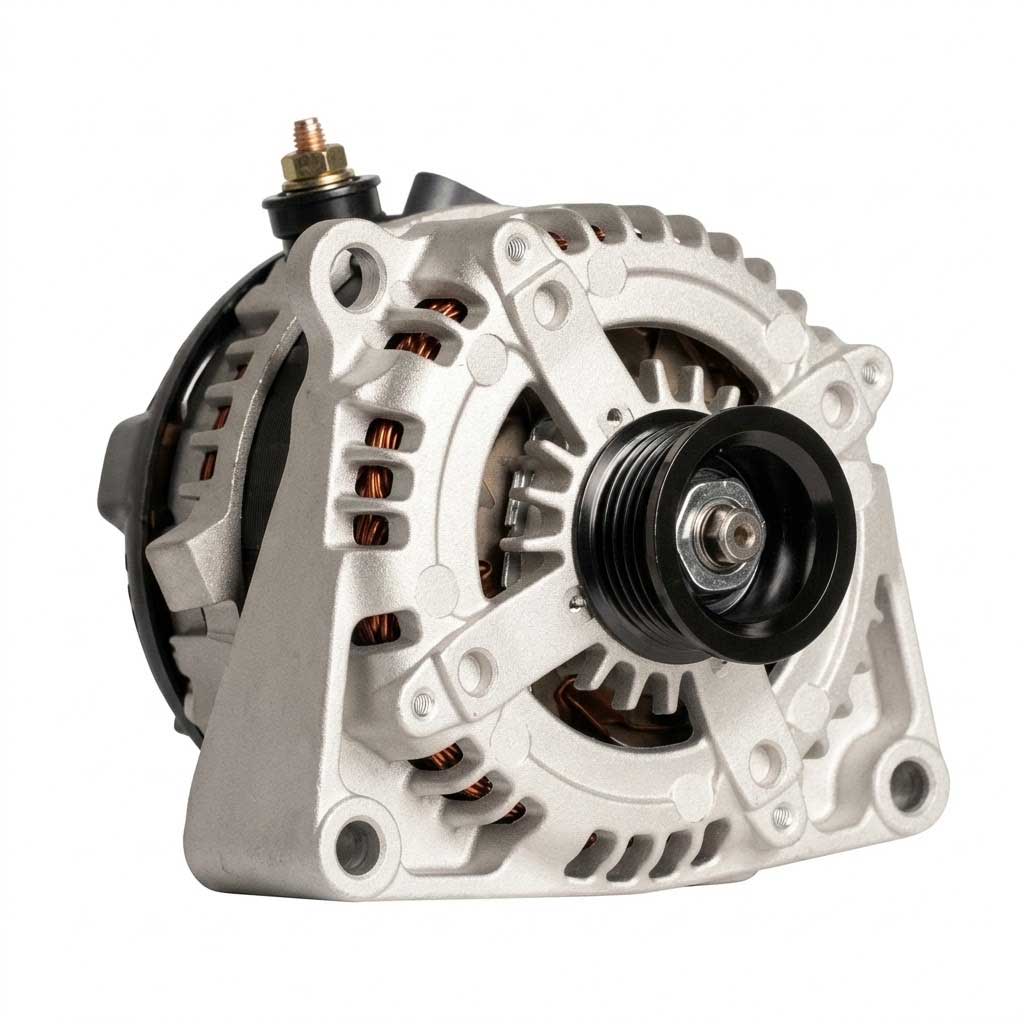

High-Output 250 Amp Alternator for 1996-1999 Chevrolet Astro (GM M-Platform)

What it Does: The 250 Amp High-Output Alternator upgrades the factory charging system on the 1996-1999 Astro to eliminate voltage drop and deliver stable high-amperage current under heavy auxiliary electrical loads.

The Stock Chevrolet Astro Charging Limitations

Factory charging systems on the GM M-Platform Astro van utilize standard Delco CS130D units delivering a nominal 100 to 105 amps. At idle and lower operating RPMs, output frequently drops below 55 amps, inducing severe voltage sag when running upgraded stereo setups, towing brake controllers, aftermarket auxiliary lighting, or conversion equipment. Over continuous electrical strain, OEM rectifiers and diodes suffer heat soak, leading to degraded diode packs, stator insulation breakdown, and chronic premature battery discharge.

The Engineering Solution

This heavy-duty 250-amp alternator delivers continuous, reliable amperage with enhanced idle recovery. Assembled with precision-wound, heavy-gauge copper stators, an oversized rotor, and a heavy-duty avalanche diode bridge, this unit mitigates heat-induced resistance and thermal degradation. Designed as a direct drop-in replacement for the Vortec 4300 (L35) bracket configuration, it retains proper belt line alignment without modifying serpentine pulleys or tensioners while effortlessly replacing OEM references 10463651 and 10480167.

What's Included

• 1 x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 1996 Chevrolet Astro 4.3L V6
• 1997 Chevrolet Astro 4.3L V6
• 1998 Chevrolet Astro 4.3L V6
• 1999 Chevrolet Astro 4.3L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the GM M-Platform Astro?

Yes, this is a direct fit for the 1996-1999 Chevrolet Astro equipped with the 4.3L Vortec (L35) engine.

Do I need to upgrade my main charging cables when installing this unit?

Yes, running a "Big 3" wiring upgrade with a 1/0 AWG or 4 AWG power and ground cable is strongly recommended to handle the increased 250-amp flow safely without bottle-necking your electrical architecture.

The Chevrolet Van Commercial Durability

Constructed specifically to match heavy-use utility, cargo, and overland applications, this alternator maintains relentless power distribution so your hauler never falters under severe duty cycles.
