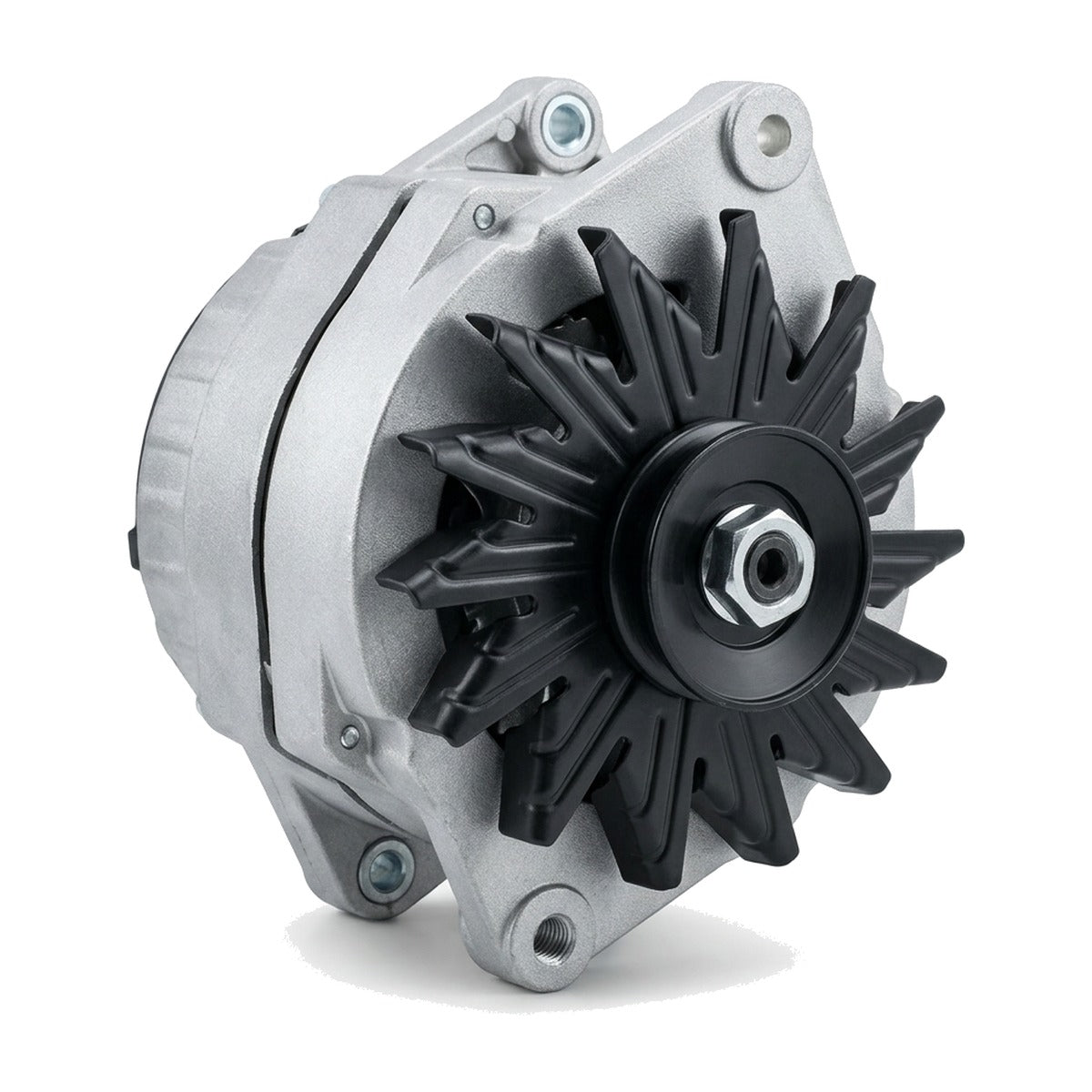

High Output Alternator for Cadillac Deville (1980-1984) 4.1L 5.7L 6.0L

High-Output 200-Amp Alternator for 1980-1984 Cadillac Deville (C-Body)

What it Does: The High Output Alternator supplies up to 200 amps of charging current to the 1980-1984 Cadillac Deville electrical system, eliminating voltage drop and maintaining battery charge under modern electrical demands.

The Stock Cadillac Deville Charging Deficiencies

Factory Delco-Remy alternators on the GM C-Body Cadillac Deville produce between 63 and 80 amps at peak operating speeds, dropping below 35 amps at warm idle. This factory current capacity was barely adequate for stock equipment like the automatic climate control and power windows. Under the burden of modern aftermarket accessories—such as high-draw stereo amplifiers, modern cooling fans, auxiliary lighting, or additional audio electronics—the original windings and external diode rectifiers experience severe thermal saturation. Excessive stator heat soak leads to rapid voltage drop below 12.6V at curb idle, causing dimmed incandescent lighting, sluggish power window actuation, erratic electronic fuel injection sensors on the HT4100 and L62 V8-6-4, and eventual deep battery discharge.

The Engineering Solution

This heavy-duty 200-amp alternator features precision heavy-gauge copper hairpin stator windings and a balanced low-resistance rotor to ensure high current generation even at idle RPM. Upgraded internal silicon diode rectifiers deliver improved heat dissipation to withstand continuous duty cycles without output derating. Built with factory-matched mounting ears and proper V-belt pulley offset, this unit fits OEM brackets directly while retaining OE plug terminal geometry. It directly substitutes original part numbers 1101091, 1101178, 1101435, 1105577, and 1105637 without requiring bracket fabrication.

What's Included

• 1 High Output 200-Amp Alternator

Technical Specifications

Compatibility

• 1980 Cadillac DeVille 4.1L V6
• 1982-1984 Cadillac DeVille 4.1L V8
• 1980-1984 Cadillac DeVille 5.7L diesel
• 1980-1981 Cadillac DeVille 6.0L

Frequently Asked Questions & Fitment Warnings

Does this fit the C-Body Deville?

Yes, this is a direct fit for the 1980-1984 Cadillac Deville equipped with the HT4100, LF9, and L62 engines using stock mounting locations.

Do I need to upgrade my charging wiring?

Yes, running a minimum 4-gauge Big 3 wiring upgrade (battery positive to alternator, engine ground, and chassis ground) is strongly advised to support the full 200-amp draw safely without bottlenecking current through the factory harness.

The Cadillac Luxury Touring Standard

Engineered to support modern audio systems and demanding electronic accessories, this alternator preserves rock-solid 14.4V system stability for a reliable, smooth touring experience in your classic Cadillac cruiser.
