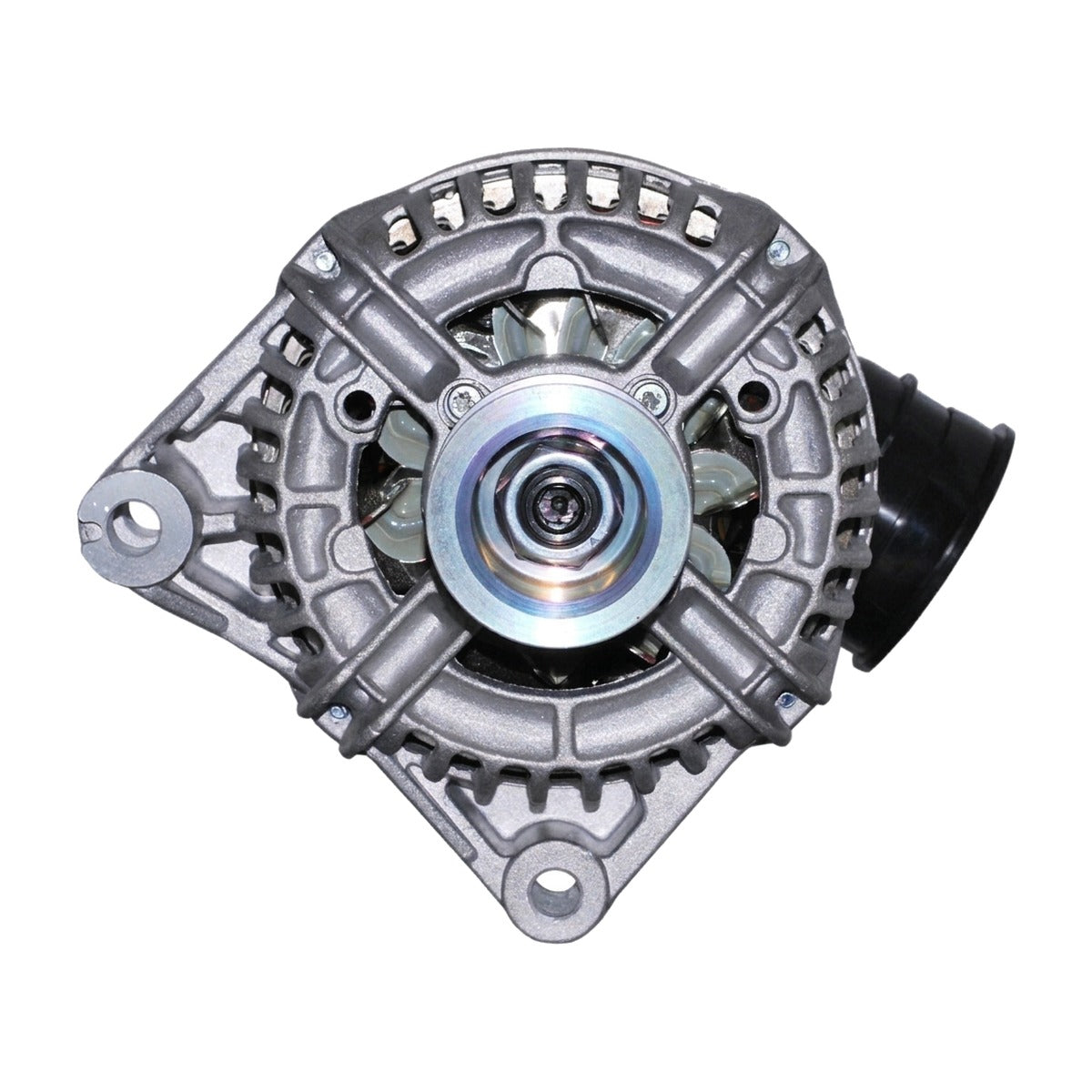

High Output Alternator for BMW X5 (2001-2004) 3.0L

High-Amperage 200A Direct-Fit Alternator for 2001-2004 BMW X5 (E53)

What it Does: The high output 200-amp alternator delivers increased charging capacity to the 2001-2004 BMW X5 to eliminate voltage drop at idle and support demanding aftermarket electrical accessories.

The Stock BMW X5 Charging Deficiencies

The factory charging system on the E53 platform with the M54 engine was engineered strictly for factory electrical loads. Over time, internal diode rectifiers degrade from persistent thermal cycling, leading to voltage irregularities under 13.5V. When modern accessories such as aftermarket audio amplifiers, auxiliary lighting, or high-draw cooling fans are introduced, the OEM 120A or 140A unit experiences thermal saturation. This results in dimming cabin lights, battery drain during stop-and-go idling, and premature wear on factory control modules sensitive to low-voltage ripple.

The Engineering Solution

Engineered as a bolt-in replacement, this heavy-duty unit supplies a continuous 200 amps at operating temperature. Built around high-purity heavy-gauge copper stator windings and a dynamically balanced rotor, it delivers superior current density while resisting internal resistance heat buildup. High-temperature sealed bearings reduce drag and rotational runout under continuous belt load, while an internal solid-state voltage regulator maintains a steady 14.0 to 14.5 volts across all RPM ranges. Designed to match OEM clocking and bracket geometry, it interfaces directly with factory electrical connections with zero wiring harness modification.

What's Included

• 1 High Output 200-Amp Alternator (Part # 13970)

Technical Specifications

Compatibility

• 2001-2004 BMW X5 3.0i (E53 Chassis, 3.0L M54 I6 Gas)

Frequently Asked Questions & Fitment Warnings

Does this fit the E53 X5?

Yes, this is a direct fit for the 2001-2004 BMW X5 equipped with the M54 3.0L inline-six engine; it does not fit 4.4i, 4.6is, or 4.8is V8 models.

Do I need to upgrade my battery cables with this high output unit?

While this alternator utilizes the factory connector and terminal post, upgrading the main B+ charge wire and engine ground cables (Big 3 upgrade) is highly recommended to achieve the full 200-amp continuous throughput without voltage drop.

The BMW Precision Standard

BMW bus-network systems demand clean, spike-free electrical flow to maintain module communication across the instrument cluster and DME. This alternator eliminates harmonic noise and stabilizes reference voltages, preventing false error codes and restoring the rock-solid electronic reliability expected of the Bavarian marque.
