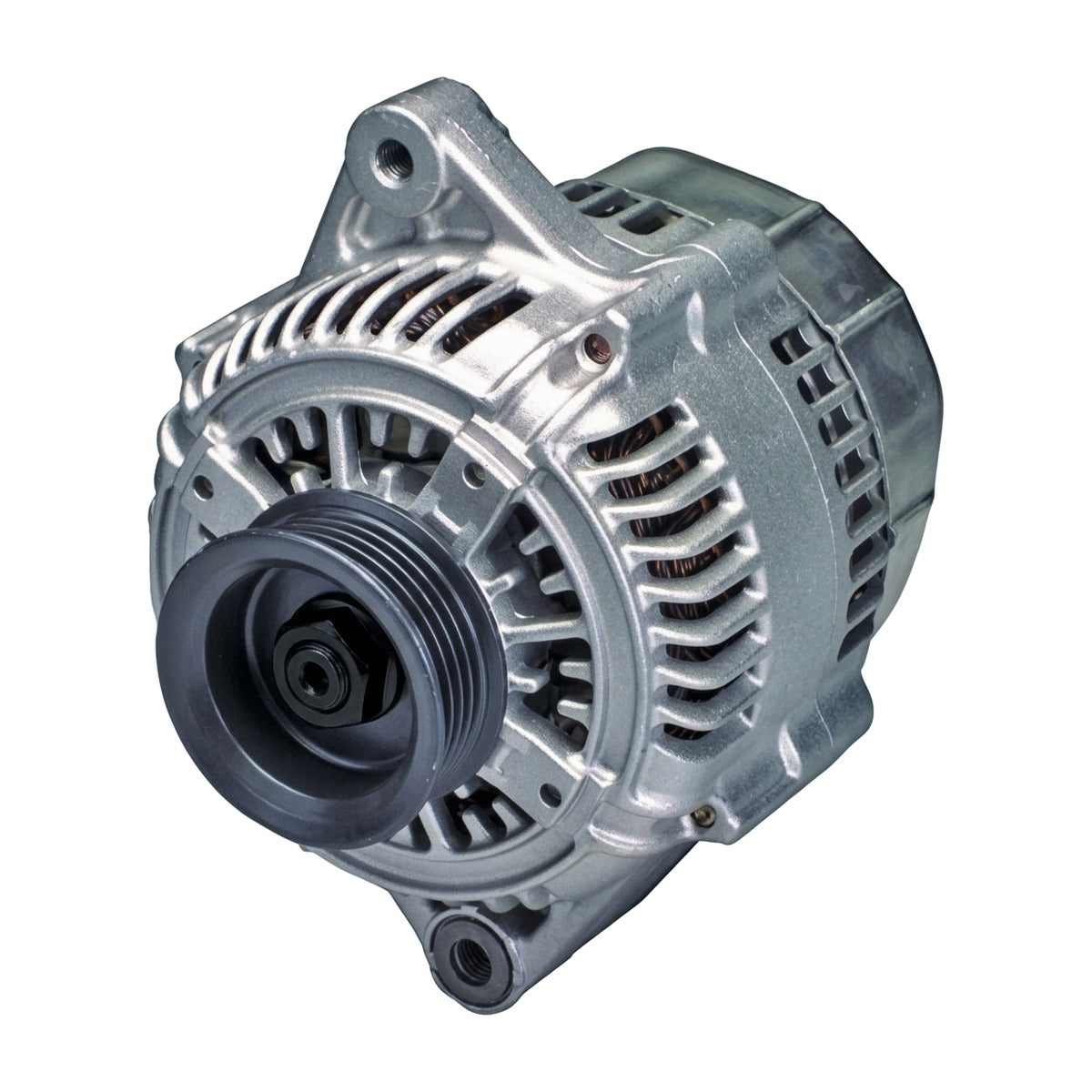

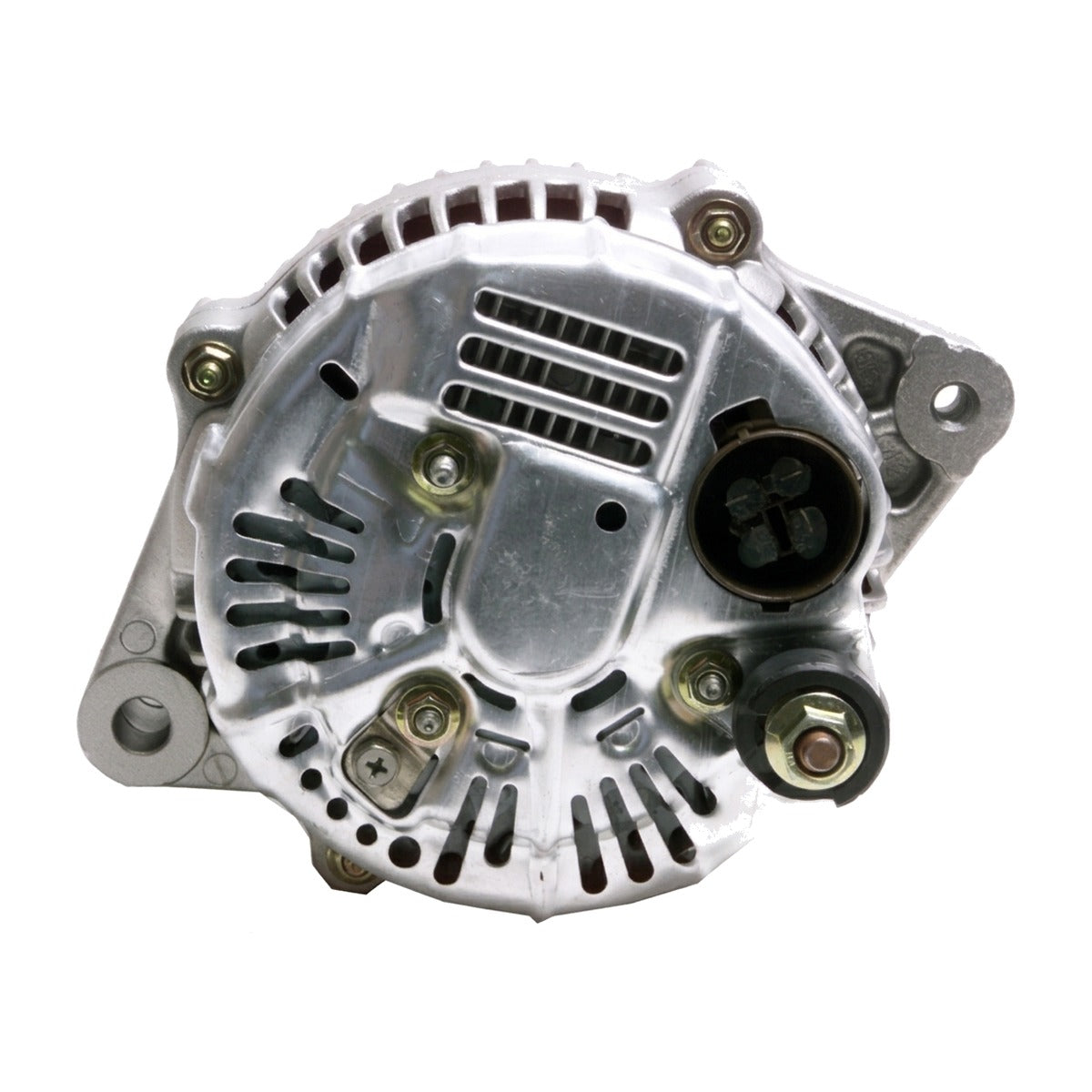

High Output Alternator for Acura Legend (1991-1995) 3.2L

High-Amperage 220A Alternator for 1991-1995 Acura Legend (KA7/KA8)

What it Does: The high output 220-amp alternator delivers continuous, stabilized charging current to the 1991-1995 Acura Legend electrical architecture, preventing idle voltage drop during sustained high accessory draw.

The Stock Acura Legend Charging Limitations

The factory KA7 and KA8 charging system relies on an OEM 90-amp alternator engineered strictly for period-correct factory accessories. When subjected to modern electrical demands—such as high-RMS audio amplifiers, auxiliary lighting, or high-cfm electric cooling fans—the factory stator quickly reaches thermal saturation. At idle (650–750 RPM), the original unit outputs minimal current, causing system-wide voltage drops below 12.6V. This results in headlight dimming, delayed ignition coil saturation, rough idling, and premature battery degradation under sustained mechanical and thermal loads.

The Engineering Solution

Engineered for the longitudinal C32A platform, this heavy-duty 220-amp alternator dramatically improves current output across the entire RPM spectrum, delivering substantial amperage at idle. Featuring high-conductivity copper windings, heavy-duty avalanche diode rectifiers, and precision-balanced rotors, this unit dissipates heat efficiently under prolonged high-duty cycles. It is precision-machined to retain direct factory bolt-to-block geometry, OE pulley alignment, and the factory regulator harness plug, requiring zero bracket modifications while replacing OEM reference 31100-P5G-003 seamlessly.

What's Included

• 1x High Output 220-Amp Alternator

Technical Specifications

Compatibility

• 1991-1995 Acura Legend Sedan 3.2L V6 (KA7)
• 1991-1995 Acura Legend Coupe 3.2L V6 (KA8)

Frequently Asked Questions & Fitment Warnings

Does this fit the KA7/KA8 Legend?

Yes, this is a direct fit for the 1991-1995 Acura Legend equipped with the C32A 3.2L V6 engine.

Do I need to upgrade my electrical wiring?

For high-load applications exceeding 100 amps of continuous draw, performing a "Big 3" charge wire and ground cable upgrade is strongly recommended to utilize the full 220-amp output safely.

The Acura Caliber

Preserve the performance and electrical integrity of classic JDM executive power. Stable voltage delivery protects sensitive onboard ECUs, ignition modules, and modern audio components without compromising legendary mechanical reliability.
