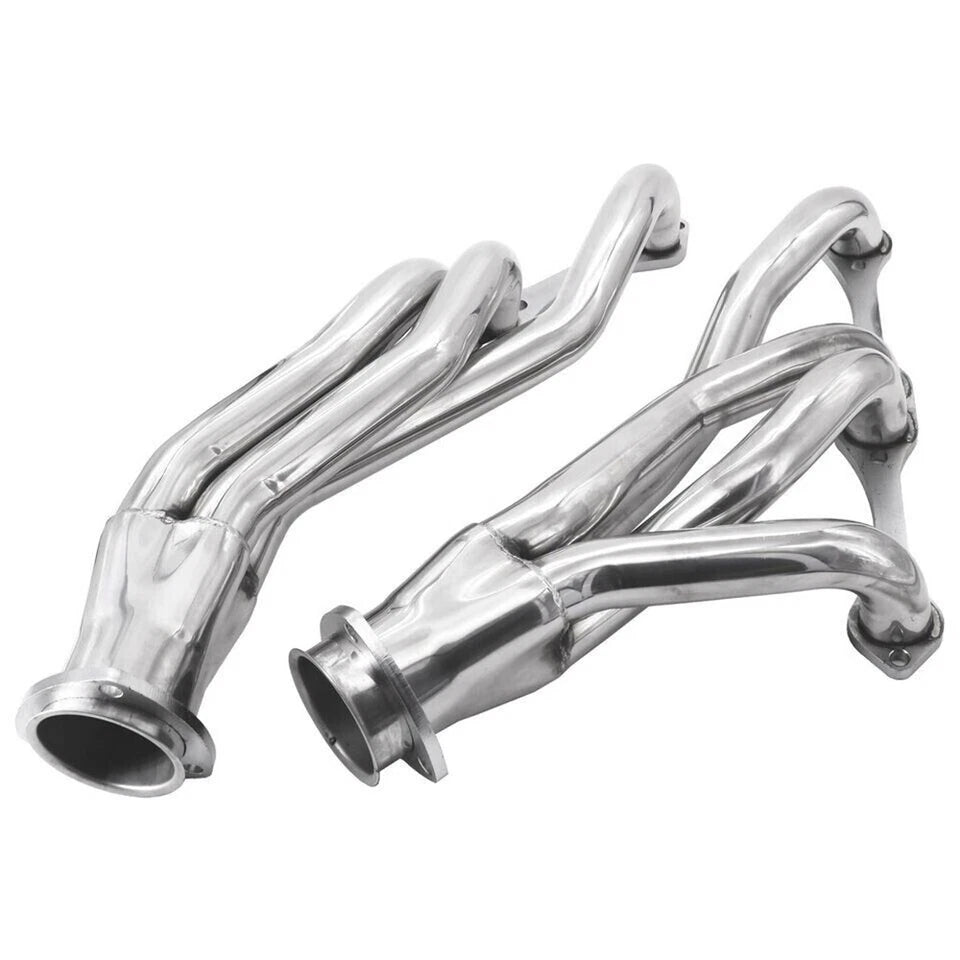

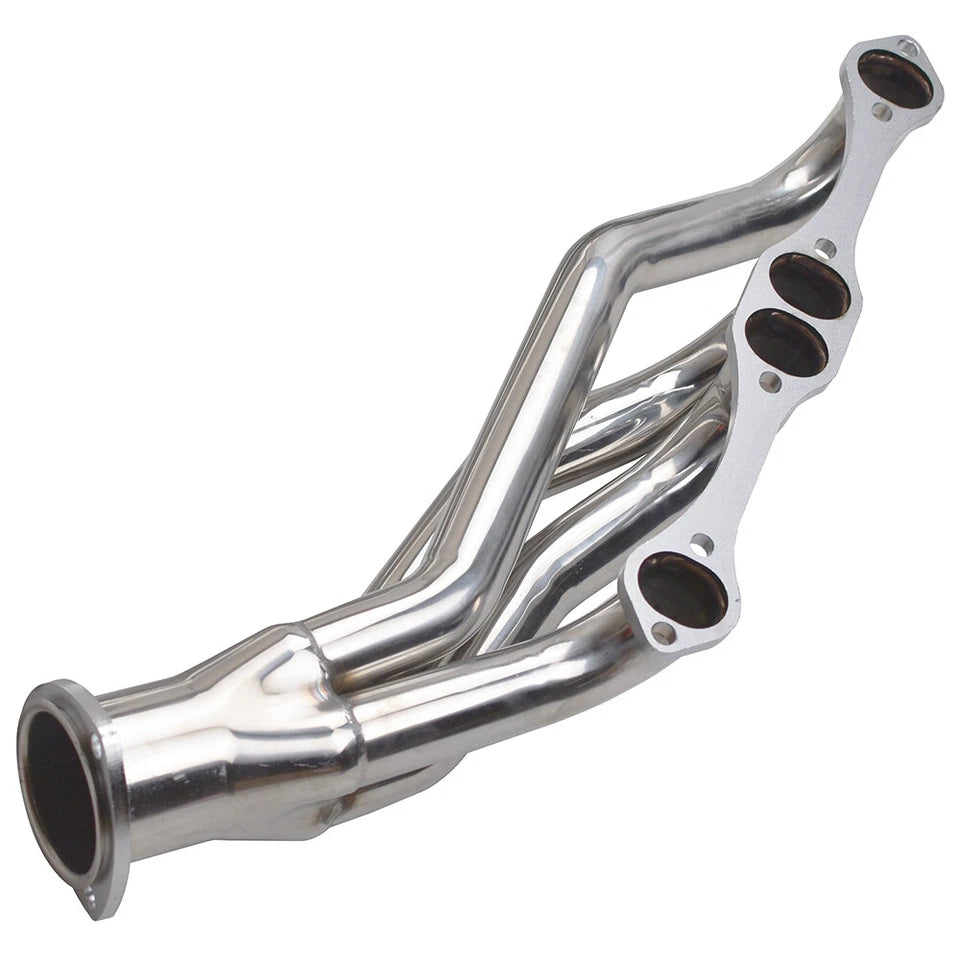

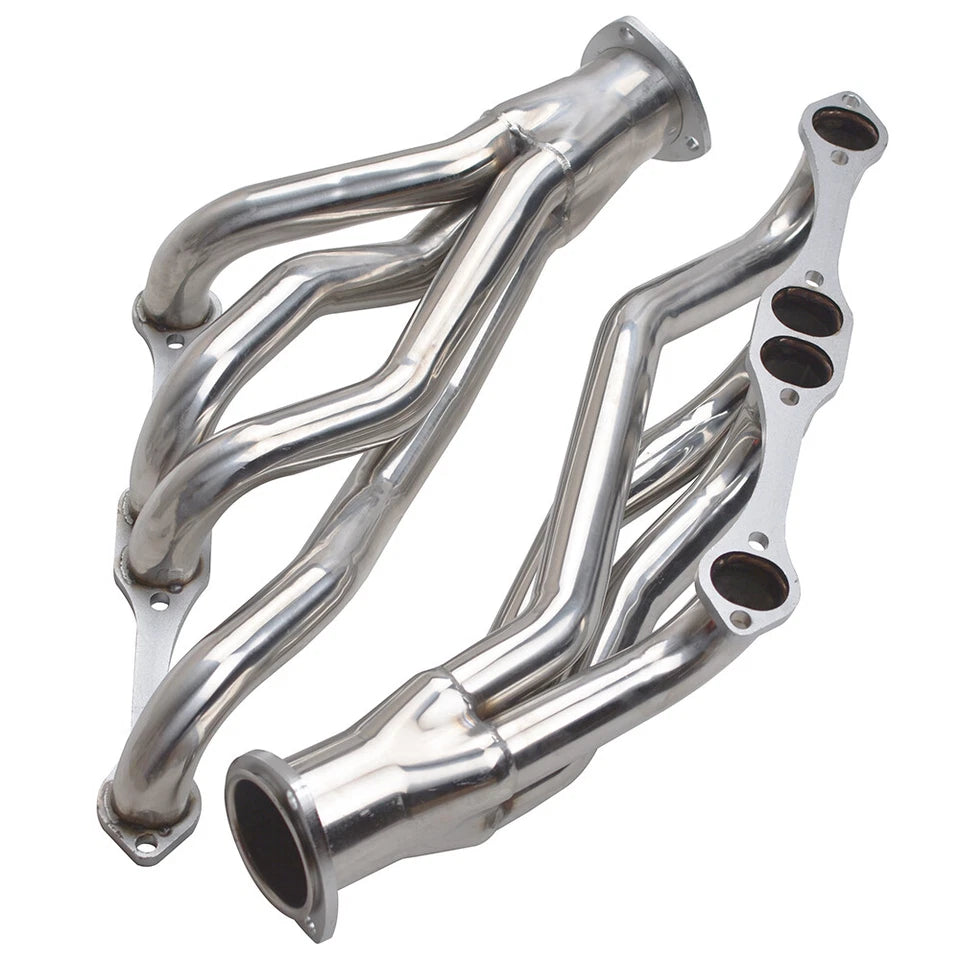

Exhaust Header for Chevrolet Camaro (1968-1969) 5.0L 5.4L 5.7L

High-Flow Stainless Exhaust Headers for 1968-1969 Chevrolet Camaro (F-Body)

What it Does: The high-flow exhaust header replaces restrictive factory cast-iron exhaust manifolds on the 1968-1969 Camaro to eliminate backpressure and optimize exhaust gas scavenging across all eight cylinders.

The Stock Chevrolet Camaro Exhaust Manifold Restriction

Factory F-Body small-block manifolds were engineered for low-cost mass production rather than volumetric efficiency. The OEM cast-iron "log" style castings feature uneven runner lengths and abrupt internal transitions, forcing adjacent exhaust pulses to collide. This creates heavy reversion and high parasitic pumping loss in high-RPM operation. Additionally, decades of heat cycling frequently warp OEM cast flanges, resulting in persistent gasket blowouts and cylinder head mating leaks.

The Engineering Solution

Fabricated from heavy-gauge stainless steel, these shorty-style headers employ an 8-2 design utilizing individual 1-5/8" primary tubes flowing into 2.5" collectors. Smooth mandrel-profile transitions equalize exhaust backpressure and maximize gas velocity out of the cylinder head ports. Precision CNC-machined 7/16" cylinder head flanges resist thermal distortion under load, while 3/8" collector flanges provide leak-free hardware clamping. Construction combines robotic MIG and manual TIG welding for crack-resistant durability under high thermal expansion cycles.

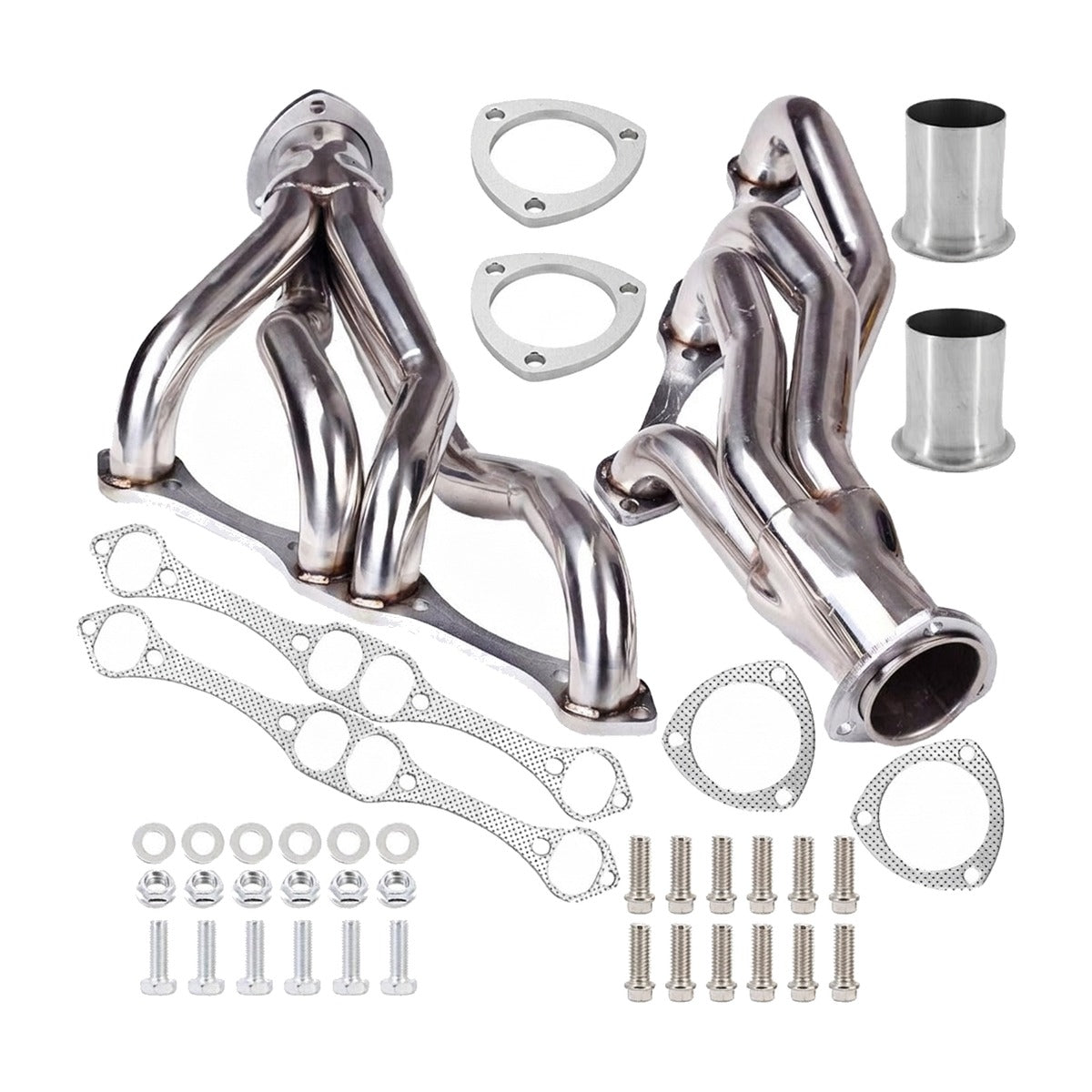

What's Included

• 1x Left-Side (Driver) Stainless Steel Header
• 1x Right-Side (Passenger) Stainless Steel Header
• 2x Collector Reducers
• 1x Header Flange and Collector Gasket Set
• 1x Mounting Hardware Kit (Bolts and Washers)

Technical Specifications

Compatibility

• 1968-1969 Chevrolet Camaro (Base, RS, SS, Z/28) with 2WD drivetrain
• Chevrolet Small Block Gen I V8 engines: 262, 265, 267, 283, 302, 305, 307, 327, 350, 400 cubic inches

Frequently Asked Questions & Fitment Warnings

Does this fit the F-Body Camaro?

Yes, this is a direct fit for the 1968-1969 Chevrolet Camaro equipped with a SBC Gen I V8. Will NOT fit 1967 models, Big Block Chevrolet (BBC) engines, V6 engines, or custom 4WD/AWD conversions.

Are custom modifications required for downstream exhaust installation?

While the headers bolt directly to cylinder heads, fabrication or adapter pipe trimming may be required to mate the included 2.5" collector reducers to non-stock exhaust piping.

The Chevrolet Muscle Caliber

Built for classic American V8 muscle, these headers optimize exhaust scavenging to extract maximum horsepower, crisper throttle response, and a deep, aggressive exhaust note from your small-block build.
