Engine Block Heater for GMC Topkick (1998-2007) 7.2L Cat 3126 / C7 Diesel

High-Output 1000W Freeze Plug Engine Heater for 1998-2007 GMC Topkick (GMT530/GMT560)

What it Does: The 1000W freeze plug engine block heater preheats engine coolant on the 1998-2007 GMC Topkick to reduce cranking strain, eliminate cold-start wet stacking, and ensure rapid oil pressure buildup in sub-freezing conditions.

The Stock GMC Topkick Cold Weather Cranking Deficit

During severe sub-zero ambient conditions, the cast-iron cylinder block of the Caterpillar 3126 and Caterpillar C7 turns into a massive thermal heat sink. The HEUI (Hydraulic Electronic Unit Injector) system utilizes heavy engine oil to actuate high-pressure fuel delivery; viscous, cold engine oil leads to sluggish spool valves, extended cranking cycles, fuel washing against cold cylinder liners, and excessive white smoke from unburnt diesel. Relying strictly on intake grid heaters or high-amperage battery banks drains the commercial 12V electrical system, accelerating starter motor degradation and inducing unnecessary mechanical wear across the crankshaft main bearings during initial dry revolutions.

The Engineering Solution

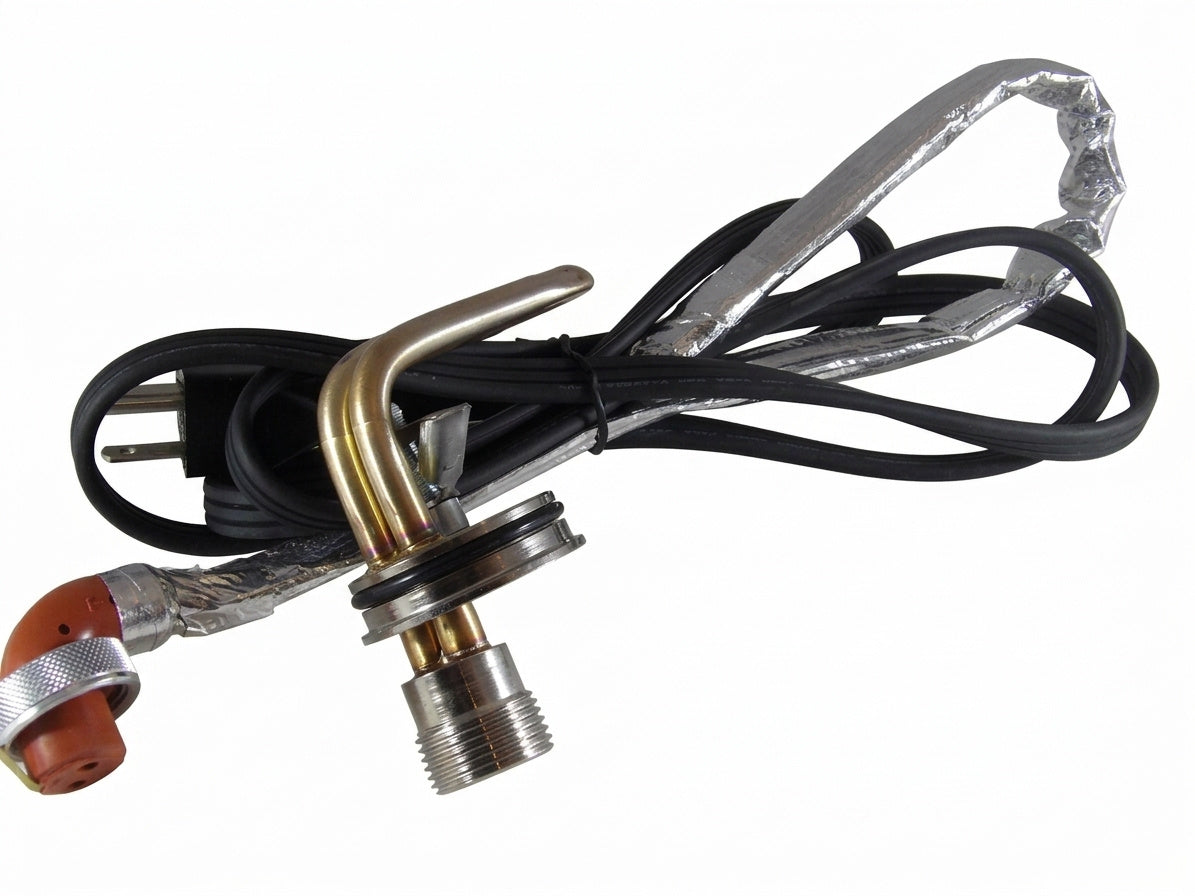

This heavy-duty thermal unit replaces a standard 44mm core plug directly within the lower cylinder jacket. Utilizing an immersion-grade, copper sheath heating element operating at 120 volts and drawing 1000 watts, it transfers direct thermal energy throughout the water jacket via natural thermosiphon circulation. Raising coolant temps ensures lower kinetic viscosity in the engine oil channel, protecting the high-pressure oil pump and HEUI injectors. The kit includes a heavy-gauge, oil-resistant electrical harness featuring molded silicone seals to guard against moisture intrusion, corrosion, and road salt degradation.

Technical Specifications

Compatibility

• 1998-2002 GMC Topkick C6500 / C7500 (GMT530) equipped with 7.2L Caterpillar 3126
• 2003-2007 GMC Topkick C4500 / C5500 / C6500 / C7500 / C8500 (GMT560) equipped with 7.2L Caterpillar C7 ACERT
• Note: Does not fit GM gasoline engines, 6.6L Duramax diesel, or 8.1L Vortec platforms.

Frequently Asked Questions

Does this fit the GMT530/GMT560 Topkick?

Yes, this is a direct fit for the 1998-2007 GMC Topkick equipped with the 7.2L Cat 3126 or C7 diesel engine.

Does the cooling system need to be drained for installation?

Yes, the cooling block must be fully drained prior to removing the OEM 44mm freeze plug and refilled/bled after seating the heating element.

The GMC Commercial Standard

Built for vocational fleet uptime and severe winter duty cycles, this preheating system ensures your commercial hauler turns over instantly under zero-load resistance, preserving critical components and reducing fleet idle times.
