Engine Block Heater for Detroit Diesel 6-71 (without water-cooled compressor) 1000W

Direct-Immersion 1000W Engine Block Heater for Detroit Diesel 6-71 (Series 71 Industrial / Commercial)

What it Does: The 1000W plate-mount immersion block heater preheats cylinder block coolant on the Detroit Diesel 6-71 to eliminate cold-start scuffing and ensure rapid compression ignition in sub-freezing ambient conditions.

The Stock Detroit Diesel 6-71 Cold Start Dilemma

As a heavy-duty, two-stroke uniflow diesel with a cast-iron block and massive thermal mass, the Detroit Diesel 6-71 relies entirely on heat generated through compression to atomize and ignite fuel. In sub-freezing temperatures, cold cylinder liners sap compression heat, causing extreme cranking resistance, heavy white smoke emissions, wet stacking, and severe unburned fuel washdown past the piston rings. Without supplemental heating, low ambient cold starts accelerate cylinder liner glazing and place punishing shear loads on cold, high-viscosity crankcase oil, prematurely wearing connecting rod and main bearings.

The Engineering Solution

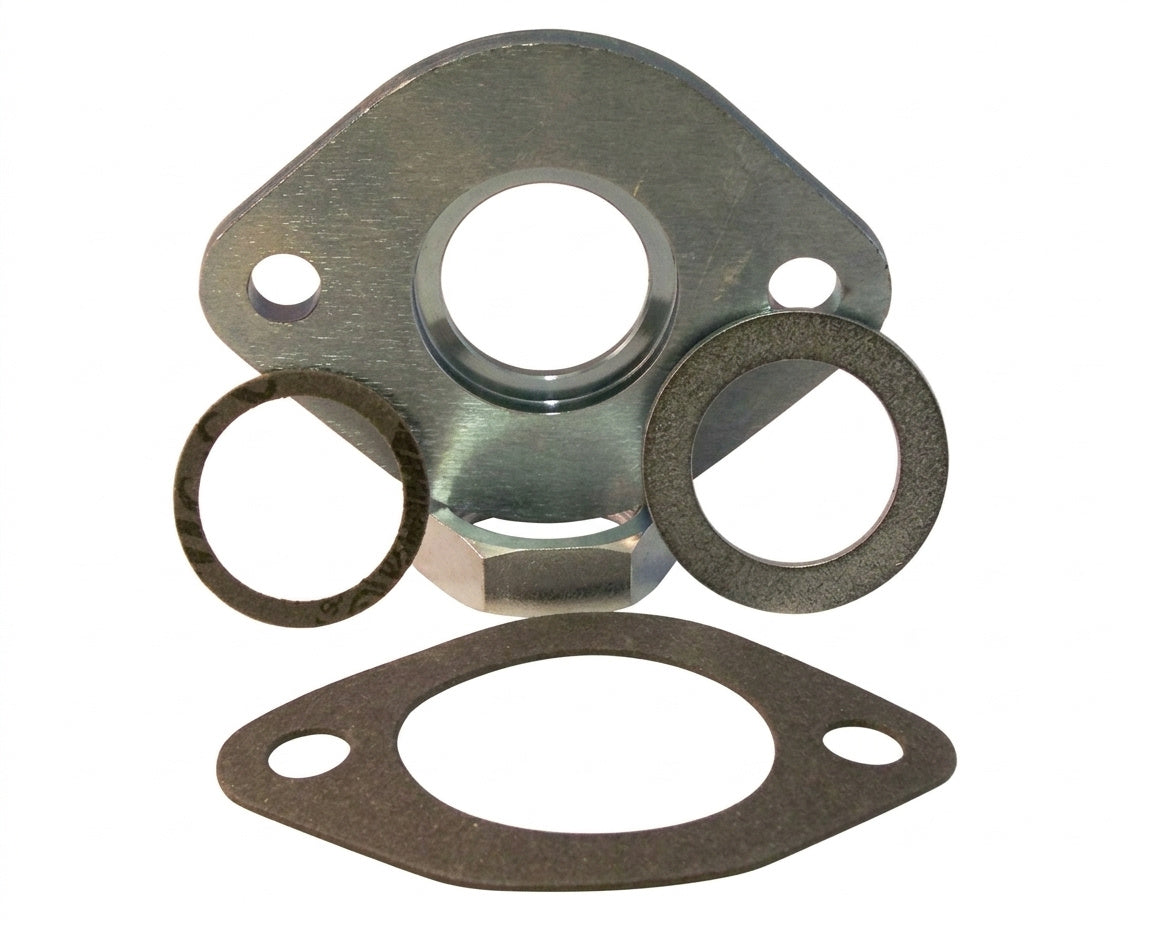

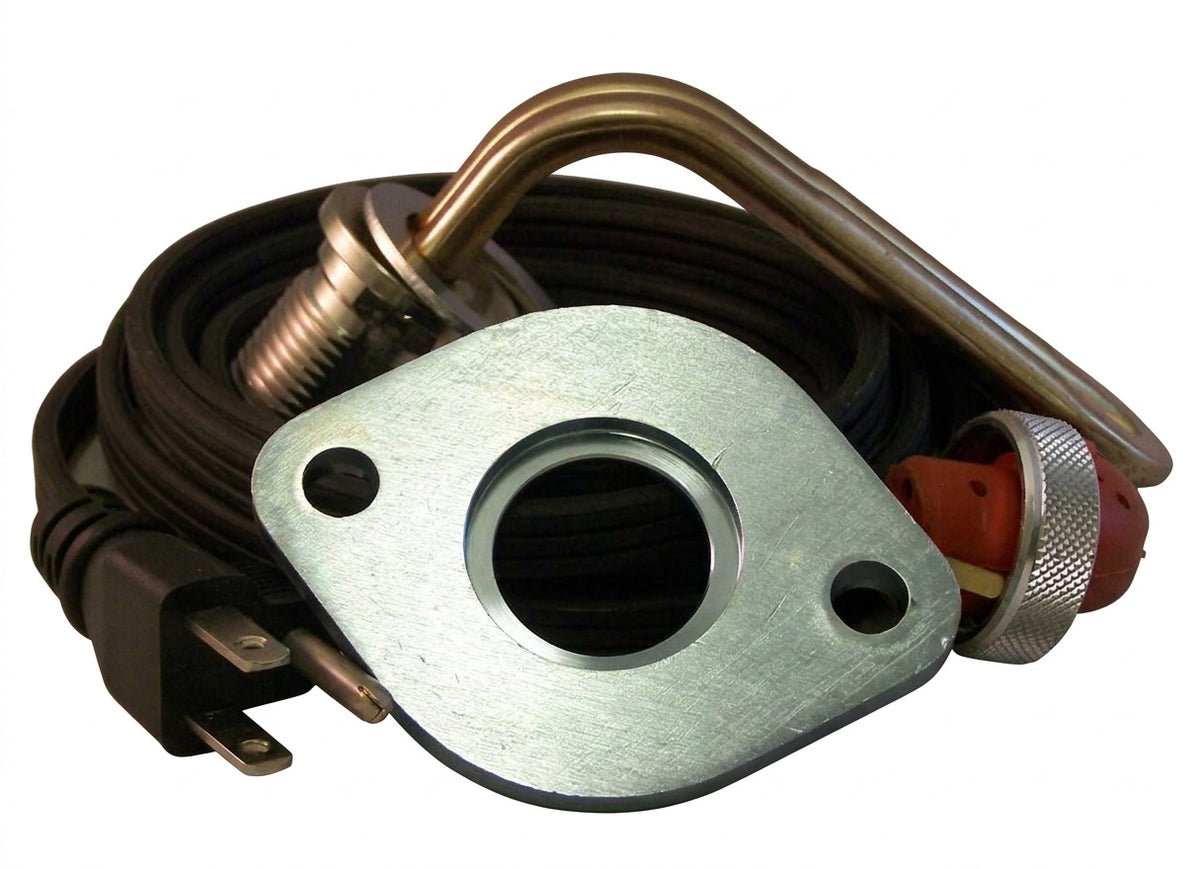

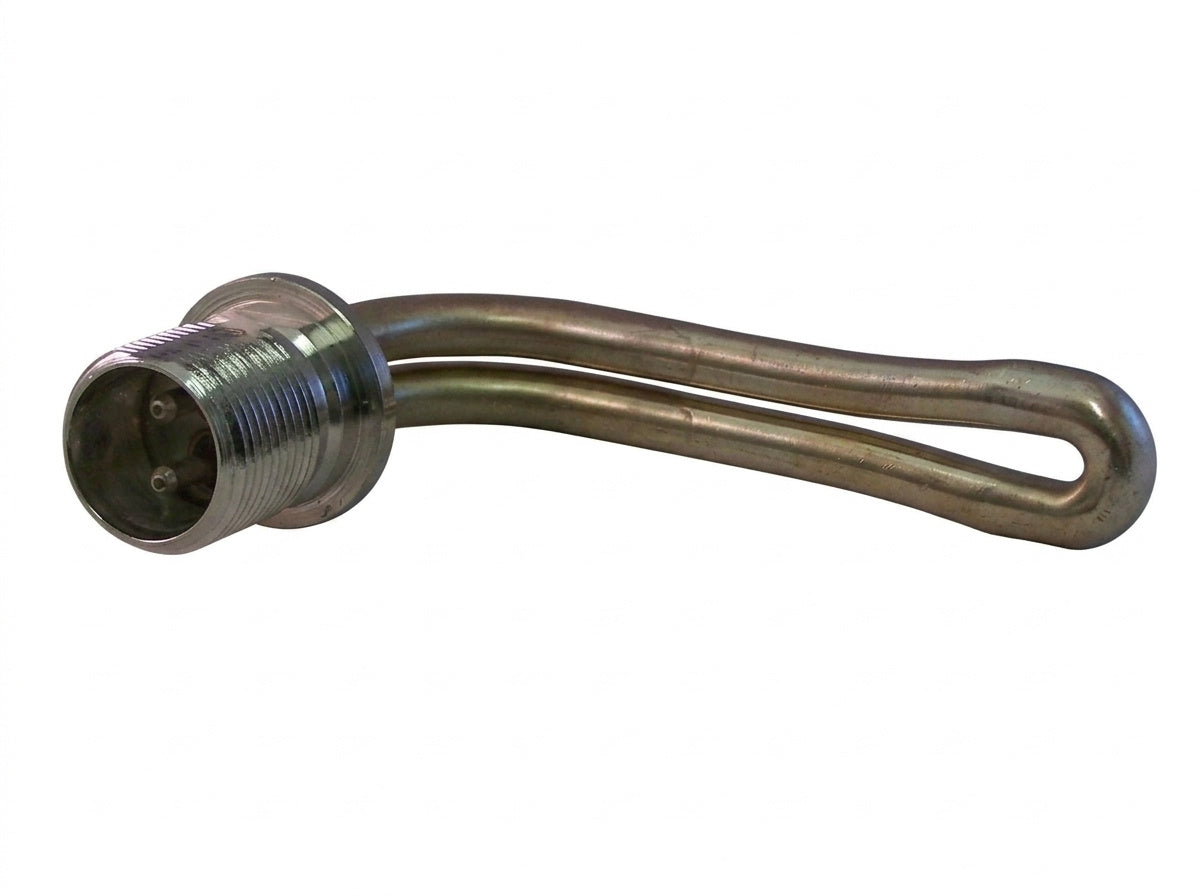

This 1000W, 120V AC direct-immersion plate heater installs directly into the wet side of the engine block by replacing the factory side water jacket access plate. Utilizing a high-density, copper-sheathed electric heating element submerged directly in the jacket coolant, it induces thermal thermosiphon circulation without an auxiliary pump. The precision-stamped steel plate with heavy-duty elastomeric sealing prevents coolant leaks under cooling system operating pressures up to 15 PSI. Designed specifically for non-water-cooled compressor configurations, it provides an unobstructed flow path across the cylinder liners to ensure dependable starts down to sub-zero temperatures.

Technical Specifications

Compatibility

• Detroit Diesel 6-71 Inline 2-Stroke Diesel Engines (Naturally Aspirated)
• Detroit Diesel 6-71T Inline 2-Stroke Diesel Engines (Turbocharged)
• Fits applications WITHOUT water-cooled air compressors only
• Fits commercial truck, bus, marine auxiliary, and industrial gen-set configurations

Frequently Asked Questions

Does this fit the Commercial & Industrial 6-71?

Yes, this is a direct fit for the Detroit Diesel 6-71 equipped with the Inline-6 Two-Stroke (6-71) engine lacking a water-cooled compressor.

Do I need to drain the cooling system before installation?

Yes, completely drain the engine block coolant before removing the water jacket access plate to prevent flooding, and properly burp air pockets upon refilling.

The Detroit Diesel Heavy-Duty Standard

Built to withstand the severe vibrations and extended run hours demanded by industrial machinery and commercial haulers, this immersion heating unit ensures maximum uptime and eliminates cold-weather engine wear.
