Cold Air Intake for GMC Sonoma Pickup (1996-2004) 4.3L Engine - Blue

$194.99
$194.99
Free Shipping within USA.
  • Guaranteed Fitment
  • Performance Tested
  • Lifetime Warranty

Want it soon? Order within

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Feel the immediate rush of responsive power and enjoy a deeper, more aggressive engine note every time you hit the gas in your GMC Sonoma. Eliminate the sluggish factory airbox and breathe new life into your 4.3L V6, transforming your daily drive.

Performance Cold Air Intake Kit for GMC Sonoma Pickup (4.3L V6 Engine) - Blue

The stock air intake system in your 1996-2004 GMC Sonoma Pickup with the 4.3L V6 engine is designed for quiet operation and cost-effectiveness, not peak performance. Its restrictive design and tendency to pull in hot engine bay air choke your engine, limiting horsepower, torque, and throttle response.

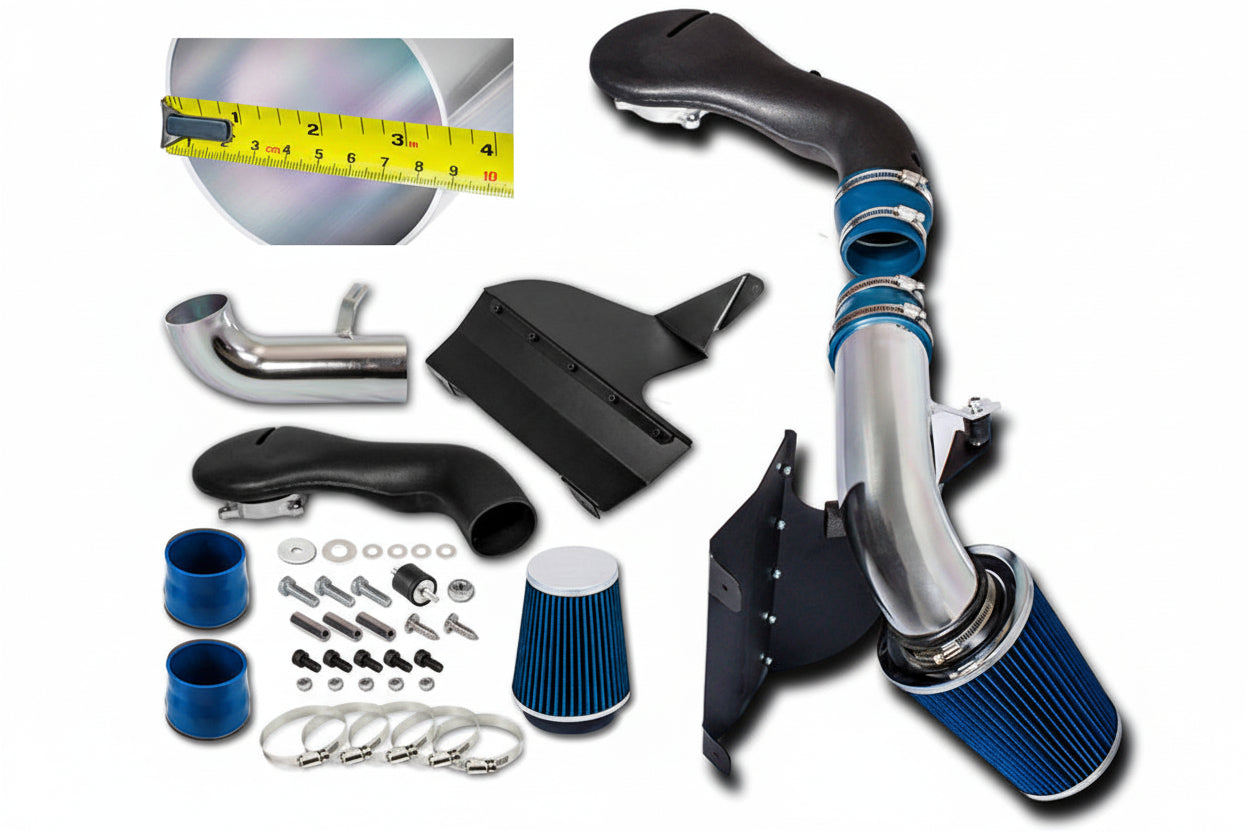

Our Cold Air Intake Kit directly addresses these limitations, providing a clear path for a higher volume of cooler, denser air to reach your engine. By replacing the factory air box and restrictive intake tube with a free-flowing T304 lightweight aluminum pipe and a high-performance, washable air filter, this upgrade ensures your 4.3L V6 can finally breathe freely, unlocking its true potential and delivering a noticeable improvement in acceleration and power.

Why You Need This Upgrade

  • Boost Horsepower & Torque: Experience gains of up to 10% by delivering colder, denser air to your engine, leading to more efficient combustion and increased power.
  • Enhanced Throttle Response: Eliminate hesitation and enjoy a quicker, more direct response from your accelerator for a more engaging driving experience.
  • Superior Filtration & Airflow: Engineered with a high-flow, washable filter that provides exceptional filtration while maximizing the volume of air entering your engine.
  • Aggressive Engine Sound: Transform your V6’s note with a deeper, sportier growl under acceleration, adding character to your Sonoma Pickup.
  • Long-Term Value: The washable and reusable filter design requires cleaning only every 50,000 miles under normal driving conditions, saving you money on replacement filters.
  • Easy & Non-Intrusive Installation: Designed for a straightforward bolt-on process that takes less than 60 minutes with basic hand tools and will not void your vehicle’s warranty.

Technical Specifications

Fitment 1996-2004 GMC Sonoma Pickup with 4.3L V6 Engine
Factory Stats Stock: 190 HP / 250 lb-ft
Installation Easy / Less than 60 minutes

Replaces These OEM Applications

Compatible Vehicles:

  • 1996 GMC Sonoma Pickup 4.3L V6
  • 1997 GMC Sonoma Pickup 4.3L V6
  • 1998 GMC Sonoma Pickup 4.3L V6
  • 1999 GMC Sonoma Pickup 4.3L V6
  • 2000 GMC Sonoma Pickup 4.3L V6
  • 2001 GMC Sonoma Pickup 4.3L V6
  • 2002 GMC Sonoma Pickup 4.3L V6
  • 2003 GMC Sonoma Pickup 4.3L V6
  • 2004 GMC Sonoma Pickup 4.3L V6

Unleash Your GMC Sonoma’s True Power Today

Don’t let a restrictive factory air box hold back your 4.3L V6 engine. This Cold Air Intake Kit is engineered to provide peak performance, enhanced sound, and improved fuel economy, all while protecting your engine. Shop with confidence knowing that PerformanceChipTuning.com delivers top-tier performance parts with fast shipping and expert support for your GMC Sonoma Pickup.

Engine Safety Rating
Difficulty

Fitment

Make

GMC

Engine Size
  • 4.3L

Year
  • 1996
  • 1997
  • 1998
  • 1999
  • 2000
  • 2001
  • 2002
  • 2003
  • 2004

Installation & Tools

The Wrench Time

  • Estimated Time: 45-60 Minutes
  • Difficulty: 3/10 - Basic hand tools required. Perfect for a Saturday morning in the driveway.

Tools You Will Need

  • 10mm wrench and socket (for battery terminal and heat shield bolts)
  • 8mm nut driver or flathead screwdriver (for factory and aftermarket hose clamps)
  • 13mm socket with a 6-inch extension (for the factory Vortec airbox mounts)
  • T20 Torx bit (if transferring the MAF sensor out of a factory housing)
  • Silicone spray lubricant or soapy water (crucial for sensor seating)
Mechanic’s Pro Tip (The "Gotcha"):
The 4.3L Vortec S-Series platforms are notorious for rock-hard underhood plastics after two decades of heat cycling. The Intake Air Temperature (IAT) sensor is shoved into a rubber grommet on the factory intake tube. Do NOT just yank it out by the connector. You will snap the fragile plastic sensor tip off inside the tube. Spray the base with silicone lube, twist it back and forth to break the seal, and pull straight out. Also, inspect your factory PCV breather hose—it will likely be brittle and prone to cracking when you remove it.

Phase 1: Removing the Factory Part

  1. Disconnect the Battery: Always start by disconnecting the negative battery terminal using a 10mm wrench to prevent a check engine light and reset the ECU’s fuel trims.
  2. Unplug the Sensors: Locate the Mass Air Flow (MAF) sensor and the Intake Air Temperature (IAT) sensor on the factory air tube. Gently depress the locking tabs and pull the harnesses free. Tuck them safely out of the way.
  3. Remove the Factory PCV Line: Disconnect the factory crankcase vent hose running from the valve cover to the side of the air intake. Twist gently to avoid snapping the valve cover nipple.
  4. Loosen the Clamps: Using your 8mm nut driver, loosen the hose clamps securing the rubber intake tube to the throttle body "hat" and the MAF sensor housing. Wiggle the tube free from the throttle body.
  5. Extract the Factory Vortec Box: Use your 13mm socket and extension to remove the retaining bolt holding the bulky factory airbox to the inner fender. Pull the entire factory airbox and resonator assembly up and out of the engine bay.
  6. Separate the MAF Sensor: Carefully unbolt or unclamp the MAF sensor from the factory airbox assembly. Set it on a clean rag. Do not drop it; the internal hot wires are highly sensitive.

Phase 2: Installing the Blue Cold Air Intake for GMC Sonoma Pickup (1996-2004) 4.3L

  1. Install the Heat Shield: Drop the new aftermarket heat shield into the space where the factory airbox sat. Secure it to the factory mounting points using the supplied hardware and a 10mm socket.
  2. Transfer the Sensors: Insert the provided rubber grommet into the pre-drilled hole on your new Blue Cold Air Intake tube. Apply a quick burst of silicone spray to the grommet, and carefully push the factory IAT sensor into place. Next, bolt or clamp the factory MAF sensor into the new tube grouping. CRITICAL: Ensure the flow arrow stamped on the MAF sensor points toward the engine throttle body, not the air filter.
  3. Mount the Couplers and Tube: Slide the new silicone couplers onto the throttle body and the MAF sensor. Slip the hose clamps on loosely. Guide the new blue intake tube into the couplers. Once everything is aligned nicely, tighten down all clamps firmly with your 8mm nut driver.
  4. Connect the Breather and Filter: Attach the supplied PCV breather hose from the valve cover to the nipple on the new intake pipe. Finally, slide the high-flow conical air filter onto the end of the intake tube inside the heat shield and tighten the clamp.
  5. Final Reconnect and Idle Relearn: Plug the wiring harnesses back into the MAF and IAT sensors. Reconnect the negative battery terminal with your 10mm wrench. Start the engine. Do NOT touch the gas pedal for 20 seconds. Let the vehicle idle so the ECU can adapt its fuel maps to the increased airflow.

Disclaimer: This is a general guide provided for the 1996-2004 GMC Sonoma 4.3L. Always refer to your factory service manual for exact torque specifications and safety procedures.

Warranty

All products are backed by our Limited Lifetime Warranty. We stand by our quality. [See terms]
