Cold Air Intake for Toyota Celica GTS (2000-2005) 1.8L L4 Engine



Regular price $119.95
Sale price $119.95 Regular price
Free Shipping within USA.

  • Guaranteed Fitment
  • Performance Tested
  • Lifetime Warranty

Want it soon? Order within

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Cold Air Intake System for Toyota Celica GTS (2000–2005) - Cooler Air & Maximum Power Delivery

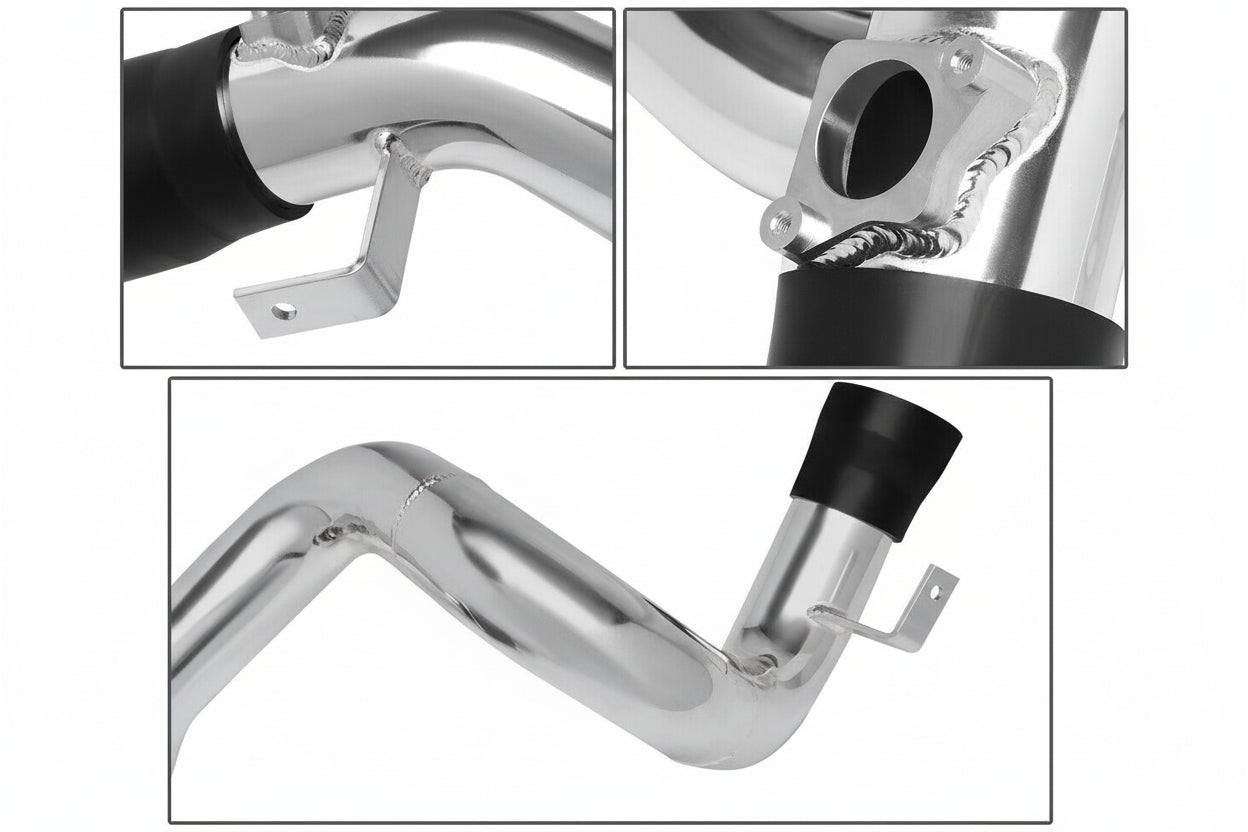

This cold air intake system is designed to replace the factory air box on 2000–2005 Toyota Celica GTS models. The system relocates the air filter outside of the engine compartment to draw cooler ambient air, which is denser and contains more oxygen for improved combustion efficiency. The system uses T304 aluminum piping with tuned inlet pipe length and diameter matched to the engine's resonance characteristics. This results in improved throttle response, enhanced airflow efficiency, and measurable gains in horsepower and torque across the RPM range.

The intake positions the filter away from engine heat sources to maximize intake air temperature reduction. The tuned pipe geometry optimizes airflow velocity and volume to the cylinders throughout the entire RPM range. The high-flow filter is engineered to provide adequate filtration while maintaining lower restriction than factory paper elements.

Vehicle Fitment

  • 2000–2005 Toyota Celica GTS

Performance & Design

Airflow Optimization: The system is engineered to improve airflow efficiency by relocating the filter outside the engine compartment and using tuned inlet pipe geometry. The pipe length and diameter are matched to the engine's resonance characteristics to optimize airflow throughout the entire RPM range. Cooler air drawn from outside the engine bay is denser and carries more oxygen, which contributes to more efficient combustion. Testing under controlled conditions has shown potential gains of up to 10% in horsepower and torque. Actual performance improvements will vary based on vehicle condition, elevation, ambient temperature, and existing modifications.

Throttle Response: The reduced intake restriction and cooler, denser air allow the engine to operate more efficiently during acceleration. This results in improved throttle response and power delivery throughout the RPM range. The improved combustion efficiency may contribute to fuel economy gains during steady-state driving conditions.

Construction & Materials

T304 Aluminum Construction: The intake pipe is constructed from T304 lightweight aluminum, which provides corrosion resistance and reduces weight compared to factory plastic components. The aluminum construction maintains structural integrity across engine bay temperature ranges while resisting oxidation and heat exposure.

Filter Design: The high-flow air filter is engineered for exceptional filtration while maintaining maximum airflow. The filter uses washable filter media that can be cleaned, re-oiled, and reused. The filter is positioned outside the engine compartment to draw cooler ambient air for improved combustion efficiency.

Features & Components

  • T304 lightweight aluminum intake piping
  • High-flow washable and reusable air filter
  • Filter relocated outside engine compartment for cooler air
  • Tuned inlet pipe length and diameter for engine resonance
  • Direct replacement for factory air box and intake tube
  • Reduces intake restriction for improved airflow
  • Maximizes airflow through stock manifold system
  • Enhances throttle response across RPM range
  • Produces deeper intake sound under acceleration
  • Reusable filter reduces long-term maintenance costs
  • Compatible with factory engine management system

What's Included

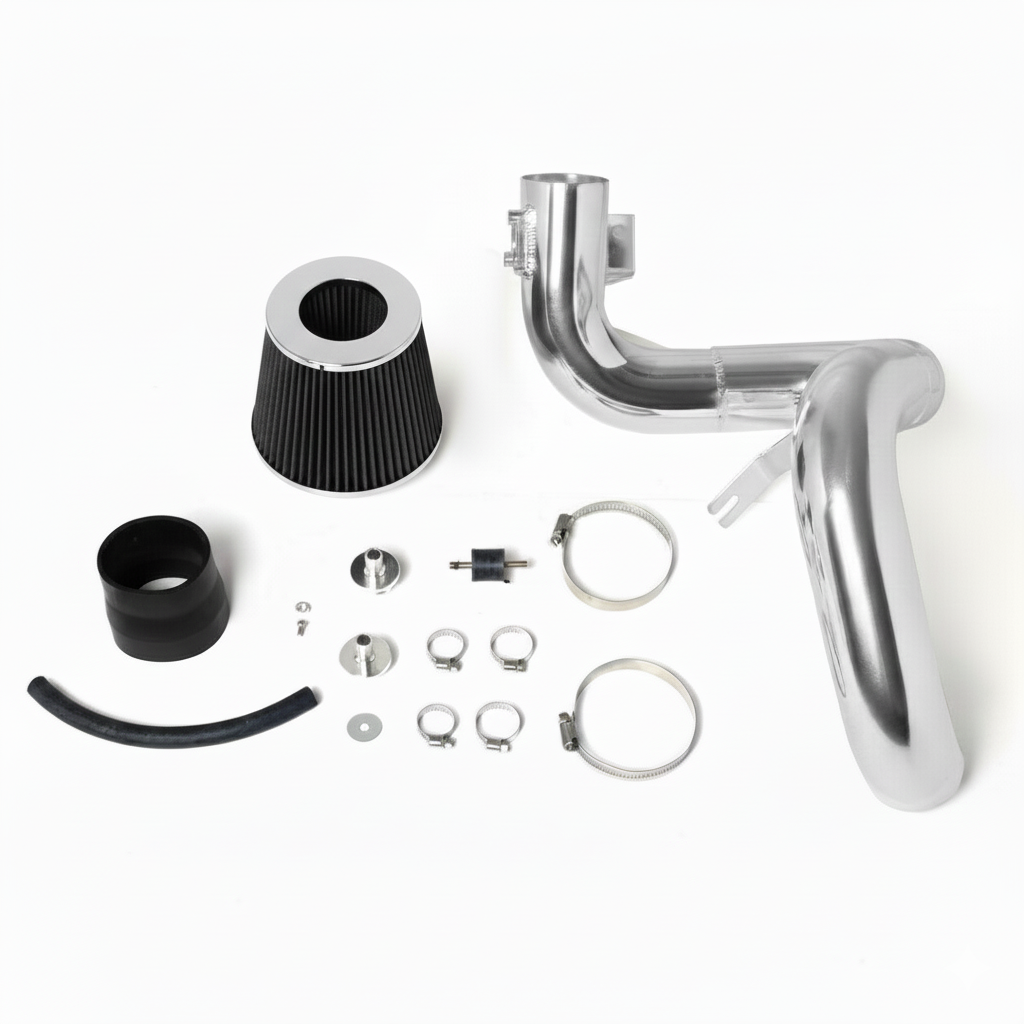

  • T304 aluminum intake pipe
  • High-flow washable air filter
  • Mounting hardware and clamps
  • Installation components

Installation

  • Direct replacement for factory air box and intake tube
  • Professional installation recommended
  • No cutting or drilling required
  • Installation time approximately 45–60 minutes
  • Basic hand tools required (screwdrivers, socket wrenches)

Installation Note:
Professional installation is recommended to ensure proper fitment and secure mounting of the relocated filter assembly. After installation, disconnect the negative battery terminal for approximately 30 seconds to allow the engine control unit to reset. This allows the ECU to recalibrate fuel delivery and ignition timing parameters to optimize performance with the modified airflow characteristics. Always disconnect the battery before performing any engine bay work. The ECU will continue to adapt during normal driving operation.

Filter Maintenance

Inspection Schedule: Inspect the air filter every 5,000 miles and clean if necessary. Driving conditions such as dusty environments, spirited driving, or heavy traffic may require more frequent inspection and cleaning.

Cleaning Procedure: Remove the filter from the intake tube. Gently tap the filter to remove loose debris. Apply an appropriate air filter cleaning solution to both the inside and outside of the filter element, working it into the filter media. Allow the cleaner to soak for approximately 10 minutes. Rinse the filter thoroughly with low-pressure water from the clean side out, continuing until water runs clear. Shake off excess water and allow the filter to air dry completely in a clean environment. Once fully dry, apply air filter oil evenly to the filter media according to product specifications. Allow the oil to wick through the filter material for approximately 20 minutes before reinstalling. Ensure the filter is completely dry before applying oil, as moisture will prevent proper oil absorption.

Compatibility Requirements

Model Verification: This cold air intake system is designed specifically for 2000–2005 Toyota Celica GTS models. Verify your vehicle is the GTS model before purchase to ensure proper fitment.

This cold air intake system provides improved airflow characteristics for the Celica GTS engine by relocating the air filter outside the engine compartment to draw cooler, denser air. The T304 aluminum construction with tuned inlet pipe geometry optimizes airflow velocity and volume throughout the entire RPM range. The system is designed to work with factory engine management components and stock manifold systems without requiring additional modifications or tuning. Professional installation is recommended to ensure proper mounting and fitment of the relocated filter assembly.


Engine Safety Rating
Difficulty


Fitment

Make

Toyota

Engine Size

  • 1.8L

Year

  • 2000
  • 2001
  • 2002
  • 2003
  • 2004
  • 2005

Installation & Tools

The Wrench Time

  • Estimated Time: 45-60 Minutes
  • Difficulty: 3/10 - Straightforward bolt-on job, but requires patience around brittle vacuum lines and inner fender liner clips.

Tools You Will Need

  • 10mm socket and 1/4-inch ratchet with extension
  • 10mm open-end wrench
  • #2 Phillips screwdriver (or precision JIS screwdriver for the MAF sensor)
  • Flathead screwdriver or automotive panel popper
  • 8mm nut driver or flathead for aftermarket hose clamps
  • Pliers (for factory spring-type vacuum hose clamps)
Mechanic’s Pro Tip (The "Gotcha"):
The 7th-gen Celica (T230 chassis) uses brittle plastic vacuum switching valves (VSV) and fragile MAF mounting bosses. When pulling vacuum lines off the OEM airbox, do not yank or pry sideways—you will snap the plastic vacuum nipples. Furthermore, the factory MAF screws strip notoriously easy; use a properly fitting #2 Phillips screwdriver with firm downward pressure, or use locking pliers on the screw heads if they are seized.

Phase 1: Removing the Factory Airbox on the 2000-2005 Toyota Celica 1.8L

  1. Disconnect the Battery: Always start by disconnecting the negative battery terminal using a 10mm wrench. This resets the ECU fuel trims and prevents shorting any electrical sensors during the install.
  2. Unplug and Remove the Mass Air Flow (MAF) Sensor: Squeeze the release tab on the MAF harness plug and pull it off. Using a #2 Phillips screwdriver, carefully remove the two factory retaining screws. Pull the MAF sensor straight out and set it aside in a clean, padded area. Do not touch the delicate sensing wire.
  3. Disconnect Vacuum Lines and CCV Hose: Using pliers, slide back the spring clamp on the Crankcase Ventilation (CCV) hose and pull the hose off the factory intake tube. Carefully disconnect the factory VSV (Vacuum Switching Valve) lines from the stock airbox assembly without snapping the plastic ports.
  4. Unbolt the Factory Airbox and Snorkel: Loosen the intake tube hose clamp at the throttle body using a 10mm socket. Remove the three 10mm mounting bolts securing the lower airbox to the engine bay bracket. Lift the entire upper and lower factory airbox assembly out of the engine bay.
  5. Gain Fender Well Access: Turn your steering wheel fully to the right (or jack up the front driver’s side and support with a jack stand). Use a panel popper or flathead screwdriver to remove the plastic push-clips securing the front driver’s side splash shield to access the lower intake cavity behind the bumper.

Phase 2: Installing the Cold Air Intake

  1. Transfer the Factory MAF Sensor: Inspect the rubber O-ring gasket on your factory MAF sensor for tears. Insert the sensor into the CNC-machined MAF bung on the new intake pipe in the correct airflow orientation (curved air-drop facing forward). Secure it down snugly with the supplied hardware using a #2 Phillips screwdriver or hex key—do not overtighten and crush the housing.
  2. Install Silicone Coupler and Bracket Mounts: Slide the silicone coupler over the 1.8L throttle body inlet and secure the inner clamp using an 8mm nut driver. Thread the supplied vibration-isolating rubber rubber mount into the factory 10mm airbox bracket hole on the chassis.
  3. Route the Intake Pipe and Mount the Air Filter: Feed the intake pipe down through the sheet metal cutout behind the driver’s side headlight into the inner fender well. Fit the top end into the throttle body coupler and line up the welded bracket to the rubber mount. Reach into the wheel well and clamp the cone air filter onto the lower pipe outlet using an 8mm nut driver.
  4. Reattach Vacuum Lines and MAF Harness: Secure the intake bracket with the provided 10mm nut, tighten all T-bolt/worm-gear hose clamps until snug, reconnect the CCV hose, and plug the MAF electrical connector back in until it audibly clicks. Reinstall the plastic fender liner push-clips.
  5. Reconnect Battery and Perform ECU Idle Relearn: Reconnect the negative battery terminal using a 10mm wrench. Start the engine, but do not touch the gas pedal for at least 20 to 30 seconds. Allow the Celica’s ECU to establish baseline idle airflow readings before test driving.

Disclaimer: This is a general guide provided for the 2000-2005 Toyota Celica 1.8L. Always refer to your factory service manual for exact torque specifications and safety procedures.
