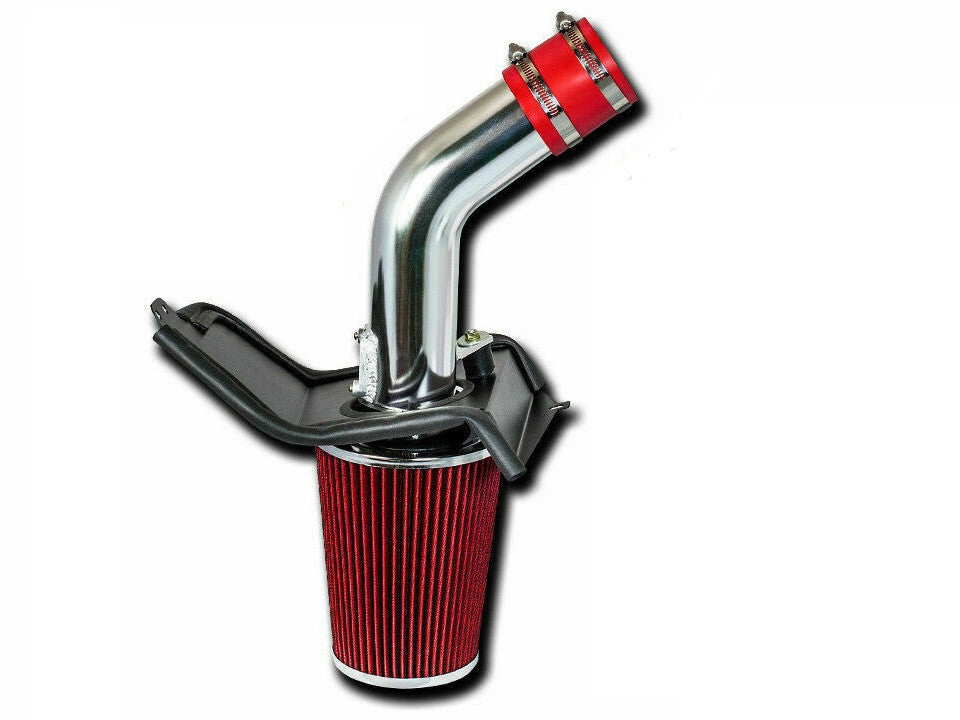

Cold Air Intake System for Subaru Impreza WRX / STi 2.5L Turbo (2008–2014) - Boost Response & Airflow Optimization

This cold air intake system is designed to replace the factory air box on 2008–2014 Subaru Impreza WRX and STi models equipped with the 2.5L turbocharged EJ25 engine. The system reduces intake restriction by using T304 aluminum piping and a high-flow air filter with an application-specific heat shield. This results in improved throttle response, enhanced turbo spool characteristics, and measurable gains in horsepower and torque across the RPM range.

The intake uses streamlined piping compared to the factory intake tract, creating a less restrictive path for incoming air to the turbocharger. The integrated heat shield isolates the air filter from engine bay heat sources, allowing the engine to draw cooler, denser air for improved combustion efficiency. The design optimizes airflow to the turbocharger for improved boost response under load conditions.

Vehicle Fitment

• 2008–2014 Subaru Impreza WRX (2.5L Turbocharged Engine)
• 2008–2014 Subaru Impreza STi (2.5L Turbocharged Engine)

Performance & Design

Airflow Optimization: The system is engineered to improve airflow efficiency by eliminating restrictive elements in the factory air box assembly. The streamlined piping provides better induction efficiency to the turbocharger. Testing under controlled conditions has shown potential gains of up to 10% in horsepower and mid-range torque. Actual performance improvements will vary based on vehicle condition, elevation, ambient temperature, boost pressure, and existing modifications.

Turbo Response: The reduced intake restriction allows the turbocharger to spool more efficiently during acceleration and boost conditions. This results in improved throttle response and power delivery, particularly during mid-range acceleration and when merging or accelerating under load. The system provides the turbocharger with increased airflow capacity for improved boost response.

Construction & Materials

T304 Aluminum Construction: The intake pipe is constructed from T304 lightweight aluminum, which provides corrosion resistance and reduces weight compared to factory plastic components. The aluminum construction maintains structural integrity across engine bay temperature ranges and boost pressures while resisting oxidation.

Heat Shield Integration: The application-specific heat shield creates a barrier between the air filter and engine bay heat sources. This allows the filter to draw cooler air, which is denser and more oxygen-rich for improved combustion efficiency. The heat shield helps maintain air density by blocking engine bay heat from reaching the intake charge.

Features & Components

• T304 lightweight aluminum intake piping
• High-flow washable air filter
• Application-specific heat shield for thermal management
• Streamlined piping for reduced restriction
• Direct replacement for factory air box assembly
• Enhances turbo spool characteristics
• Improves throttle response across RPM range
• Produces deeper, more aggressive induction sound
• Heavy-duty couplers and clamps for boost pressure
• Optimized for turbocharged engine applications

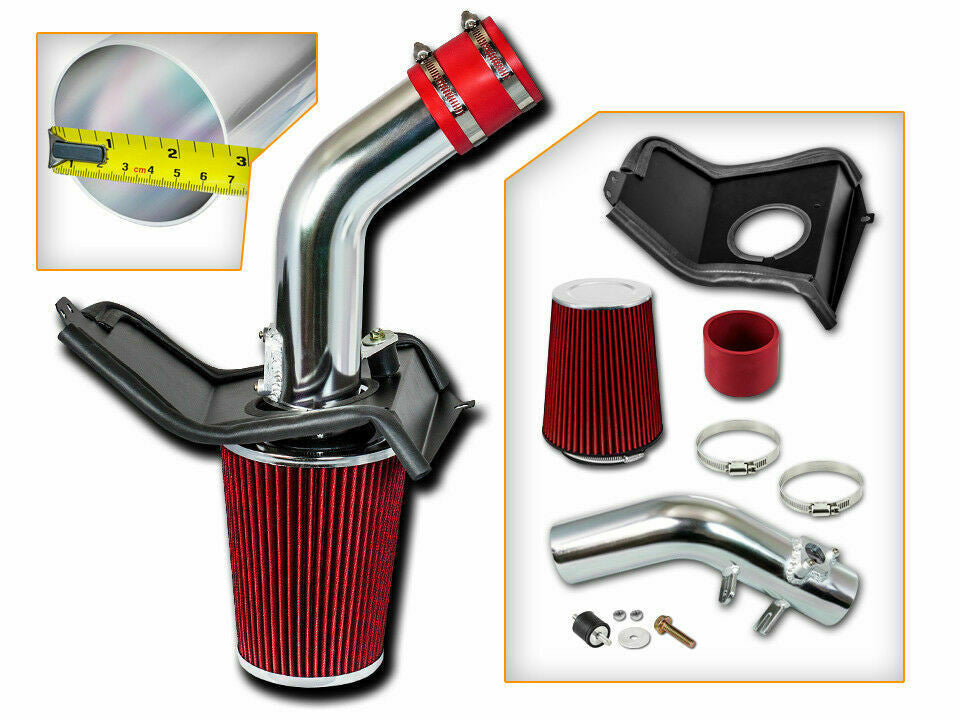

What's Included

• T304 aluminum intake tube
• High-flow air filter
• Application-specific heat shield
• Heavy-duty silicone couplers
• Stainless steel clamps
• Complete mounting hardware

Installation

• Direct replacement for factory air box system
• Uses existing factory mounting points
• No cutting or drilling required
• Installation time approximately 45–60 minutes
• Basic hand tools required (screwdrivers, socket wrenches)
• Engine must be completely cool before beginning work

Installation Note:
Disconnect the negative battery cable before beginning installation. After installation is complete, leave the battery disconnected for at least 60 seconds to allow the engine control unit to reset and recalibrate to the new airflow parameters. This allows the ECU to adjust fuel delivery, ignition timing, and boost control parameters to optimize performance with the modified intake system. Ensure the engine is completely cool before performing any engine bay work. The ECU will continue to adapt during normal driving operation.

Filter Maintenance

Inspection Schedule: Inspect the air filter every 5,000 miles and clean if necessary. Driving conditions such as dusty environments, performance driving, or heavy traffic may require more frequent inspection and cleaning.

Cleaning Procedure: Remove the filter from the intake tube. Gently tap the filter to remove loose debris. Apply an appropriate air filter cleaning solution to both the inside and outside of the filter element, working it into the filter media. Allow the cleaner to soak for approximately 10 minutes. Rinse the filter thoroughly with low-pressure water from the clean side out, continuing until water runs clear. Shake off excess water and allow the filter to air dry completely in a clean environment. Once fully dry, apply air filter oil evenly to the filter media according to product specifications. Allow the oil to wick through the filter material for approximately 20 minutes before reinstalling. Ensure the filter is completely dry before applying oil, as moisture will prevent proper oil absorption.

Sound Characteristics

Induction Sound: The open-element filter design and reduced intake restriction result in a more audible induction sound during acceleration and boost conditions. The sound characteristics include a deeper, more aggressive induction note that becomes more pronounced under turbo boost. The sound complements the factory exhaust tone characteristic of the EJ25 engine.

Compatibility Requirements

Model Verification: This cold air intake system is designed specifically for 2008–2014 Subaru Impreza WRX and STi models equipped with the 2.5L turbocharged EJ25 engine. Verify your vehicle's model and engine type before purchase to ensure proper fitment.

This cold air intake system provides improved airflow characteristics for the 2.5L turbocharged EJ25 engine while maintaining reliable filtration through a washable air filter element. The T304 aluminum construction with integrated heat shield reduces restriction and maintains cooler intake air temperatures for improved combustion efficiency. The heavy-duty couplers and clamps are designed to withstand boost pressure in turbocharged applications. The system is designed to work with factory engine management components without requiring additional modifications, though the ECU will adapt to the modified airflow during operation.
