Cold Air Intake for Mazda Tribute DX ES LX (2001-2004) 3.0L Engine

$89.99
$89.99
Free Shipping within USA.
  • Guaranteed Fitment
  • Performance Tested
  • Lifetime Warranty

Want it soon? Order within

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Optimize Airflow and Throttle Response for the Mazda Tribute & Ford Escape Duratec 30 V6

Who It’s For: Designed specifically for 2001-2008 Ford Escape, Mazda Tribute, and Mercury Mariner owners running the Duratec 30 V6 engine who want to improve engine efficiency and sound.

The Problem: The factory air box on the Duratec 30 is designed more for silence than performance. It uses heavy, baffled plastic and corrugated rubber hoses that create massive air turbulence. This restriction chokes the engine’s intake stroke, leading to sluggish throttle response and a muted exhaust note that hides the V6’s true capability.

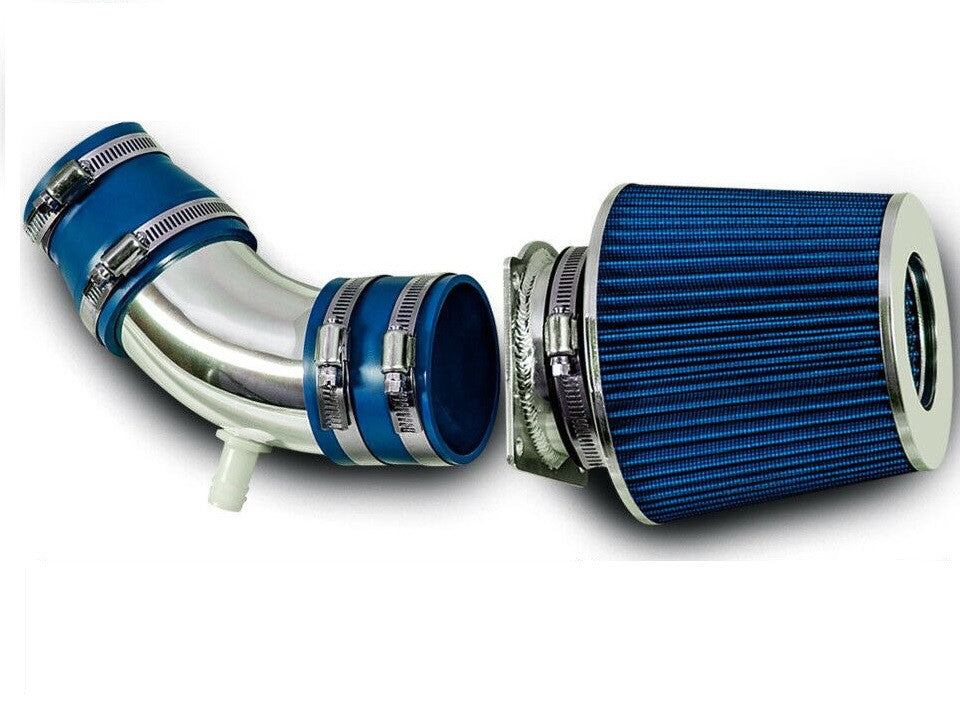

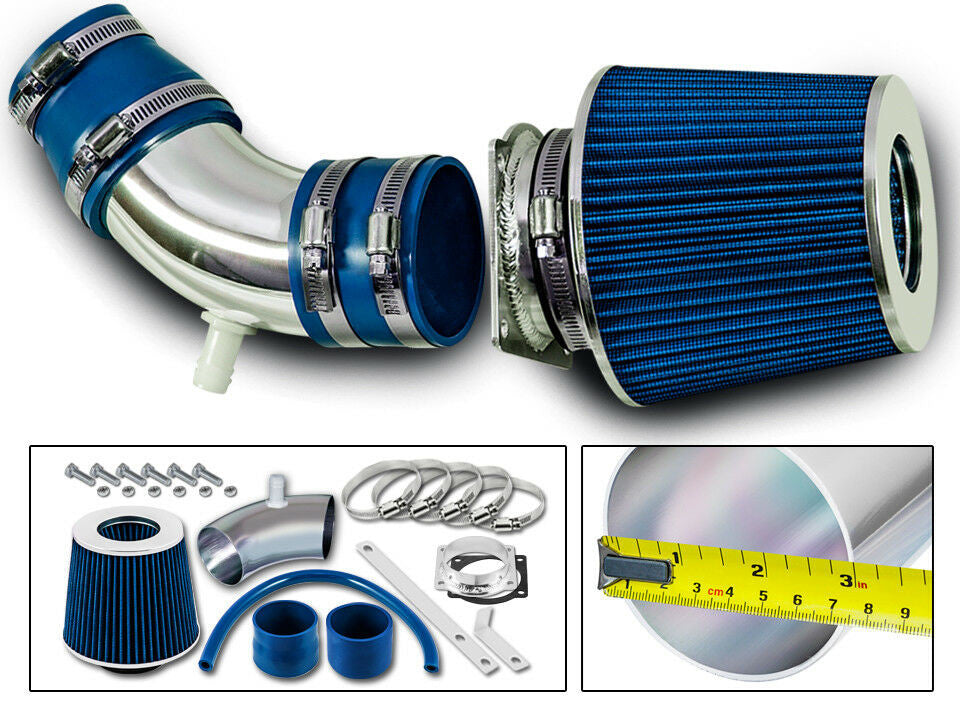

The Solution: This Cold Air Intake system replaces the entire restrictive factory assembly with a mandrel-bent T304 aluminum tube and a high-flow washable filter. By streamlining the path to the throttle body, we allow the Duratec 30 to pull in a higher volume of air with less resistance, resulting in a crisper pedal feel and a much more aggressive engine tone under load.

Why This is the Ultimate Upgrade

  • Enhanced Power Delivery: Dyno-tested to improve horsepower and torque by up to 10% by reducing intake restriction.
  • Premium Construction: Built with T304 lightweight aluminum piping that resists corrosion and dissipates heat faster than factory plastic.
  • Direct Bolt-On Fit: Engineered for a straightforward installation that takes less than 60 minutes with basic hand tools—no cutting or welding required.

Technical Specifications

Fitment 2001-2008 Ford, Mazda, Mercury SUV Models
Engine Family Duratec 30 V6
Factory Ratings ~200 HP & 193 lb-ft Torque
Material T304 Lightweight Aluminum

Compatibility & OEM Reference

Fits the Following Vehicles:

  • 2001 Ford Escape 3.0L DOHC V6 Engine
  • 2002 Ford Escape 3.0L DOHC V6 Engine
  • 2003 Ford Escape 3.0L DOHC V6 Engine
  • 2004 Ford Escape 3.0L DOHC V6 Engine
  • 2001 Mazda Tribute 3.0L DOHC V6 Engine
  • 2002 Mazda Tribute 3.0L DOHC V6 Engine
  • 2003 Mazda Tribute 3.0L DOHC V6 Engine
  • 2004 Mazda Tribute 3.0L DOHC V6 Engine
  • 2005 Mercury Mariner 3.0L DOHC V6 Engine
  • 2006 Mercury Mariner 3.0L DOHC V6 Engine
  • 2007 Mercury Mariner 3.0L DOHC V6 Engine
  • 2008 Mercury Mariner 3.0L DOHC V6 Engine

Interchange Part Numbers:

3.0, 3.0L, V6, DOHC, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

The Performance Promise

Buy with confidence. Every kit is inspected for fitment accuracy and material quality. Our team of automotive specialists recommends resetting your battery terminal after installation to allow the ECU to calibrate for the increased airflow. Get the performance your V6 was designed to deliver.

Fitment

Make

Mazda

Engine Size
  • 3.0L

Year
  • 2001
  • 2002
  • 2003
  • 2004

Installation & Tools

The Wrench Time

  • Estimated Time: 45-60 Minutes
  • Difficulty: 3/10 - Straightforward driveway bolt-on with basic hand tools.

Tools You Will Need

  • 10mm socket and ratchet (Battery terminal and bracket mounts)
  • 8mm nut driver or flathead screwdriver (Worm-gear hose clamps)
  • T20 Security Torx bit or Phillips screwdriver (MAF sensor removal)
  • Pliers (Factory PCV / breather hose spring clamps)
  • MAF sensor cleaner spray (Optional, but highly recommended during sensor transfer)
Mechanic’s Pro Tip (The "Gotcha"):
The 3.0L Duratec V6 platform in the 2001-2004 Mazda Tribute is infamous for brittle, heat-cycled vacuum lines and PCV breather elbows running near the intake duct. When unhooking the crankcase breather line from the stock accordion tube, do NOT yank or twist aggressively. If you crack that aged rubber or plastic elbow, you will introduce an unmetered air leak, triggering a lean code (P0171/P0174) and rough idle. Support the base of the vacuum line with one hand while walking off the clamp with pliers.

Phase 1: Removing the Factory Part

  1. Disconnect the Battery: On your 2001-2004 Mazda Tribute 3.0L, loosen the negative battery terminal clamp using a 10mm wrench. Set the cable aside to clear the ECU memory and prevent sensor faults.
  2. Disconnect the MAF Sensor Harness: Locate the Mass Air Flow (MAF) sensor wiring clip on the upper intake housing. Slide back the red locking tab and gently depress the squeeze clip to disconnect the plug without snapping the aged plastic lock.
  3. Disconnect Breather & Vacuum Lines: Using pliers, slide back the factory spring clamp securing the crankcase PCV breather hose to the stock rubber intake tube. Carefully ease the hose free from the intake barb.
  4. Loosen Throttle Body and Airbox Clamps: Use an 8mm nut driver or flathead screwdriver to loosen the hose clamp connecting the OEM intake tube to the throttle body.
  5. Remove OEM Airbox & Intake Duct: Unclip the upper airbox lid latches. Lift the upper assembly and the rubber intake tube out of the engine bay. Pull upward firmly on the lower airbox tub to pop it out of its rubber chassis grommets on the inner fender well.
  6. Extract the Factory MAF Sensor: Using a T20 Security Torx bit (or Phillips screwdriver depending on OEM housing revision), carefully remove the two mounting screws securing the MAF sensor inside the factory housing. Slide the sensor straight out. Set it on a clean microfiber towel—do not touch the exposed platinum sensor wires.

Phase 2: Installing the Cold Air Intake for Mazda Tribute DX ES LX (2001-2004) 3.0L Engine

  1. Transfer the MAF Sensor: Align the OEM MAF sensor into the new intake pipe’s machined sensor adapter pad, ensuring the directional air flow arrow points toward the throttle body. Secure it using the hardware provided with your kit and a screwdriver or appropriate hex key. Do not overtighten into aluminum threads.
  2. Mount the Silicone Couplers: Slip the primary silicone coupler onto the 3.0L throttle body. Slide two hose clamps over the coupler and snug the throttle-body side clamp down with an 8mm nut driver, leaving the intake-side clamp loose for clocking.
  3. Position Heat Shield and Intake Pipe: If your kit includes a heat shield bracket, bolt it to the factory lower airbox mounting points using the supplied hardware and a 10mm socket. Slide the new intake tube into the throttle body coupler, align the PCV vacuum port toward the engine, and slide the open filter end into the fender well zone.
  4. Reattach Breather Line & Filter: Connect the factory crankcase breather hose to the intake tube’s welded barb fitting, securing it with the factory clamp using pliers. Install the high-flow air filter over the end of the intake pipe and tighten its clamp using an 8mm nut driver.
  5. Final Alignment & Sensor Reconnect: Ensure the intake pipe is clocked with at least 1/2-inch clearance from the master cylinder and cooling fan shroud to prevent vibration contact. Tighten all remaining hose clamps until snug. Plug the MAF sensor electrical harness back in and slide the red locking tab forward.
  6. Reconnect Battery & Idle Relearn: Reconnect the negative battery terminal using a 10mm wrench. Start the vehicle. Do NOT touch the gas pedal for at least 20 to 30 seconds upon first startup; allow the Mazda Tribute ECU to establish its base idle fuel trims with the new volumetric airflow readings. Check for check engine lights or unusual whistling sounds before test driving.

Disclaimer: This is a general guide provided for the 2001-2004 Mazda Tribute 3.0L. Always refer to your factory service manual for exact torque specifications and safety procedures.
