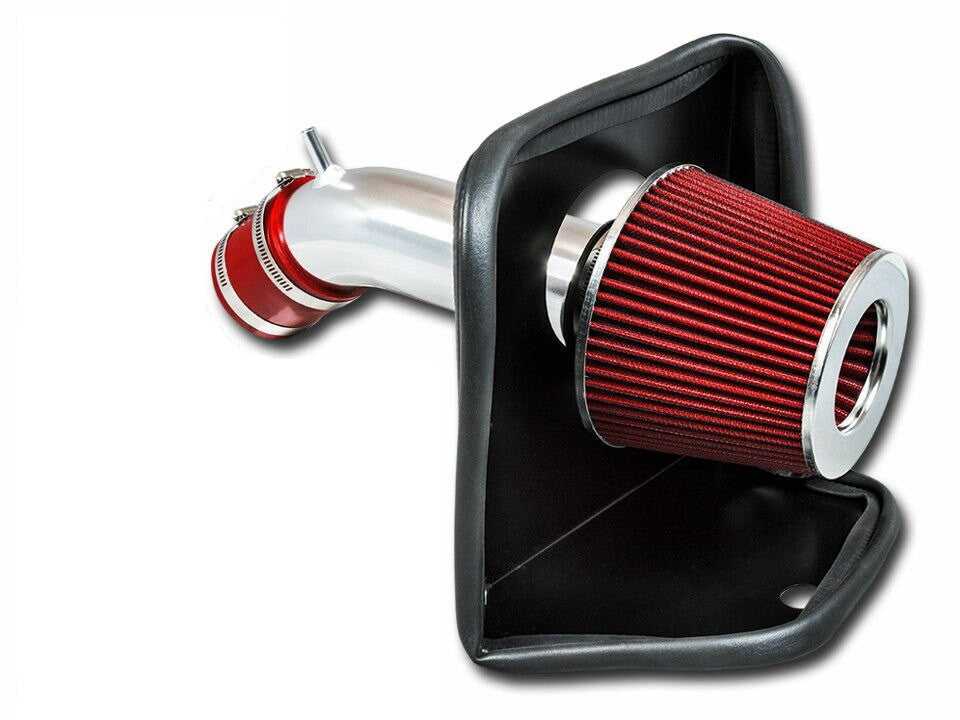

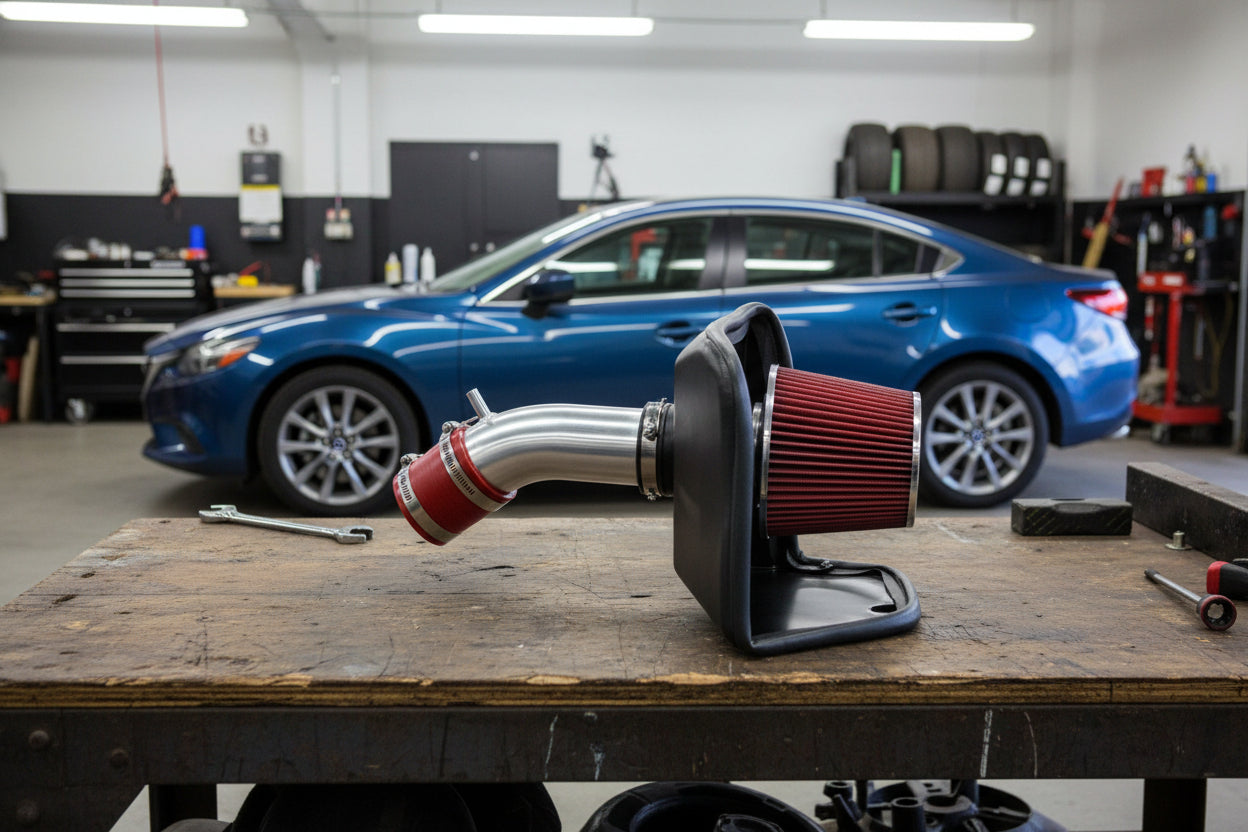

Cold Air Intake for Mazda 6 (2014-2017) 2.5L Engine Red

$179.99
$179.99
Free Shipping within USA.
  • Guaranteed Fitment
  • Performance Tested
  • Lifetime Warranty

Want it soon? Order within

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Driving your Mazda 6 should feel responsive and exhilarating, not bogged down by factory compromises. Unleash the true potential of your 2.5L engine and rediscover the joy of immediate power delivery with a high-performance upgrade.

Performance Cold Air Intake for Mazda 6 (2.5L)

The factory intake components in your 2014-2017 Mazda 6 2.5L are primarily designed for noise suppression rather than maximum performance. This OEM setup often creates significant bottlenecks, restricting the engine’s ability to breathe freely by limiting both the volume and velocity of airflow to the throttle body. The result is a less responsive driving experience, noticeable intake lag, and untapped power, especially during spirited driving or demanding acceleration.

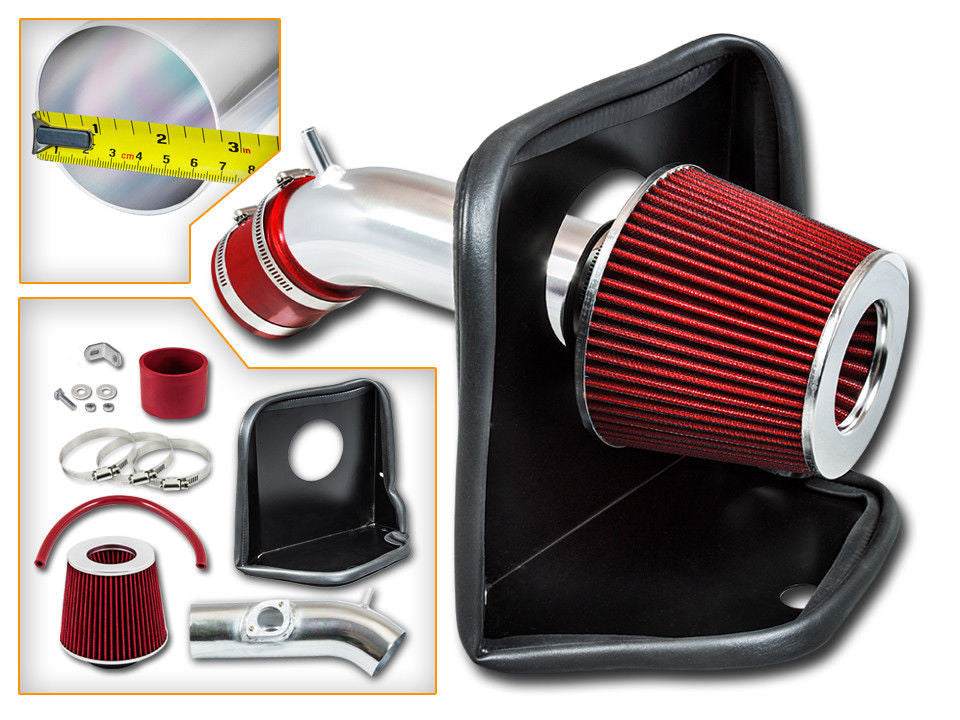

This precision-engineered cold air intake system directly addresses these limitations, transforming your vehicle’s induction. By replacing the restrictive OEM air box with a high-flow, low-restriction T304 aluminum induction pipe and an advanced performance air filter, it significantly increases the volume of cooler, oxygen-rich air entering your engine. An integrated heat shield further ensures that only dense, cool air is drawn in, optimizing combustion and leading to immediate gains in horsepower, torque, and razor-sharp throttle response.

Why You Need This Upgrade

  • Enhanced Power Gains: Experience a noticeable increase in horsepower and torque, providing better acceleration and mid-range pulling power for your Mazda 6.
  • Improved Fuel Efficiency: Optimizes air-to-fuel ratios for a more complete and efficient combustion cycle, potentially leading to better mileage under certain driving conditions.
  • Instant Throttle Response: Eliminates restrictive intake lag, delivering a more direct and immediate connection between your pedal input and engine reaction.
  • Aggressive Engine Tone: Enjoy a deeper, more aggressive induction sound that accentuates your engine’s presence and enhances the overall driving experience.
  • Consistent Airflow: Engineered to maintain steady air velocity and volume, ensuring reliable and predictable performance across the entire RPM range.
  • Superior Filtration: Features a high-flow performance air filter designed to effectively block harmful debris and contaminants while maximizing clean airflow to your engine.

Technical Specifications

Fitment 2014-2017 Mazda 6 2.5L
Factory Stats Stock: 184 HP / 185 lb-ft
Installation Moderate / 1-2 Hours

Replaces These OEM Applications

Compatible Vehicles:

  • Mazda 6 (2014-2017) 2.5L 4-Cylinder

Upgrade Your Mazda 6 Today

Don’t let a restrictive factory air box hold back your Mazda 6 2.5L. Shop with confidence knowing that PerformanceChipTuning.com delivers the best cold air intake parts with fast shipping and expert support, engineered for real-world performance gains.

Engine Safety Rating
Difficulty

Fitment

Make

Mazda

Engine Size
  • 2.5L

Year
  • 2014
  • 2015
  • 2016
  • 2017

Installation & Tools

The Wrench Time

  • Estimated Time: 45-60 Minutes
  • Difficulty: 3/10 - Basic bolt-on process, but requires extreme care with the sensitive Skyactiv electronics.

Tools You Will Need

  • 10mm socket and ratchet with a 6-inch extension
  • 8mm nut driver or socket (for aftermarket worm gear clamps)
  • Phillips #2 screwdriver (a JIS bit is preferred to avoid stripping factory screws)
  • Needle-nose pliers
  • 3mm Allen wrench (for supplied MAF hardware)
Mechanic’s Pro Tip (The "Gotcha"):
On the GJ Chassis Mazda 6, the Skyactiv MAF sensor is notoriously sensitive. A speck of dust on the hot wire or a pinched O-ring will instantly trigger a P0171 System Too Lean code. Do NOT touch the sensor element. Furthermore, the factory screws holding the MAF into the OEM plastic housing strip out incredibly easily. Apply firm downward pressure with a Phillips #2 screwdriver to break them loose without ruining the heads.

Phase 1: Removing the Factory Part from your 2014-2017 Mazda 6 2.5L

  1. Disconnect the Battery: Always start by disconnecting the negative battery terminal using a 10mm wrench to prevent check engine lights while we unplug sensors.
  2. Extract the MAF Sensor: Depress the locking tab on the MAF harness to unplug it. Use a Phillips #2 screwdriver to remove the two screws securing the sensor to the factory airbox. Carefully pull the sensor straight up and place it in a clean, safe spot away from fluids.
  3. Detach the PCV Breather: Use your needle-nose pliers to squeeze the spring clamp on the factory breather hose attached to the intake tube. Wiggle the hose free from the plastic nipple.
  4. Loosen the Throttle Body Clamp: Grab your 10mm socket and loosen the band clamp securing the factory rubber intake hose to the throttle body.
  5. Remove the OEM Airbox Assembly: Use a 10mm socket with a 6-inch extension to remove the mounting bolts holding the lower airbox to the engine bay chassis. Firmly pull the entire airbox assembly upward to pop it out of its lower rubber mounting grommets.

Phase 2: Installing the Cold Air Intake for Mazda 6 (2014-2017) 2.5L Engine Red

  1. Mount the Silicone Coupler: Slide the provided silicone step-coupler onto the throttle body. Slide two worm gear clamps loosely over the coupler, then tighten the throttle body side down snugly using an 8mm socket.
  2. Transfer the MAF Sensor: Delicately insert your factory MAF sensor into the machined port on your new Red aluminum intake tube. Secure it using the supplied aftermarket bolts and a 3mm Allen wrench. Do not overtighten, or you risk crushing the O-ring and causing a vacuum leak.
  3. Position the New Intake Tube: Slide the intake tube into the throttle body coupler. Align it for proper clearance away from the battery and brake lines, then tighten the remaining hose clamp with your 8mm socket.
  4. Connect Air Filter and Breather: Push the high-flow air filter onto the end of the intake tube and lock it down with an 8mm socket. Finally, push the factory breather hose onto the welded nipple on the new tube, securing it with the OEM spring clamp using needle-nose pliers.
  5. The 20-Second Rule: Reconnect the negative battery terminal with your 10mm wrench. Start the engine, but do not touch the gas pedal for 20 seconds. The Skyactiv ECU needs this uninterrupted time to adjust its fuel trims to the increased airflow.

Disclaimer: This is a general guide provided for the 2014-2017 Mazda 6 2.5L. Always refer to your factory service manual for exact torque specifications and safety procedures.
