Cold Air Intake for Ford F-150 (2011-2014) 5.0L V8 Engine

$139.99
$139.99
Free Shipping within USA.
  • Guaranteed Fitment
  • Performance Tested
  • Lifetime Warranty

Want it soon? Order within

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Ford F-150 (5.0L V8) High-Velocity Air Induction & Performance Gains

Enhance the power delivery of your F-150 with an induction system specifically engineered to overcome the limitations of the factory V8 setup. By replacing the restrictive, baffled factory air box with a streamlined, high-flow pathway, your engine gains the ability to inhale a significantly larger volume of oxygen-rich air. This results in a more energetic and efficient combustion cycle, providing you with a vehicle that feels lighter and more capable during highway merging, steep climbs, or heavy towing.

This upgrade focuses on maximizing airflow velocity and engine efficiency for your Ford Truck. By streamlining the air path and reducing internal turbulence, the system provides a measurable improvement in horsepower and torque, giving you the extra surge needed for demanding performance. Beyond the physical power gains, the system sharpens throttle sensitivity for instantaneous feedback and adds a deep, purposeful tone to your engine profile.

Performance Benefits

  • Optimized Power Gains: Frees the Coyote V8 from airflow restrictions, unlocking higher horsepower and torque across the entire RPM range.
  • Instant Throttle Feedback: Eliminates intake lag by providing a more direct and smooth air path, ensuring the engine reacts the moment you provide input.
  • Enhanced Volumetric Efficiency: Allows the 5.0L architecture to breathe more freely for better towing and high-RPM performance.
  • Consistent Power Delivery: Provides a steady stream of high-velocity air to maintain peak engine output during high-demand driving or hauling.
  • Sustainable Filtration: Features a high-flow air filter designed to be cleaned and reused, providing long-term value and engine protection for your F-150.

Vehicle Fitment

2011–2014 Ford F-150 (5.0L V8)

Note: Fits both Automatic and Manual Transmissions.

Operational Specifications

  • Primary Benefit: Increased airflow velocity and direct throttle response
  • Usage Note: Intended for off-road use only; this product is not C.A.R.B. legal.
  • Installation: Professional installation is highly recommended to ensure proper fitment and performance.
  • Maintenance: Washable and reusable filter for extended service life.
  • System Design: High-flow piping engineered to reduce internal air turbulence.

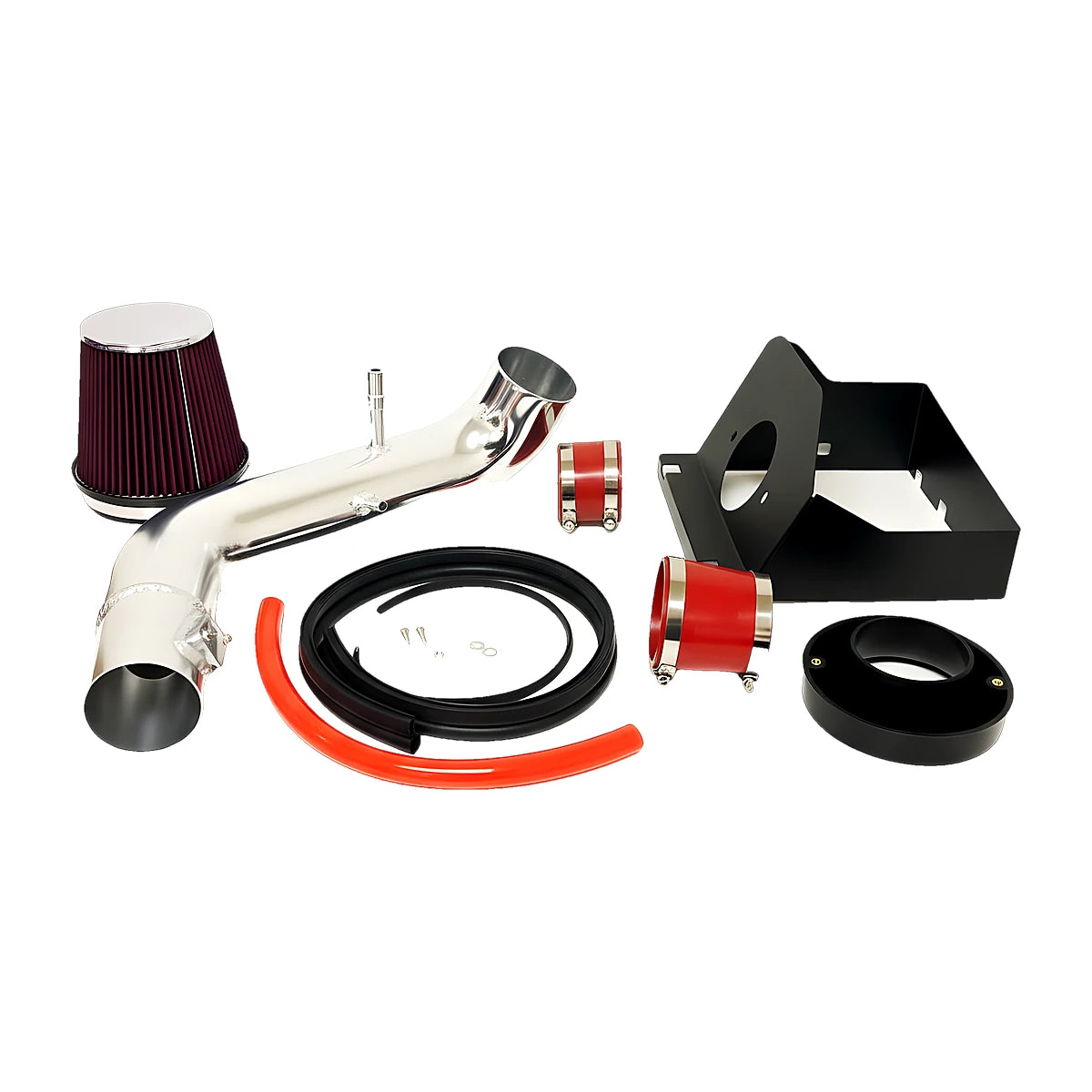

What's Included

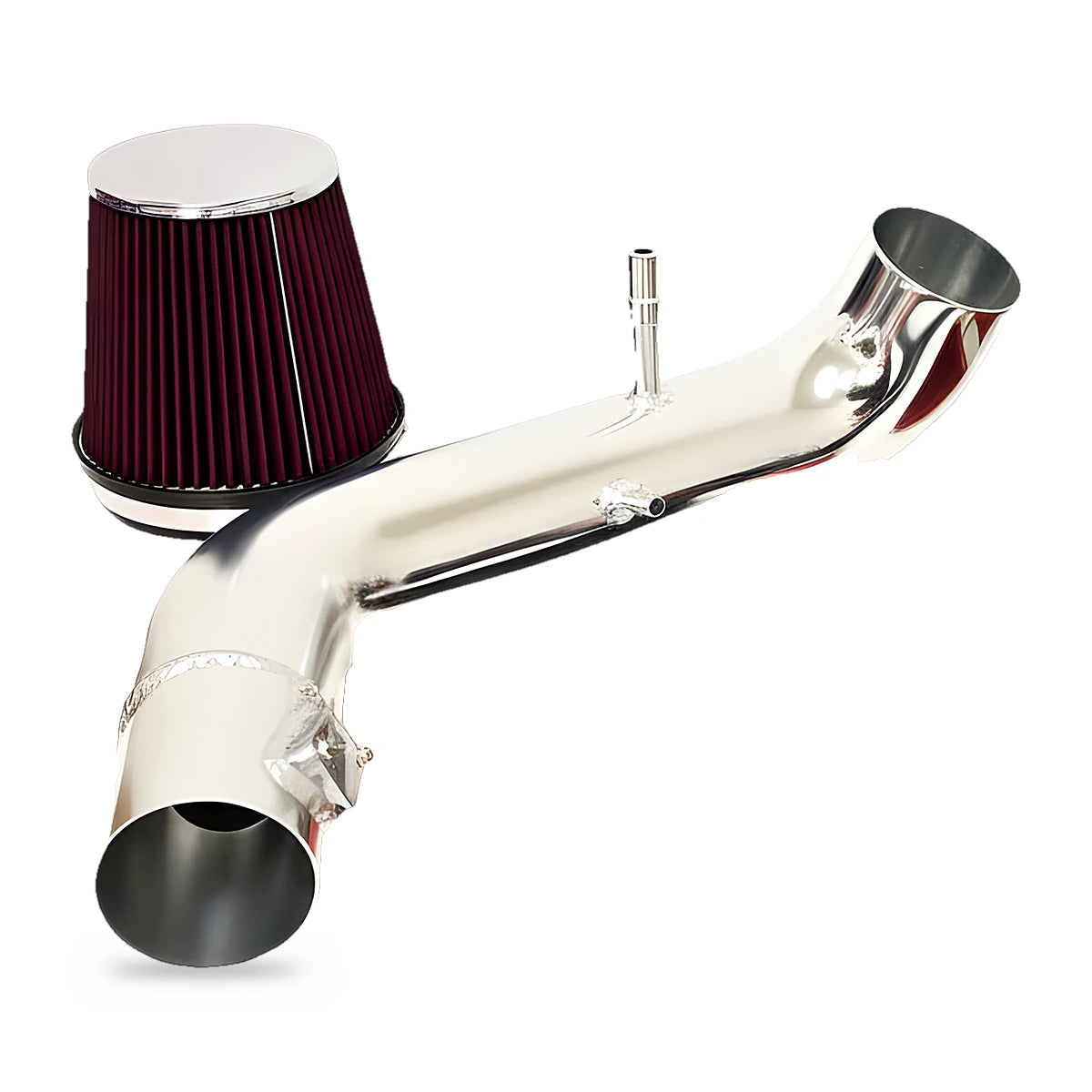

  • High-flow air induction pipe
  • Premium washable performance air filter
  • Reinforced high-temp silicone couplers
  • Industrial-grade stainless steel clamps
  • All necessary mounting hardware

Installation Tip

Disconnect the NEGATIVE GROUND CABLE from the battery before starting the installation. This allows the engine's computer to reset and calibrate for the increased airflow and cooler intake temperatures. Always ensure the engine is completely cool before beginning work.

Engine Safety Rating
Difficulty

Fitment

Make

Ford

Engine Size
  • 5.0L

Year
  • 2011
  • 2012
  • 2013
  • 2014

Installation & Tools

The Wrench Time

  • Estimated Time: 45-60 Minutes
  • Difficulty: 3/10 - Basic hand tools and a straightforward bolt-on, but requires a delicate touch with aging plastics on this 12th Gen chassis.

Tools You Will Need

  • 8mm socket and ratchet (or a dedicated nut driver)
  • 10mm socket and wrench
  • T20 Torx bit
  • Flathead screwdriver
  • Panel popper (clip removal tool)
Mechanic’s Pro Tip (The "Gotcha"):
For 12th Gen Coyote owners, the factory PCV breather hose fitting is notoriously brittle. Squeeze the grey tab gently to release it—do not force it or pry it with a screwdriver, or you’ll be making a trip to the dealer for a new hose assembly. Secondly, the red locking tab on your 2011-2014 Ford F-150 5.0L MAF sensor plug is likely baked from years of under-hood heat. Slide it back carefully with a fingernail or a 90-degree pick tool before unplugging to prevent snapping it.

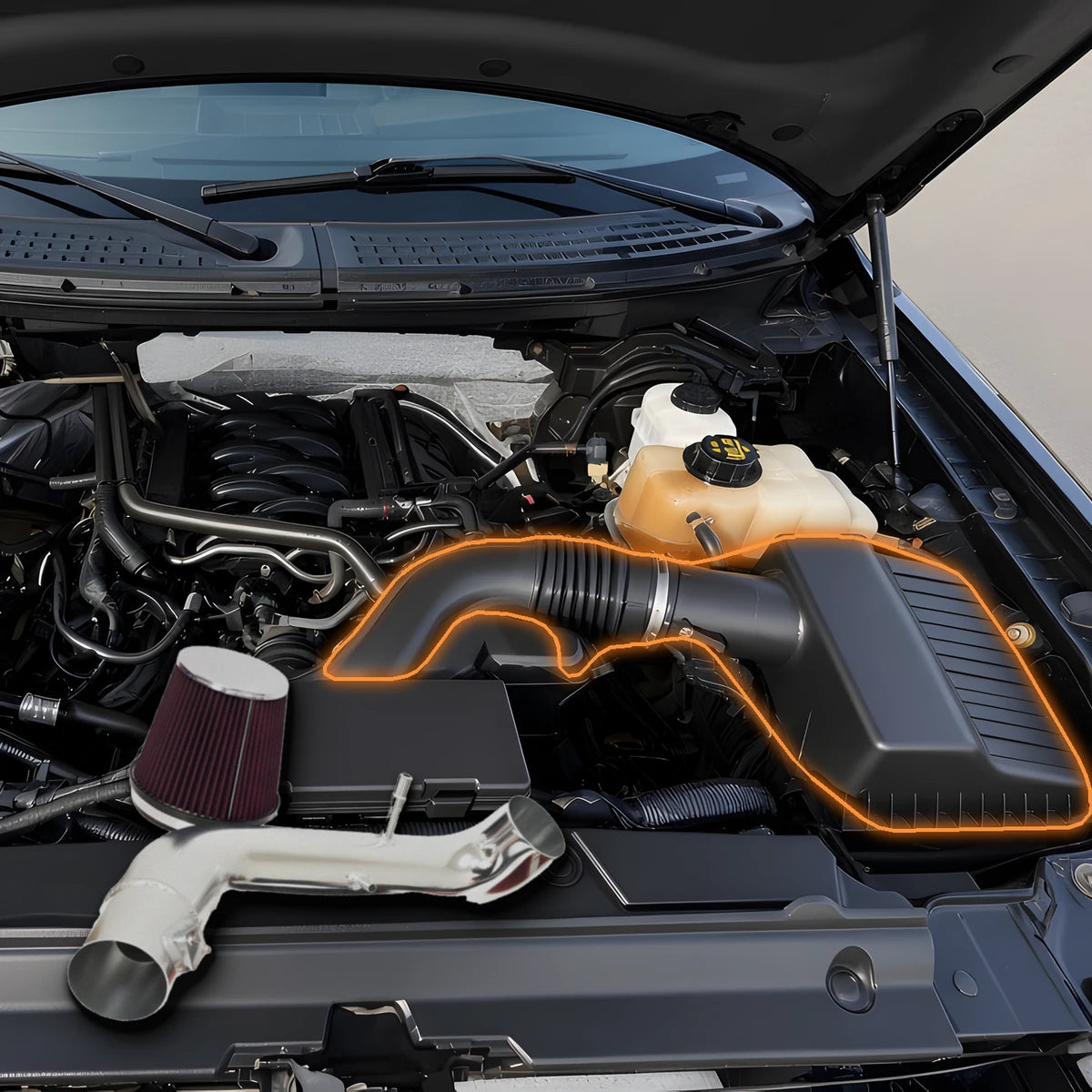

Phase 1: Removing the Factory Part from your 2011-2014 Ford F-150 5.0L

  1. Disconnect the Battery: Always start by disconnecting the negative battery terminal using a 10mm wrench to prevent check engine lights and short circuits.
  2. Unplug the MAF Sensor: Locate the Mass Air Flow sensor on the factory airbox lid. Slide the red locking tab back carefully, press the release clip down, and unplug the wiring harness.
  3. Disconnect the PCV Line: Gently squeeze the grey quick-disconnect tab on the factory PCV breather hose attached to the intake tube. Pull it straight off the fitting.
  4. Loosen the Hose Clamps: Grab your 8mm socket and loosen the factory worm clamps securing the intake tube to the throttle body and the upper airbox lid.
  5. Extract the Factory Airbox: Remove the single 10mm bolt securing the driver’s side of the airbox to the inner fender. Firmly pull the entire lower airbox assembly straight up to pop it out of the factory rubber mounting grommets.

Phase 2: Installing the Cold Air Intake

  1. Transfer the MAF Sensor: Using your T20 Torx bit, carefully back out the two screws holding the factory MAF sensor in the OEM housing. Transfer it to your new intake tube immediately. DO NOT touch the sensor element itself; transferring skin oils will ruin it and cause aggressive rough idling on your 5.0L.
  2. Assemble and Drop In the Heat Shield: Assemble the aftermarket heat shield per the manufacturer’s instructions, pressing the supplied weatherstripping onto the top edge. Drop the shield into the factory lower grommets and secure it to the fender using the factory 10mm bolt.
  3. Mount the Intake Tube: Slide the provided silicone couplers onto the throttle body and the new intake tube. Secure them loosely with the provided worm gear clamps using your 8mm socket. Check your clearances so the tube does not rub against the coolant reservoir tank, then lock all clamps down tight.
  4. Reconnect Plumbing and Wiring: Snap the factory PCV breather hose onto the new tube’s aluminum fitting (listen for the distinct "click"). Plug in the MAF sensor harness and engage the red locking tab.
  5. Execute Initial Startup Protocol: Reconnect the negative battery terminal with your 10mm wrench. Start the engine, but do not touch the gas pedal for at least 20 seconds. Let the vehicle idle completely untouched so the ECU can learn the new, higher airflow volume without throwing a lean code.

Disclaimer: This is a general guide provided for the 2011-2014 Ford F-150 5.0L. Always refer to your factory service manual for exact torque specifications and safety procedures.

Warranty

All products are backed by our Limited Lifetime Warranty. We stand by our quality. [See terms]
