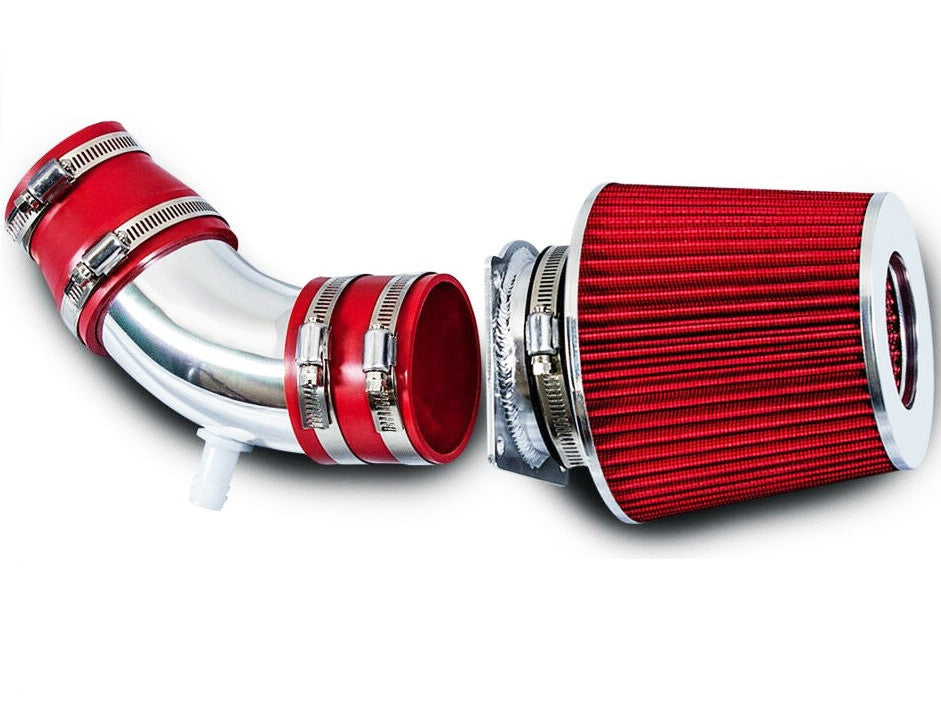

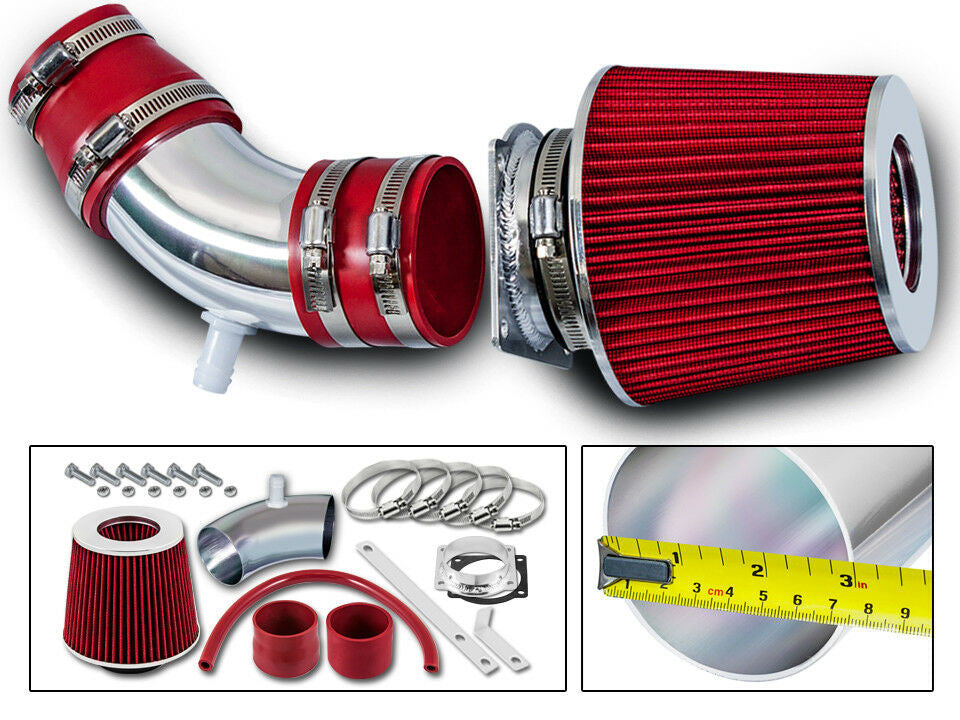

Cold Air Intake for Ford Escape Limited XLS XLT (2001-2004) 3.0L V6 Engine

$89.99
$89.99
Free Shipping within USA.
  • Guaranteed Fitment
  • Performance Tested
  • Lifetime Warranty

Want it soon? Order within

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Breathe New Life into Your Duratec 30 V6 with Enhanced Airflow

Who It’s For: Designed specifically for Ford Escape, Mazda Tribute, and Mercury Mariner owners running the high-revving Duratec 30 V6 engine. Whether you’re daily driving or looking for a bit more punch on the highway, this is the foundational mod for your platform.

The Problem: The Duratec 30 V6 is a solid workhorse, but the factory air box is a major choke point. The stock corrugated rubber tubing and restrictive paper filter create excessive turbulence and intake air temperature (IAT) spikes. This factory setup is designed for silence, not efficiency, which often leaves the engine feeling sluggish during passing maneuvers.

The Solution: We engineered this intake to replace the restrictive factory plumbing with smooth-bore T304 aluminum. By streamlining the air path to the throttle body, we’ve improved the volumetric efficiency of the Duratec 30, resulting in sharper throttle response and a much more aggressive engine note when you bury the needle.

Why This is the Ultimate Upgrade

  • Optimized Power Delivery: Dyno-tested to improve horsepower and torque by up to 10% by allowing the engine to pull air more freely than the stock baffled box.
  • Premium T304 Construction: Lightweight aluminum piping dissipates heat faster than factory plastic and won’t crack or degrade over time.
  • No-Hassle Maintenance: Includes a high-flow, washable pleated filter that only requires cleaning every 50,000 miles, saving you money on disposable paper filters.

Technical Specifications

Fitment 2001-2008 Ford, Mazda, & Mercury SUVs
Engine Family Duratec 30 V6 (DOHC)
Factory Ratings Approx. 200 HP / 193 lb-ft Torque
Part Numbers CAI-FE0104-30L-V6

Compatibility & OEM Reference

Fits the Following Vehicles:

  • 2001-2004 Ford Escape (Limited, XLS, XLT) with 3.0L DOHC V6 Engine
  • 2001-2004 Mazda Tribute (All Trims) with 3.0L DOHC V6 Engine
  • 2005-2008 Mercury Mariner (All Trims) with 3.0L DOHC V6 Engine
  • Compatible with both Automatic and Manual Transmissions

Interchange Part Numbers:

CAI-FE0104-V6, 3.0L-DURATEC-V6-INTAKE

The Performance Promise

Buy with confidence. This kit is designed for a direct bolt-on installation using basic hand tools in under an hour. Pro Tip: Always disconnect your battery terminal for 10 minutes after installation; this forces the ECU to reset its fuel trim maps and “learn” the new, increased airflow for maximum gains right out of the driveway.

Engine Safety Rating
Difficulty

Fitment

Make

Ford

Engine Size
  • 3.0L

Year
  • 2001
  • 2002
  • 2003
  • 2004

Installation & Tools

The Wrench Time

  • Estimated Time: 45-60 Minutes
  • Difficulty: 3/10 - Straightforward bolt-on upgrade; requires careful handling of sensitive electronic sensors.

Tools You Will Need

  • 10mm socket & ratchet (Battery terminal & OEM airbox bracket bolts)
  • 8mm socket or nut driver (Worm-gear hose clamps)
  • Flathead screwdriver (Prying stubborn couplers & harness clips)
  • T20 Torx driver (OEM Mass Air Flow sensor retaining screws)
  • Needle-nose pliers (Factory PCV/breather spring clamps)
Mechanic’s Pro Tip (The "Gotcha"):
On the 2001-2004 Ford Escape 3.0L Duratec V6, years of engine bay heat cycles leave the plastic crankcase breather barbs and the red MAF connector locking tabs extremely brittle. Do not pry aggressively against the sensor harness or yank on the vacuum lines. Gently slide the red locking clip back with a small flathead screwdriver before pressing the release tab, and twist the breather hose before pulling to break the heat seal without cracking the line.

Phase 1: Removing the Factory Intake on your 2001-2004 Ford Escape 3.0L

  1. Disconnect the Battery: Always start by disconnecting the negative battery terminal using a 10mm wrench. This prevents short circuits and forces the powertrain control module (PCM) to reset its learned fuel trims.
  2. Unplug the MAF Sensor: Locate the Mass Air Flow (MAF) sensor harness on the factory intake tube. Slide back the red locking tab and depress the center release catch to unplug the harness. Set the wiring safely aside.
  3. Disconnect the Breather Line: Using needle-nose pliers, squeeze and slide back the tension clamp holding the factory crankcase breather tube to the intake runner. Carefully wiggle the rubber hose free from the plastic barb.
  4. Loosen Intake Clamps: Use an 8mm socket or flathead screwdriver to loosen the worm-gear clamp securing the factory intake inlet duct to the throttle body.
  5. Extract the OEM Airbox Assembly: Unclip the metal latches on the factory air cleaner housing. Lift the upper lid and intake tube out of the engine bay. Firmly pull the lower airbox housing straight upward to pop it out of the rubber mounting grommets in the fender tray.
  6. Remove the Factory MAF Sensor: With the OEM assembly on your workbench, use a T20 Torx driver to remove the two screws securing the delicate MAF sensor into the factory housing. Carefully pull the sensor straight out by its base and place it on a clean surface. Never touch the exposed sensor wires.

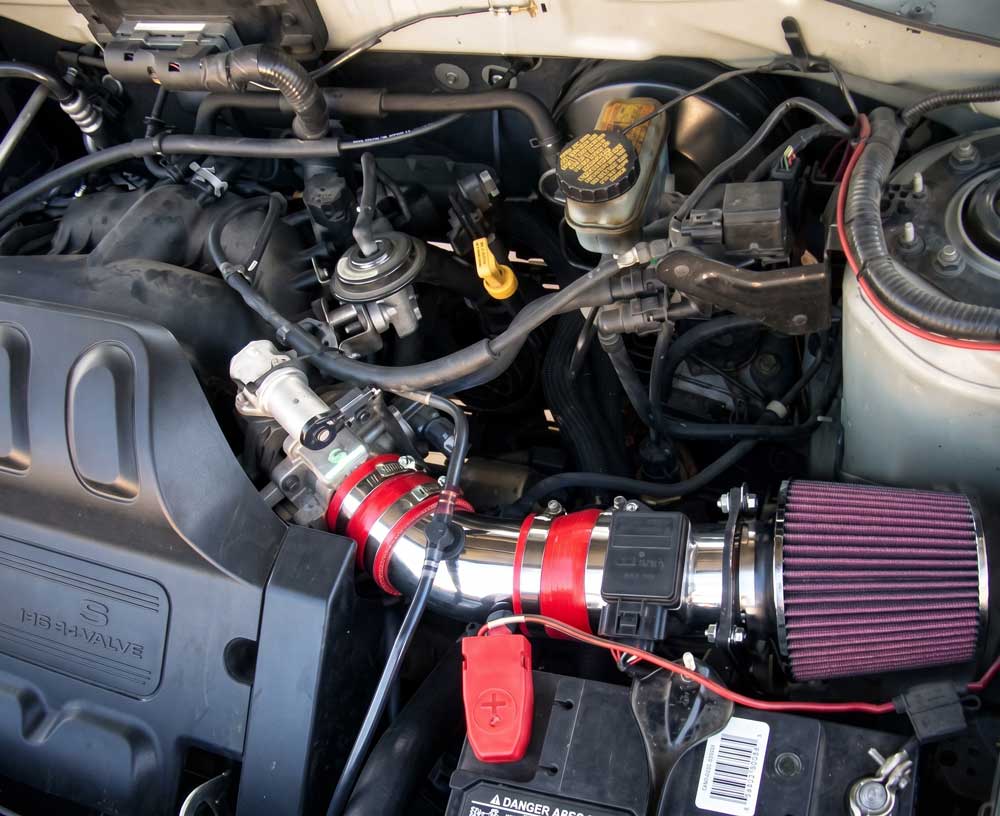

Phase 2: Installing the Cold Air Intake

  1. Transfer the Factory MAF Sensor: Insert the factory MAF sensor into the new intake pipe or sensor adapter flange. Ensure the airflow direction arrow matches the incoming air path toward the throttle body. Secure it with the provided hardware using a T20 Torx driver or the supplied allen key. Do not over-torque into the aluminum bungs.
  2. Install Throttle Body Coupler: Slide the silicone transition coupler over the 3.0L throttle body mouth. Secure the throttle body side using an 8mm socket on the provided stainless steel clamp, leaving the intake tube side loose.
  3. Position the Heat Shield / Mounting Bracket: Place the new heat shield into the lower fender well tray using the factory airbox mounting holes. Fasten it down using the supplied hardware and a 10mm socket.
  4. Install Intake Pipe and Breather: Route the new intake tube into the silicone coupler at the throttle body and line up the bracket with the heat shield. Connect the factory crankcase breather hose to the intake barb, securing it with the factory spring clamp using needle-nose pliers.
  5. Mount the High-Flow Filter: Slide the conical air filter over the intake tube inlet inside the heat shield area. Align the entire assembly so it does not rub against the battery tray or brake lines, then tighten all clamps firmly using an 8mm socket.
  6. Reconnect and First-Start Calibration: Reconnect the MAF electrical harness until the clip snaps into place, then reconnect the negative battery terminal using a 10mm wrench. Critical First Start: Turn the key to start the engine, but do not touch the gas pedal for at least 20 seconds. Allow the PCM to idle and calibrate baseline air mass readings from the new intake system before driving.

Disclaimer: This is a general guide provided for the 2001-2004 Ford Escape 3.0L. Always refer to your factory service manual for exact torque specifications and safety procedures.
