Cold Air Intake for Ford Crown Victoria & Mercury Grand Marquis (2004-2011) 4.6L Engine
Couldn't load pickup availability
- Guaranteed Fitment
- Performance Tested
- Lifetime Warranty
Want it soon? Order within
Shop safely
Secure checkout with trusted payment providers.
The Panther platform is legendary for its durability, but let’s be honest: in stock form, it breathes through a straw. Your 4.6L V8 is spending energy trying to suck air through a restrictive, baffled factory airbox designed for silence, not performance. It’s time to let that Modular engine inhale freely and sound like the American V8 it actually is.
Performance Chrome Cold Air Intake for Ford Crown Victoria & Mercury Grand Marquis (4.6L Modular V8)
If you drive a Crown Vic or a Grand Marquis, you know the struggle. The car is comfortable and virtually indestructible, but the throttle response can feel lazy off the line. This is largely due to the factory intake tract. Ford designed the stock system with plastic resonators and narrow snorkel tubes to dampen induction noise, effectively choking the engine to keep the ride quiet. While that's great for a standard commuter, it suppresses the natural character of the 4.6L SOHC engine.

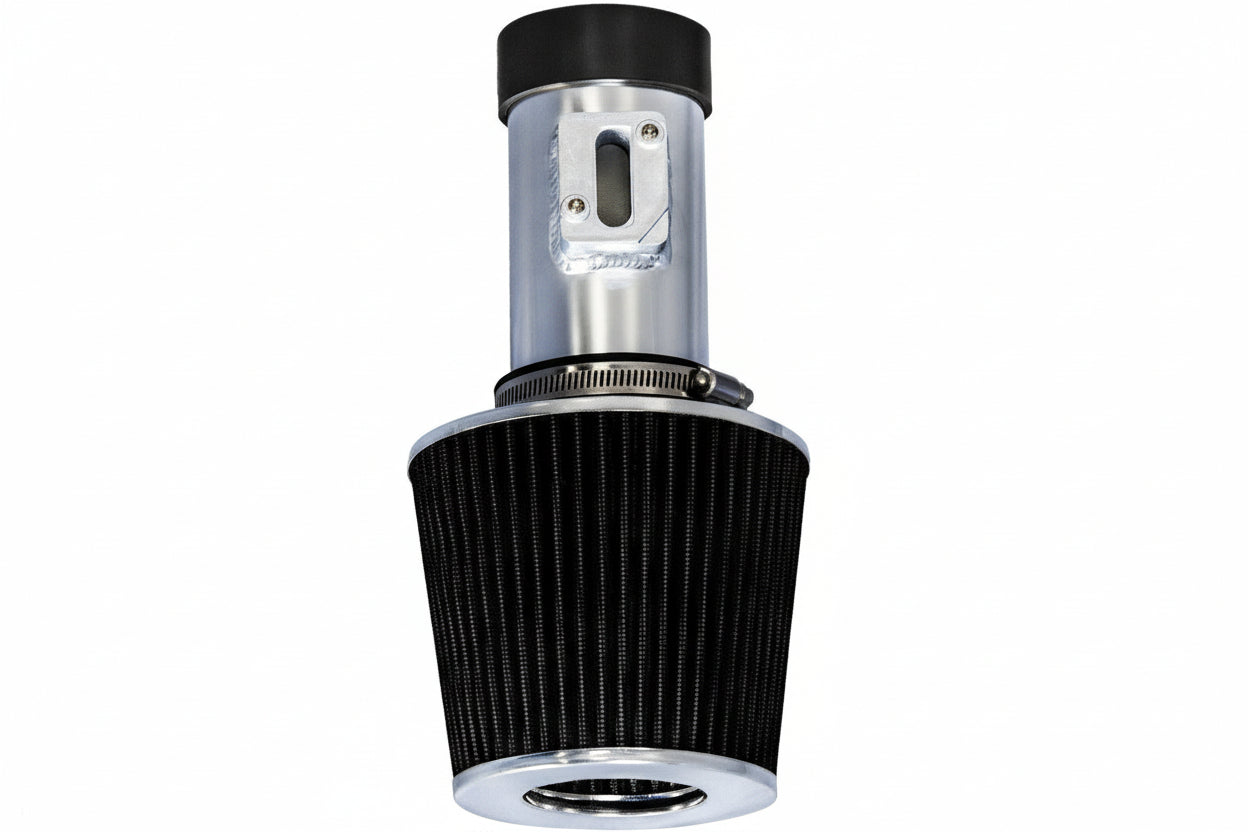

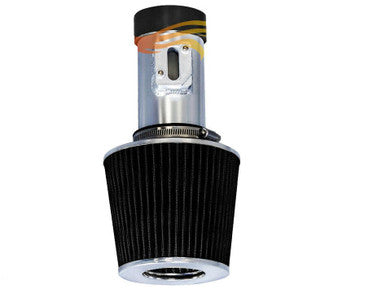

This chrome cold air intake replaces that entire restrictive plastic assembly with a smooth, mandrel-bent T304 aluminum tube. By smoothing out the airflow path and replacing the disposable paper filter with a high-flow conical element, you reduce the restriction before the throttle body. The result isn't just a shiny engine bay; it’s an engine that revs more freely. When you step on the gas, you’ll hear a deep, aggressive intake growl that the stock airbox completely hides. It’s the sound these cars should have had from the factory.
Beyond the auditory upgrade, this system is about efficiency. By maximizing airflow through the manifold, you improve the volumetric efficiency of the engine. This translates to sharper throttle response—getting that heavy chassis moving quicker—and potential gains in fuel economy during cruising because the engine doesn't have to work as hard to pull in air. It’s a straightforward bolt-on modification that modernizes the driving feel of your Panther platform cruiser.
Why You Need This Upgrade
- High-Flow Architecture: Replaces the restrictive factory airbox and "zip tube" for immediate airflow gains.
- Enhanced Throttle Response: Reduces vacuum restriction at the throttle body, making the car feel lighter on its feet.
- Aggressive Induction Note: Delete the factory sound baffles to reveal a deep, sporty V8 tone under hard acceleration.
- Long-Term Value: Features a washable, reusable filter that only requires cleaning every 50,000 miles (under normal conditions).
- Under-Hood Aesthetics: The polished T304 aluminum piping adds a clean, custom look to the engine bay.
- Factory Safe: Will not void your vehicle warranty and works with stock engine management.
| Fitment | 2004-2011 Ford / Mercury |
| Engine Family | 4.6L SOHC Modular V8 |
| Installation | Beginner / < 60 Minutes |
| Material | T304 Lightweight Aluminum (Chrome Finish) |
Installation Notes
This intake is designed to be installed with basic hand tools (screwdrivers and socket wrenches) in under an hour. No cutting or drilling is typically required. Crucial Step: As noted in the specs, you must disconnect your battery during installation. Leaving the battery disconnected for at least 15-20 minutes allows the ECU to reset its fuel trim parameters. Once you reconnect the battery and start the car, the computer will "re-learn" the idle and fueling based on the increased airflow volume. Skipping this step may result in a wandering idle or a check engine light until the computer adjusts over time.
Replaces These OEM Applications
- 2004-2011 Ford Crown Victoria 4.6L V8
- 2004-2011 Mercury Grand Marquis 4.6L V8
- (Fit Automatic & Manual Transmission)
Ditch the plastic silencers and let your 4.6L V8 roar. Grab this intake today to improve your daily drive with better sound, better looks, and better response.
Fitment
Fitment
|
Make |
FordMercury |
|---|---|
|
Engine Size |
|
|
Year |
|
Installation & Tools
Installation & Tools
The Wrench Time
- Estimated Time: 45-60 Minutes
- Difficulty: 3/10 – Straightforward driveway wrenching with basic hand tools.
Tools You Will Need
- 10mm socket and ratchet (Battery terminal, lower airbox/bracket bolts)
- 8mm socket / nut driver or flat-head screwdriver (Hose clamps & throttle body clamp)
- T20 Torx bit / driver (Factory MAF sensor transfer)
- Panel popper tool or small pick (Harness clips & vacuum line releases)
- MAF sensor cleaner (Recommended maintenance while sensor is exposed)
On the Panther platform 4.6L Modular V8, the factory PCV and vacuum line quick-connect clips on the OEM “zip-tube” become notoriously brittle from years of engine bay heat cycles. Do not muscle or pry hard on these plastic fittings. Squeeze the release ring gently with your fingers or a small pick. Additionally, when handling the delicate MAF sensor, never touch the exposed wire elements; skin oils or physical contact will damage the calibrated sensor wire and trigger lean codes (P0171/P0174).
Phase 1: Removing the Factory Part
- Disconnect the Battery: Always start by disconnecting the negative battery terminal using a 10mm wrench. This resets the PCM baseline air tables and prevents check engine lights.
- Unplug the Sensors: Slide back the red locking safety clip on the Mass Airflow (MAF) sensor harness connector, squeeze the tab, and gently pull it free. If equipped with a separate Intake Air Temperature (IAT) sensor on earlier models, disconnect it as well.
- Disconnect PCV & Vacuum Lines: Carefully squeeze the quick-disconnect tabs on the factory PCV breather tube and idle air/vacuum lines running into the OEM intake inlet pipe and detach them.
- Loosen Intake Clamps: Use an 8mm socket or flat-head screwdriver to loosen the hose clamp securing the intake tube to the throttle body, as well as the clamp at the factory airbox housing.
- Remove OEM Intake & Airbox: Unlatch the upper air cleaner lid and pull the entire factory intake assembly out of the engine bay. If removing the lower factory airbox base, remove the retaining bolts using a 10mm socket and unseat the rubber grommets from the inner fender well.
Phase 2: Installing the Cold Air Intake for Ford Crown Victoria & Mercury Grand Marquis (2004-2011) 4.6L Engine
- Transfer the Factory MAF Sensor: Using a T20 Torx driver, remove the factory MAF sensor from the OEM housing. Inspect the rubber gasket for tears, then install the sensor into the new intake tube’s adapter plate using the supplied hardware. Ensure the airflow directional arrow on the sensor points toward the throttle body.
- Mount the Heat Shield: Position the aftermarket heat shield into the inner fender area of your 2004-2011 Ford Mercury Crown Victoria Grand Marquis Marquis 4.6L. Secure it to the chassis using the factory mounting holes and a 10mm socket.
- Install Couplers & Intake Pipe: Slide the silicone coupler over the 4.6L throttle body inlet and secure it loosely with an 8mm nut driver. Insert the new intake pipe into the coupler, aligning the PCV bungs and MAF housing with the factory routing paths.
- Connect Vacuum Lines & Filter: Reconnect the PCV and vacuum lines onto the intake pipe’s aluminum fittings, ensuring a snug, leak-free seal. Slide the high-flow air filter onto the inlet end inside the heat shield and tighten the clamp firmly using a flat-head screwdriver.
- Lock Down & First Start ECU Protocol: Tighten all 8mm hose clamps securely, verify the tube does not rub against the cooling fan shroud, and plug the MAF harness back in until the red locking clip clicks. Reconnect the negative battery terminal using your 10mm wrench. Start the vehicle and DO NOT touch the gas pedal for at least 20 to 30 seconds. Allow the Panther PCM to complete its idle-air trim relearn cycle cleanly without throttle interference.
Disclaimer: This is a general guide provided for the 2004-2011 Ford Mercury Crown Victoria Grand Marquis Marquis 4.6L. Always refer to your factory service manual for exact torque specifications and safety procedures.
