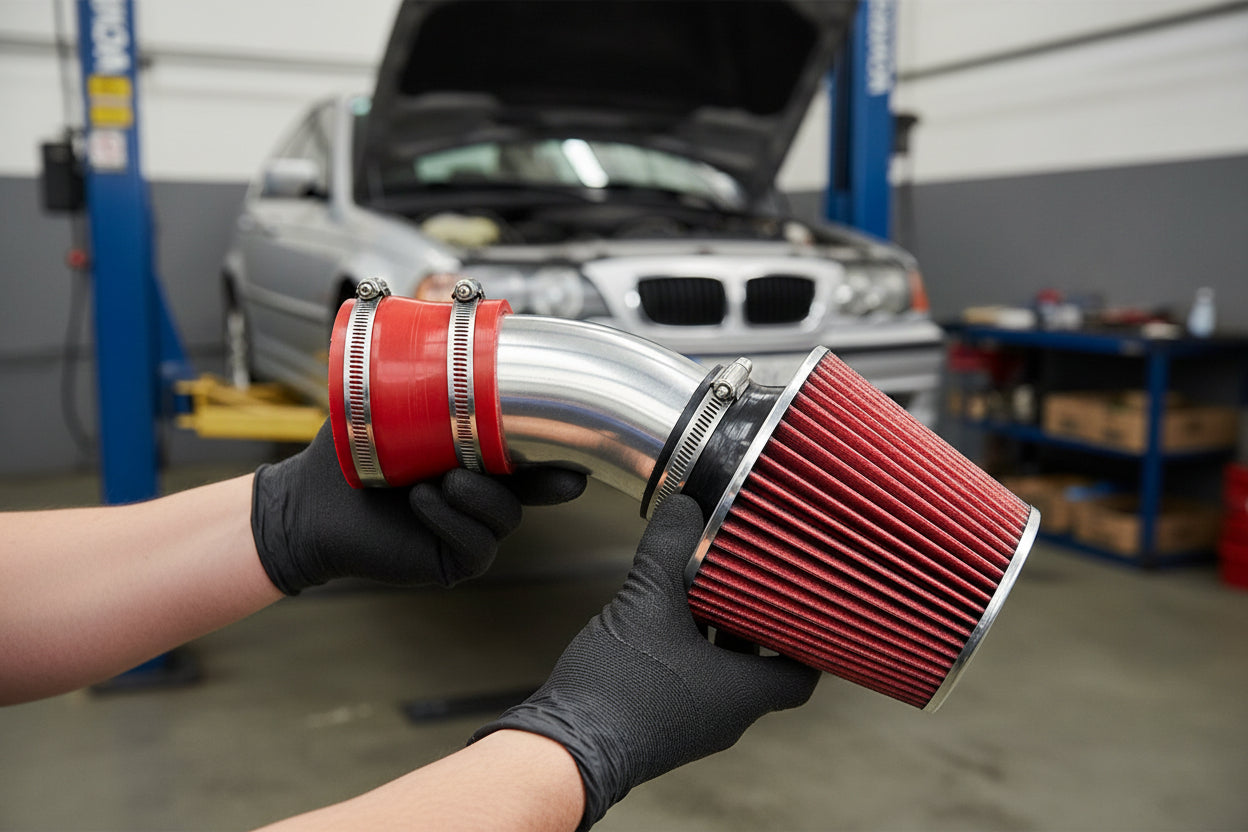

Cold Air Intake for BMW E46 323 325 328 330 (1998-2005) I6 Engine

$89.99

Free Shipping within USA.

Guaranteed Fitment
Performance Tested
Lifetime Warranty

Want it soon? Order within

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"

Shop safely

Secure checkout with trusted payment providers.

Shop safely with us

Sharpen Throttle Response and Induction Sound for Your BMW E46 M54 & M52TU Inline-Six

Who It’s For: Designed specifically for BMW 3-Series (E46) owners running the legendary M54 or M52TU Inline-Six engine. Whether you’re daily driving a 325i or carving canyons in a 330i, this is for the enthusiast who wants to hear the engine breathe and feel a more urgent response when the pedal hits the floor.

The Problem: The factory BMW airbox was engineered primarily for sound suppression and comfort, often at the expense of airflow. The stock M54 engine is a high-revving masterpiece, but it’s restricted by a narrow intake tract and a standard paper element that struggles with heat soak in the engine bay. This restriction creates a "muffled" throttle feel and prevents the engine from reaching its full volumetric efficiency.

The Solution: We engineered this kit to replace the restrictive factory plastic with high-velocity T6063 aluminum piping. By increasing the diameter and smoothing the air path to the intake manifold, we’ve corrected the factory flow limitations of the M54, delivering a consistent supply of oxygen-rich air for a 7-10% increase in horsepower and a significantly more aggressive induction note.

Why This is the Ultimate Upgrade

Optimized Airflow: High-quality T6063 Aluminum piping reduces turbulence and increases air velocity compared to the ribbed factory plastic boots.
Serviceable Filter: Includes a high-flow, washable, and reusable air filter that traps contaminants more effectively than paper while allowing higher CFM.
Direct Bolt-On Fit: Engineered for a seamless installation using basic hand tools; includes the necessary MAF sensor adapter for a plug-and-play experience.

Technical Specifications

Fitment	1998-2005 BMW E46 (323, 325, 328, 330)
Engine Family	BMW M54 / M52TU Inline-6
Factory Ratings	170 HP - 225 HP / 181 lb-ft - 214 lb-ft
Part Numbers	1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, E46, 323, 325, 328, 330

Compatibility & OEM Reference

Fits the Following Vehicles:

1998-2000 BMW 323i / 323ci (E46)
1998-2000 BMW 328i / 328ci (E46)
2001-2005 BMW 325i / 325ci / 325xi (E46)
2001-2005 BMW 330i / 330ci / 330xi (E46)
Compatible with both Automatic and Manual Transmissions

Interchange Part Numbers:

1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, E46, 3-Series, 323, 325, 328, 330, I6-Engine, T6063-Aluminum

The Performance Promise

Buy with confidence. As specialists in the E46 chassis, we know exactly what these M54 engines need to perform. This kit provides the perfect balance of aesthetic appeal under the hood and a measurable increase in driving dynamics. Backed by real automotive experts and fast shipping.

Engine Safety Rating

Difficulty

Fitment

Make	BMW
Engine Size	-
Year	1998 1999 2000 2001 2002 2003 2004 2005

Installation & Tools

The Wrench Time

Estimated Time: 30-45 Minutes
Difficulty: 3/10 - Basic driveway wrenching with care required for aging plastic.

Tools You Will Need

10mm socket and 1/4-inch drive ratchet
6mm / 7mm nut driver (or flathead screwdriver for hose clamps)
Trim panel popper or flathead screwdriver (for plastic cowl rivets)
10mm open-end wrench (for battery terminal)
T20 Torx driver (model-dependent for heat shield brackets)
Clean microfiber towel and MAF cleaner spray (optional but recommended)

Mechanic’s Pro Tip (The "Gotcha"):
The 1998-2005 BMW 3 Series (E46 chassis) is notorious for vacuum leaks. While removing the factory airbox, do not forcefully yank on the upper intake tube. The rubber accordion ribs on the lower intake boot and the plastic "F-connector" vacuum lines dry out and split easily, triggering instant P0171/P0174 lean codes. Gently support the intake boot with one hand while pulling the airbox free with the other. Also, check that the two rubber lower airbox mounting grommets on the inner fender don’t fall into the engine bay abyss.

Phase 1: Removing the Factory Part from your 1998-2005 BMW 3 Series

Disconnect the Battery: Pop the trunk and disconnect the negative terminal using a 10mm wrench. This resets air-fuel trims and prevents setting an accidental Mass Air Flow (MAF) code.
Remove the Front Air Scoop: Use a trim panel popper to pry up the center pins of the three plastic expansion rivets securing the intake snorkel above the radiator shroud, then pull the duct out.
Unplug the MAF Sensor: Squeeze the wire retaining bail or slide the locking tab on the MAF harness plug and pull it straight off. Never pull by the wires.
Loosen the Intake Clamps: Use a 6mm nut driver or flathead screwdriver to loosen the hose clamp connecting the MAF housing to the rubber upper intake elbow.
Unbolt and Extract the Airbox: Remove the two 10mm bolts securing the airbox to the driver-side inner wheel well. Gently lift the entire factory airbox straight up out of its lower rubber mounting grommets and set it on your workbench.

Phase 2: Installing the Cold Air Intake

Transfer the Mass Air Flow Sensor: If your kit requires reusing the factory MAF housing, unclip it from the OEM airbox. Inspect the delicate heated wire inside—do not touch it with your fingers. Reinstall the MAF onto the new intake silicone coupler, ensuring the airflow directional arrow points directly toward the throttle body.
Mount the Heat Shield: Drop the heat shield into the engine bay, aligning its lower bracket pins with the factory rubber chassis bobbins. Secure it to the inner fender using the original 10mm bolts (torque snug, do not overtighten into the sheet metal).
Install Intake Pipe and Filter: Slide the silicone coupler onto the intake elbow and secure it with the provided hose clamp using your 7mm nut driver. Insert the new intake tube and position the high-flow conical air filter inside the heat shield enclosure. Tighten all clamps until the silicone begins to slightly bulge, ensuring an airtight seal without crushing the intake pipe.
Reattach Wiring and Battery: Reconnect the MAF wiring harness until it clicks securely into place. Reconnect the negative battery terminal in the trunk using your 10mm wrench.
ECU Calibration Startup Protocol: Turn the ignition to Position 2 (ignition on, engine off) for 10 seconds to allow the DME to read baseline sensor voltage. Start the vehicle and do not touch the gas pedal for at least 20 seconds. Let the engine idle smoothly while the computer adjusts fuel trims to the increased airflow volume. Check for any whistling sounds that indicate an unmetered air leak.

Disclaimer: This is a general guide provided for the 1998-2005 BMW 3 Series. Always refer to your factory service manual for exact torque specifications and safety procedures.
