Catback Exhaust for Toyota Supra (1986-1992) 3.0L

High-Flow Catback Exhaust for 1986-1992 Toyota Supra (7M/A70)

What It Does: Replaces the restrictive factory exhaust system from the catalytic converter back with 3.0-inch mandrel-bent piping to reduce backpressure and improve exhaust scavenging.

The Stock Supra Weakness

The OEM A70 Supra exhaust system was engineered primarily for 1980s noise compliance rather than flow efficiency. The factory piping utilizes restrictive diameters—often necking down at the bends—and heavy internal baffling that creates significant fluid friction. In the turbocharged 7M-GTE models, this backpressure traps heat at the turbine outlet, increasing exhaust gas temperatures (EGTs) and slowing turbo spool. Furthermore, the original mild steel construction is highly susceptible to scaling and structural failure after decades of thermal cycling and environmental exposure, leading to leaks and lost performance.

The Engineering Solution

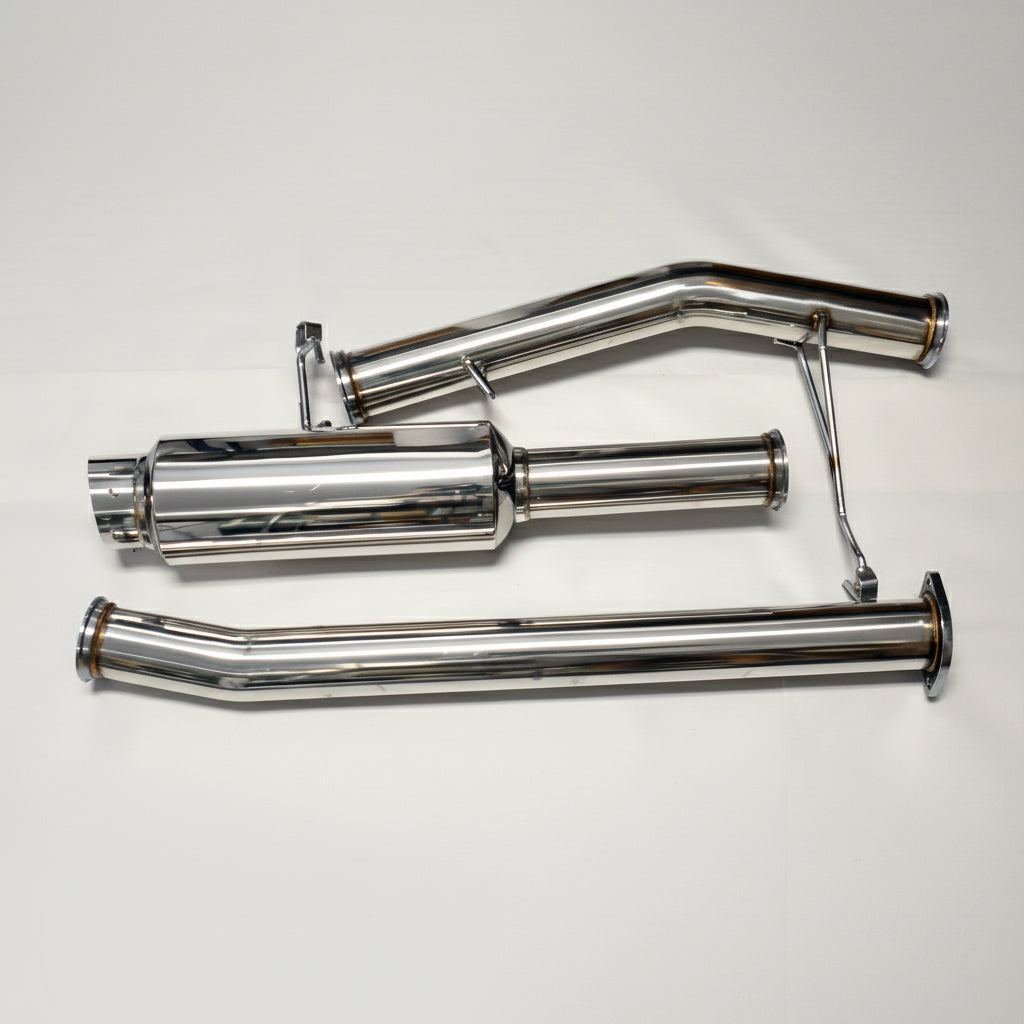

This system features a full 3.0-inch bore constructed from high-grade stainless steel, providing a direct, high-volume path for spent gases. By utilizing mandrel-bent tubing, the inner diameter remains constant throughout every radius, eliminating the turbulence found in press-bent factory units. The 4.0-inch tip is designed for a flush fit within the A70 rear valence. This setup includes a removable silencer baffle; keeping the silencer installed maintains a civil tone for daily driving, while removing it allows the 7M straight-six to resonate with its signature deep, mechanical note. The kit is a direct bolt-on solution that mates to the existing catalytic converter flange, including all necessary gaskets and hardware for a leak-free seal.

Technical Specifications

Compatibility

• 1986-1992 Toyota Supra Base (7M-GE)
• 1987-1992 Toyota Supra Turbo (7M-GTE)
• Chassis Codes: MA70 (3.0L), plus JDM GA70 / JZA70

The Toyota Standard

Specifically tuned for the A70 platform, this exhaust provides the necessary flow for both naturally aspirated and turbocharged 7M engines to breathe correctly, delivering a signature JDM tone without the rasp associated with low-grade thin-wall alloys.

Common Questions

Will this catback exhaust fit both non-turbo and turbo 1986-1992 Toyota Supra 3.0L models?
Yes, this system fits both the 1986-1992 Toyota Supra Base (naturally aspirated 7M-GE) and the 1987-1992 Supra Turbo (7M-GTE) on the A70 MK3 chassis.

What is included in the box?

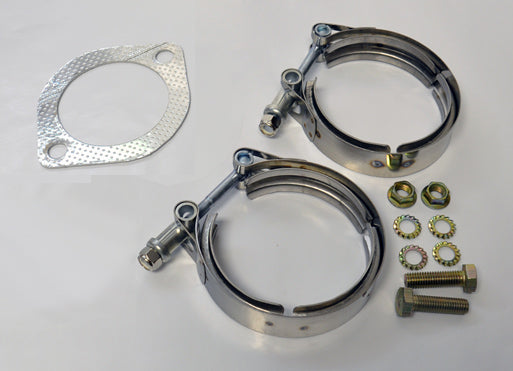

The kit includes the 3.0-inch mandrel-bent stainless steel catback exhaust with a 4.0-inch tip, a removable silencer baffle, and the necessary gaskets and hardware for installation.

Does this exhaust bolt directly to the factory catalytic converter?
Yes, it is a direct bolt-on replacement that mates to the factory catalytic converter flange without requiring custom piping modifications.

Can I adjust the sound level of this exhaust?

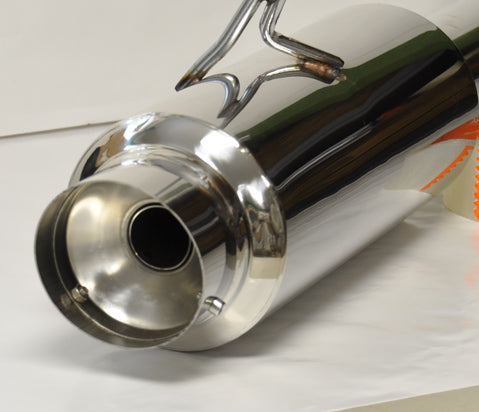

Yes, the 4.0-inch tip comes with a removable silencer baffle. You can keep the baffle installed for a milder daily-driving tone or remove it for a deeper, louder exhaust note.

Does this fit JDM A70 Toyota Supra models?
Yes, in addition to the 1986-1992 MA70 3.0L models, this catback system also fits the shared A70 chassis layout on JDM GA70 2.0L and JZA70 2.5L models.
