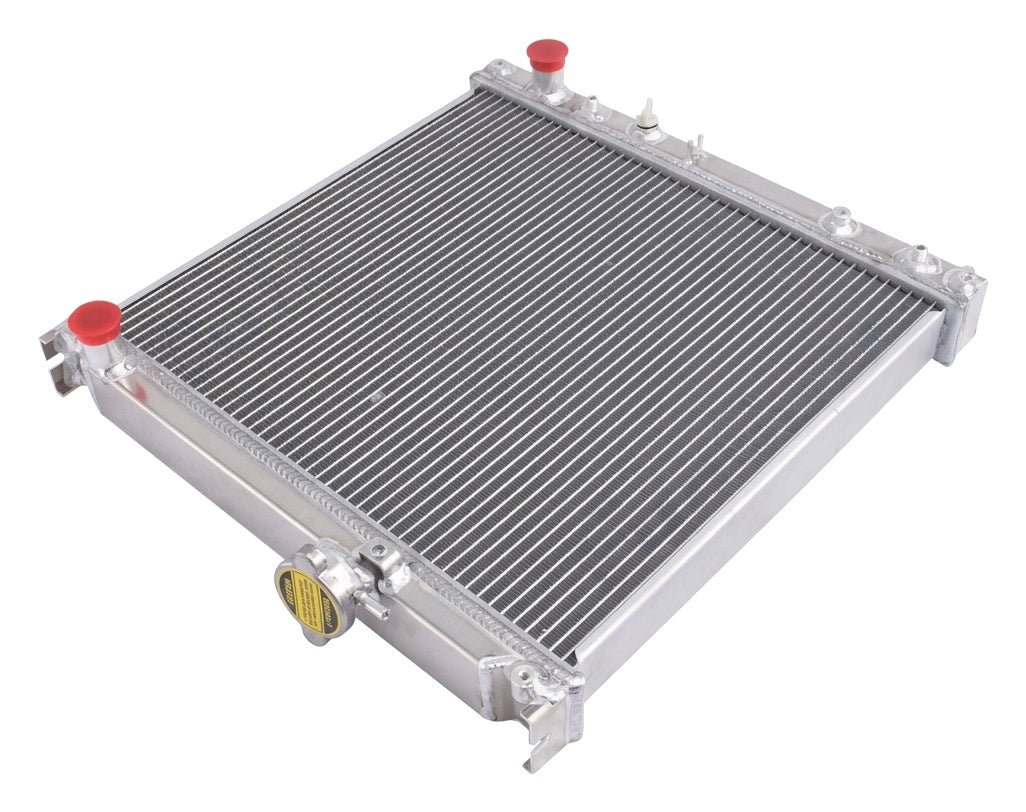

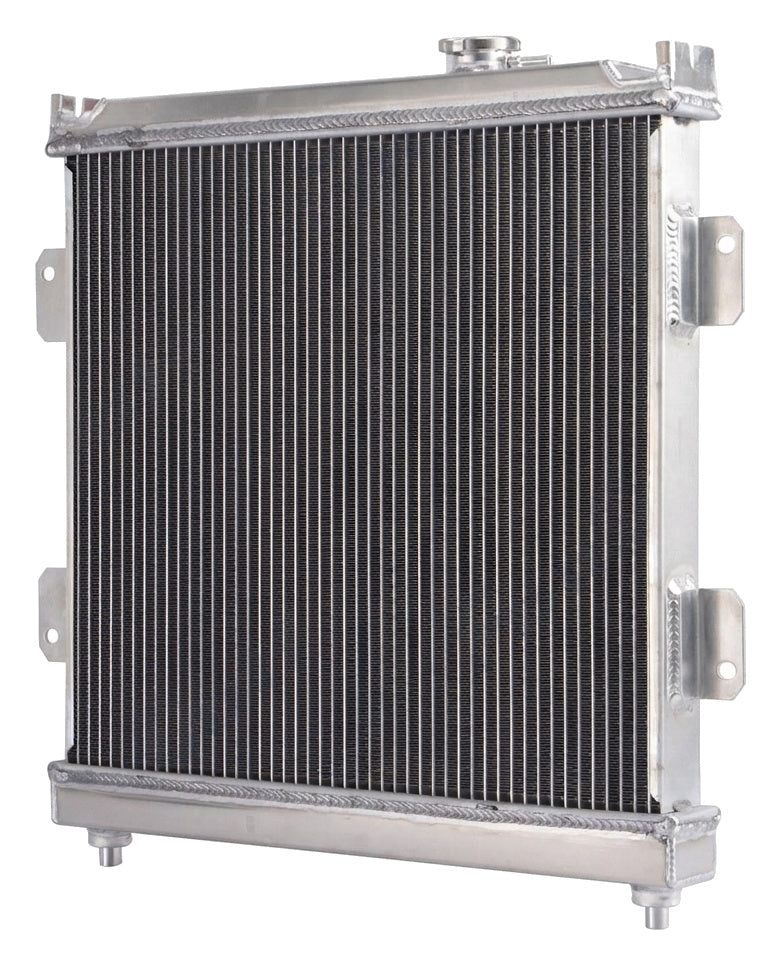

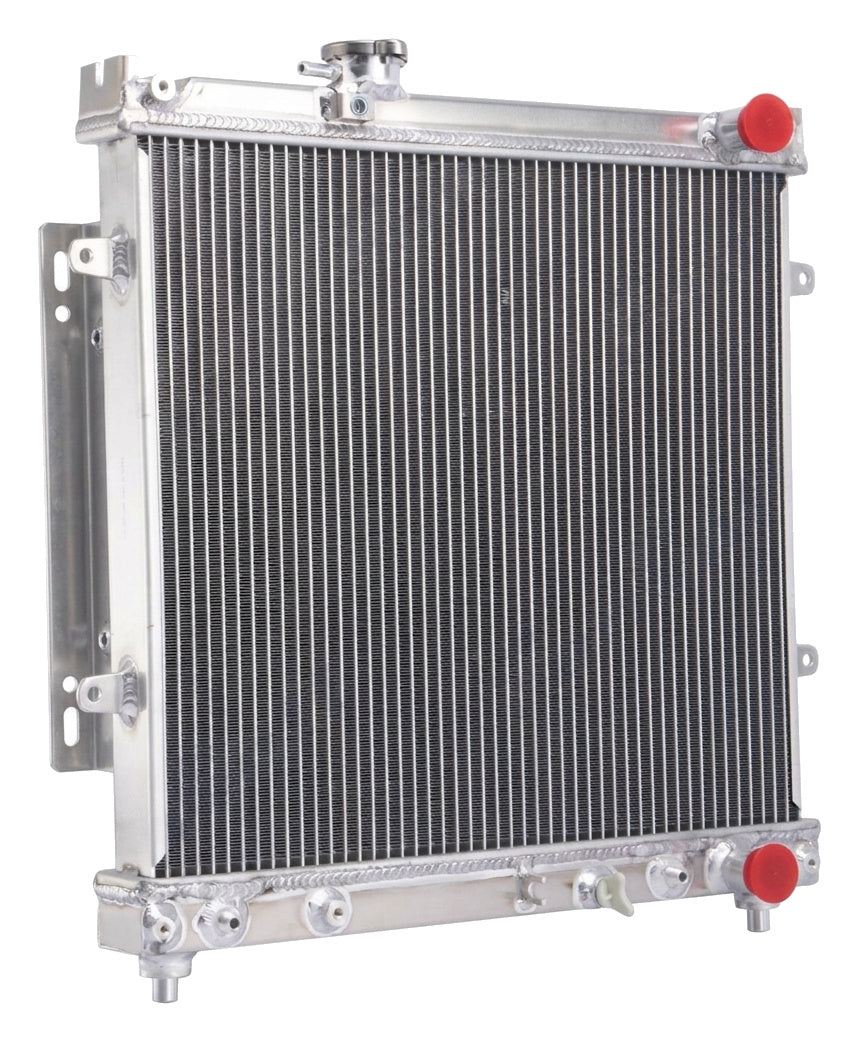

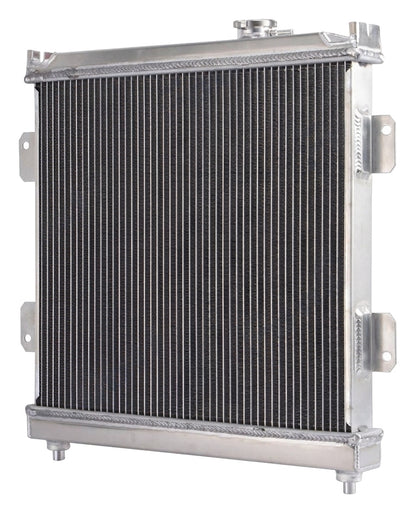

Aluminum Radiator for Suzuki Sidekick (1993-1998) 1.6L 1.8L

Heavy-Duty 3-Row Aluminum Radiator for 1993-1998 Suzuki Sidekick

Thermal Management Upgrade: Replaces the failure-prone factory crimped radiator with an all-aluminum 3-row core designed to eliminate heat soak and maintain stable coolant temps during technical off-road crawling and highway driving.

The Stock Sidekick Cooling Limitations

Original equipment radiators in the first-generation Sidekick utilize plastic end tanks crimped onto a thin single-row aluminum core using rubber O-ring gaskets. Decades of heat cycling, engine vibration, and chassis flex fatigue this plastic, inevitably causing stress fractures at the hose necks and seam weeping. Furthermore, the minimal surface area of the thin OEM core offers virtually zero thermal margin when traversing steep grades in 4WD low range, causing dangerous coolant temperature spikes that risk warping the aluminum cylinder head on G16 and J18 powerplants.

The Engineering Solution

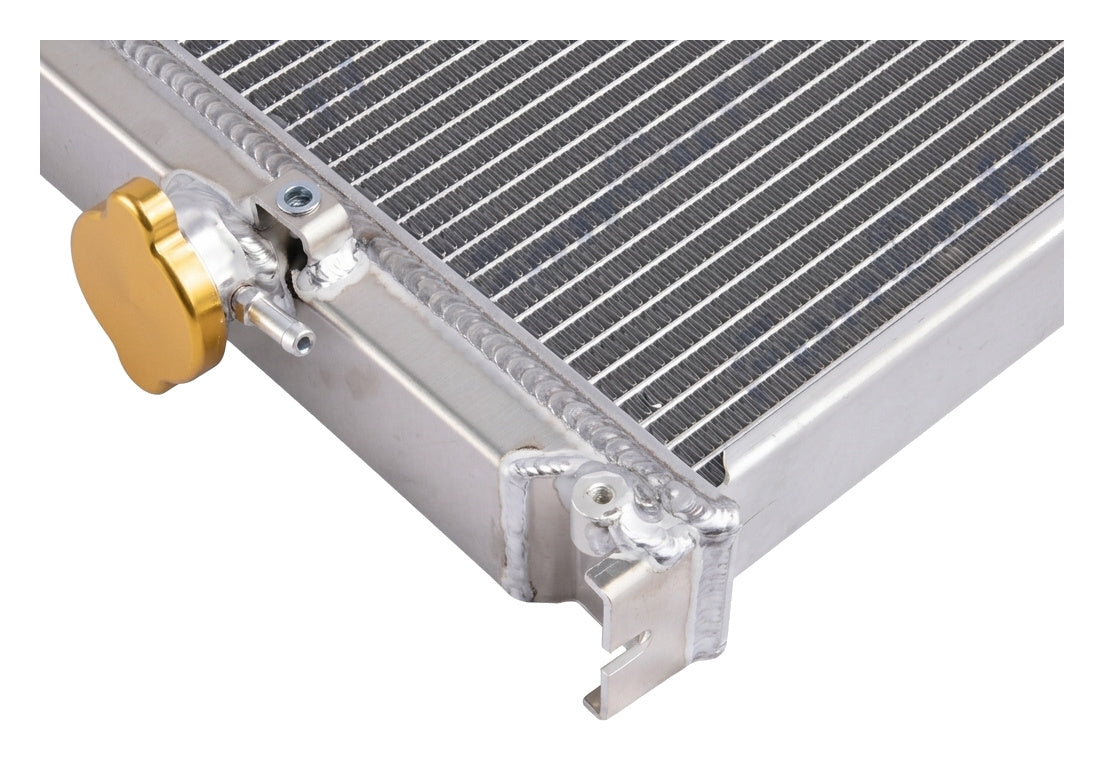

This direct replacement radiator features an aerospace-grade aluminum brazed tube-and-fin core with a high-capacity 3-row configuration, dramatically expanding internal fluid capacity and effective dissipation surface area. Robust aluminum end tanks are 100% hand TIG-welded to the core, completely eliminating problematic crimped seams and brittle plastic. By optimizing laminar coolant velocity and accelerating airflow thermal rejection, it resists thermal saturation under sustained engine loads and harsh trail conditions.

Technical Specifications

Compatibility

• 1993-1998 Suzuki Sidekick JS, JX, JLX (1.6L L4 SOHC 16-Valve G16B)
• 1996-1998 Suzuki Sidekick Sport JX, JLX (1.8L L4 DOHC 16-Valve J18A)
• Fitment Type: Direct Replacement (Manual and Automatic; verify transmission cooler and mounting before purchase)

The Suzuki Trail Caliber

Built to withstand extreme torsional chassis twist, rocky trail impacts, and continuous low-speed crawling without leak development or cooling degradation.
