Aluminum Radiator for RAM 5500 (2010-2012) 6.7L

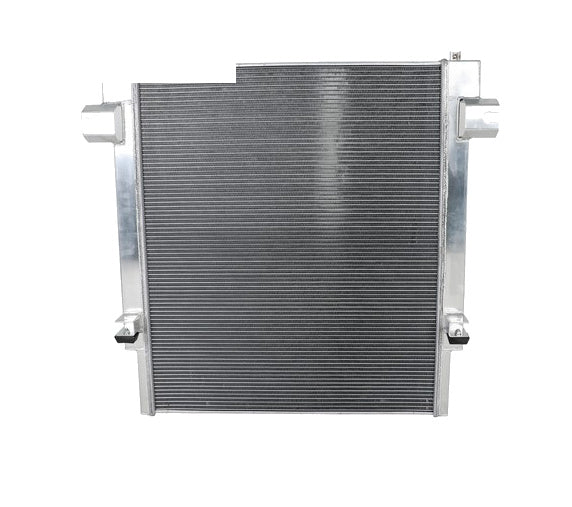

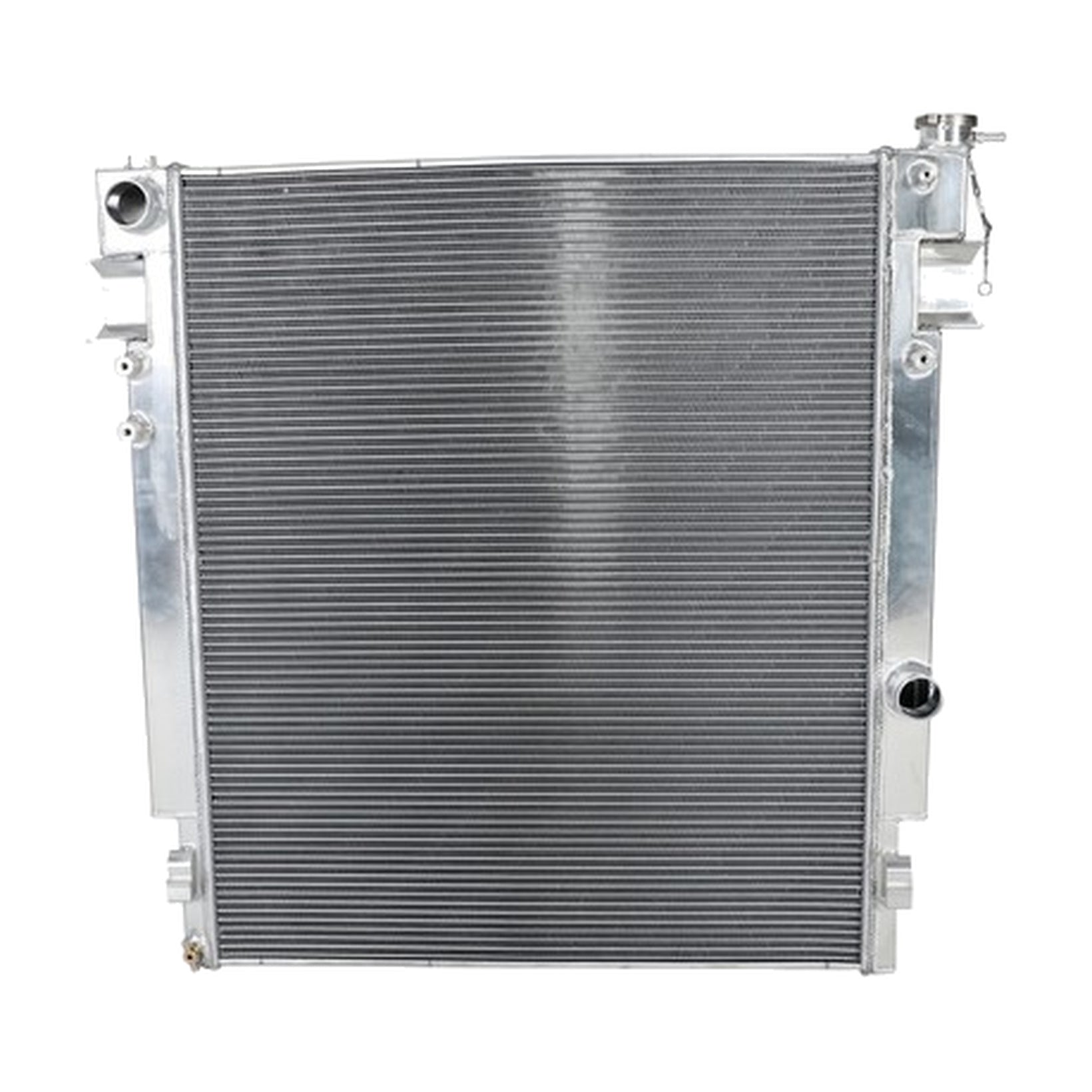

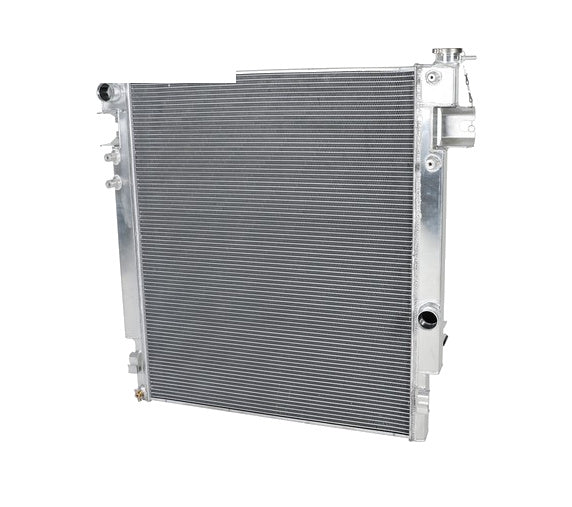

Heavy-Duty 3-Row Aluminum Radiator for 2010-2012 RAM 5500

What it Does: Directly replaces the factory cooling assembly with a high-capacity, TIG-welded aluminum core engineered to prevent thermal derating under heavy commercial payload and towing cycles.

The Stock 5500 Cooling Bottleneck

Factory radiators on the 6.7L Cummins utilize crimped plastic end-tanks mated to aluminum cores via rubber gaskets. High thermal cycling and cooling system pressures generated under continuous heavy-duty hauling cause the factory composite plastic to embrittle and fatigue. This leads to gasket blowout, stress cracks along the tank seams, and rapid coolant loss, resulting in elevated engine operating temperatures and reduced heat rejection capacity.

The Engineering Solution

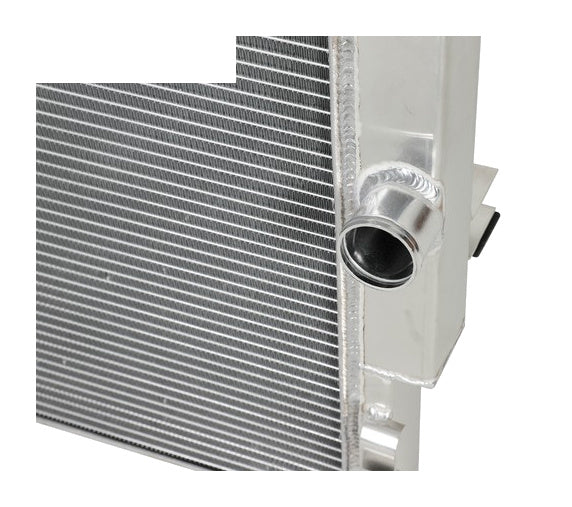

This replacement radiator is manufactured from aircraft-grade AA5052 aluminum with 100% TIG-welded tank-to-core seams, eliminating failure-prone plastic joints and crimps. Featuring a heavy-duty 3-row core measuring 26.61" x 32.60" x 1.73", it increases fluid capacity and core tube surface area. The dense fin-and-tube geometry optimizes convective heat transfer across the frontal profile while resisting core flex under severe commercial chassis torsional loads.

Technical Specifications

Compatibility

• 2010 RAM 5500 Cab & Chassis 6.7L Cummins Diesel
• 2011 RAM 5500 Cab & Chassis 6.7L Cummins Diesel
• 2012 RAM 5500 Cab & Chassis 6.7L Cummins Diesel

The RAM Work-Ready Standard

Built for the demanding thermal requirements of severe-duty hauling and commercial fleets, this all-aluminum core maintains stable operating temperatures and zero-leak reliability under heavy sustained towing loads.
