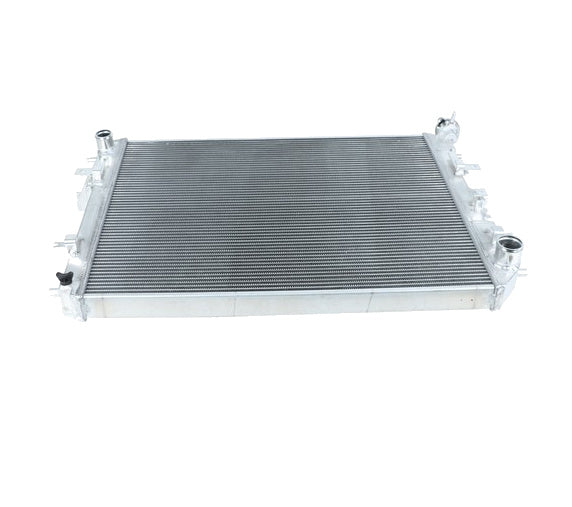

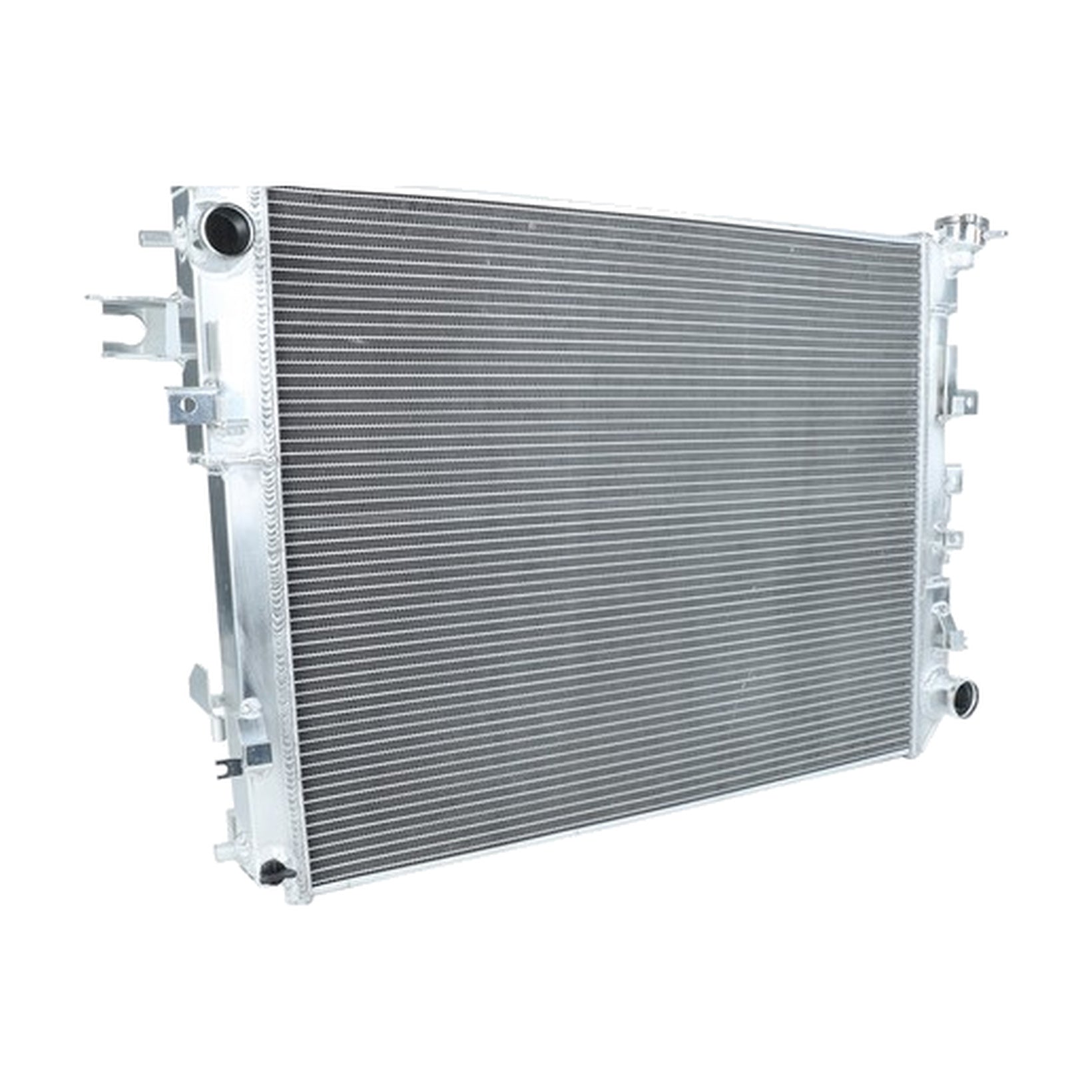

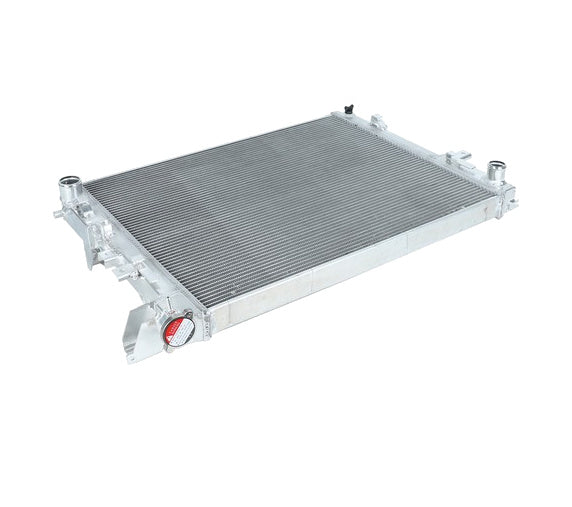

Aluminum Radiator for RAM 1500 (2019-2021) 5.7L

Heavy-Duty Aluminum Radiator for 2019-2021 RAM 1500

Direct Cooling Upgrade: Replaces the failure-prone plastic-tank OEM radiator with an all-welded 3-row aluminum core to maximize heat rejection under heavy towing and high thermal loads.

The Stock 1500 Cooling Weakness

Factory DT-chassis radiators rely on crimped plastic end tanks bonded to a single-row core via rubber gaskets. Under sustained towing or ambient heat exceeding 90°F, continuous thermal expansion cycles fatigue the composite tanks. This leads to hairline fractures along the tank seams, degraded fin efficiency, and coolant loss, resulting in elevated cylinder head temperatures on the 5.7L HEMI.

The Engineering Solution

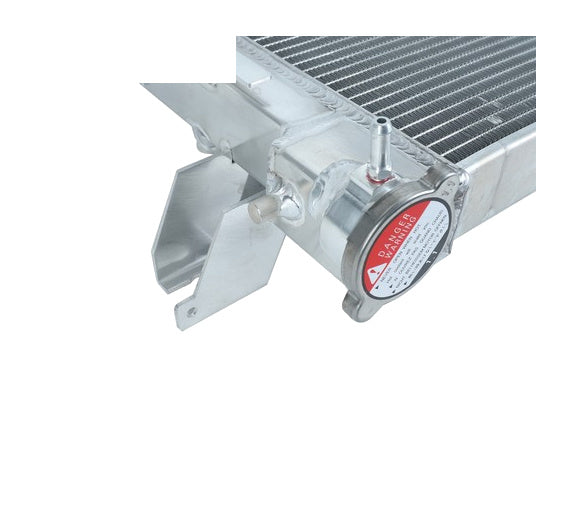

Engineered from high-tensile AA5052 aircraft-grade aluminum, this 3-row radiator features 100% TIG-welded end tanks, eliminating failure-prone crimped gaskets. The expanded 44 mm (1.73 in) core houses three parallel fluid rows, significantly increasing surface contact area and fluid dwell time. This construction promotes rapid convective heat transfer, preventing heat soak and keeping coolant temperatures stable under extreme payload demands.

Technical Specifications

Compatibility

• 2019 RAM 1500 (5.7L V8 Gas - Tradesman, Big Horn, Laramie, Rebel, Longhorn, Limited)
• 2020 RAM 1500 (5.7L V8 Gas - Tradesman, Big Horn, Laramie, Rebel, Longhorn, Limited)
• 2021 RAM 1500 (5.7L V8 Gas - Tradesman, Big Horn, Laramie, Rebel, Limited Longhorn, Limited)

The RAM Towing Standard

Built for rigorous hauling duty, this all-aluminum radiator withstands severe vibration and thermal shock, ensuring reliable operating temperatures when trailering heavy loads.
