Aluminum Radiator for Honda CR-V (2007-2009) 2.4L

Direct-Fit All-Aluminum 3-Row Performance Radiator for 2007-2009 Honda CR-V (RE3/RE4)

What it Does: The all-aluminum 3-row radiator replaces the failure-prone factory plastic-tank heat exchanger on the 2007-2009 Honda CR-V to maximize thermal dissipation and prevent coolant loss under demanding driving conditions.

The Stock Honda CR-V Cooling System Limitation

Factory radiators on the RE3/RE4 chassis rely on molded plastic end tanks crimped onto an aluminum single-row core via rubber gaskets. Over time, continuous thermal cycling, coolant acidity, and system pressure degrade the composite material. This leads to brittle top tank seams, hairline stress fractures around the upper inlet neck, and sudden pressure loss. Additionally, the thin OEM core design provides minimal thermal reserve, making the vehicle prone to heat soak during stop-and-go commuting, mountain climbs, or loaded highway travel.

The Engineering Solution

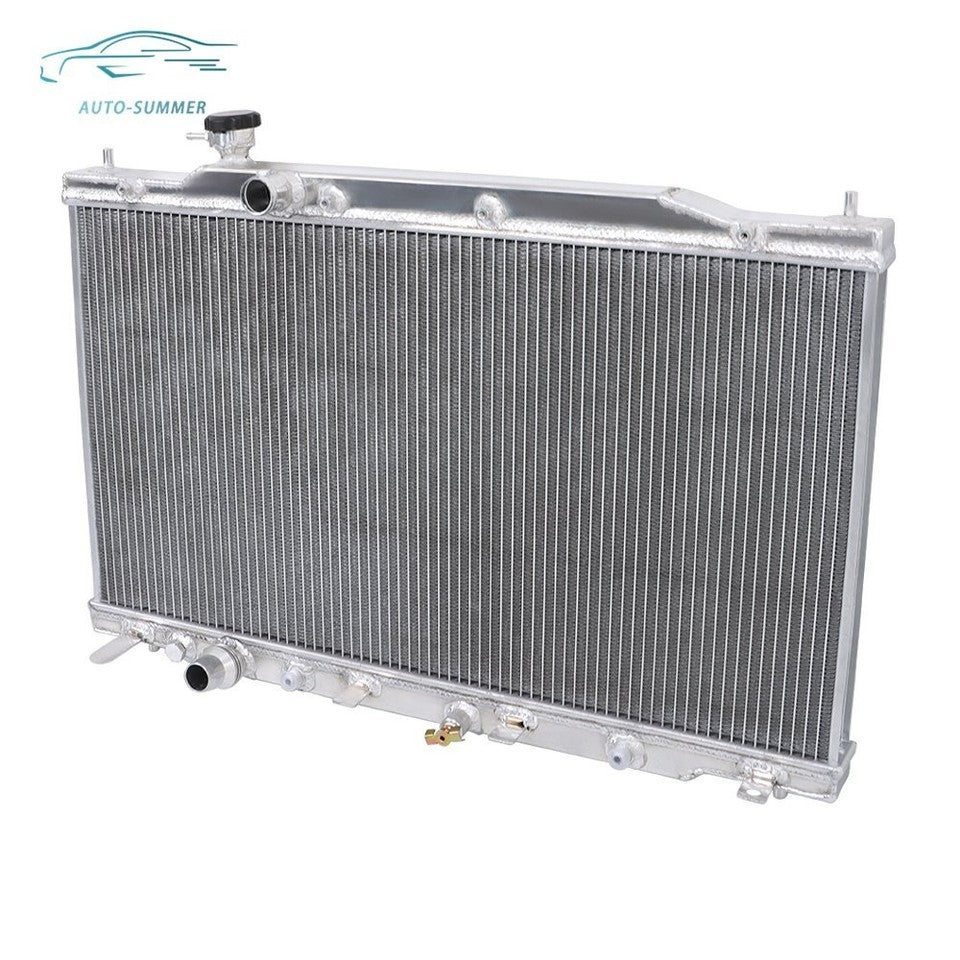

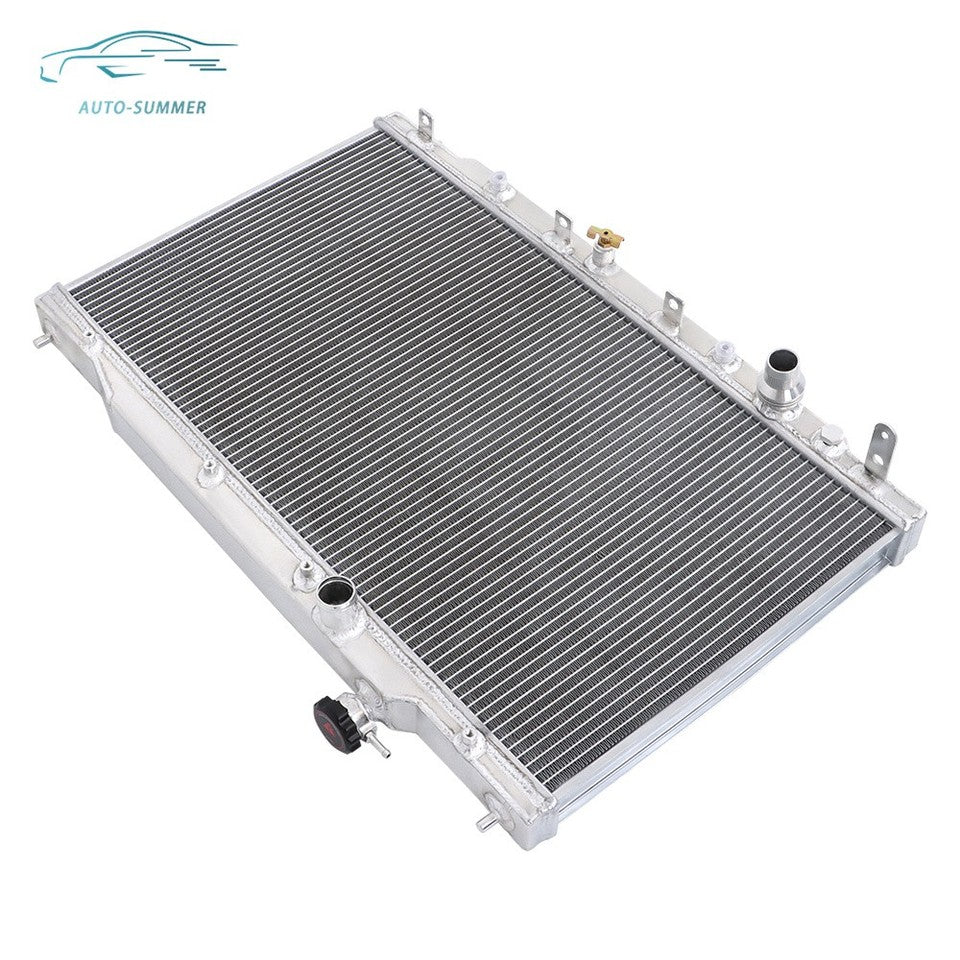

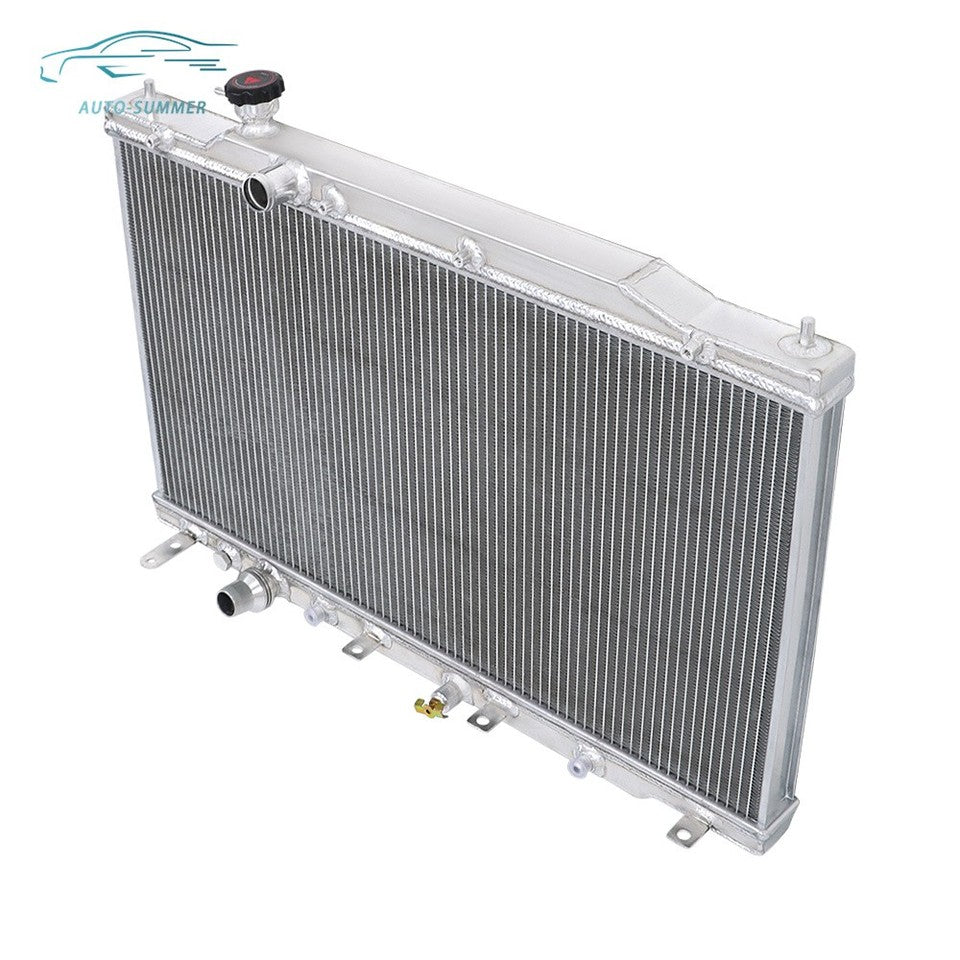

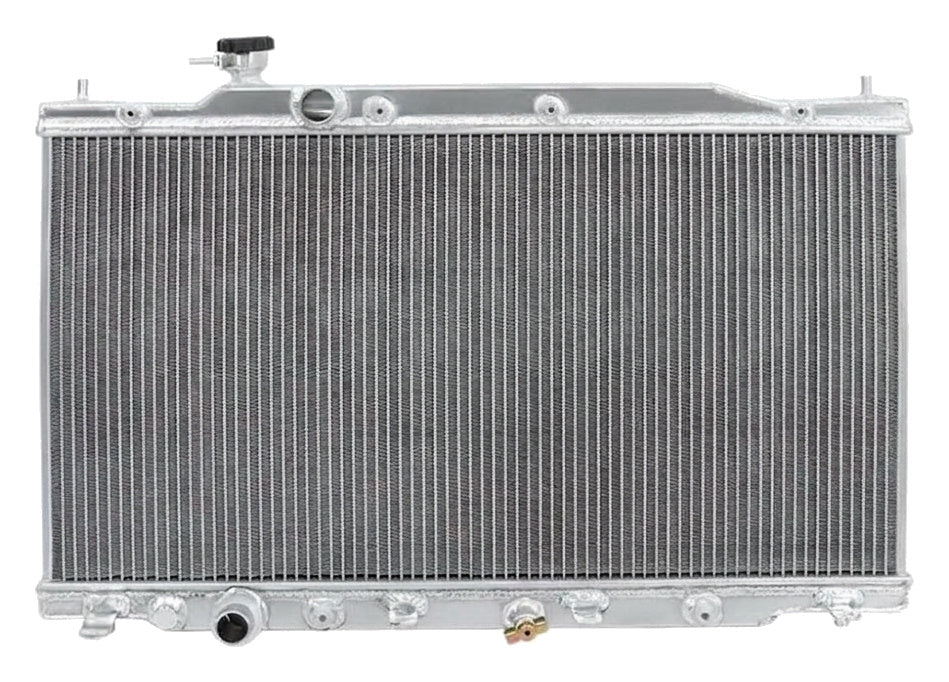

This high-efficiency replacement solves factory structural vulnerabilities with an all-aluminum construction featuring 100% TIG-welded end tanks, eliminating failure-prone crimped plastic seals. The heavy-duty 3-row aluminum tube-and-fin core dramatically expands fluid volume and effective surface area, accelerating heat exchange to keep engine temperatures stable. Engineered specifically for the K24Z1 engine bay, it retains factory-spec bracket locations, hose barbs, and fan shroud mounts for a clean, direct-fit installation.

What's Included

• 1 x 3-Row All-Aluminum Performance Radiator
• Protective transport caps on inlet/outlet ports

Technical Specifications

Compatibility

• 2007-2009 Honda CR-V 2.4L (FWD / AWD; LX, EX, EX-L Trims)

Frequently Asked Questions & Fitment Warnings

Does this fit the RE3/RE4 CR-V?

Yes, this is a direct fit for the 2007-2009 Honda CR-V equipped with the K24Z1 2.4L engine. This product is specified exclusively for the listed 2007-2009 2.4L models and will not fit other generations, engine sizes, or universal applications.

Do I need to bleed the cooling system after installation?

Yes, you must perform a complete cooling system flush, inspect hoses, and thoroughly burp all air pockets using fresh coolant to prevent localized cylinder head hotspots.

The Honda Standard

Engineered to support the proven reliability of Honda's high-revving i-VTEC platform, this heavy-duty all-aluminum radiator provides the thermal headroom and structural integrity required for long-term engine preservation.
