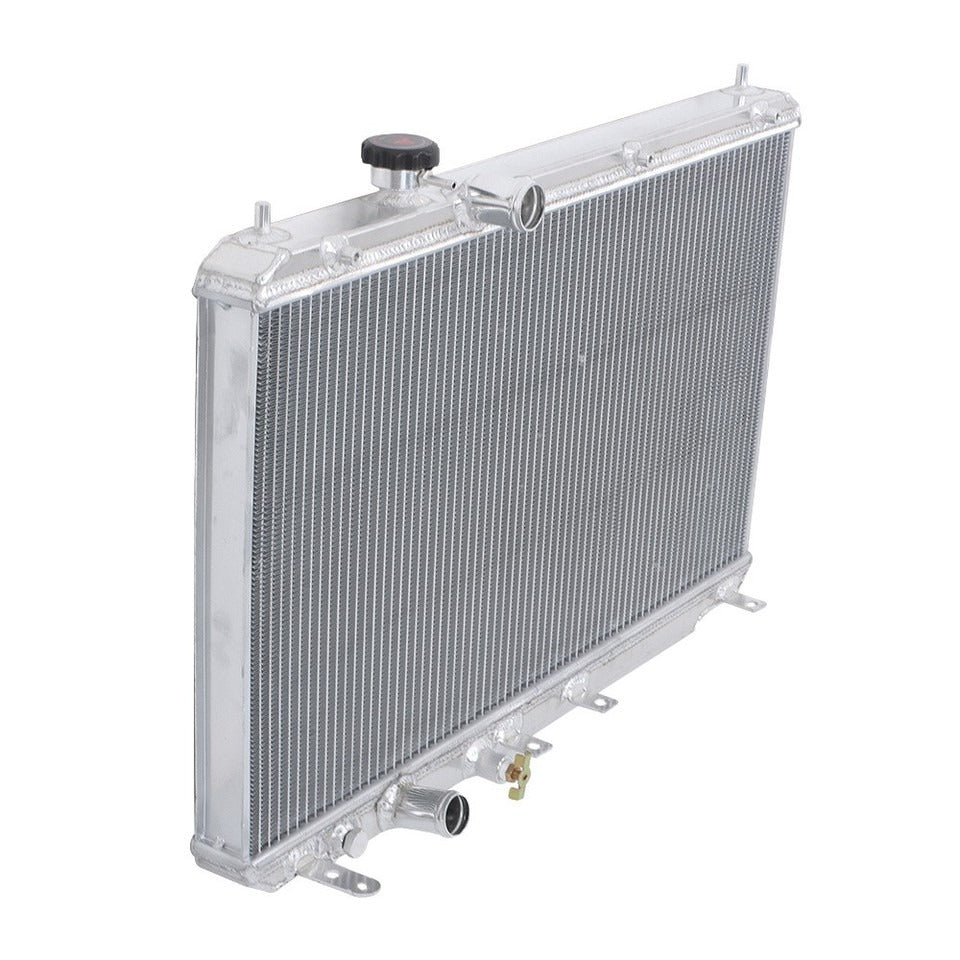

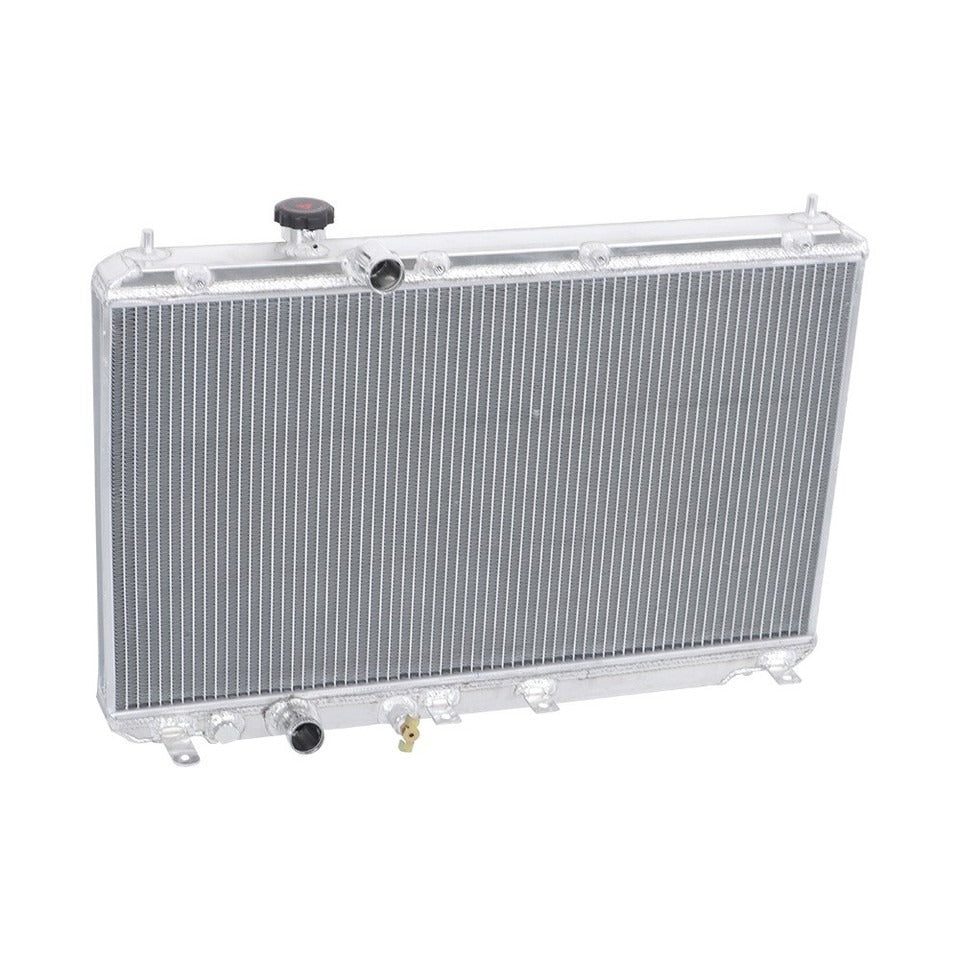

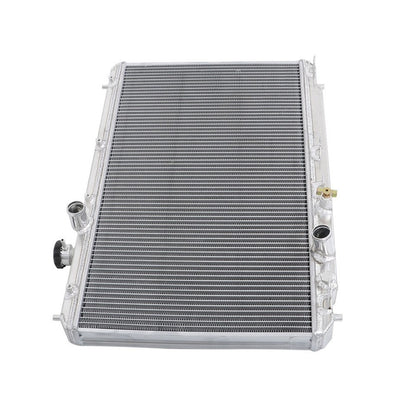

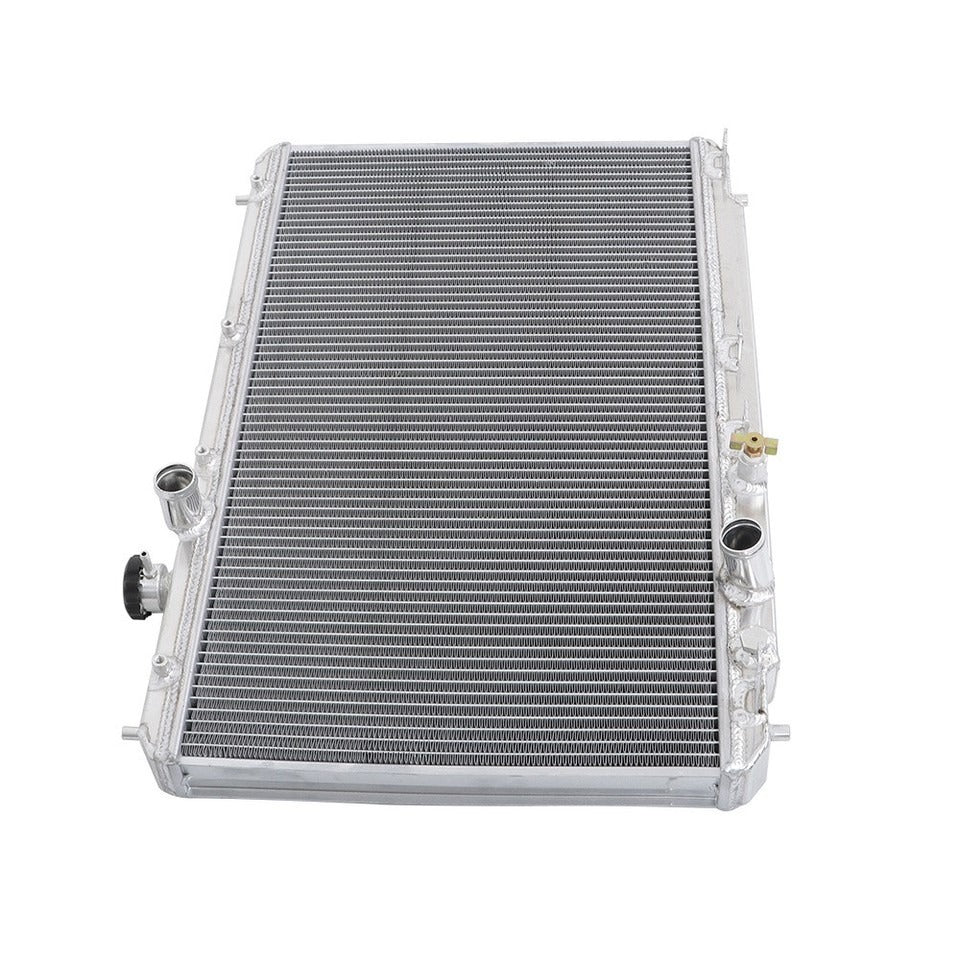

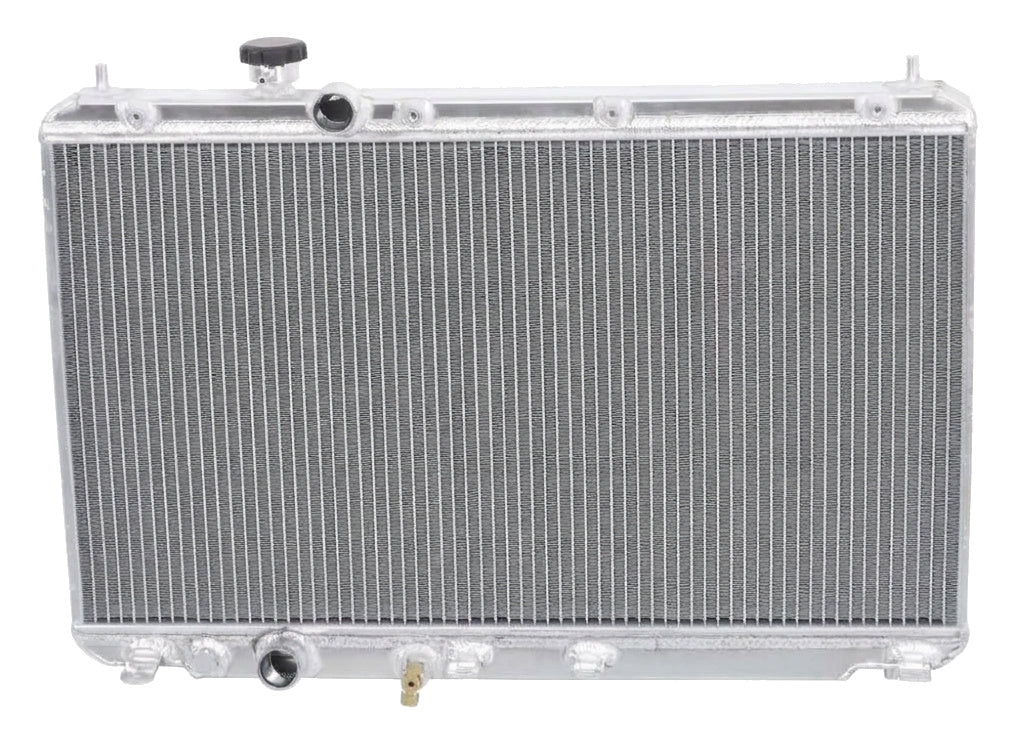

Aluminum Radiator for Honda Civic (2012-2015) 2.4L

High-Efficiency 3-Row All-Aluminum Performance Radiator for 2012-2015 Honda Civic (FB6/FG4)

What it Does: The 3-Row All-Aluminum Performance Radiator replaces the failure-prone factory heat exchanger on the 2012-2015 Honda Civic 2.4L to dissipate thermal loads faster and prevent engine overheating during aggressive driving.

The Stock Honda Civic Cooling System Weakness

The factory cooling unit in the 9th generation Civic relies on crimped, heat-cycled plastic composite end tanks mated to a thin single-row aluminum core. Under high-RPM operation and aggressive heat-cycling, the K24Z7 engine generates significant thermal loads that degrade the OEM plastic tanks, causing brittleness, seam separation, and sudden hairline fractures at the inlet neck. Furthermore, factory fin density and single-row tube designs quickly succumb to heat soak in high-ambient track or spirited driving conditions, choking heat rejection capacity and risking head gasket distortion.

The Engineering Solution

Engineered for maximum thermal dissipation, this upgraded unit features a 3-row, furnace-brazed aluminum tube-and-fin core designed to drastically increase surface area and coolant capacity. The assembly replaces composite materials with 100% heavy-duty aluminum end tanks joined via precision TIG welding to eliminate failure-prone crimped plastic seams. Internal fluid passages are optimized for consistent, low-restriction coolant flow through the cylinder head and block circuits, significantly reducing heat soak and sustaining stable operating temperatures under high loads.

What's Included

• 1 x All-aluminum 3-row performance radiator
• Protective port caps (installed on inlet and outlet ports)

Technical Specifications

Compatibility

• 2012-2015 Honda Civic 2.4L (Sedan / Coupe)

Frequently Asked Questions & Fitment Warnings

Does this fit the FB6/FG4 Civic?

Yes, this is a direct fit for the 2012-2015 Honda Civic equipped with the K24Z7 engine; it is not a universal unit and is not engineered for base 1.8L R18-powered models.

Do I need to bleed the cooling system after installation?

Yes, complete a thorough coolant flush, fill with the manufacturer-specified coolant mixture, and perform a complete vacuum fill or burp cycle to eliminate trapped air pockets before operation.

The Honda Performance Caliber

Maintain consistent lap times and extract peak high-revving power from your VTEC-equipped powerplant without the chronic risk of heat degradation or cracked plastic tanks.
