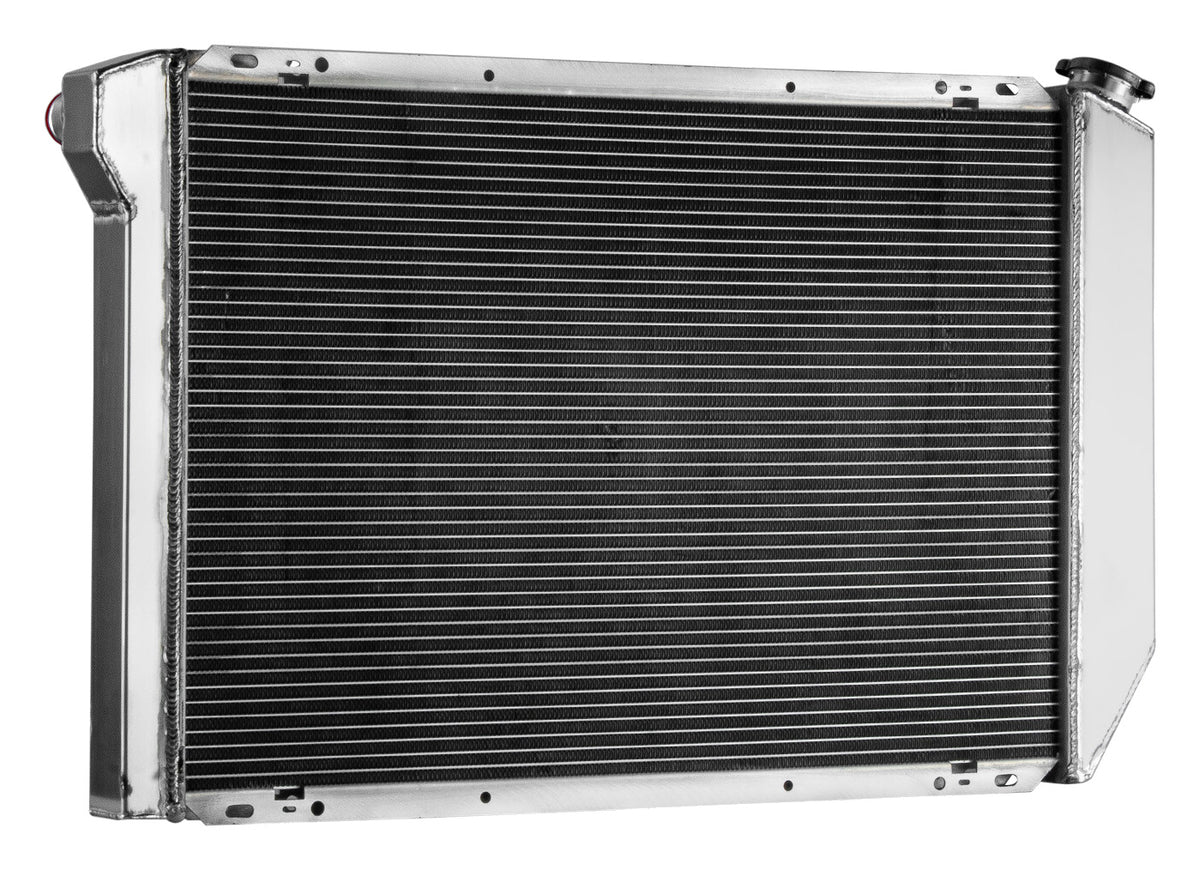

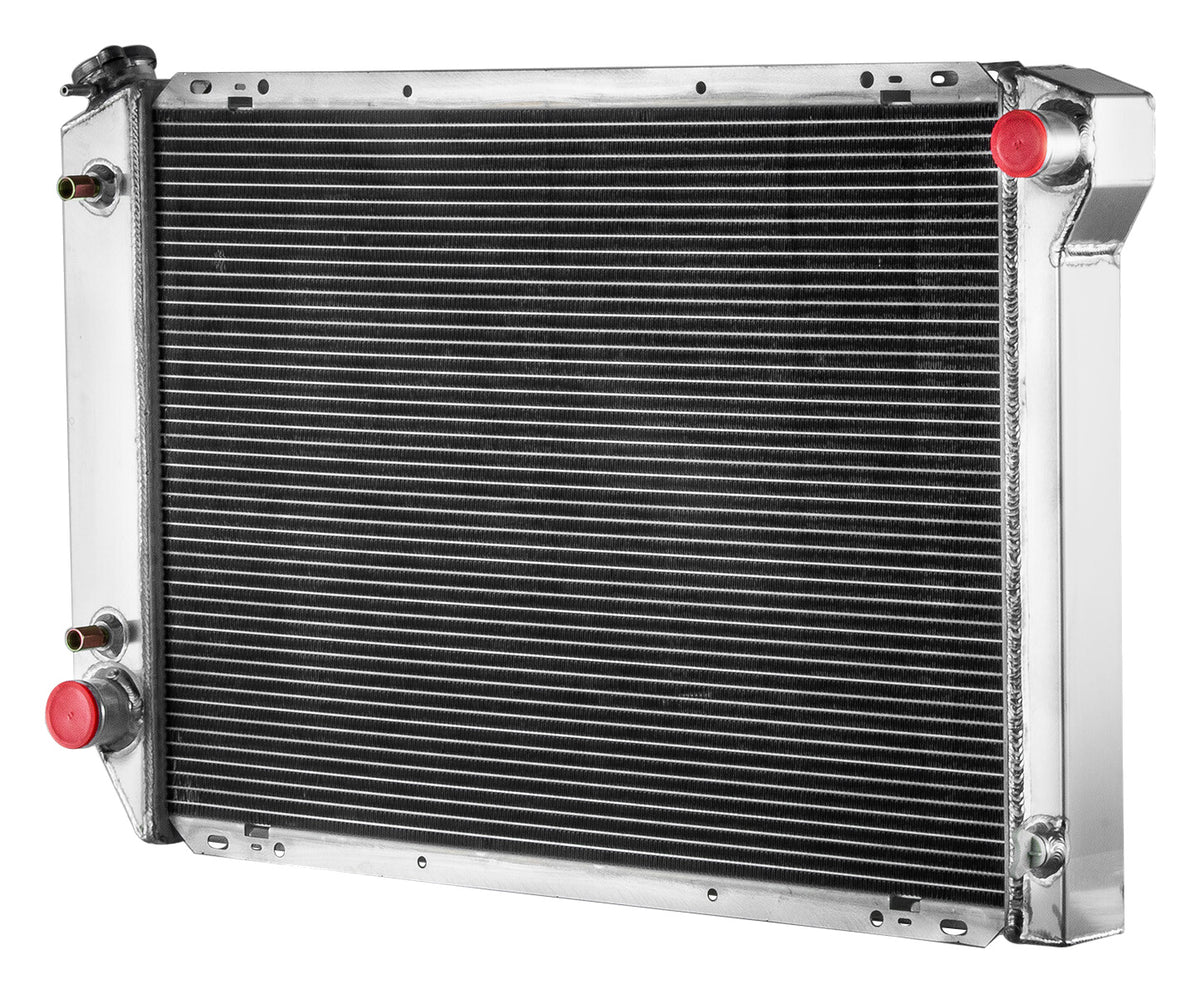

Aluminum Radiator for Ford Bronco F-150 (1980-1984) 5.0L 5.8L 7.5L

High-Capacity 4-Row Aluminum Radiator for 1980-1984 Ford Bronco

What it Does: Directly replaces deteriorating factory radiators with an all-aluminum 4-row cooling assembly to maximize heat dissipation under heavy engine loads.

The Stock Bronco Thermal Deficiencies

Original 1980-1984 cooling units relied on soldered copper-brass cores or early mechanically crimped tanks that degrade under sustained thermal cycling. Over time, internal solder bloom restricts coolant flow through narrow passages, while joint fatigue induces pressure leaks. When paired with high-displacement Windsor or 385-series V8 engines, low-speed trail crawling and heavy towing quickly induce heat soak, overwhelming the stock dual-row capacity and risking thermal distortion of cylinder heads.

The Engineering Solution

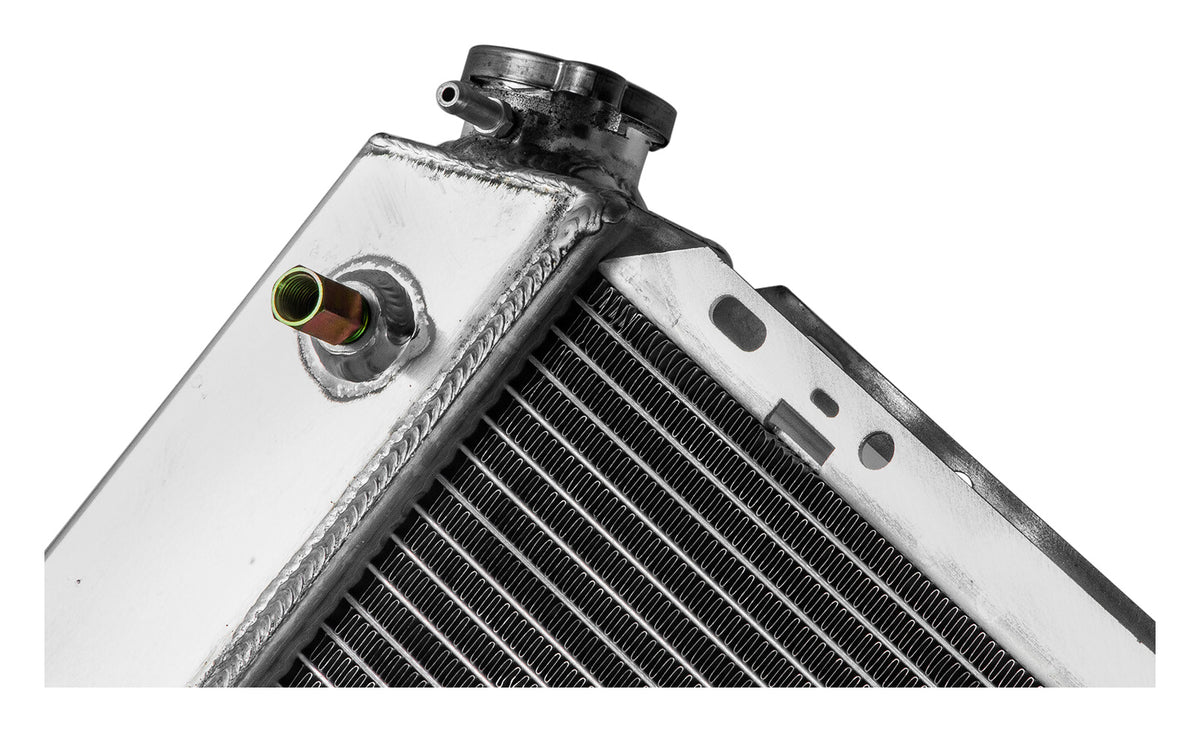

Engineered with a high-density, furnace-brazed 4-row aluminum tube-and-fin core, this assembly drastically expands core surface area and coolant capacity. The tanks are 100% precision TIG-welded to eliminate leak-prone seams and mechanical crimp gaskets. Optimized internal tube cross-sections facilitate uninterrupted coolant velocity and rapid heat rejection, significantly dropping operating temperatures over OEM spec during high-load, low-airflow conditions.

Technical Specifications

Compatibility

• 1980-1984 Ford Bronco 5.0L (302 ci) V8
• 1980-1984 Ford Bronco 5.8L (351W / 351M) V8
• 1980-1984 Ford Bronco 7.5L (460 ci) V8
• 1980-1984 Ford F-150 5.0L, 5.8L, 7.5L V8 applications with matching mounting geometry

The Ford Durability Standard

Engineered to handle severe off-road vibration and heavy trail towing, this direct-replacement radiator maintains consistent operating temperatures under punishing conditions where factory units fail.
