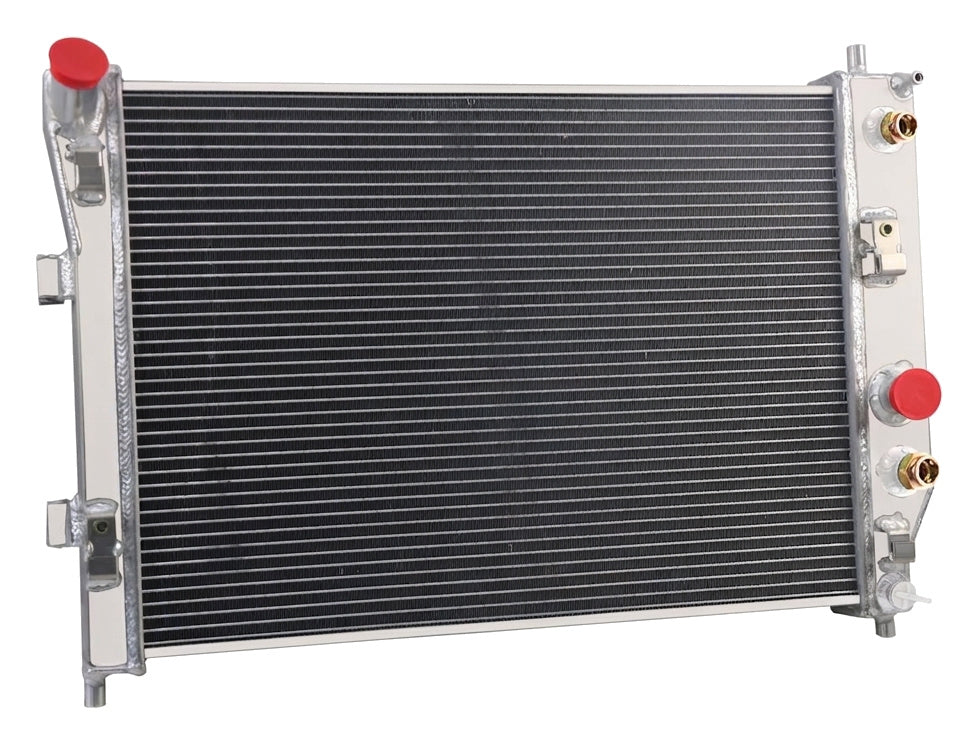

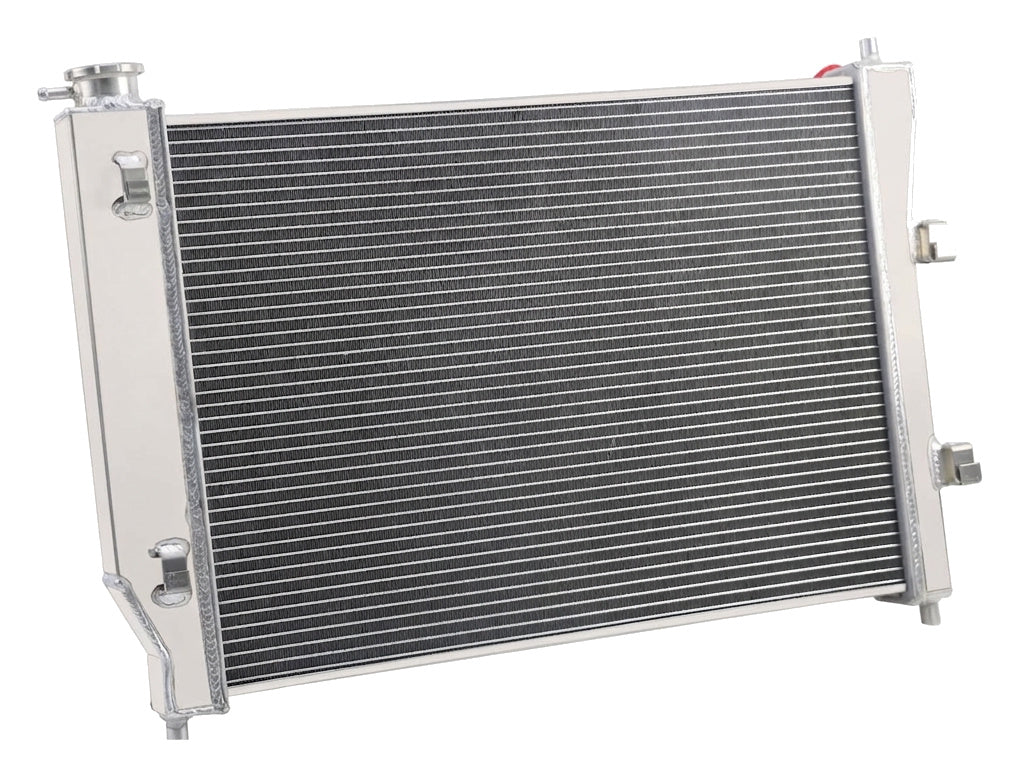

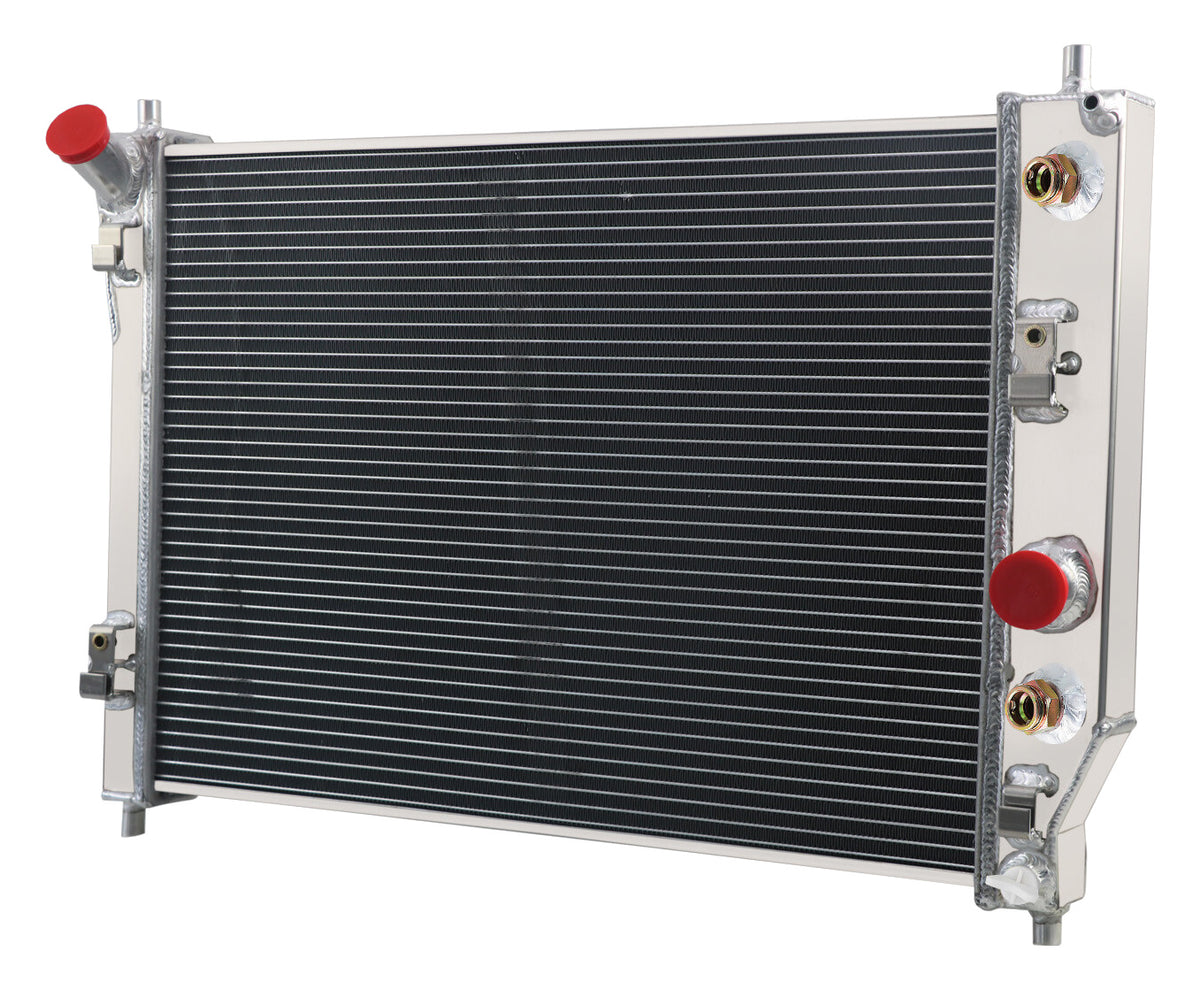

Aluminum Radiator for Chevrolet SSR (2003-2006) 5.3L 6.0L

Direct-Fit Aluminum Performance Radiator for 2003-2006 Chevrolet SSR

What it Does: Upgrades the factory cooling circuit to an all-aluminum 3-row core assembly, eliminating prone plastic tank leak paths and stabilizing coolant temperatures under hard load.

The Stock SSR Thermal Bottleneck

The factory radiator installed on the GMT368 platform relies on stamped aluminum cores crimped to molded composite end tanks with nitrile rubber gaskets. Over thousands of heat-expansion cycles, vibration, and elevated coolant pressures, these OEM crimp joints lose sealing tension, resulting in hairline fissures at the tank-to-core seam and near the transmission oil cooler fittings. Additionally, high ambient temperatures combined with the restricted frontal airflow of the SSR retro-styled fascia cause severe heat soak during stop-and-go driving or aggressive throttle usage, quickly overwhelming the slim, single-row factory core volume.

The Engineering Solution

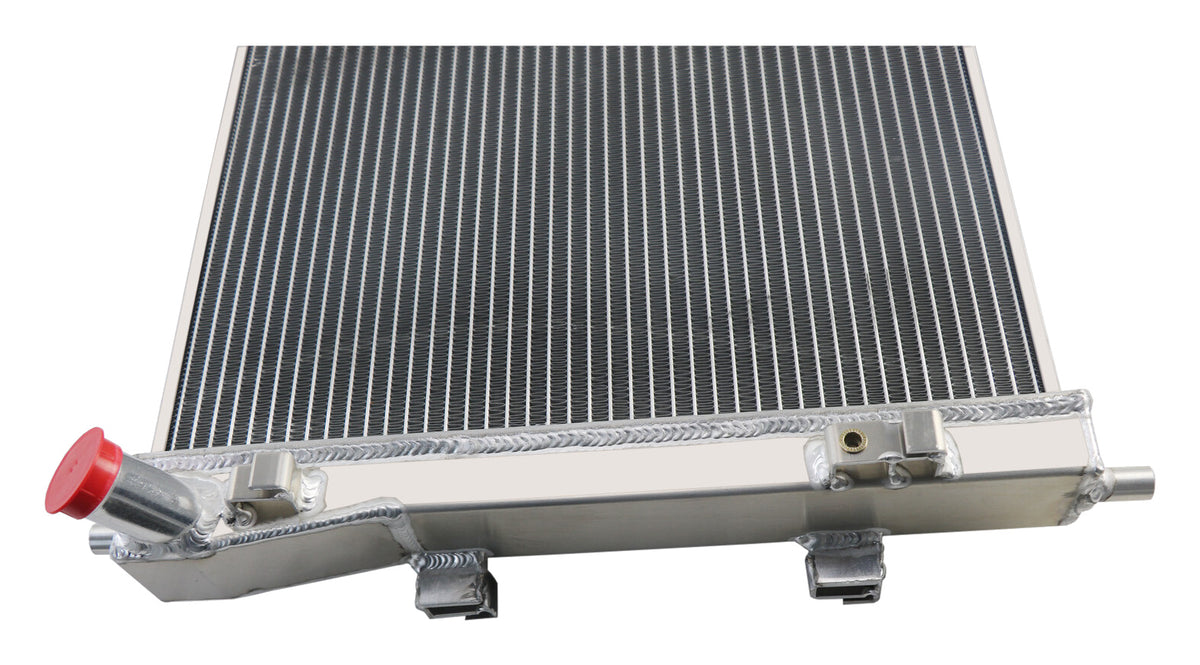

This replacement radiator features a high-density 3-row brazed tube-and-fin aluminum core engineered for maximum conductive surface area and fluid dwell time. The end tanks are precision cut from high-grade sheet aluminum and 100% TIG-welded to the core plates, completely doing away with fail-prone elastomeric seals and crimped plastic. With expanded coolant capacity and superior thermal heat rejection, it mitigates boiling risks under sustained loads while maintaining factory mounting points and hose routing geometry.

Technical Specifications

Compatibility

• 2003 Chevrolet SSR Base 5.3L V8 LM4
• 2004 Chevrolet SSR Base 5.3L V8 LM4
• 2005 Chevrolet SSR Base 6.0L V8 LS2
• 2006 Chevrolet SSR Base 6.0L V8 LS2

The Chevrolet Muscle Caliber

Engineered to withstand the aggressive heat loads of Gen III and Gen IV V8 engines, this unit restores cooling margin to ensure reliable power delivery down the quarter-mile or on open highways.
