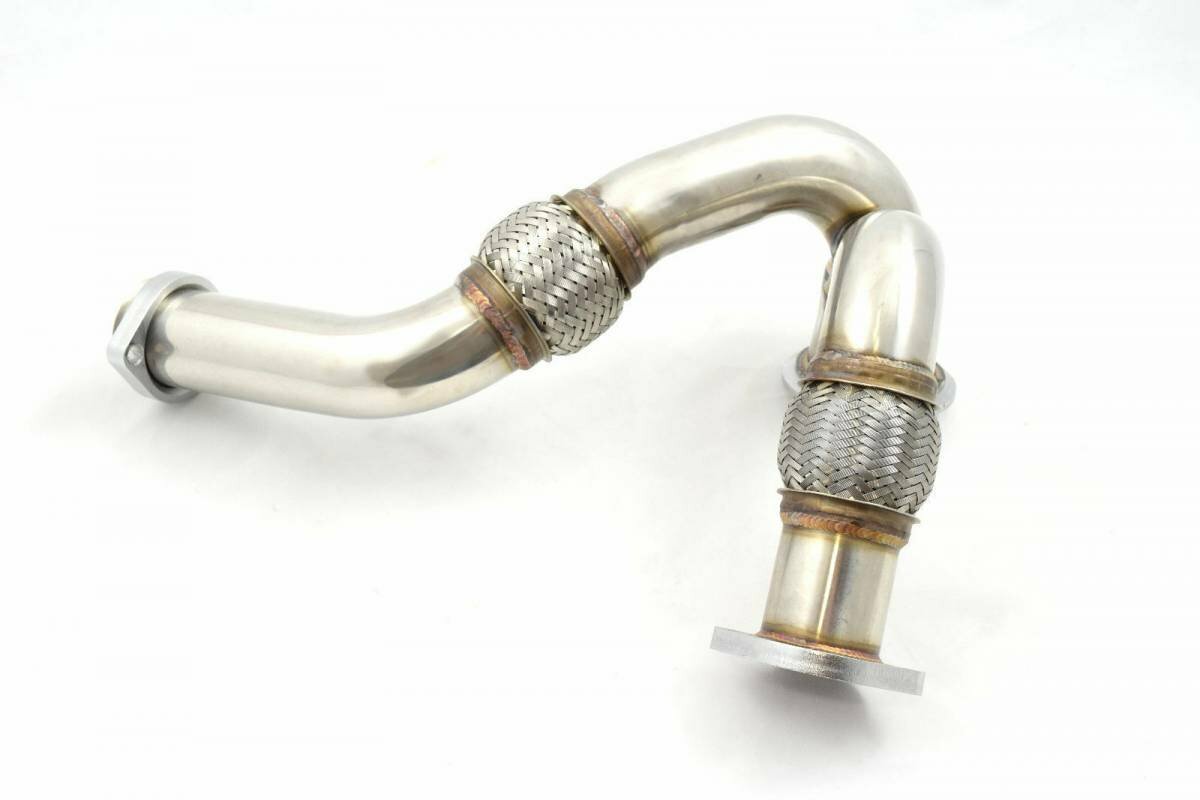

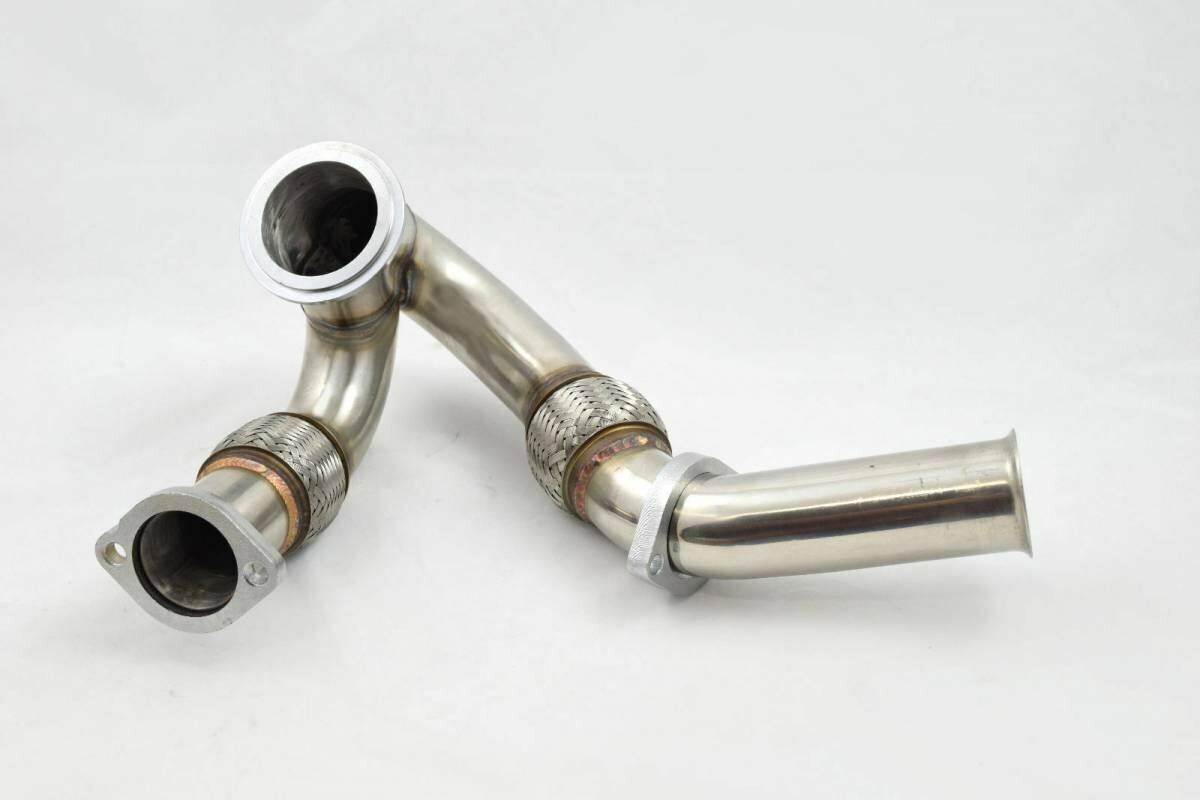

Turbo Y-Pipe & Up Pipe Kit for Ford F-250 F-350 Super Duty (2003-2007) 6.0L Powerstroke

Heavy-Duty Turbo Y-Pipe & Up Pipe Kit for 2003-2007 Ford F-250,F-350 (P221)

What it Does: The Turbo Y-Pipe & Up Pipe Kit replaces the leak-prone factory pre-turbo exhaust feed pipes on the 2003-2007 Ford F-250,F-350 to restore critical turbocharger drive pressure, lower exhaust gas temperatures (EGTs), and eliminate exhaust leaks.

The Stock Ford F-250,F-350 Exhaust Bellows Fatigue and Pressure Loss

The factory up-pipes on the 6.0L Powerstroke feature thin-walled corrugated bellows that inevitably succumb to extreme thermal expansion cycles and torsional engine movement. Over time, these factory bellows fracture along their accordion seams, creating severe pre-turbo drive pressure leaks. This failure manifests as cold-start ticking, soot accumulation across the turbo pedestal and firewall, delayed turbocharger spool, increased EGTs under load, and noticeable power loss when towing.

The Engineering Solution

This replacement kit resolves factory structural fatigue by utilizing heavy-gauge stainless steel mandrel-bent tubing paired with reinforced, multi-ply flexible bellows. These flexible sections are engineered to withstand axial and angular displacement under high-load engine twist without cracking. Precision-machined, warp-resistant connection flanges guarantee a flat, leak-free seal to both the exhaust manifolds and the turbocharger exhaust housing inlet, completely restoring exhaust gas velocity for rapid turbine response.

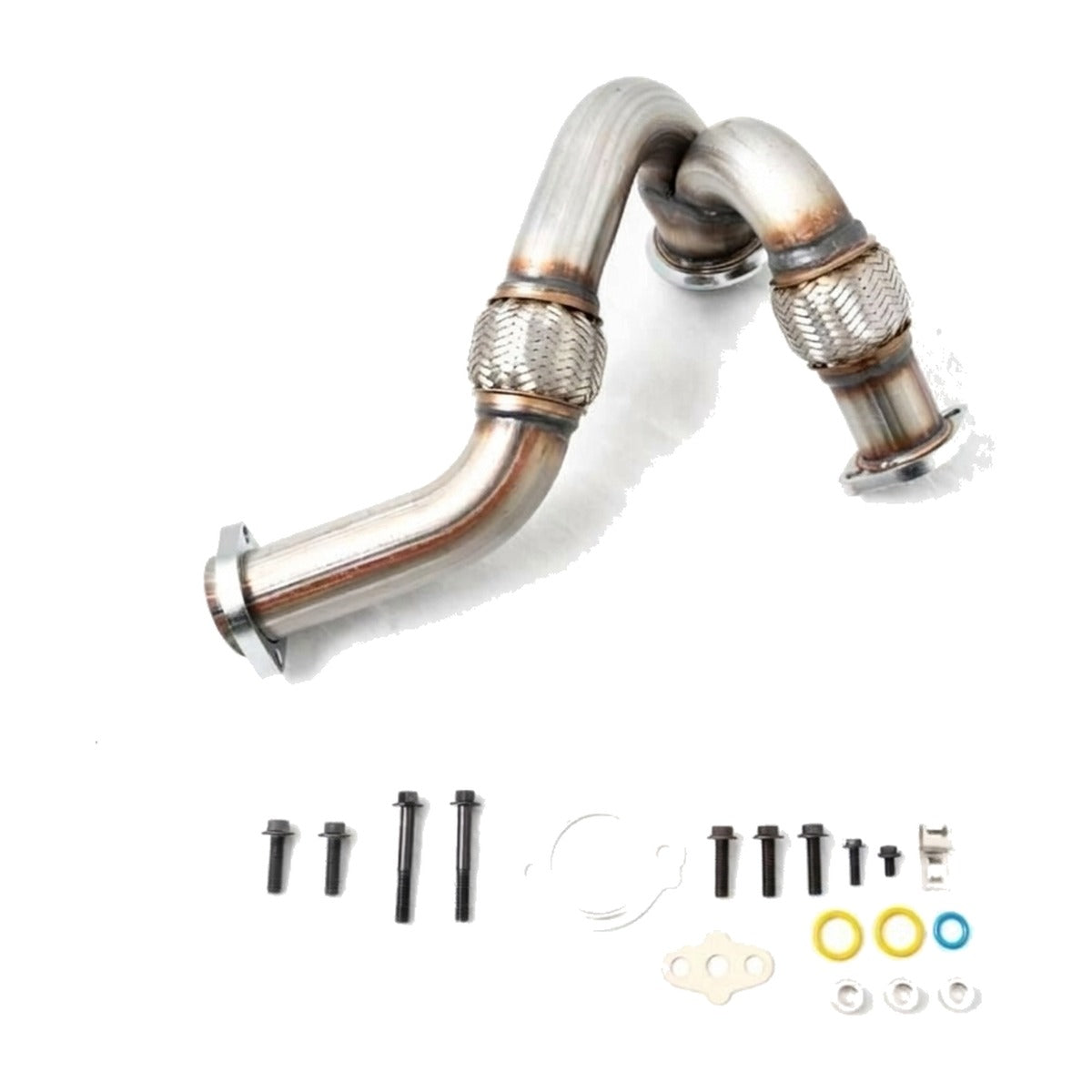

What's Included

• 1 Exhaust Y-Pipe
• 1 Passenger Side Up Pipe
• Exhaust Flange Gaskets
• Installation Hardware Kit

Technical Specifications

Compatibility

• 2003-2007 Ford F-250 Super Duty 6.0L Powerstroke Diesel
• 2003-2007 Ford F-350 Super Duty 6.0L Powerstroke Diesel

Frequently Asked Questions & Fitment Warnings

Does this fit the P221 F-250,F-350?

Yes, this is a direct fit for the 2003-2007 Ford F-250,F-350 equipped with the 6.0L Powerstroke diesel engine.

When is the best time to replace the turbo up-pipes?

Installation is most efficiently performed while replacing the turbocharger or servicing the EGR cooler, as tight firewall clearances on the P221 chassis provide limited direct access.

The Ford Super Duty Standard

Demanding towing duty cycles and heavy payloads require a sealed, robust exhaust path to maintain turbo drive pressure without risk of thermal bellows failure under heavy sustained load.
