Turbo Headers for Pontiac GTO (2004-2006) 5.7L 6.0L Up and Forward

Fabrication-Ready Up and Forward Turbo Headers for 2004-2006 Pontiac GTO (V-Body)

What it Does: The Up and Forward Turbo Headers reroute exhaust flow toward the front of the 2004-2006 Pontiac GTO engine bay to facilitate custom single or twin-turbo installations while maximizing exhaust gas velocity.

The Stock Pontiac GTO Exhaust Manifold Limitations

Factory cast-iron exhaust manifolds on the Pontiac GTO are engineered strictly for low-profile packaging and stock emissions, introducing restrictive bottlenecks that impede high-rpm exhaust scavenging. In forced induction retrofits, standard downward swept routing collides with the steering shaft, front crossmember, and subframe. Furthermore, OEM cast iron traps excessive heat within the cylinder heads and lacks modularity for mounting turbochargers without complex, flow-disrupting crossover piping.

The Engineering Solution

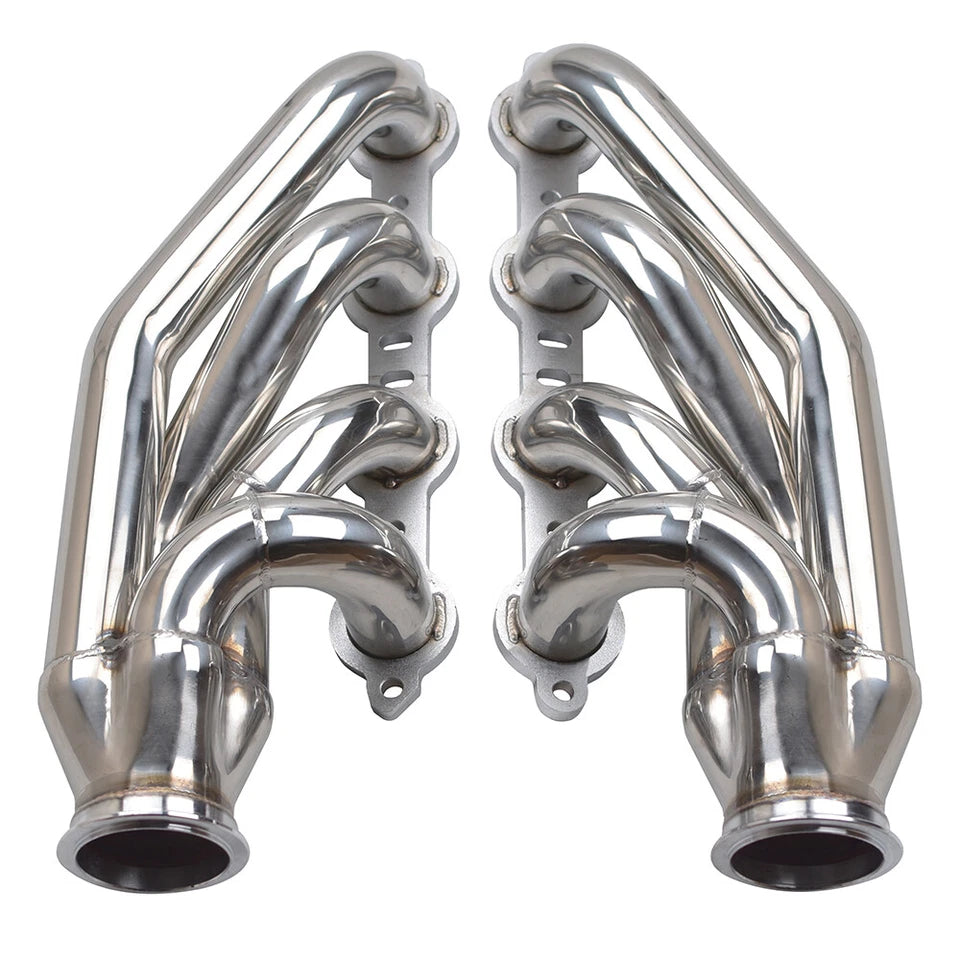

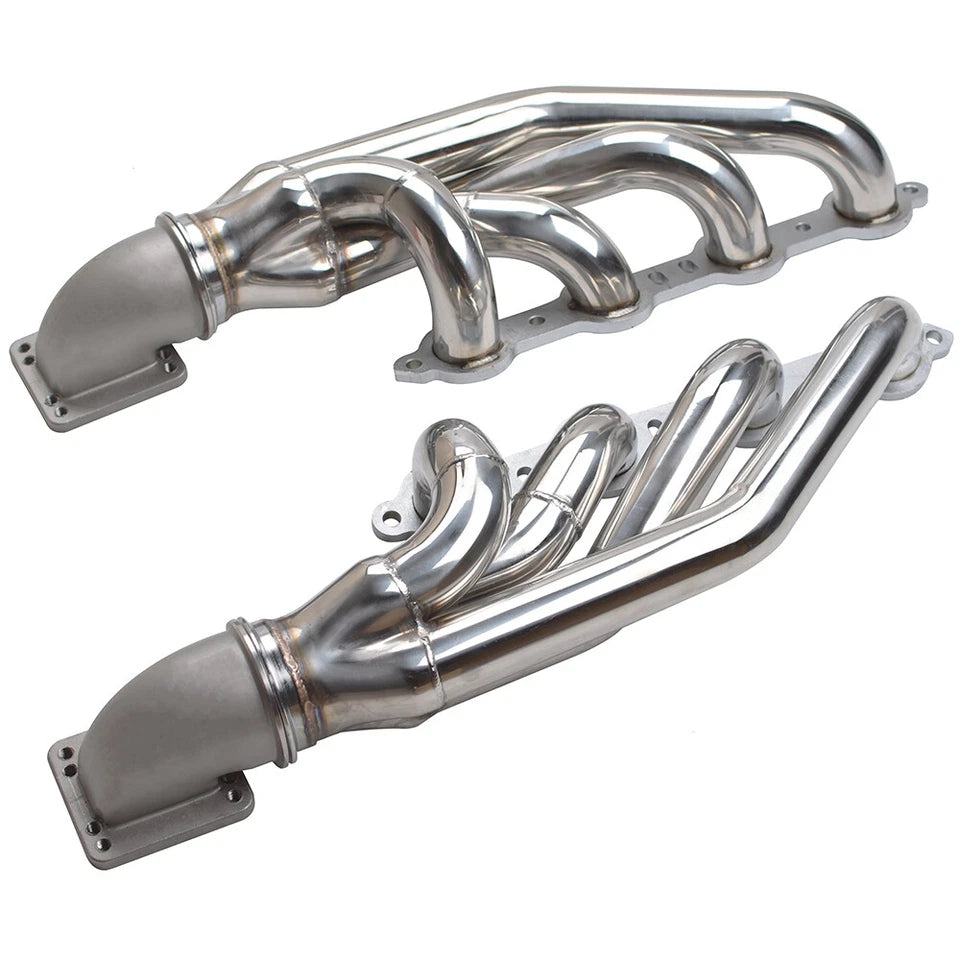

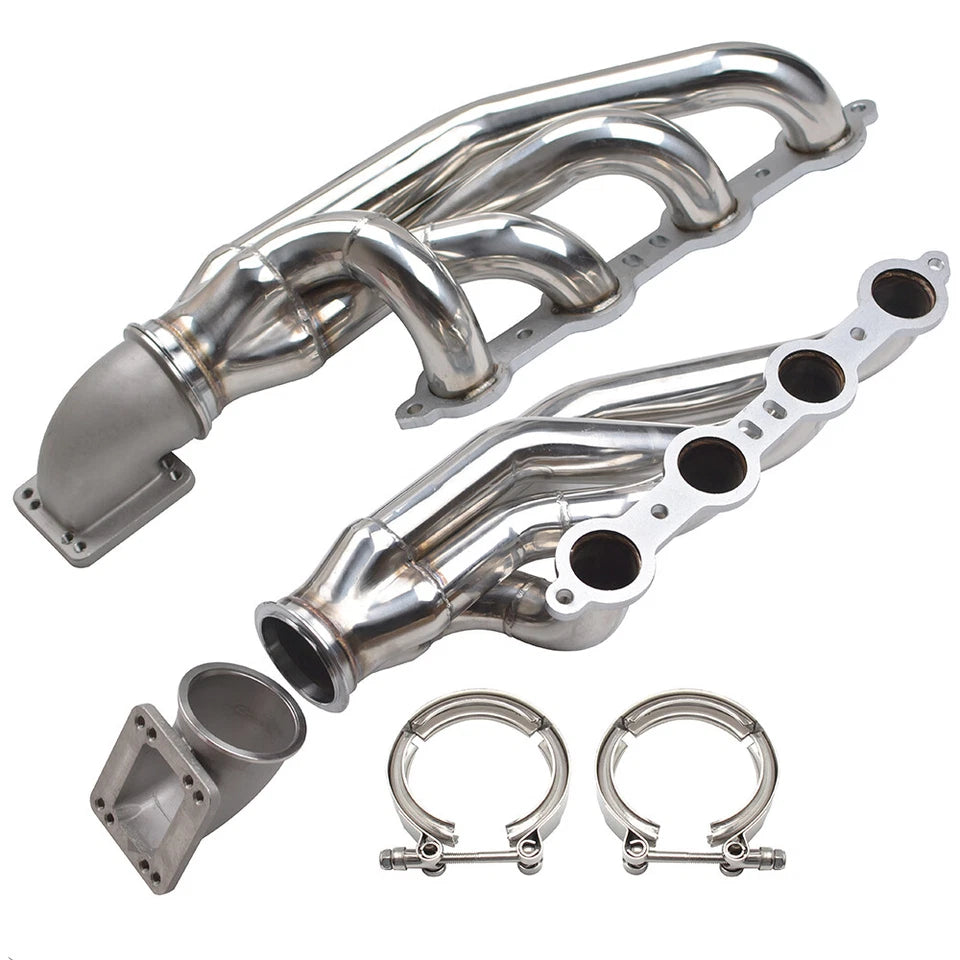

These up-and-forward headers feature 1-3/4" mandrel-bent stainless steel primary tubes terminating in an efficient 4-into-1 collector layout designed to channel high-temperature exhaust gasses directly toward the front bumper area. Constructed with heavy-duty 7/16" head flanges to resist thermal warping under high exhaust gas temperatures (EGT), each bank features fully TIG-welded seams for structural integrity. The 3" V-band collectors couple to indexable, cast 304 stainless steel elbow adapters configured for standardized T3 and T4 turbo flange placement, allowing 360-degree clocking for optimized intercooler and downpipe plumbing.

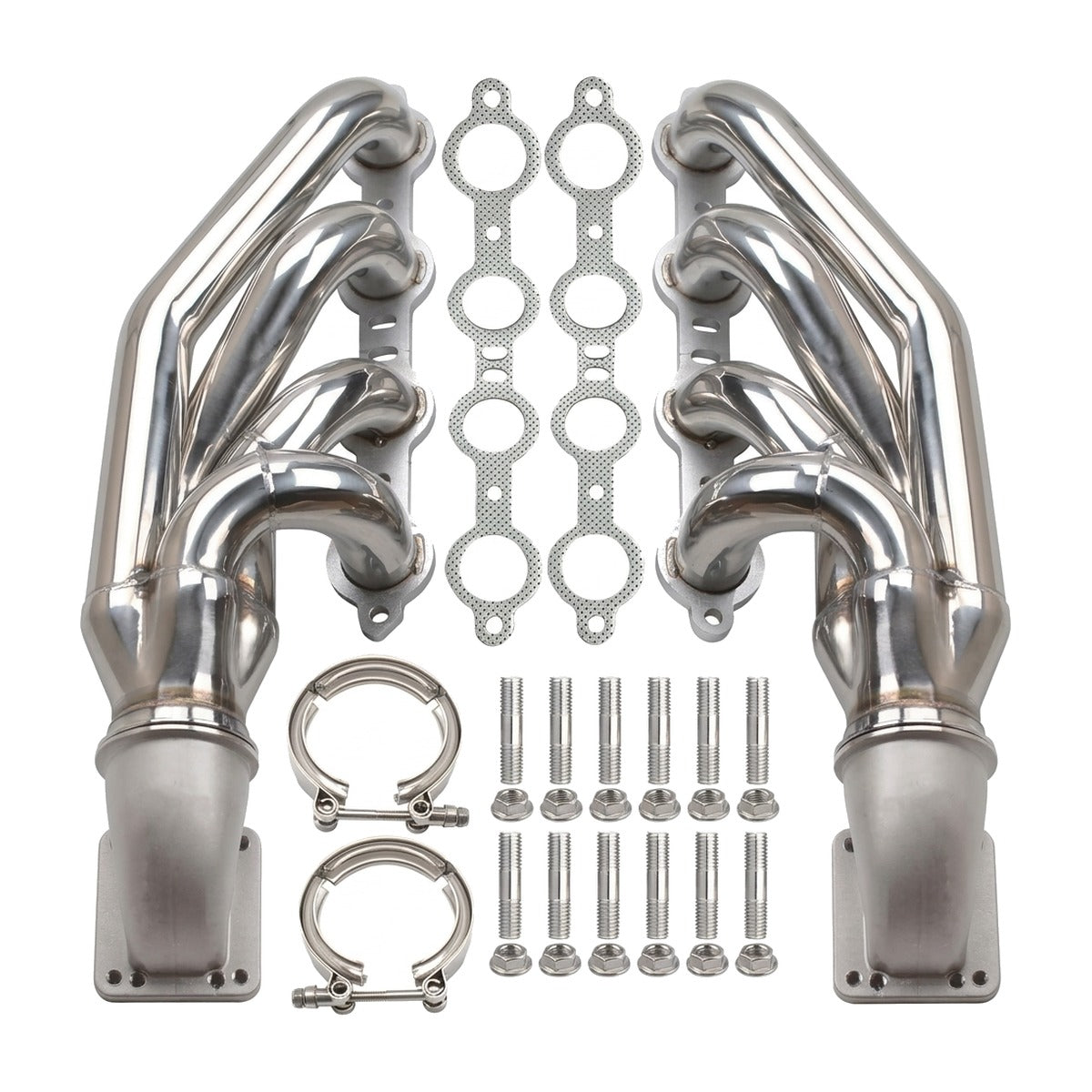

What's Included

• 1 Pair Turbo Exhaust Headers (Left and Right)
• 2 Header Gaskets with Bolts
• 2 V-Band Clamps
• 2 Cast 304 Stainless Steel Elbow Adapters (T3 / T4 to 3" V-Band)
• Installation Hardware

Technical Specifications

Compatibility

• 2004 Pontiac GTO 5.7L LS1 V8 (RWD)
• 2005-2006 Pontiac GTO 6.0L LS2 V8 (RWD)

Frequently Asked Questions & Fitment Warnings

Does this fit the V-Body GTO?

Yes, this is a direct fit for the 2004-2006 Pontiac GTO equipped with the LS1 and LS2 engines. This kit is not compatible with 4WD or AWD applications and requires custom turbo plumbing.

Are turbochargers and support lines included in this kit?

No, this package includes only the manifold assemblies, adaptors, and mounting hardware; full custom fabrication for downpipes, oil lines, and PCM dyno tuning is required before operating under boost.

The Pontiac Muscle Caliber

Engineered for high-output GM small-block builds, these headers provide the raw exhaust throughput, thermal resistance, and modular positioning required to extract serious four-digit power numbers on the street or strip.
