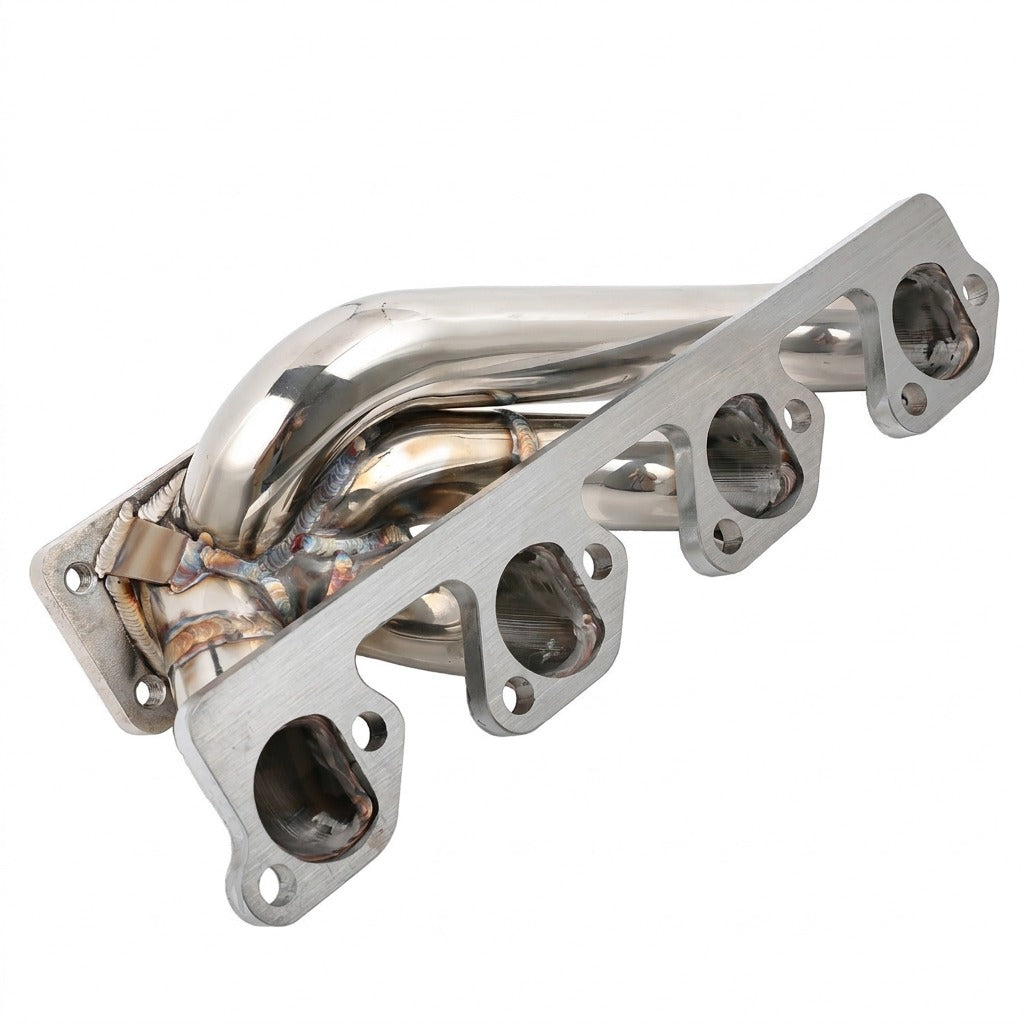

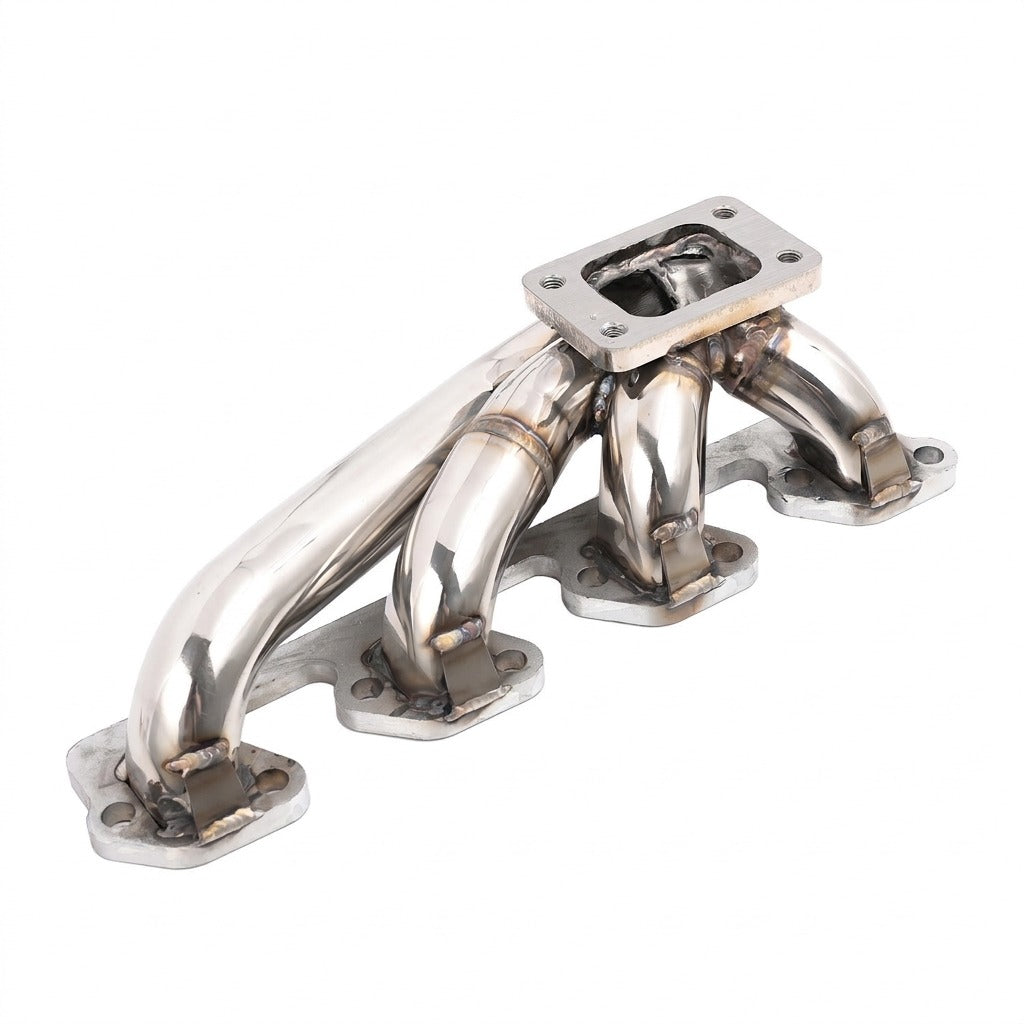

Stainless T3 Turbo Manifold for Ford Mustang Thunderbird (1983-1988) 2.3L

High-Flow Stainless T3 Turbo Manifold for 1983-1988 Ford Mustang, Thunderbird (Fox Body)

What it Does: The Stainless T3 Turbo Manifold replaces the restrictive cast-iron factory manifold on 1983-1988 Ford Mustang SVO and Thunderbird Turbo Coupe models to accelerate turbo spool and reduce exhaust backpressure.

The Stock Ford Mustang, Thunderbird Manifold Shortcomings

The factory cast-iron log manifold on the Lima 2.3L Turbo is notoriously prone to heat fatigue, leading to internal stress cracking around the turbine flange. Internally, the OEM log design forces raw exhaust pulses from adjacent cylinders to collide, creating turbulent backpressure that limits turbine drive pressure and drives up exhaust gas temperatures (EGTs). Additionally, the rough inner casting restricts scavenging efficiency at higher boost thresholds, choking top-end horsepower and delaying low-RPM boost response on modified Fox Body builds.

The Engineering Solution

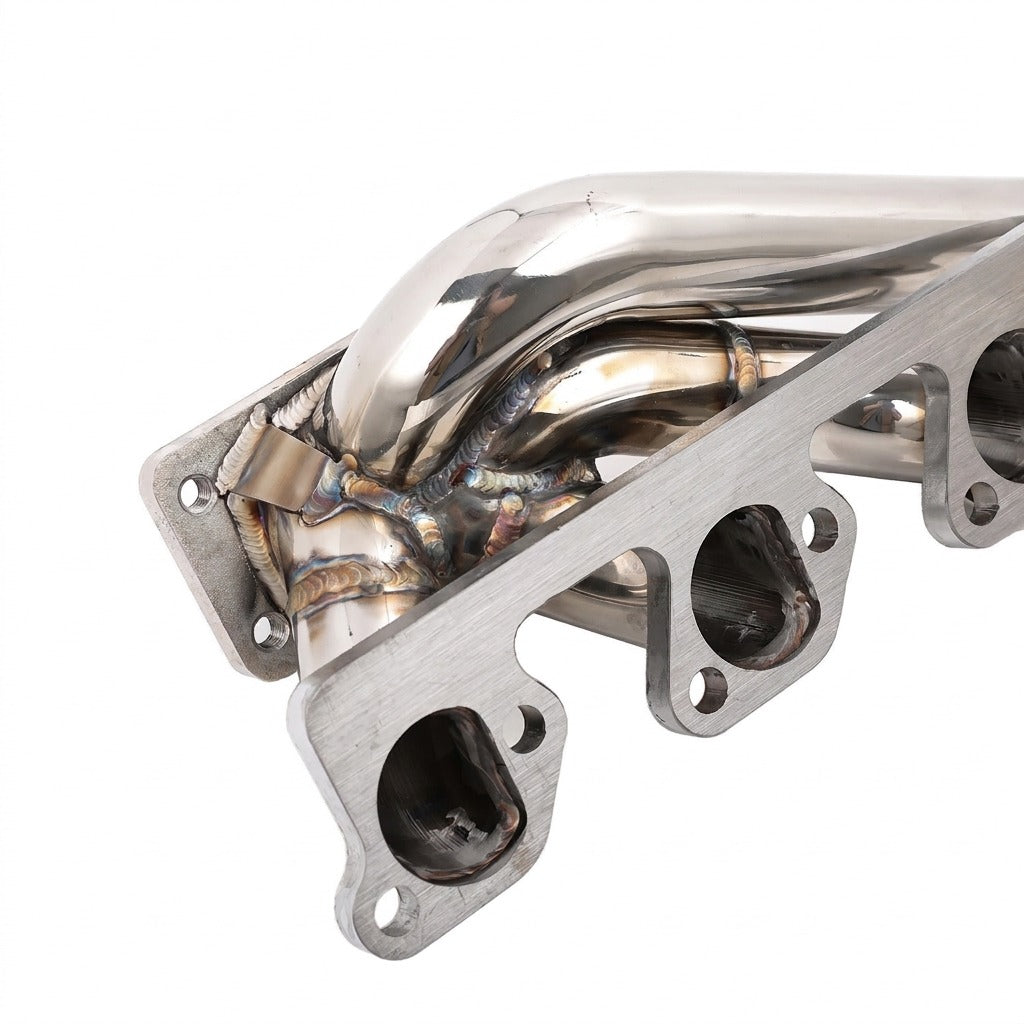

Engineered for high-duty thermal cycles, this tubular manifold is constructed from 16-gauge (1.5mm) 304 stainless steel featuring smooth-radius 1-5/8 inch (42mm) runners. The unequal-length tubular geometry smoothly isolates and channels exhaust pulses directly to the turbine inlet, maximizing kinetic energy transfer to spool Garrett T3, T3/T4 hybrids, and factory IHI units significantly faster. The structural cylinder head flange is precision laser-cut to 7/16-inch (11.5mm) thickness and hydraulic-press flattened to prevent mating distortion and exhaust blow-by. Every runner joint is rigorously TIG-welded for thermal stress resistance, finished with polished chrome-plated flanges to provide maximum corrosion resistance and direct bolt-on fitment.

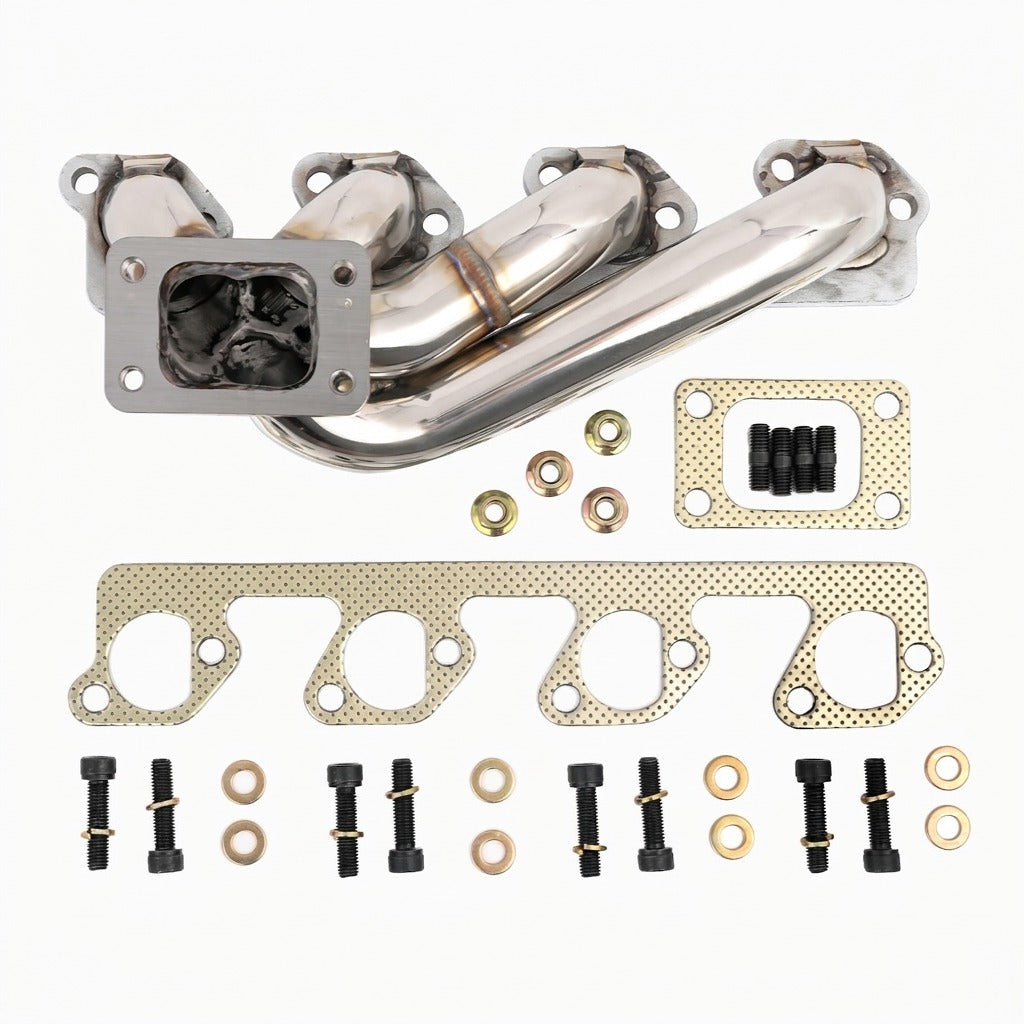

What's Included

• 1 Stainless T3 turbo manifold
• 1 Manifold-to-cylinder-head gasket
• 1 T3 turbo flange gasket

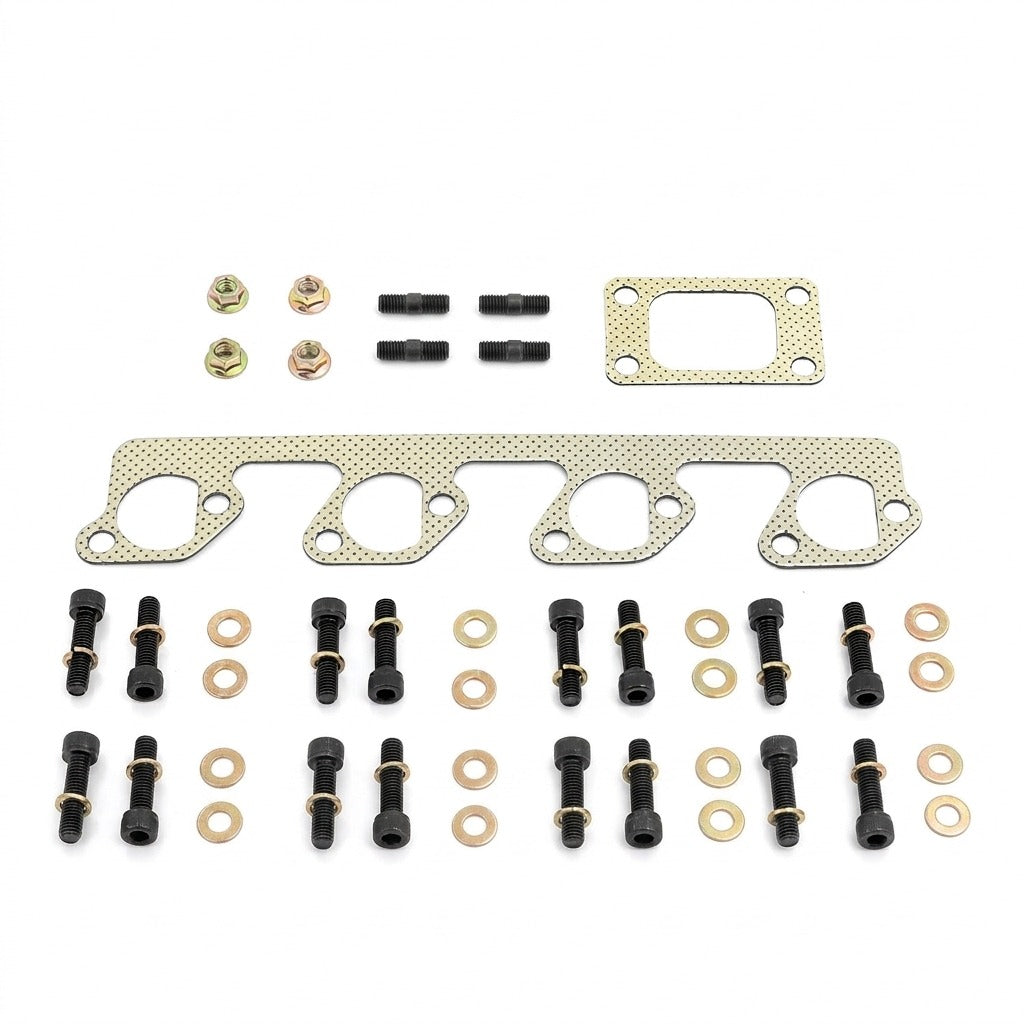

• Studs, bolts, nuts, and washers hardware set

Technical Specifications

Compatibility

• 1984-1986 Ford Mustang SVO 2.3L l4 SOHC Turbo
• 1983-1988 Ford Thunderbird Turbo Coupe 2.3L l4 SOHC Turbo

Frequently Asked Questions & Fitment Warnings

Does this fit the Fox Body Mustang, Thunderbird?

Yes, this is a direct fit for the 1983-1988 Ford Mustang and Thunderbird equipped with the Lima 2.3L Turbo engine. It is not compatible with naturally aspirated 2.3L engines or 5.0L V8 chassis.

What turbochargers can be mounted to this manifold flange?

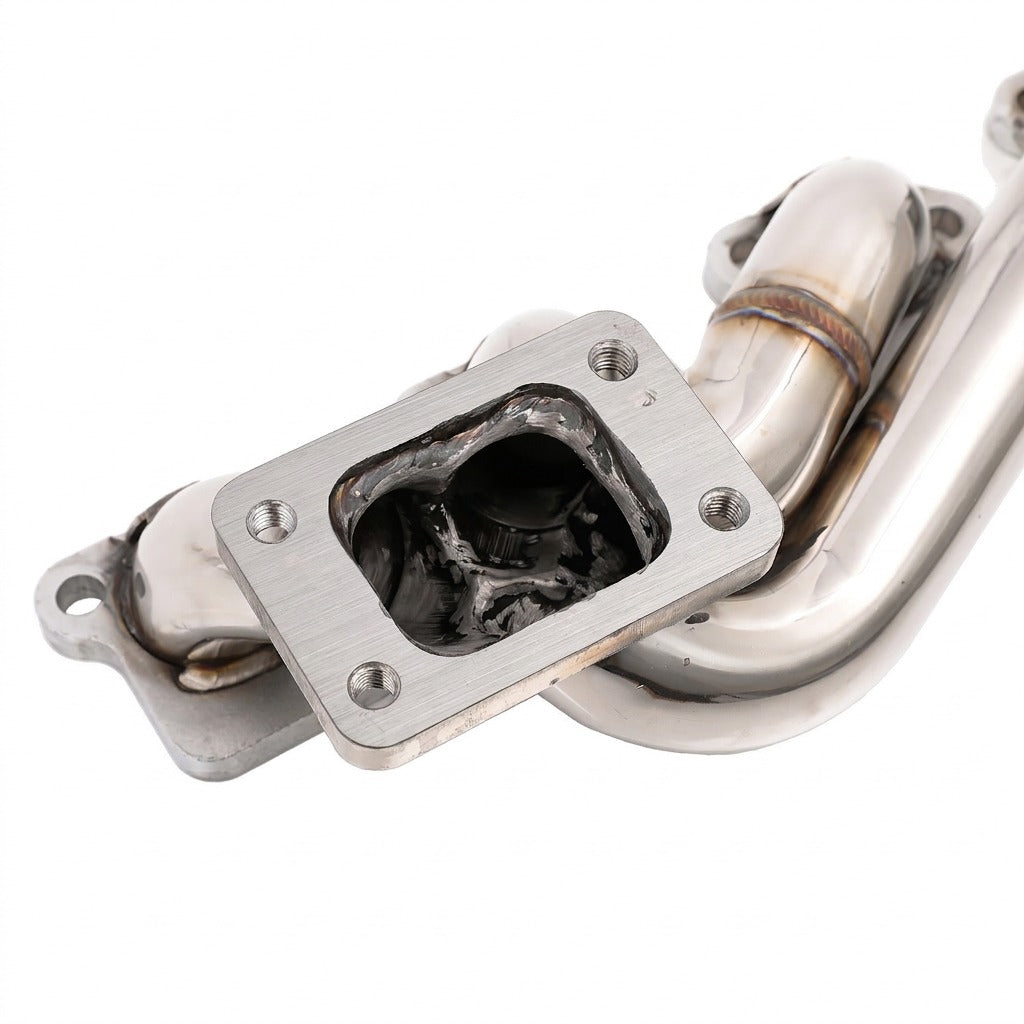

The standard T3 side-mount flange directly accommodates factory Garrett T3 units, 1987-1988 Turbo Coupe IHI turbos, and standard aftermarket T3/T4 hybrid turbochargers.

The Ford Turbo Caliber

Maximize your classic turbo four-cylinder's output with tubular stainless hardware built to withstand track temperatures, eliminate power-robbing backpressure, and deliver an aggressive, authentic muscle-era exhaust note.
