Stainless T3 Turbo Manifold for Chevrolet Cobalt (2006-2010) 2.0L 2.2L 2.4L

High-Flow Stainless T3 Turbo Manifold for 2006-2010 Chevrolet Cobalt (Delta Platform)

What it Does: The Stainless T3 Turbo Manifold replaces the restrictive factory exhaust manifold on the 2006-2010 Chevrolet Cobalt to route exhaust gases into a T3 turbocharger, significantly accelerating turbine spool and enabling custom turbo conversions.

The Stock Chevrolet Cobalt Exhaust Flow Restriction

Factory cast-iron log manifolds on naturally aspirated L61, LAP, and LE5 engines—as well as the factory supercharged LSJ exhaust assembly—suffer from uneven runner geometry, heavy thermal retention, and rough internal casting slag. These restrictive factory manifolds create excessive exhaust backpressure and cylinder reversion while lacking the mounting flange required to package a turbocharger. Over time, repeated thermal cycles can also induce fatigue and micro-cracking in stock cast units.

The Engineering Solution

Constructed from mandrel-bent stainless steel tubing, this tubular manifold equalizes cylinder scavenging and feeds exhaust energy directly to a standardized T3 turbine flange. Smooth radius bends minimize internal turbulence and exhaust gas temperature (EGT) drop, maximizing flow velocity into the turbine housing for rapid boost response. Robust TIG welded joints provide structural integrity under extreme heat and positive manifold pressure, making it an ideal foundation for high-performance forced induction conversions.

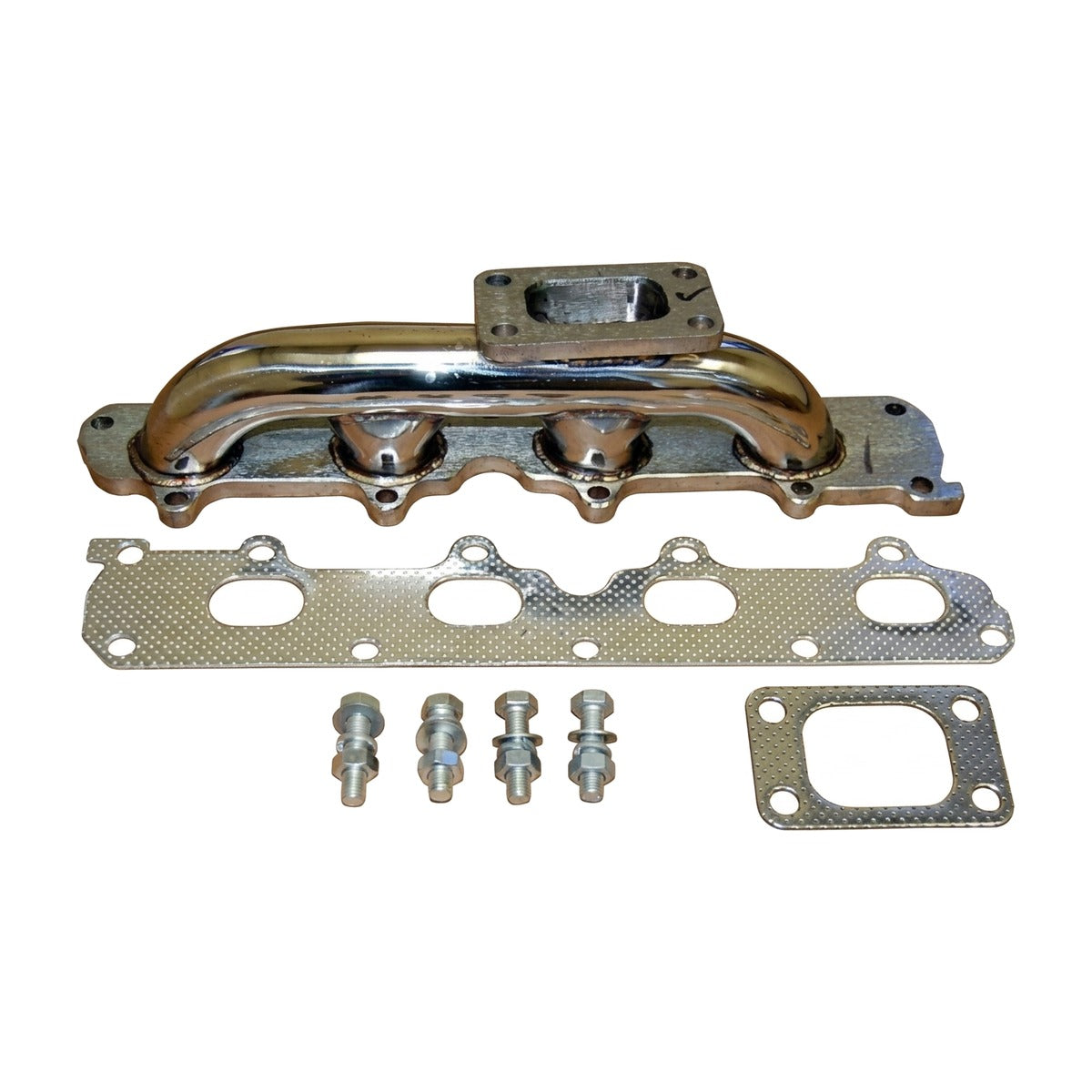

What's Included

• 1 Stainless Steel T3 Turbo Manifold
• 1 Exhaust Manifold Gasket
• 1 T3 Turbo Gasket
• 4 Turbo Studs with Nuts and Washers

Technical Specifications

Compatibility

• 2006-2010 Chevrolet Cobalt 2.2L L4 (L61 / LAP Ecotec)
• 2006-2008 Chevrolet Cobalt 2.4L L4 (LE5 Ecotec)
• 2006-2007 Chevrolet Cobalt SS 2.0L Supercharged (LSJ Ecotec)
• Does not fit 2008-2010 Chevrolet Cobalt SS 2.0L Turbocharged (LNF Ecotec)

Frequently Asked Questions & Fitment Warnings

Does this fit the Delta Cobalt?

Yes, this is a direct fit for the 2006-2010 Chevrolet Cobalt equipped with the 2.0L LSJ, 2.2L L61/LAP, or 2.4L LE5 engine. It does not fit 2008-2010 Cobalt SS models powered by the 2.0L turbo LNF engine.

Is an ECU tune required after installing this manifold?

Yes, converting your vehicle to a turbocharger setup requires custom fuel and timing ECU recalibration to operate safely under boost.

The Chevrolet Performance Caliber

The Delta platform and its Ecotec engine family offer strong structural architecture that thrives under boost once factory exhaust restrictions are eliminated.
