Shorty Exhaust Header for Cadillac Escalade (2007-2014) 6.2L

High-Flow Stainless Steel Shorty Exhaust Headers for 2007-2014 Cadillac Escalade (GMT900)

What it Does: The Shorty Exhaust Header replaces the restrictive factory cast-iron exhaust manifolds on the 2007-2014 Escalade to eliminate exhaust scavenging restrictions and reduce backpressure on the GM Gen IV V8.

The Stock Cadillac Escalade Exhaust Manifold Bottleneck

Factory cast-iron exhaust manifolds on the GMT900 platform are engineered for compact manufacturing packaging rather than volumetric efficiency. The OEM log-style runners force exhaust pulses from adjacent cylinders to collide into an uneven collector chamber, inducing turbulent backpressure and retaining extreme heat at the cylinder heads. Over continuous thermal cycles, factory cast iron is also prone to warping and snapping rear exhaust manifold bolts, leading to audible exhaust leaks and erroneous upstream O2 sensor readings.

The Engineering Solution

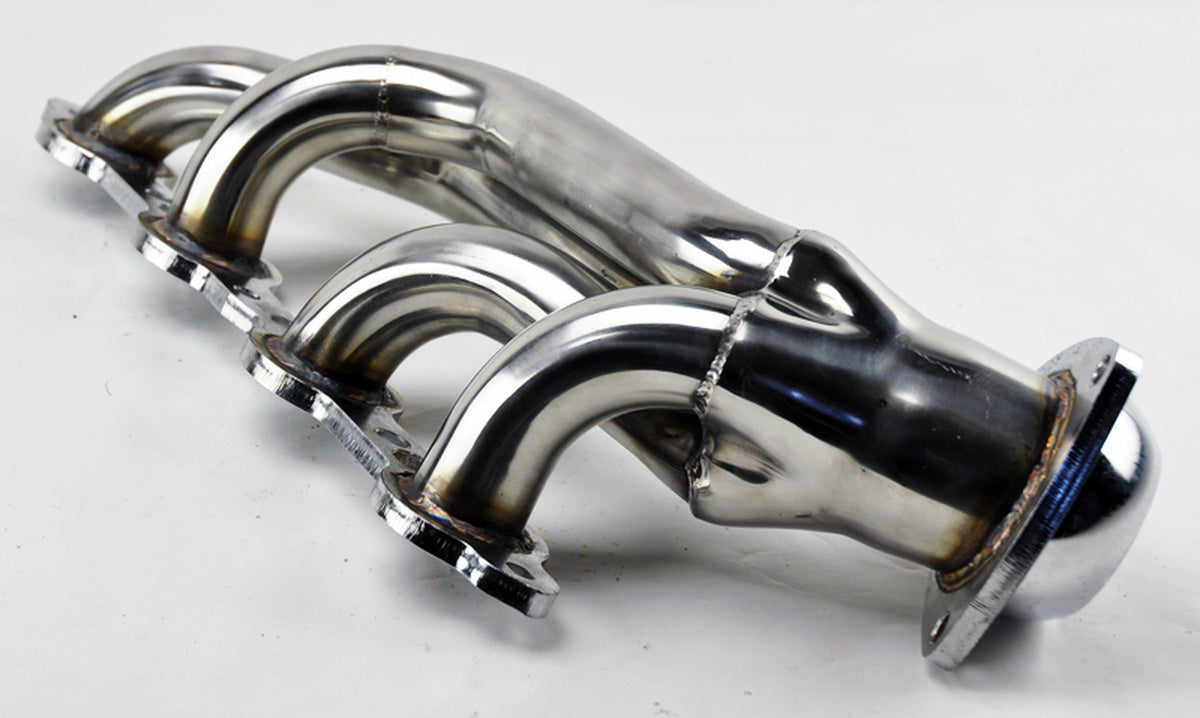

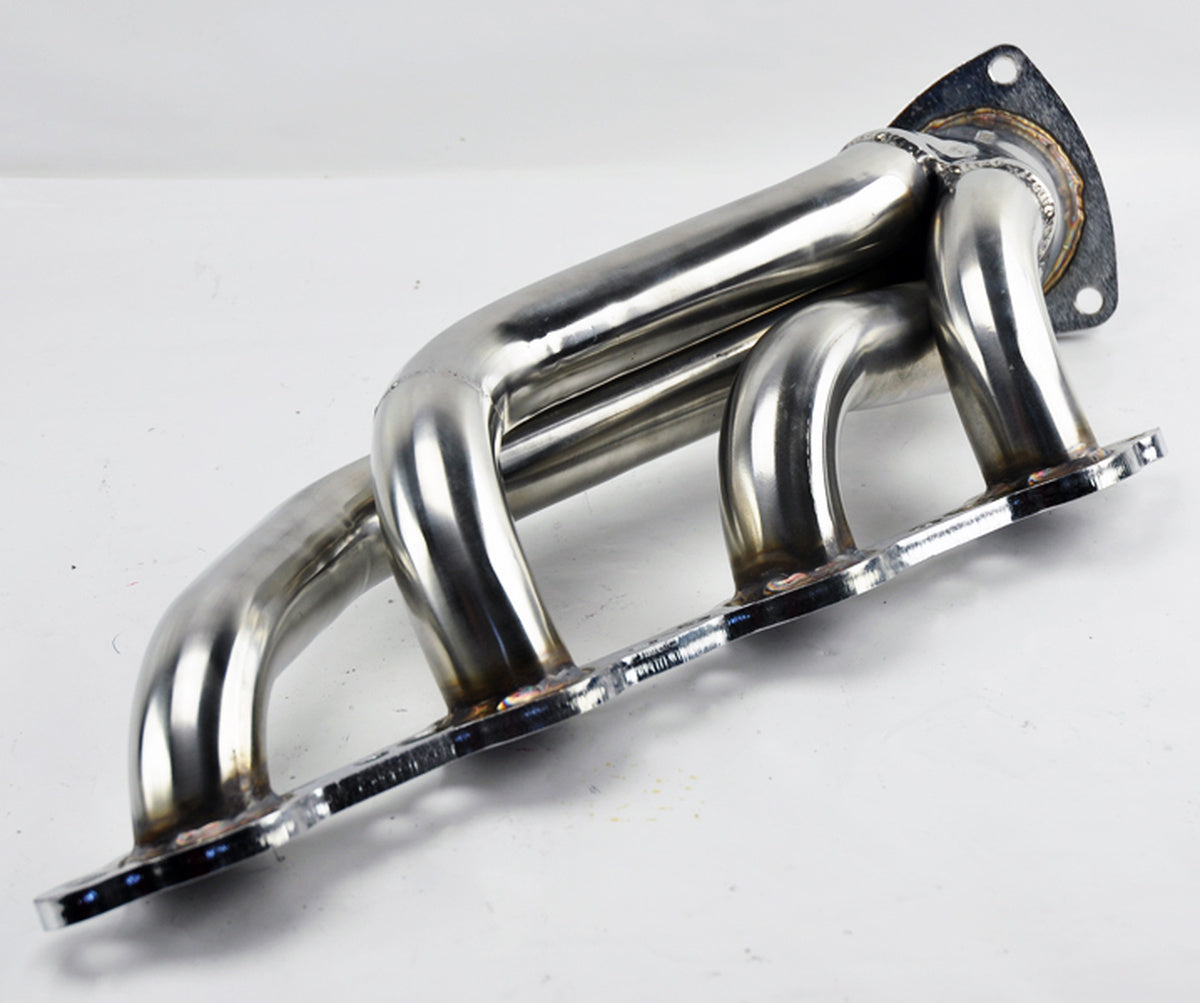

These shorty exhaust headers feature an engineered 8-2 configuration utilizing mandrel-bent 1.75-inch primary tubes designed to balance individual cylinder evacuation from the L92 and L94 powerplants. Fabricated with thick 7/16-inch CNC-machined cylinder head flanges and 3/8-inch outlet flanges, the assembly resists thermal distortion to ensure a permanent seal against the engine block. Combined with TIG- and MIG-welded stainless steel construction, two integrated pre-positioned O2 sensor bungs, and smooth 2 3/8-inch collector outlets, this system reduces exhaust gas pumping losses while maintaining compatibility with downpipe configurations.

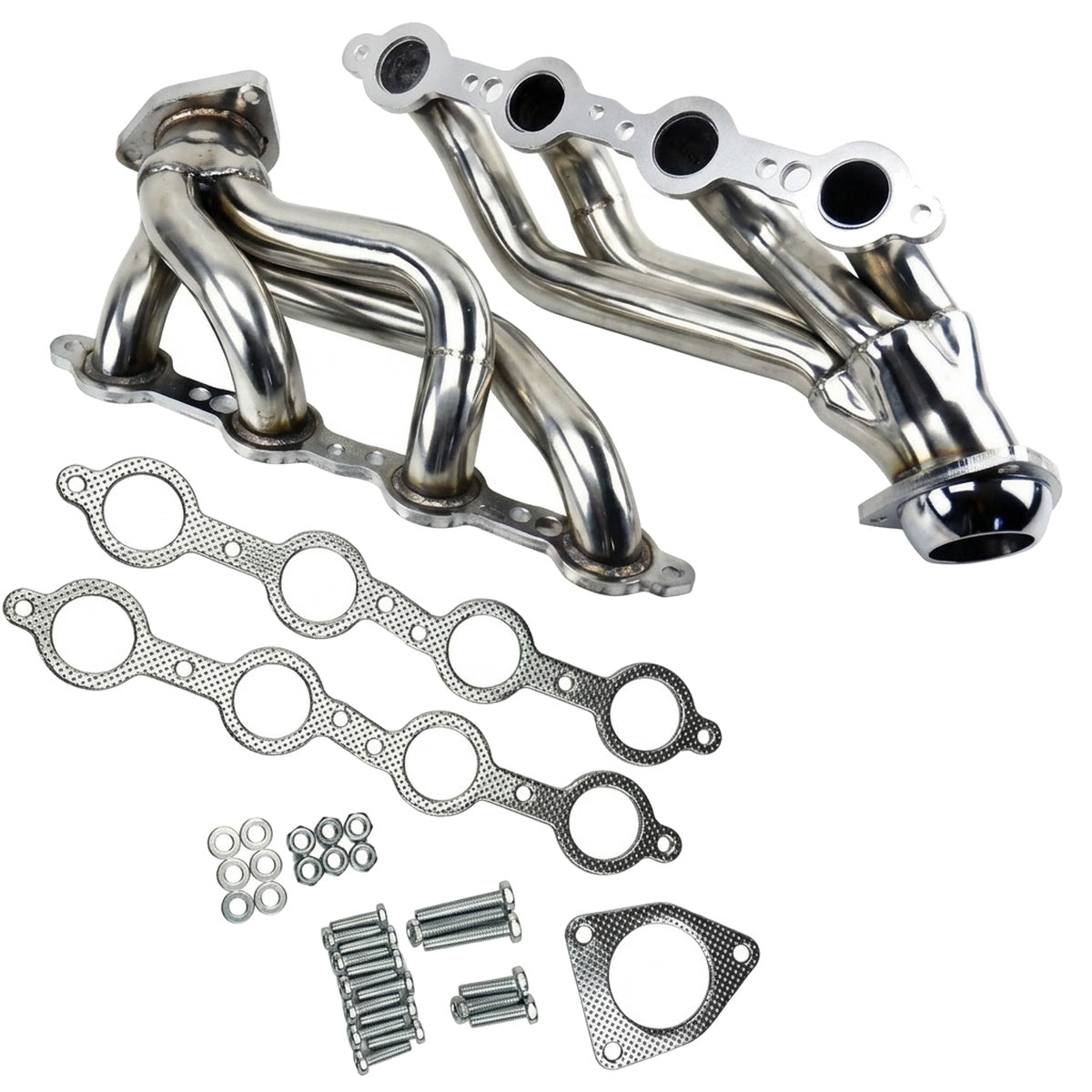

What's Included

• 2 Stainless Steel Shorty Exhaust Headers
• Exhaust Manifold Gaskets

Technical Specifications

Compatibility

• 2007-2014 Cadillac Escalade Base 6.2L V8
• 2007-2014 Cadillac Escalade ESV 6.2L V8
• 2007-2013 Cadillac Escalade EXT 6.2L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT900 Escalade?

Yes, this is a direct fit for the 2007-2014 Cadillac Escalade equipped with the L92 or L94 6.2L engine.

Will installing these shorty headers require an immediate ECU calibration?

No, because these headers retain the stock primary tube routing and factory O2 sensor locations, an immediate ECM tune is not mandatory, though recalibration optimizes torque gains.

The Cadillac Towing & Durability Standard

Engineered to withstand prolonged high-load exhaust gas temperatures, these stainless steel headers provide the structural integrity and warp resistance required for heavy full-size SUV towing demands without risking bolt shear.
