Performance Radiator for Audi TT TTS (2016-2021) 2.0L Manual

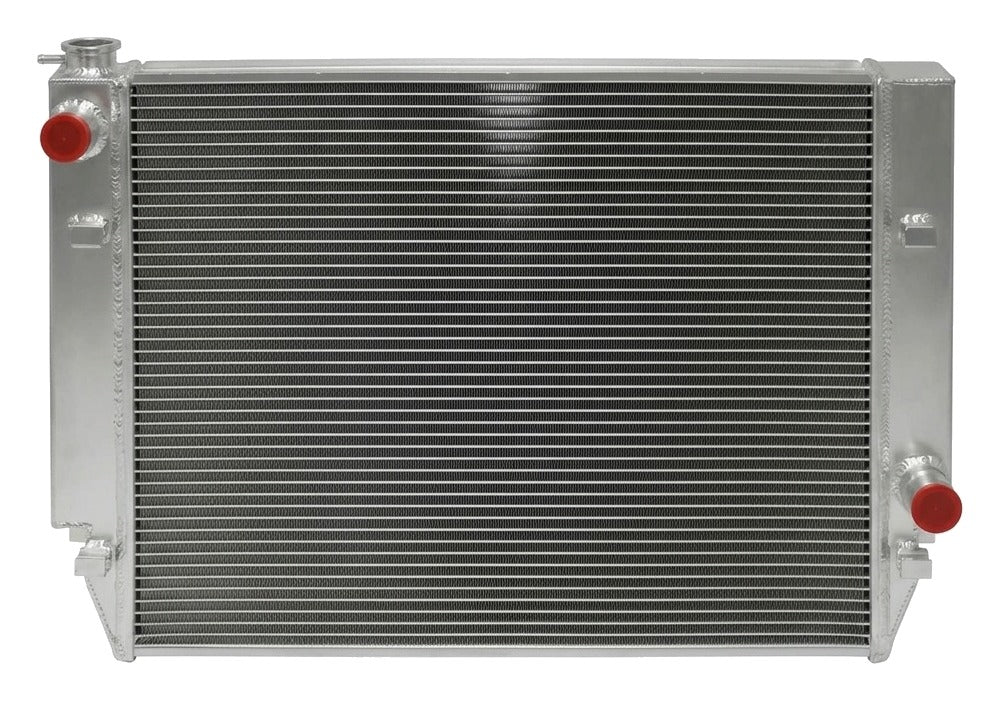

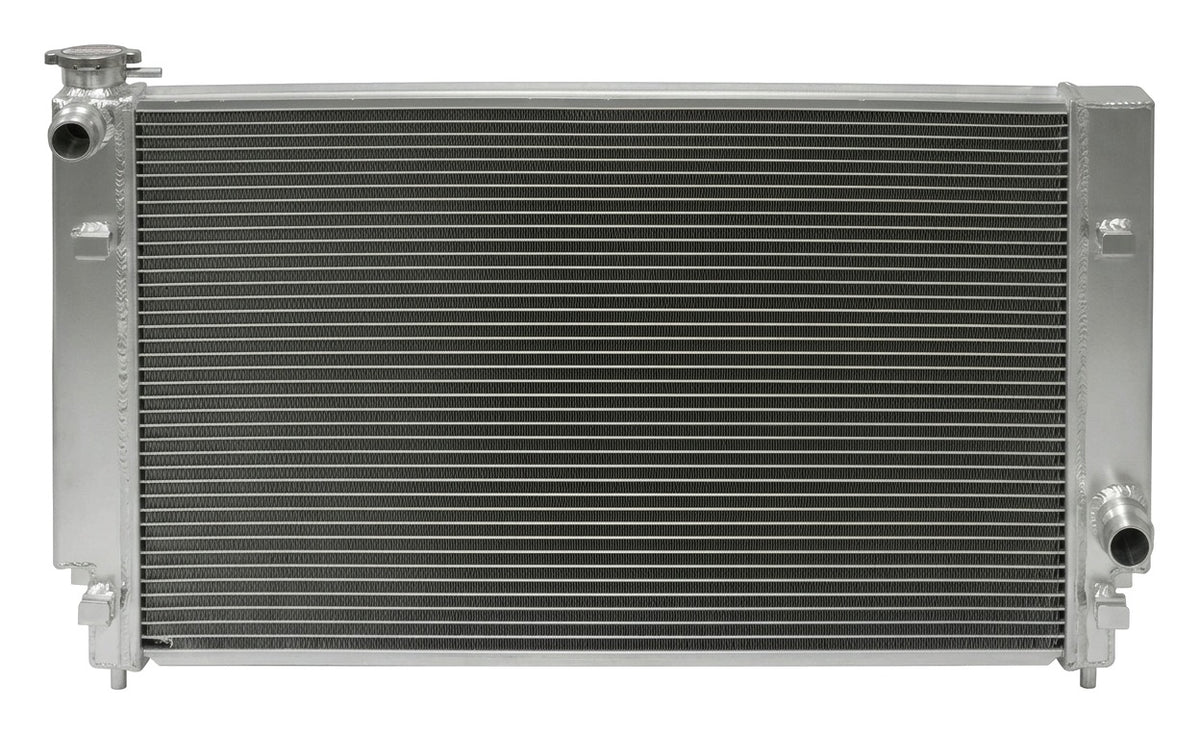

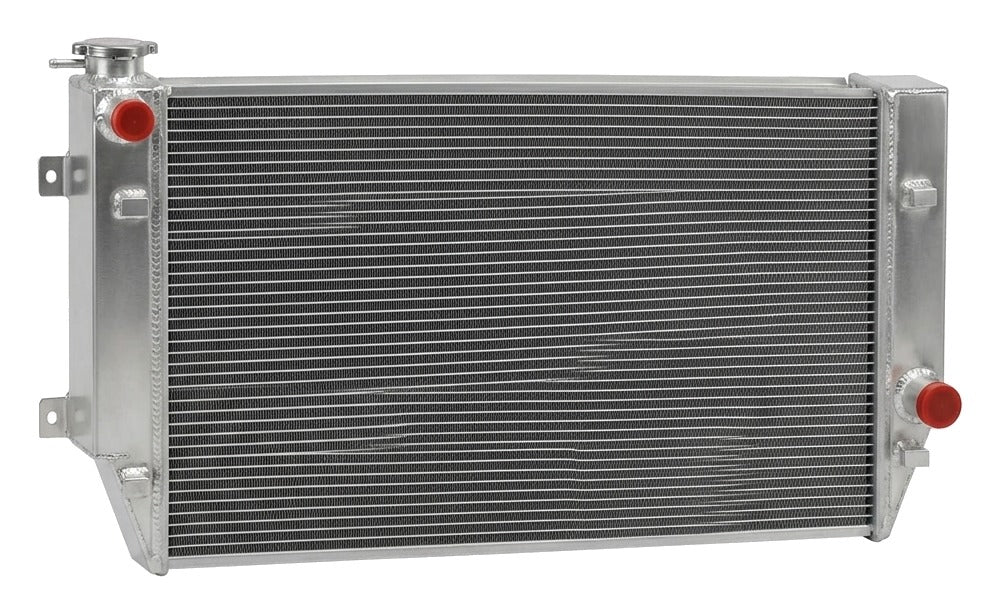

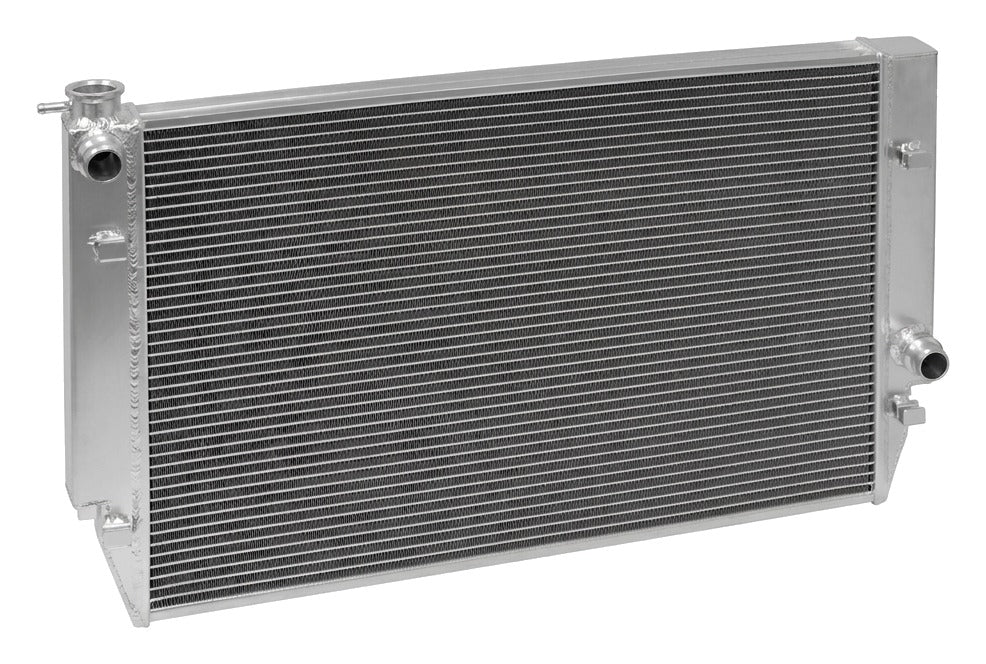

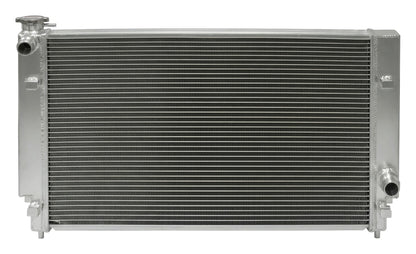

All-Aluminum Performance Radiator for 2016-2021 Audi TT,TTS

What it Does: The all-aluminum performance radiator replaces the failure-prone plastic-tank cooling unit on the 2016-2021 Audi TT and TTS to maximize heat rejection, eliminate tank seam separation, and maintain thermal stability under aggressive driving.

The Stock Audi TT,TTS Thermal Dissipation Bottleneck

Factory radiators installed in the Type 8S platform utilize crimped glass-filled nylon end tanks joined to an aluminum core via elastomeric O-rings. Subjected to sustained heat cycles, operating pressures exceeding 20 PSI, and the elevated cylinder head temperatures of the turbocharged EA888 Gen 3 engine, these composite tanks embrittle over time. The primary failure mode is micro-fracturing along the inlet neck and tank crimp seams, leading to coolant loss, cavitation, and dangerous thermal spikes that threaten head gasket integrity.

The Engineering Solution

This heavy-duty replacement radiator resolves factory weak points using 100% T-6061 aircraft-grade aluminum construction. Featuring a 2-row dual-core brazed tube-and-fin design, it increases coolant capacity and surface heat transfer area over OEM units. Robotically TIG-welded end tanks replace mechanical crimps, eliminating structural blowouts under high system pressure. The crossflow architecture ensures uniform fluid distribution across the 28.25-inch core, reducing heat soak and sustaining stable coolant temperatures during track sessions or spirited driving.

Technical Specifications

Compatibility

• 2016-2021 Audi TT 2.0L TSI (6-Speed Manual)
• 2016-2021 Audi TTS 2.0L TSI (6-Speed Manual)
• Fits manual transmission applications only; not compatible with automatic or DSG dual-clutch transmission lines.

Frequently Asked Questions

Does this fit the Type 8S TT,TTS?
Yes, this is a direct bolt-in fit for the 2016-2021 Audi TT,TTS equipped with the EA888 Gen 3 2.0L engine and a manual gearbox.

Does this radiator accept factory mounting brackets and hoses?
Yes, it features OE-spec mounting pin locations and 1.25-inch inlet/outlet connections designed to retain the factory fan shroud and coolant hoses.

The Audi Precision Standard

Engineered to satisfy European cooling tolerances, this direct-fit unit maintains precise electronic thermostat regulation without triggering thermal performance DTC codes, delivering robust, track-ready cooling reliability without sacrificing factory fitment geometry.
