Performance Radiator for Volvo V70 (1998-2004) 2.3L 2.4L Automatic

Heavy-Duty All-Aluminum 3-Row Performance Radiator for 1998-2004 Volvo V70

Primary Function: Replaces failure-prone OEM plastic-tank radiators with a high-capacity, all-aluminum cooling core designed for high-thermal-load inline-five automatic applications.

The Stock V70 Thermal Dissipation Bottleneck

Factory Volvo V70 radiators utilize composite plastic end-tanks mechanically crimped over single-row aluminum cores with rubber gasket seals. Continuous heat cycling from the turbocharger and high engine-bay operating temperatures degrades the plastic polymers, causing hairline stress fractures at the tank necks and seal failure at the crimp joints. Additionally, the restricted core volume struggles to shed heat efficiently under sustained boost, leading to elevated coolant temperatures and heat soak in the integrated automatic transmission circuit.

The Engineering Solution

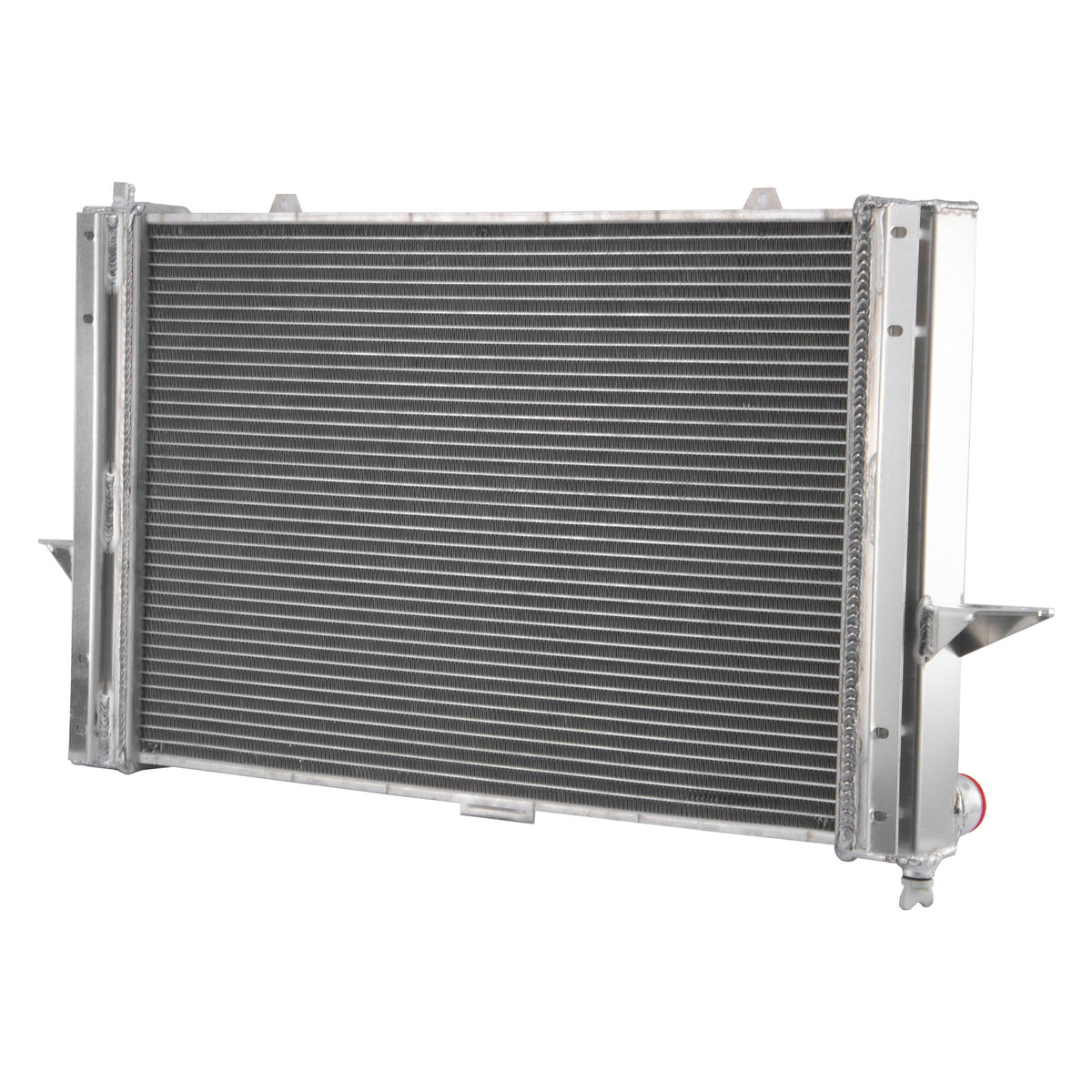

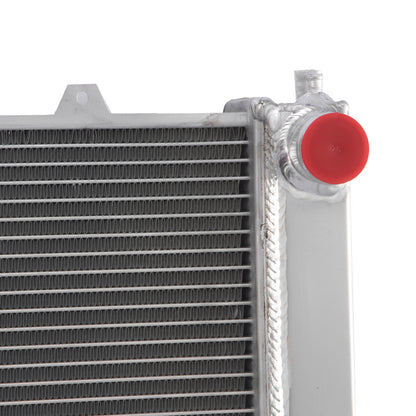

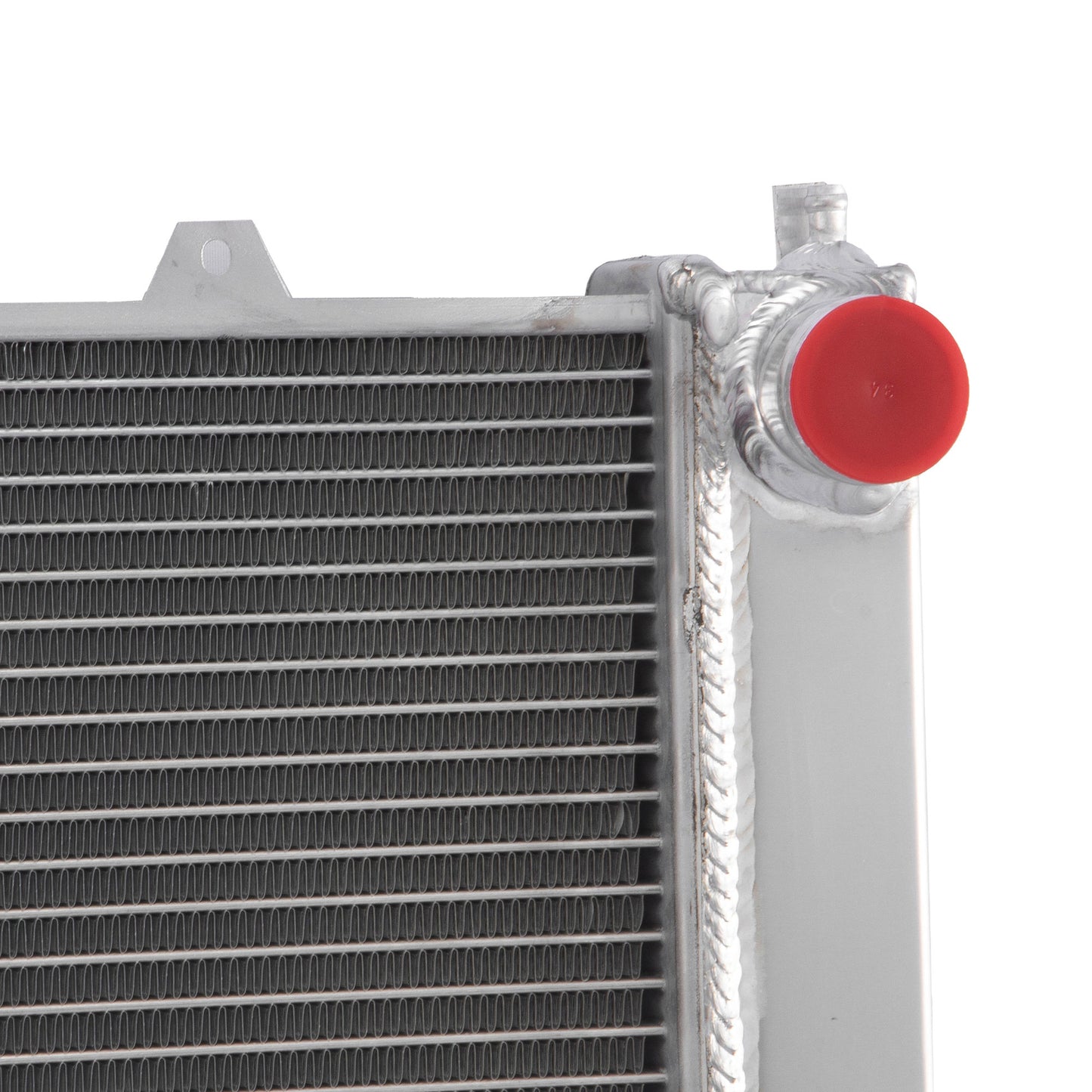

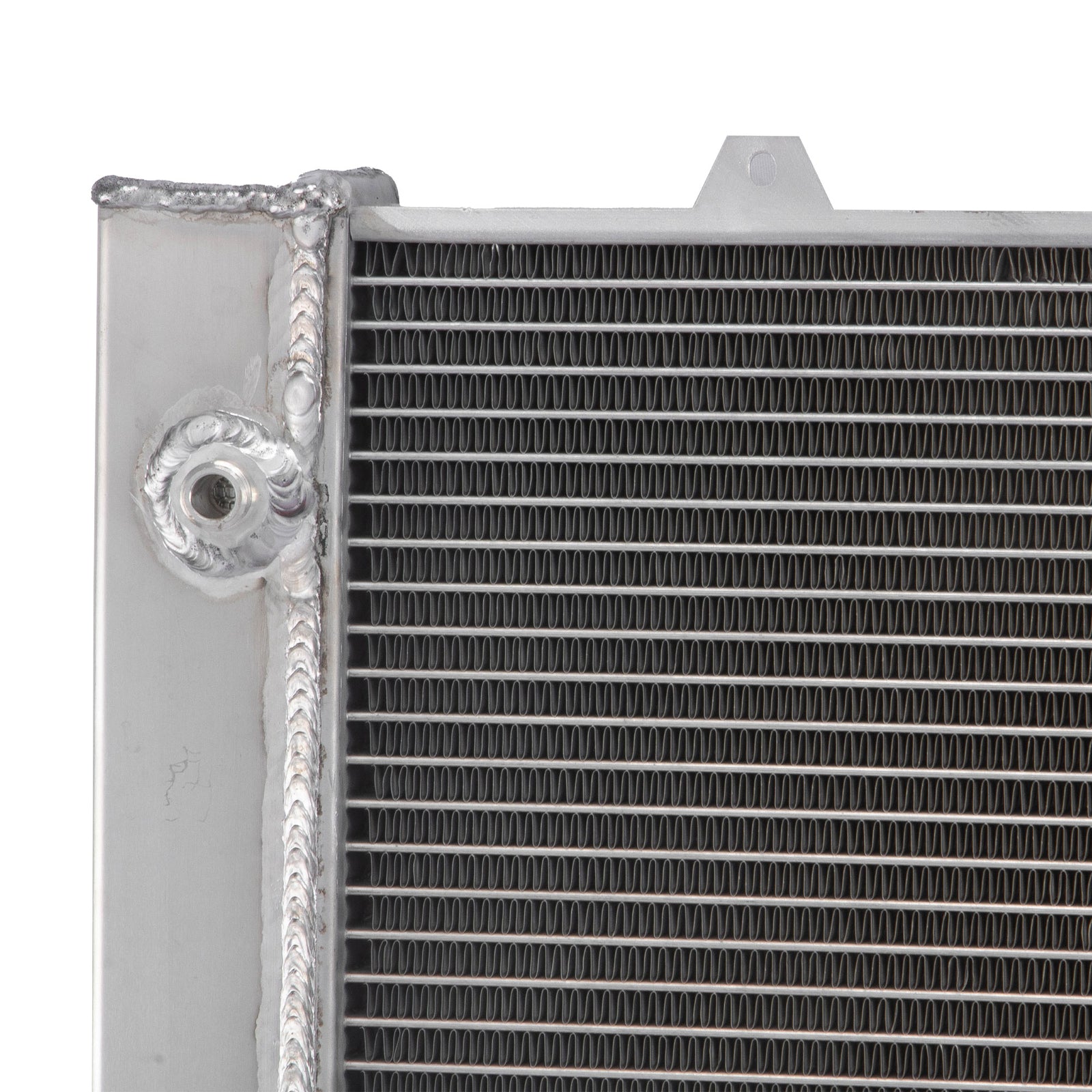

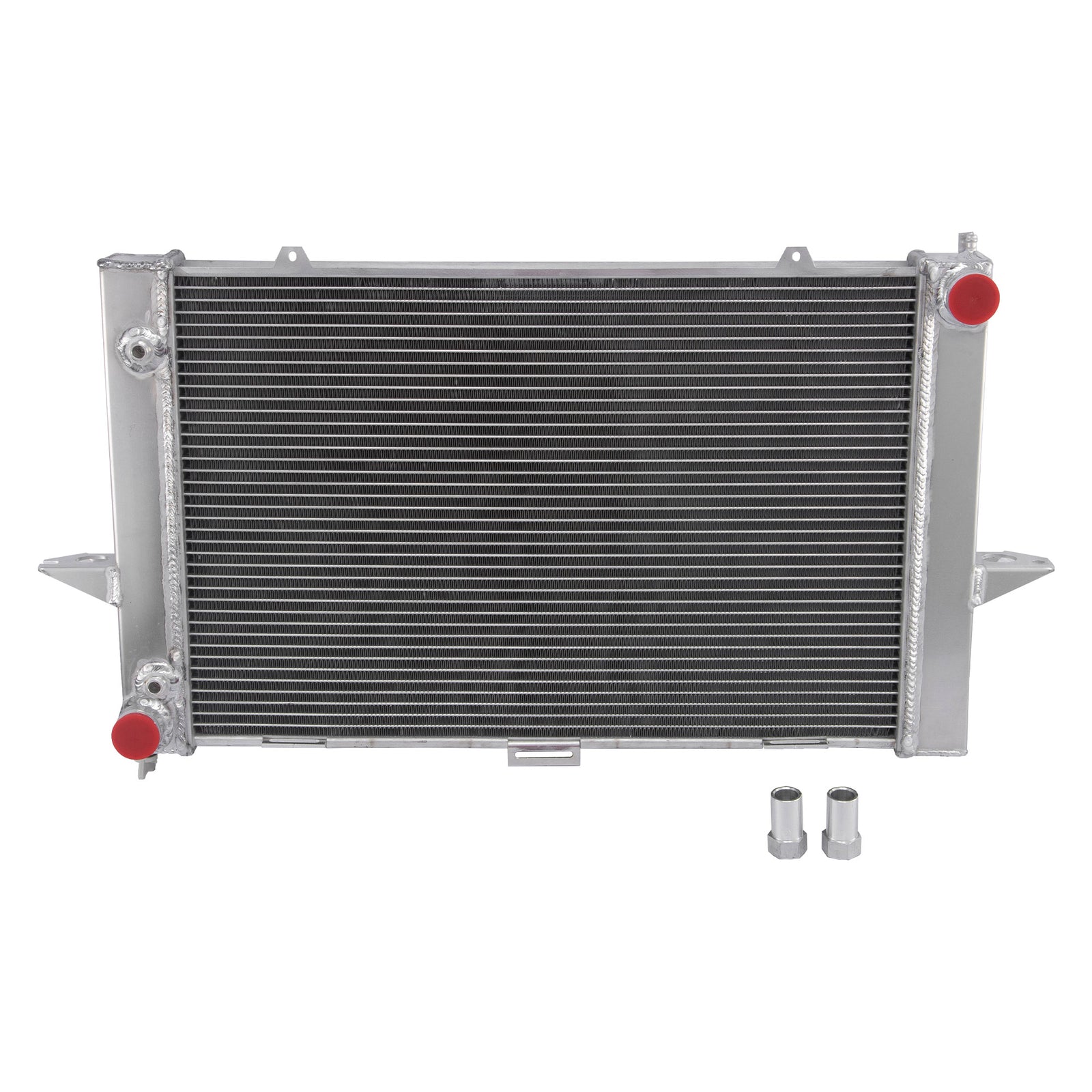

This drop-in unit features 100% TIG-welded, aircraft-grade all-aluminum construction to eliminate brittle plastic and vulnerable crimp seams entirely. Engineered with a high-density 3-row racing crossflow tube-and-fin core (23-1/4 in. W x 15-1/4 in. H), it significantly increases fluid capacity and thermal transfer surface area. An integrated internal transmission oil cooler with precision-machined adapter ports ensures optimal automatic transmission fluid temperatures without requiring external plumbing modifications.

Technical Specifications

Compatibility

• 1998-2004 Volvo V70 2.3L Inline-5 Turbocharged (Automatic Transmission)
• 1998-2004 Volvo V70 2.4L Inline-5 Naturally Aspirated & Turbocharged (Automatic Transmission)

The Volvo Caliber

Engineered to exact European OE dimensions for a direct bolt-on installation, this radiator maintains factory sensor locations and fan shroud mountings while delivering the thermal headroom necessary for tuned five-cylinder white-block engines.
