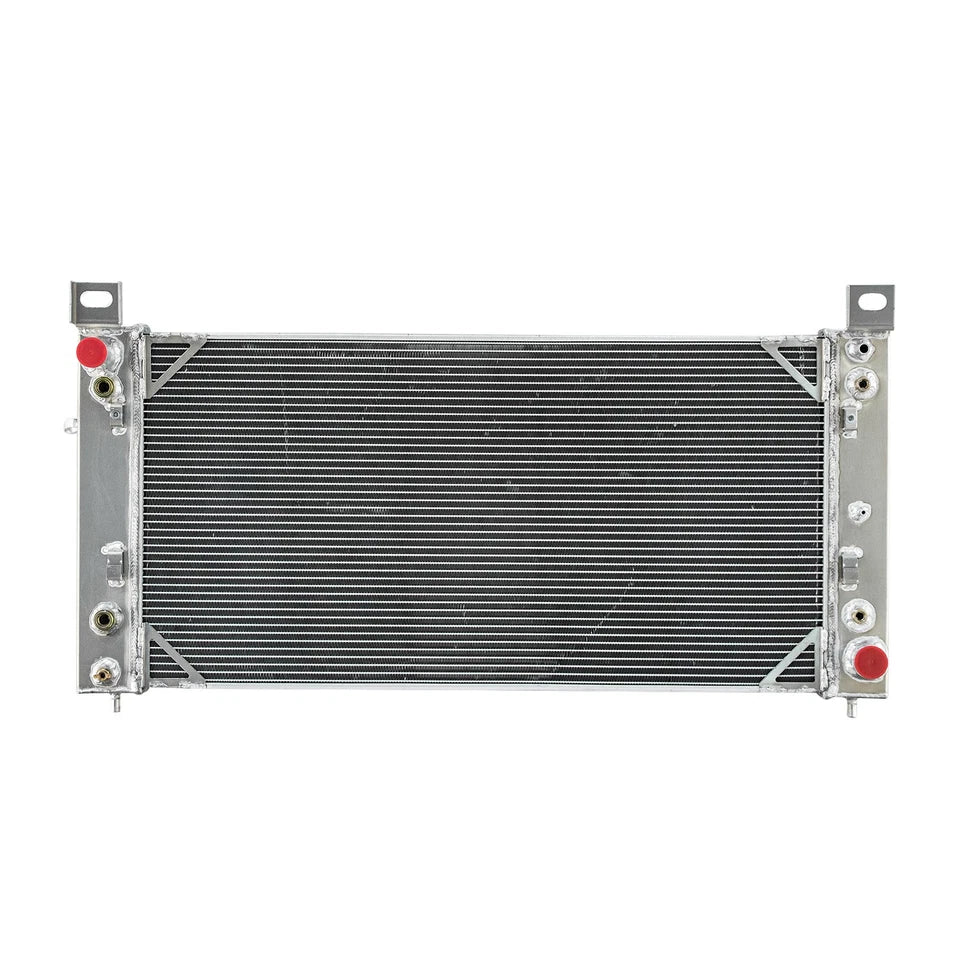

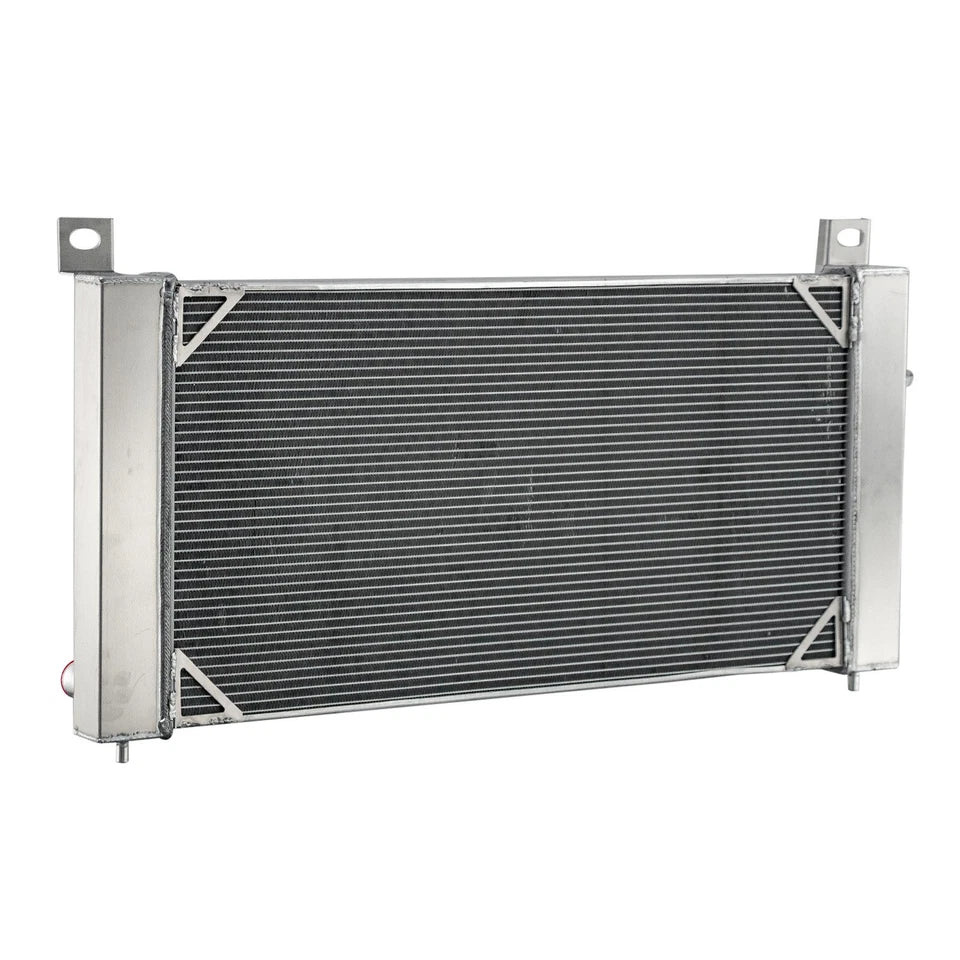

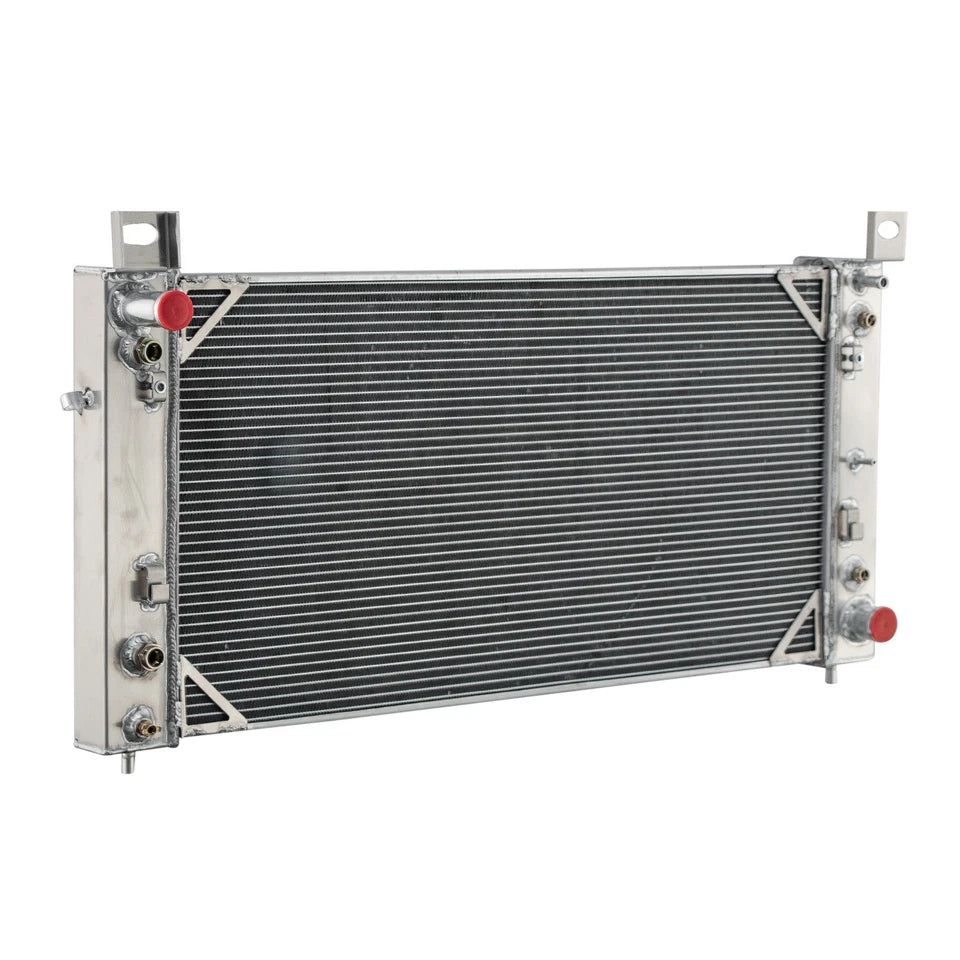

Performance Radiator for Chevrolet Suburban (2000-2013)

High-Capacity Aluminum Radiator for 2000-2013 Chevrolet Suburban

What it Does: Replaces the failure-prone OEM plastic-tank radiator with an all-aluminum, 3-row racing-spec unit to significantly lower engine and transmission temperatures under heavy loads.

The Stock Suburban Thermal Limitations

The factory cooling systems on the GMT800 and GMT900 platforms rely on crimped plastic end tanks mated to a thin, single-row T-3303 aluminum core. Over time, continuous thermal cycling degrades the plastic and rubber gaskets, leading to inevitable hairline cracks and pressurized coolant leaks at the tank seams. Furthermore, when towing heavy loads, crawling off-road, or operating in stop-and-go traffic, the stock core lacks the required thermal mass and surface area to prevent heat soak, resulting in dangerous temperature spikes for both the engine coolant and the transmission fluid.

The Engineering Solution

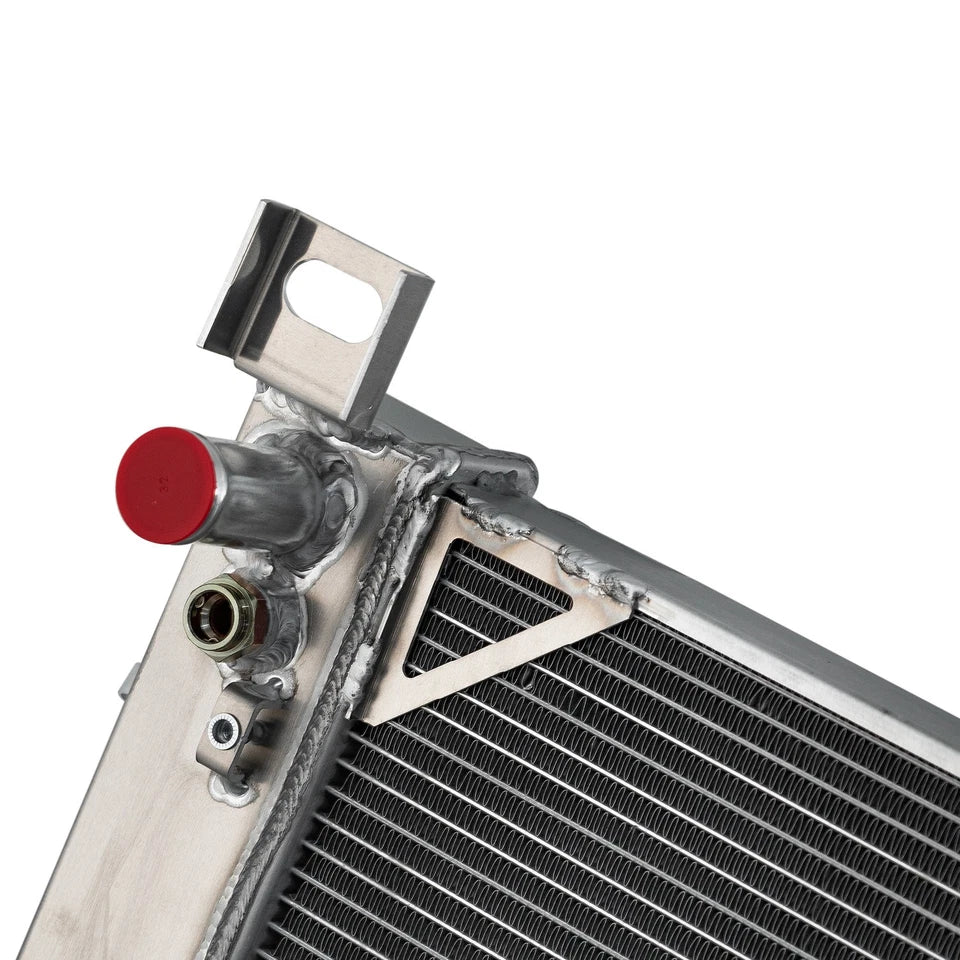

This high-performance 3-row radiator mitigates these thermal bottlenecks by utilizing AA5052 aircraft-grade aluminum, an Al-Mg alloy vastly superior to standard T-3303 aluminum in both tensile strength and corrosion resistance. The advanced brazed core technology and 2mm thick TIG-welded aluminum end tanks entirely eliminate the weak points of OEM plastic crimps. Featuring a massive 34-inch wide core, this unit dramatically increases coolant volume and surface area, delivering a 30% to 45% increase in cooling efficiency over the factory counterpart. Integrated internal engine oil and transmission coolers (driver and passenger side, respectively) maintain optimal fluid viscosities during extreme towing conditions. The inclusion of a billet CNC machined fill neck and an OEM-style brass petcock drain ensures long-term, leak-free durability in rigorous applications.

Technical Specifications

Compatibility

• 2000-2013 Chevrolet Suburban (Requires 34" Wide Core)
• Models equipped with 4.8L V8
• Models equipped with 5.3L V8
• Models equipped with 6.0L V8
• Models equipped with 6.2L V8
• Compatible with models featuring Driver Side Engine Oil Cooler
• Compatible with models featuring Passenger Side Transmission Oil Cooler

The Chevrolet Durability Standard

Upgrading to an all-aluminum AA5052 cooling system ensures that these heavy-duty SUVs maintain peak towing capacity and powertrain longevity, keeping fluid temperatures strictly regulated even under maximum payload demand.
