Performance Radiator for Chevrolet Monte Carlo (1970-1977)

High-Capacity Performance Radiator for 1970-1977 Chevrolet Monte Carlo

Direct Replacement Cooling System: Upgrades the factory cooling setup with a 3-row aluminum core and dual 12-inch electric fans to significantly lower coolant temperatures under heavy thermal load.

The Stock GM A-Body Cooling Limitations

Factory copper-brass radiators equipped in the 1970-1977 GM A-Body chassis are notoriously prone to heat soak, especially when paired with large displacement SBC and BBC V8 engines. The original 2-row design struggles with thermal transfer inefficiency, leading to elevated operating temperatures during idle in traffic or under heavy throttle loads. Solder joints deteriorate over time, creating micro-leaks, while the factory engine-driven clutch fans rob parasitic horsepower and fail to provide adequate airflow at lower engine RPMs.

The Engineering Solution

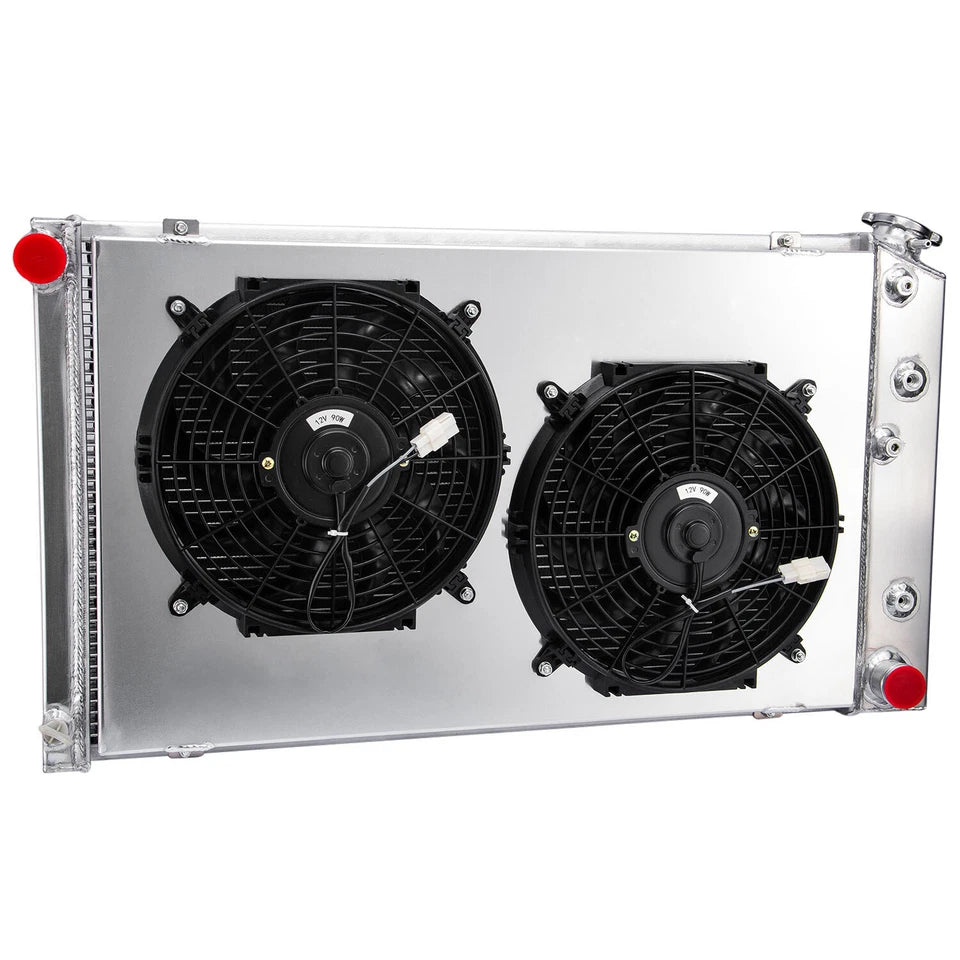

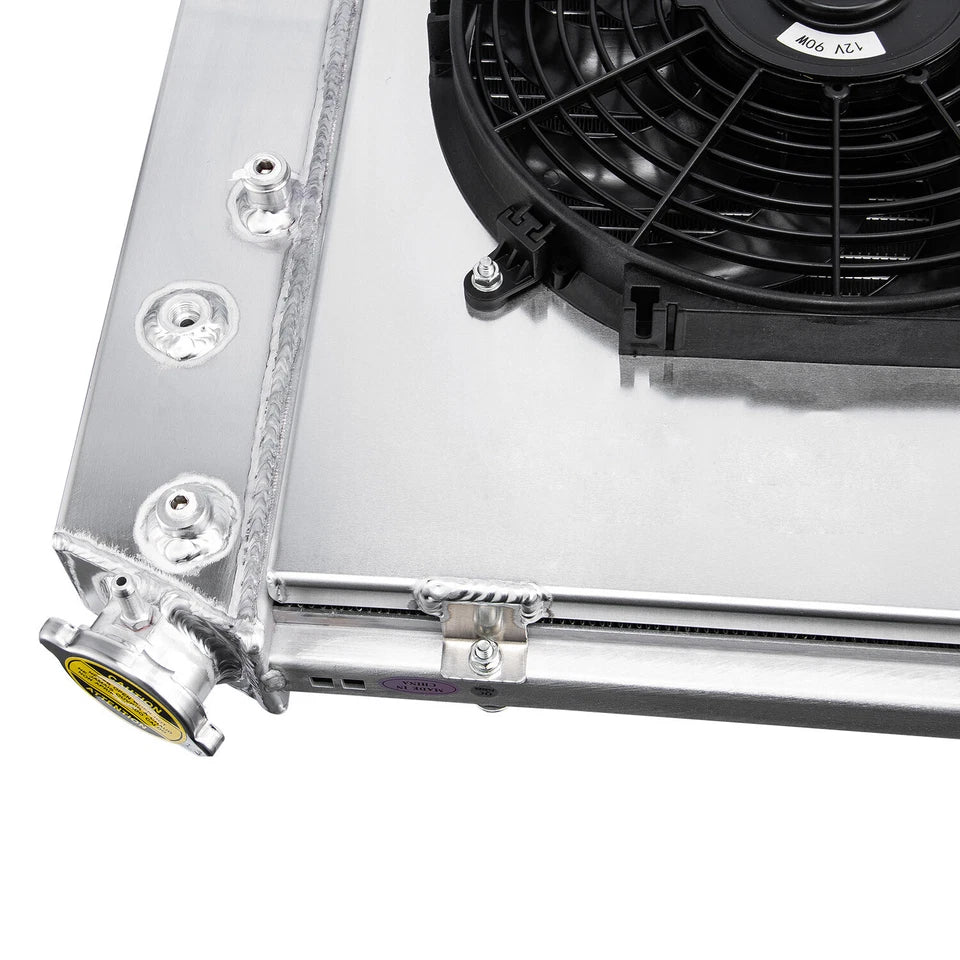

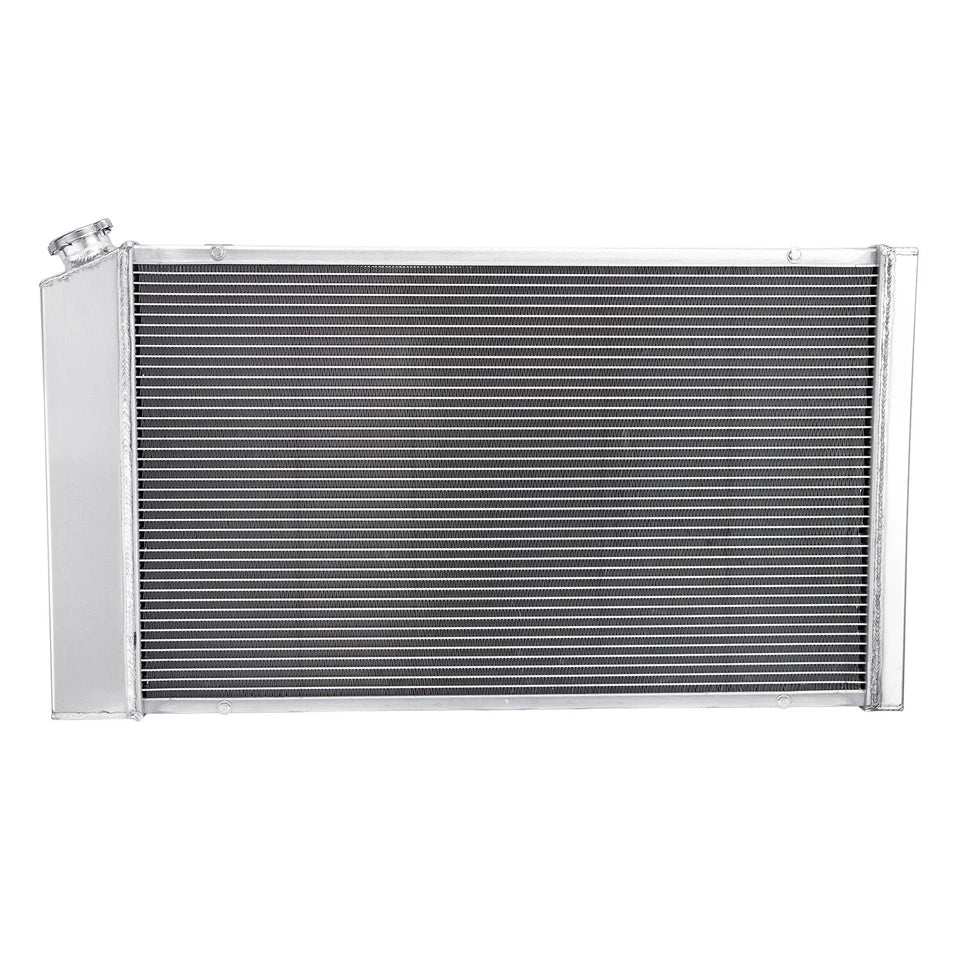

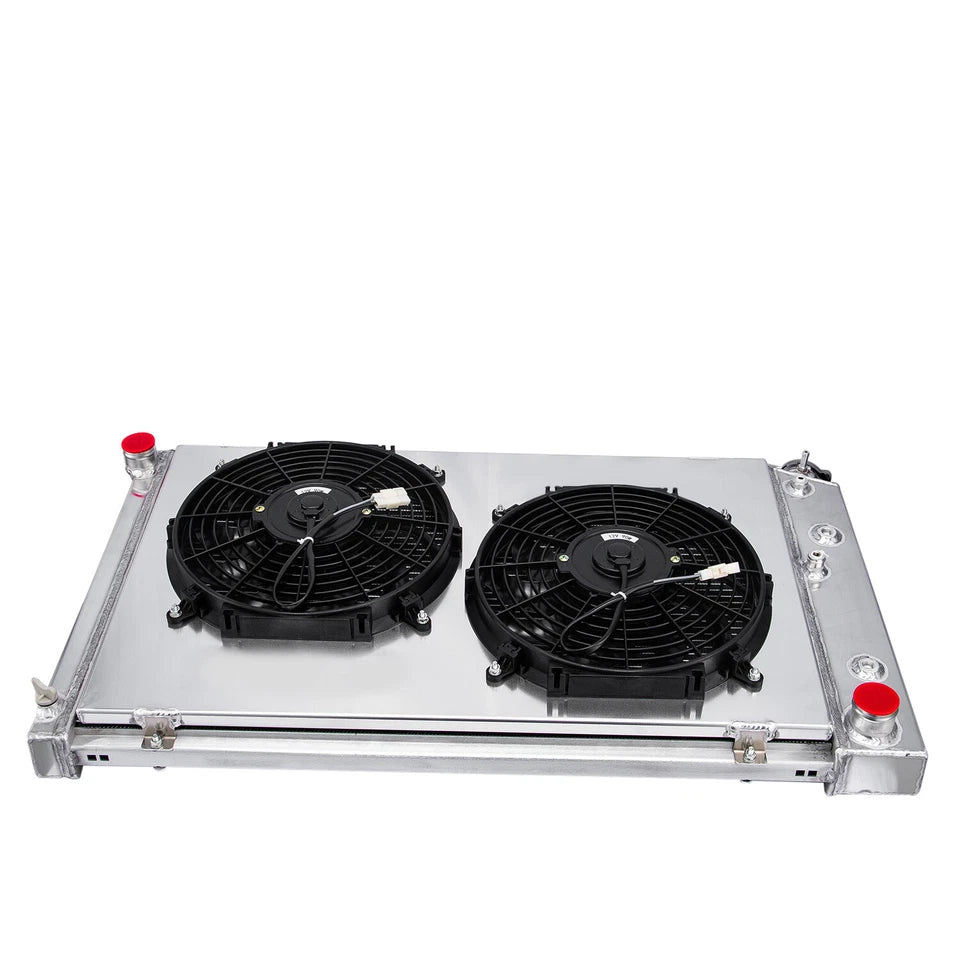

This comprehensive cooling package replaces the restrictive OEM setup with a high-efficiency 3-row aluminum core radiator. Aluminum offers superior heat dissipation compared to traditional brass, and the racing-spec 3-row tube design maximizes coolant-to-surface-area contact. Integrated into the system is a precision-cut aluminum shroud housing dual 12-inch, 10-blade plastic electric fans capable of pulling a combined 3460 CFM (1730 CFM each at 12.70 amps) at a maximum 2,250 RPM. This completely removes the parasitic drag of a mechanical fan while ensuring constant, high-velocity airflow regardless of engine speed. Built with a saddle mounting type and a built-in transmission oil cooler (φ32*215*G1/4), it supports both automatic and manual configurations. TIG-welded tanks prevent the seam failures common in stock units, ensuring reliable pressure handling for high-performance builds.

Technical Specifications

Compatibility

• 1970 Chevrolet Monte Carlo
• 1971 Chevrolet Monte Carlo
• 1972 Chevrolet Monte Carlo
• 1973 Chevrolet Monte Carlo
• 1974 Chevrolet Monte Carlo
• 1975 Chevrolet Monte Carlo
• 1976 Chevrolet Monte Carlo
• 1977 Chevrolet Monte Carlo
• Transmission: Automatic and Manual

The Chevrolet Muscle Standard

For classic American muscle, managing thermal loads is critical to maintaining consistent horsepower and preventing detonation. This aluminum radiator and fan shroud package delivers the thermal headroom required for high-compression V8 builds, ensuring absolute reliability whether you are on the drag strip or cruising the street.
