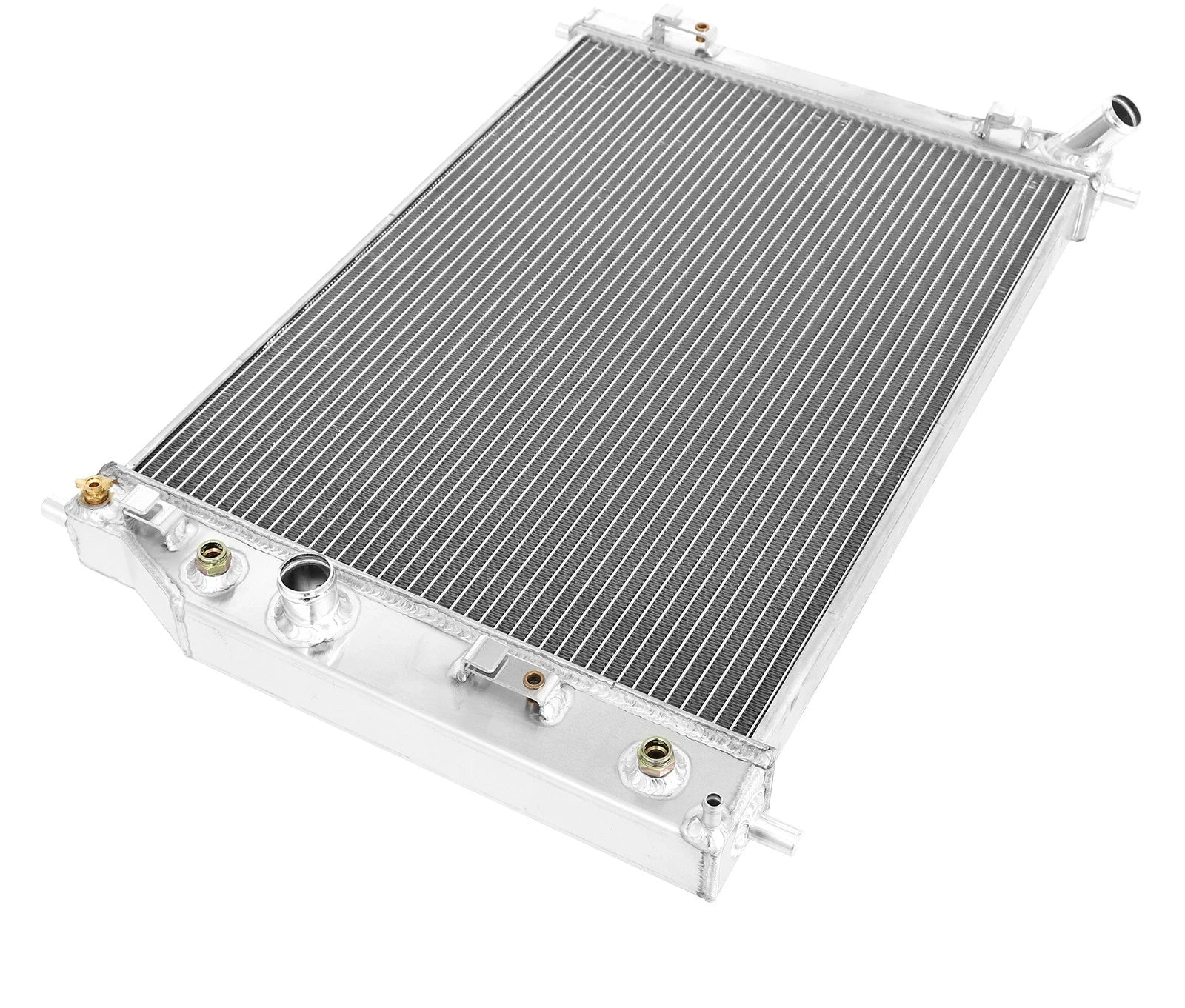

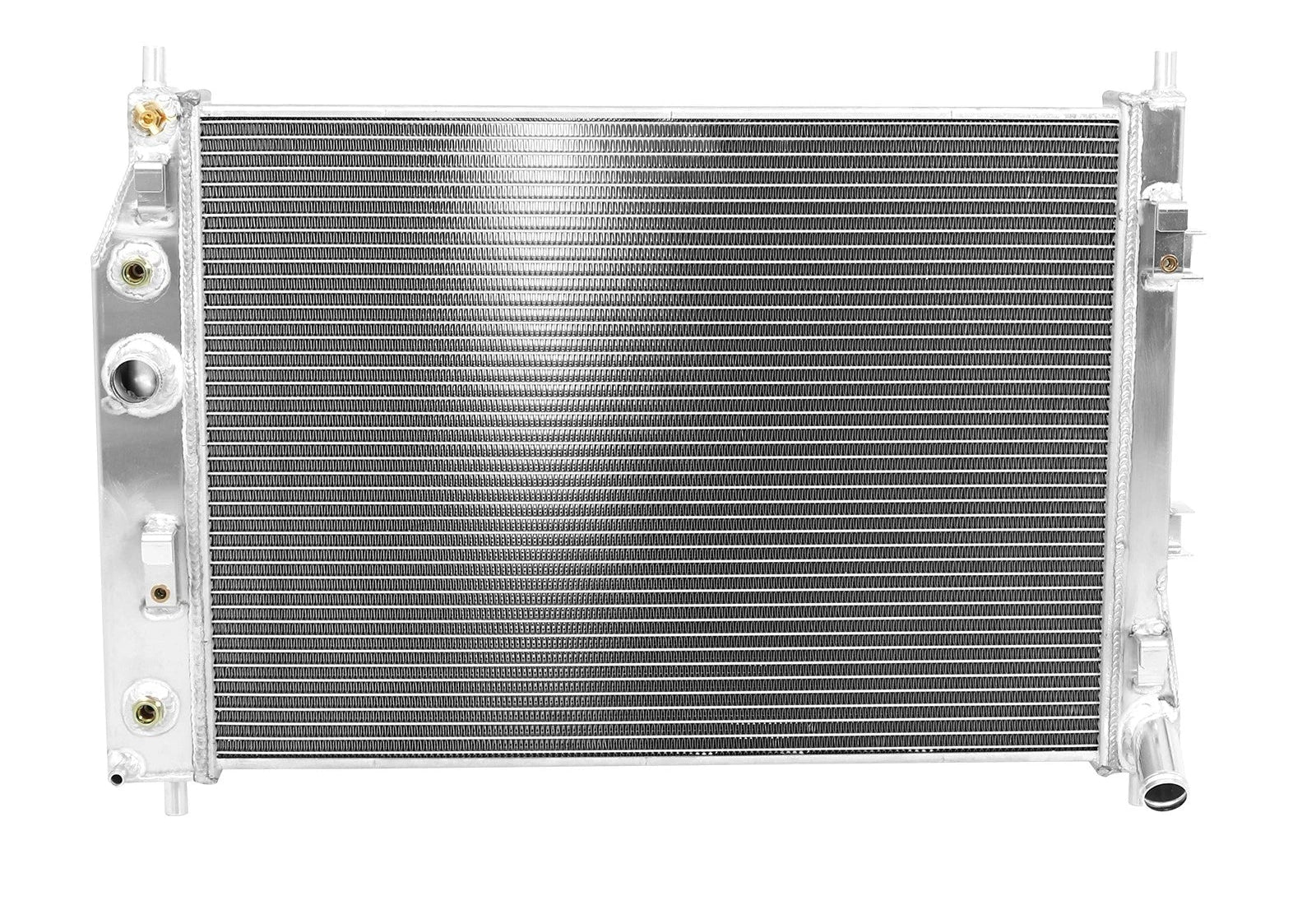

Performance Radiator for Chevrolet Corvette C6 (2005-2013)

High-Capacity Performance Radiator for 2005-2013 Chevrolet Corvette

What it Does: This all-aluminum, 3-row performance radiator replaces the restrictive factory unit to increase fluid capacity and improve cooling efficiency by up to 45% during high-performance applications.

The Stock C6 Corvette Thermal Shortcoming

OEM C6 Corvette radiators utilize plastic end tanks crimped onto a thin, single-row aluminum core. Over time and under the thermal stress of high-rpm driving, these plastic tanks become brittle, leading to stress cracks and sudden coolant loss at the crimp seams. Additionally, the limited surface area and fluid capacity of the factory core struggle to manage the thermal loads generated by the LS-series engines, particularly during sustained heavy throttle applications. When heat soak sets in, the ECU pulls timing to protect the engine, dramatically reducing power output and increasing the risk of overheating.

The Engineering Solution

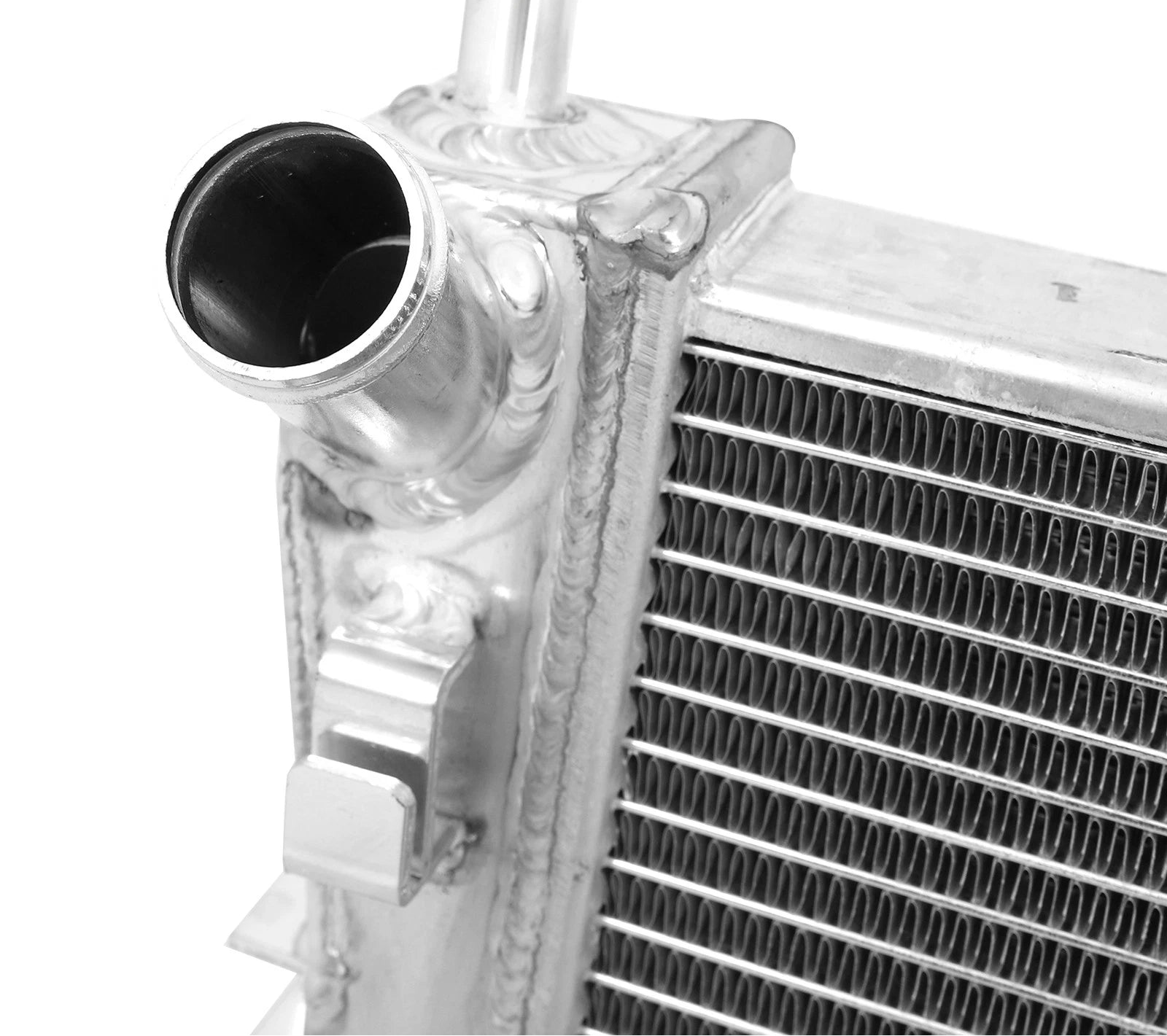

This 3-row racing radiator eliminates factory failure points by utilizing aircraft-grade AA5052 aluminum and fully TIG-welded 2mm thick end tanks. Without plastic components or crimped seams, the system is highly resistant to pressure-related failures. Brazed core technology maximizes heat transfer, while the three-row tube and fin design dramatically increases both active surface area and overall coolant capacity. The billet aluminum CNC-machined fill neck ensures leak-free pressure cap seating. Designed as a direct bolt-on replacement, this unit actively prevents dangerous temperature surges, maintaining consistent engine temperatures and stable power delivery.

Technical Specifications

Compatibility

• 2005-2007 Chevrolet Corvette V8 6.0L
• 2008-2013 Chevrolet Corvette V8 6.2L
• 2006-2013 Chevrolet Corvette V8 7.0L
• 2003-2004 Chevrolet SSR V8 5.3L
• 2005-2006 Chevrolet SSR V8 6.0L
• 2008-2009 Saab 9-7x V8 6.0L

The Chevrolet Performance Caliber

Whether pushing your LS-powered chassis on the autocross course or managing gridlock traffic on a summer cruise, maintaining optimal operating temperatures is critical to preserving internal engine components and sustaining peak horsepower delivery.
