Performance Radiator for Chevrolet Corvette C4 (1984-1990)

Heavy-Duty Performance Radiator for 1984-1990 Chevrolet Corvette

Direct Bolt-In Cooling Upgrade: Replaces the restrictive, aging stock radiator to lower coolant temperatures and prevent heat soak in high-demand V8 applications.

The Stock C4 Cooling Shortcoming

The factory single or dual-row radiators equipped on early C4 Corvettes struggle to maintain optimal coolant temperatures under sustained load, tracking, or in modified L83 and L98 engines. Over time, plastic end tanks become brittle, develop micro-cracks, and fail at the crimped seams due to thousands of thermal cycles. Furthermore, the OEM core lacks the required fluid volume and surface area to effectively dissipate heat during extended idle or performance driving, leading to rapid heat soak, increased pressure, and potential head gasket failure.

The Engineering Solution

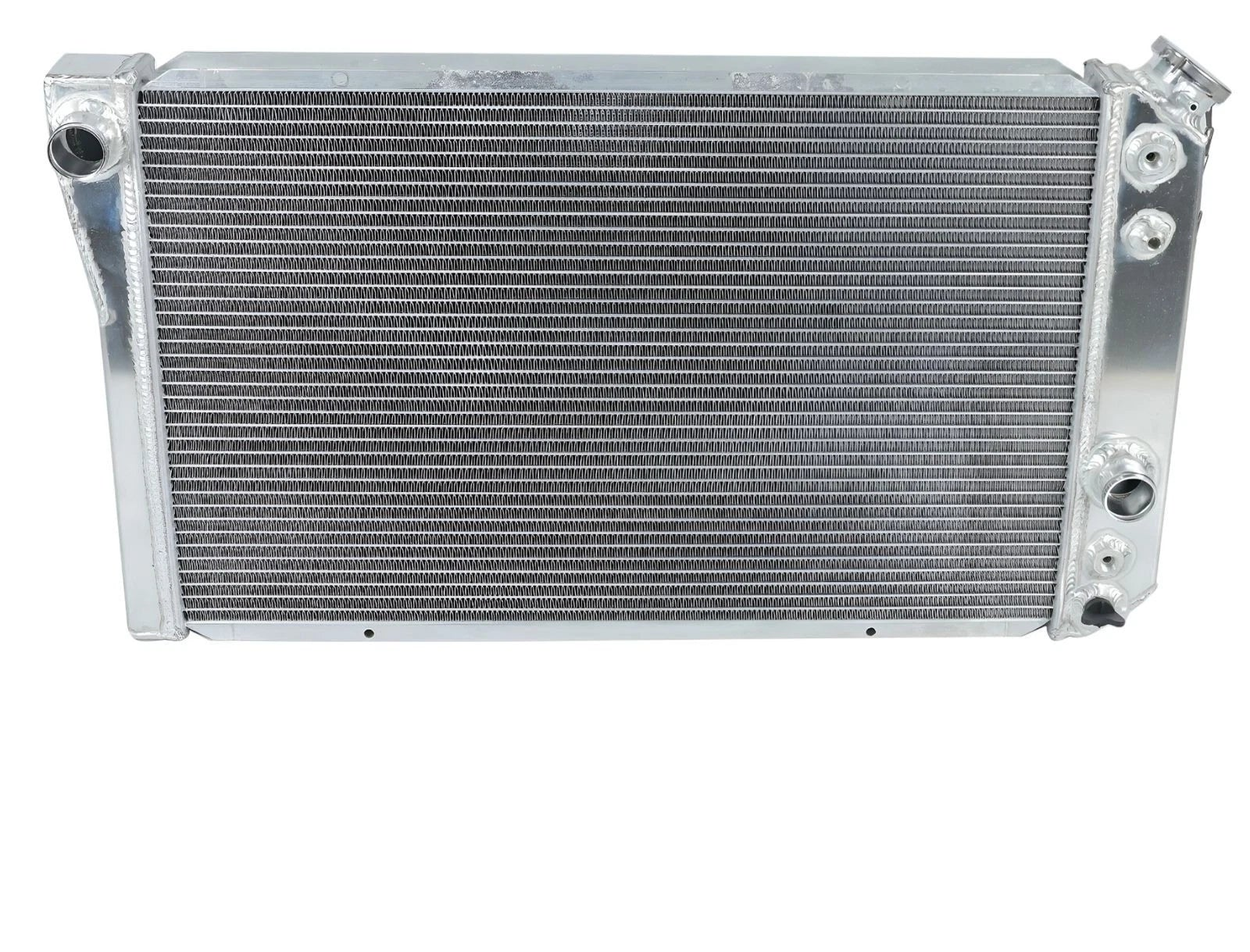

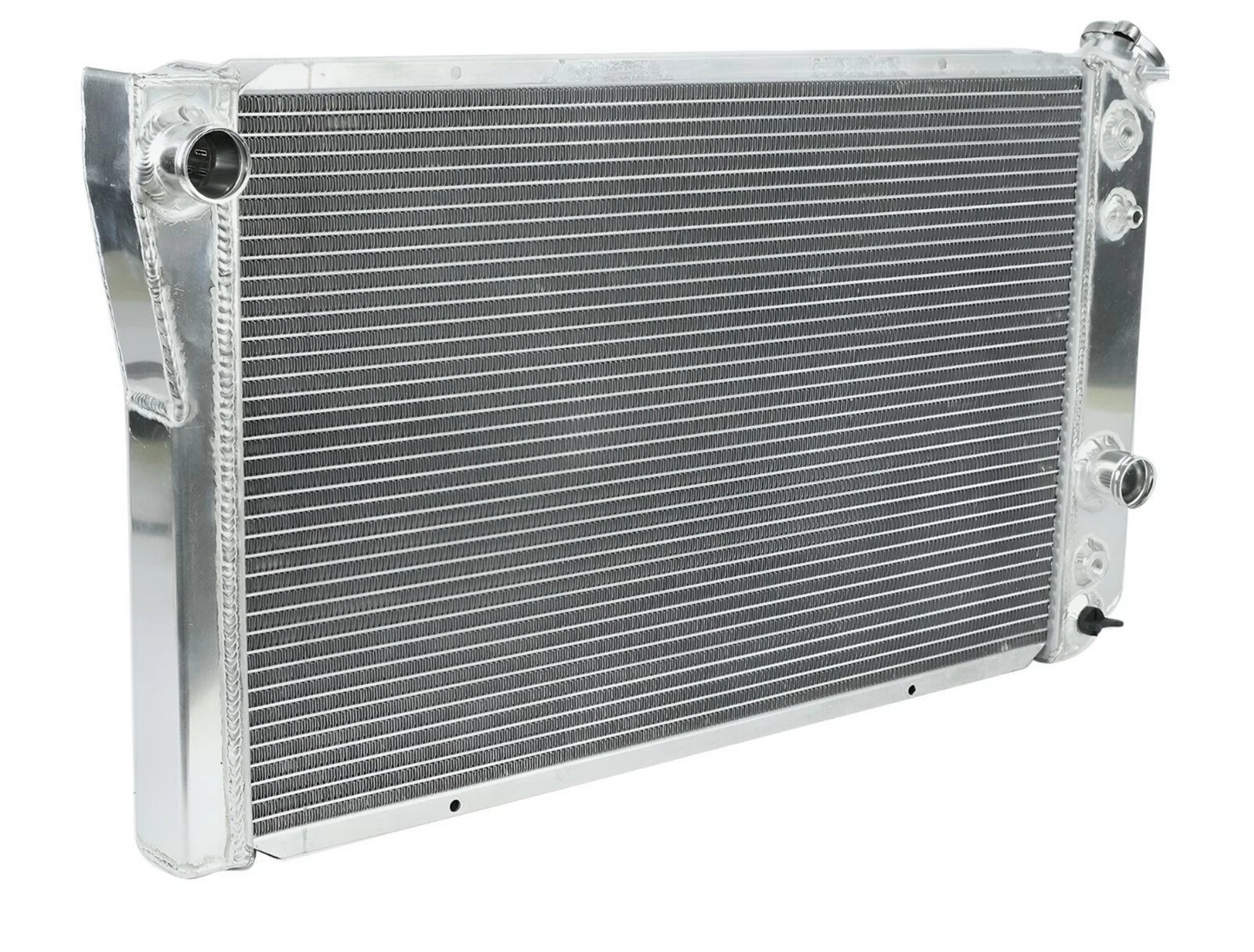

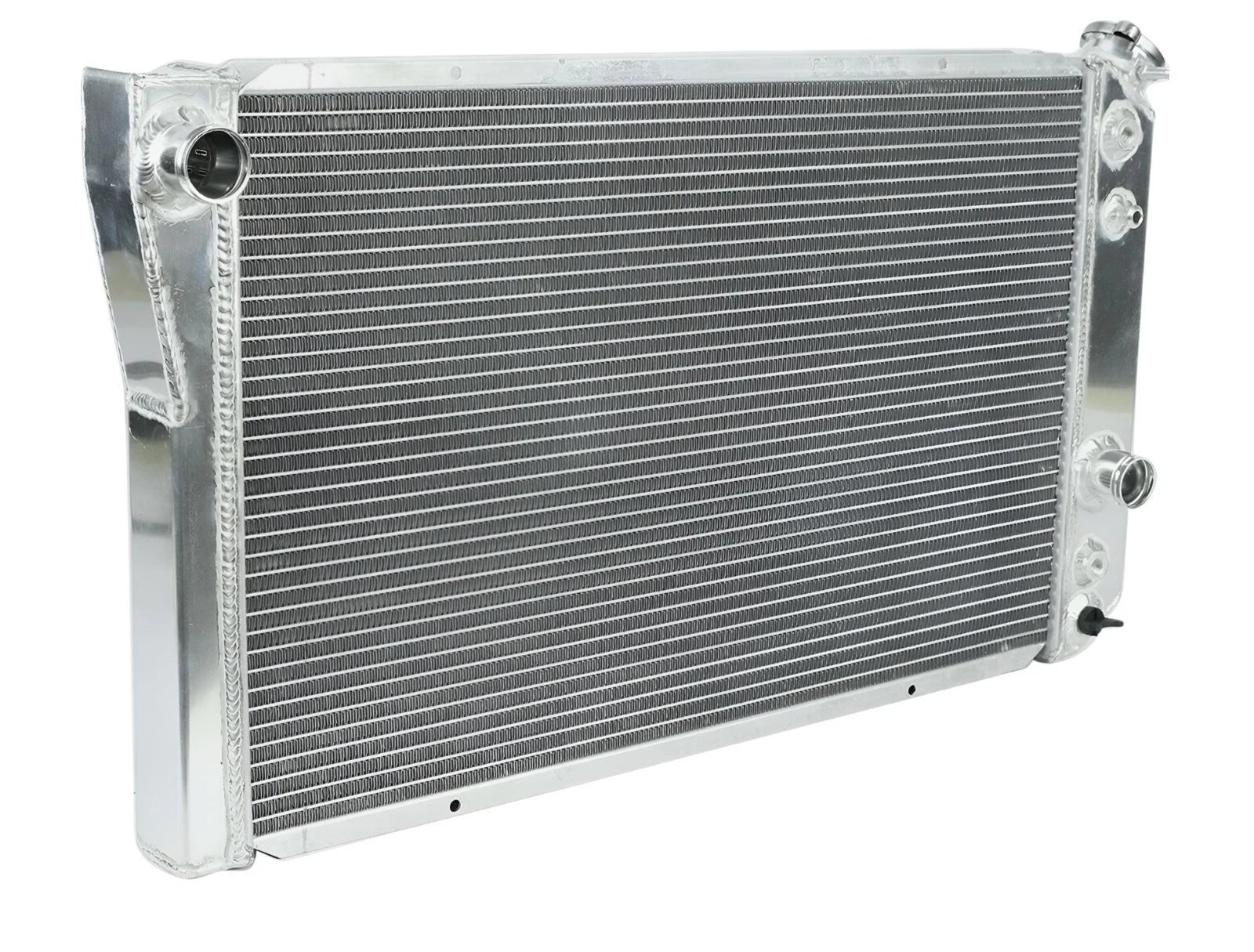

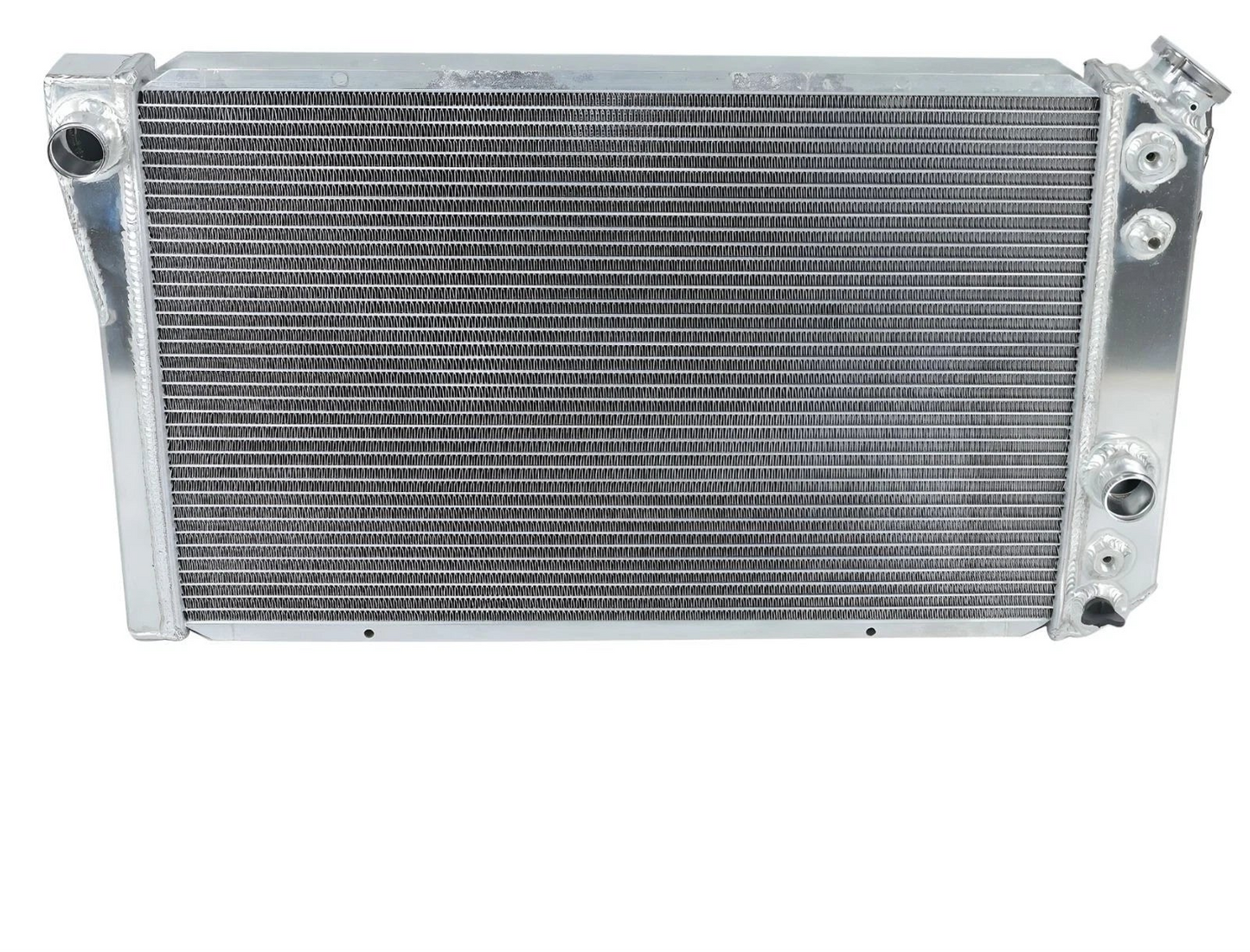

This high-capacity 3-row aluminum radiator resolves factory thermal limits by maximizing core thickness to 2-1/2 inches, substantially increasing overall coolant capacity and fin surface area. Constructed completely from high-grade aluminum with TIG-welded end tanks, it permanently eliminates the inherent failure points of factory plastic-to-aluminum crimps. The 3-row design optimizes heat transfer by adjusting fluid flow velocity just enough to extract maximum thermal energy before returning to the engine block. Engineered with a 1-1/4" driver-side inlet and a 1-3/8" passenger-side outlet, it provides the superior heat dissipation essential for C4 restorations, forced induction setups, and demanding V8 conversion applications.

Technical Specifications

Compatibility

• 1984–1990 Chevy Corvette V8 5.7L
• 1982–2002 Chevy S10 / S-10 Blazer (V8 Conversion)
• Corvette V8 Swap / Custom Applications
• 2.5L / 2.8L / 4.3L engine swap projects requiring upgraded cooling

The Chevrolet Muscle Caliber

Built to handle the massive thermal demands of legendary small blocks, this heavy-duty cooling solution ensures consistent operating temperatures, protecting your V8's power output and reliability whether on the street or the strip.
