Performance Head Gasket Kit for Cadillac Escalade (2004-2005) 5.3L

High-Sealing Performance Full Engine Head Gasket Kit for 2004-2005 Cadillac Escalade (GMT800)

What it Does: The Performance Head Gasket Kit seals the combustion chambers, oil galleries, and coolant passages on the 2004-2005 Escalade to eliminate fluid cross-contamination and hold cylinder pressure under heavy load.

The Stock Cadillac Escalade Head Gasket Degradation

Factory composite head gaskets on the GMT800 platform featuring the Vortec 5300 LM7 engine are prone to thermal fatigue and micro-scrubbing. Repeated heat cycles cause unequal thermal expansion between the cast-iron cylinder block and aluminum cylinder heads, eroding the OEM elastomeric coating. Over time, this leads to coolant migration into combustion chambers, exterior coolant weepage, and degraded compression across adjacent cylinders under sustained towing or high-operating-temperature conditions.

The Engineering Solution

This comprehensive overhaul kit centers on Multi-Layer Steel (MLS) cylinder head gaskets engineered to withstand extreme cylinder pressures and thermal movement. Constructed with high-tensile spring steel layers coated in high-temperature fluoroelastomer, the gaskets accommodate deck deflection without blowing out combustion fire rings. The kit bundles high-grade Viton valve stem seals, silicone-beaded intake gaskets, and an upgraded perimeter oil pan seal to permanently eliminate vacuum leaks and lower-end oil seepage on high-mileage Gen III V8 blocks.

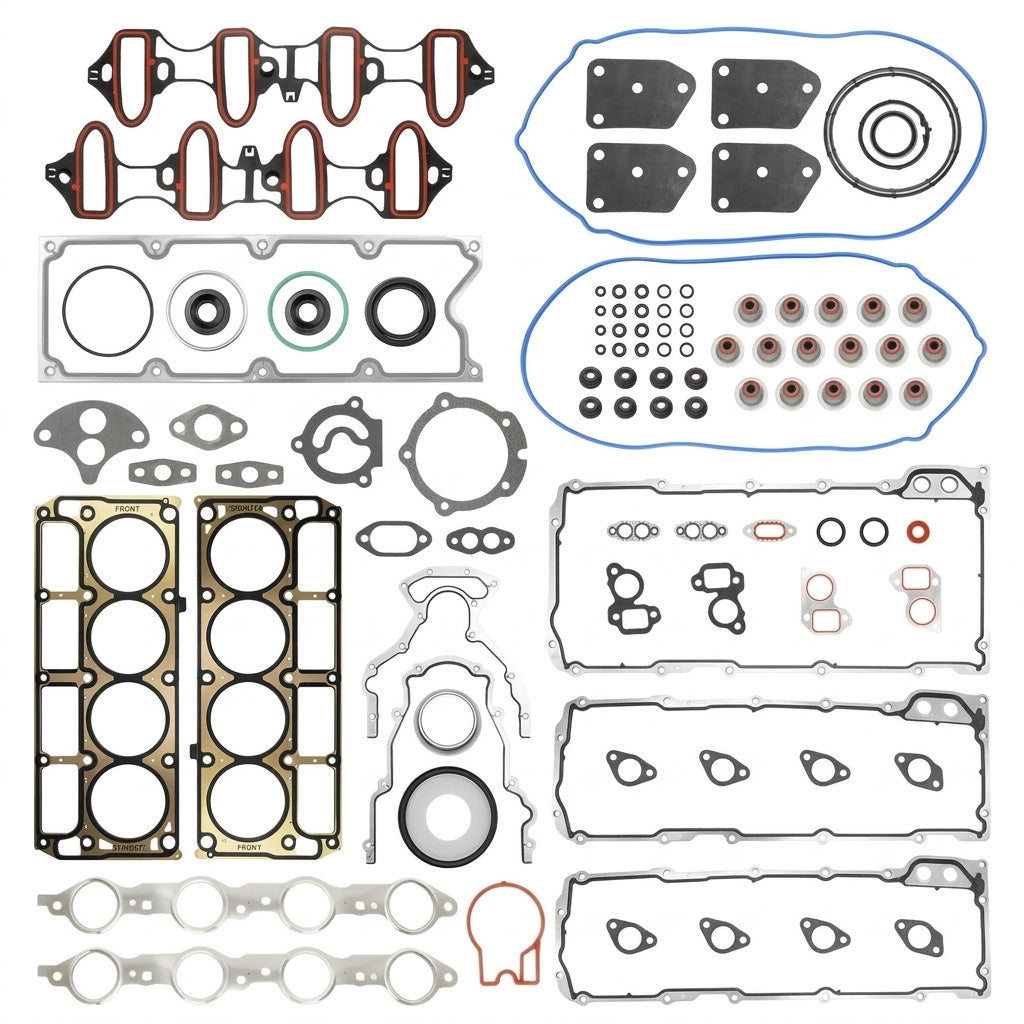

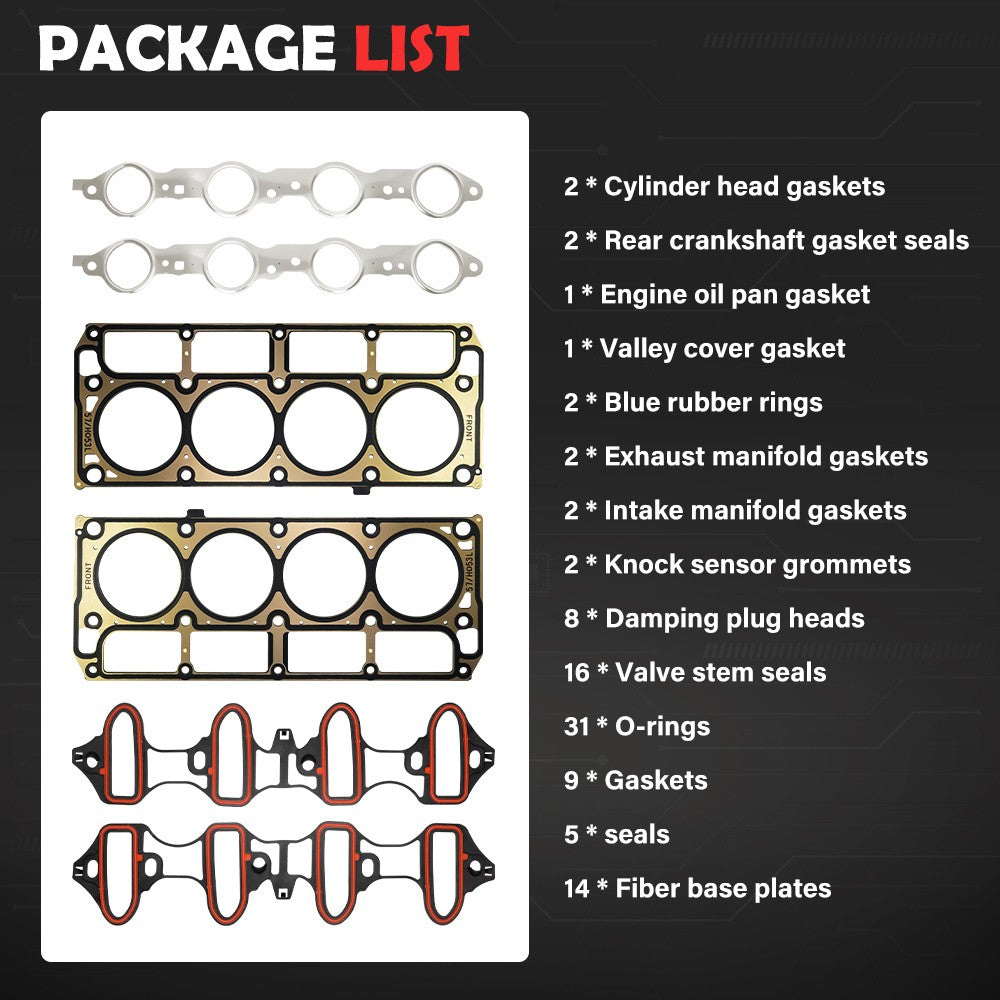

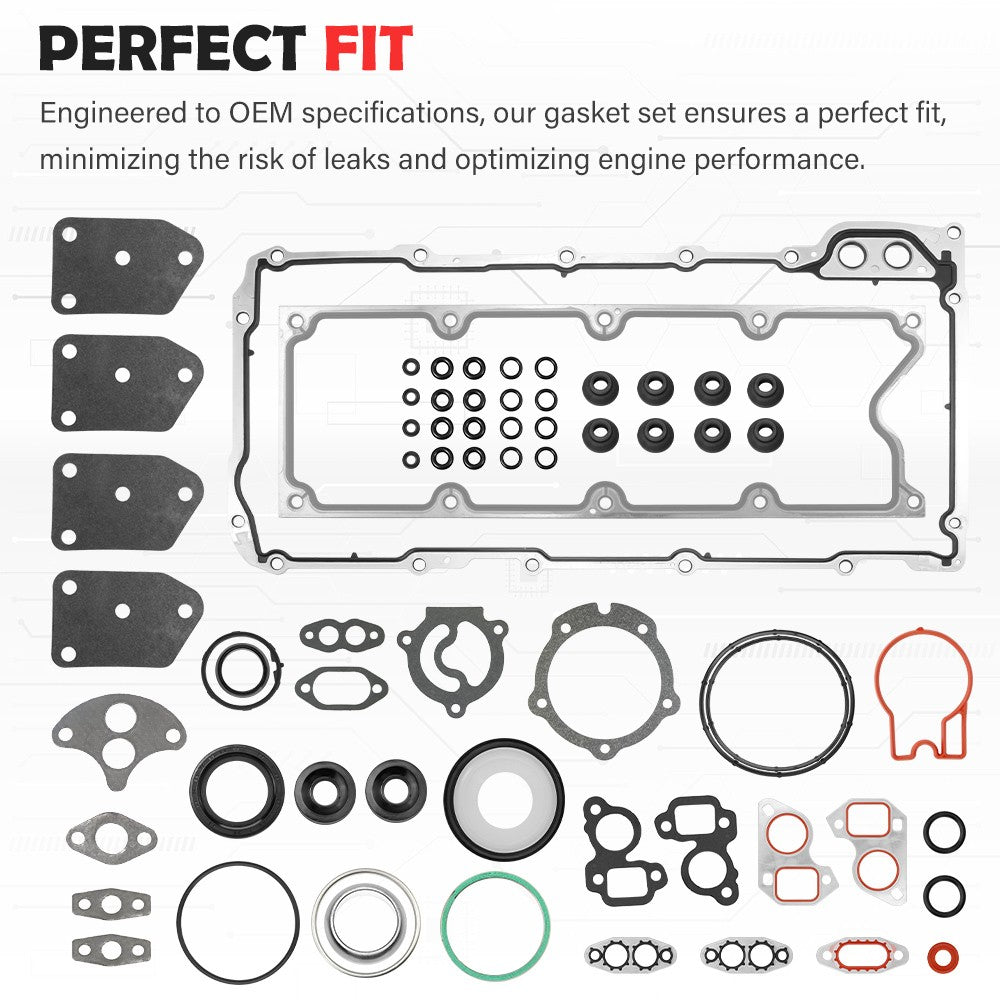

What's Included

• 2 Multi-Layer Steel (MLS) Head Gaskets
• 1 Rear Crankshaft Gasket Seal
• 1 Engine Oil Pan Gasket
• 1 Valley Cover Gasket
• Intake Manifold Gaskets
• Exhaust Manifold Gaskets
• Knock Sensor Grommets
• Damping Plug Heads
• Valve Stem Seals
• Fiber Base Plates
• Assorted O-rings and Secondary Gaskets

Technical Specifications

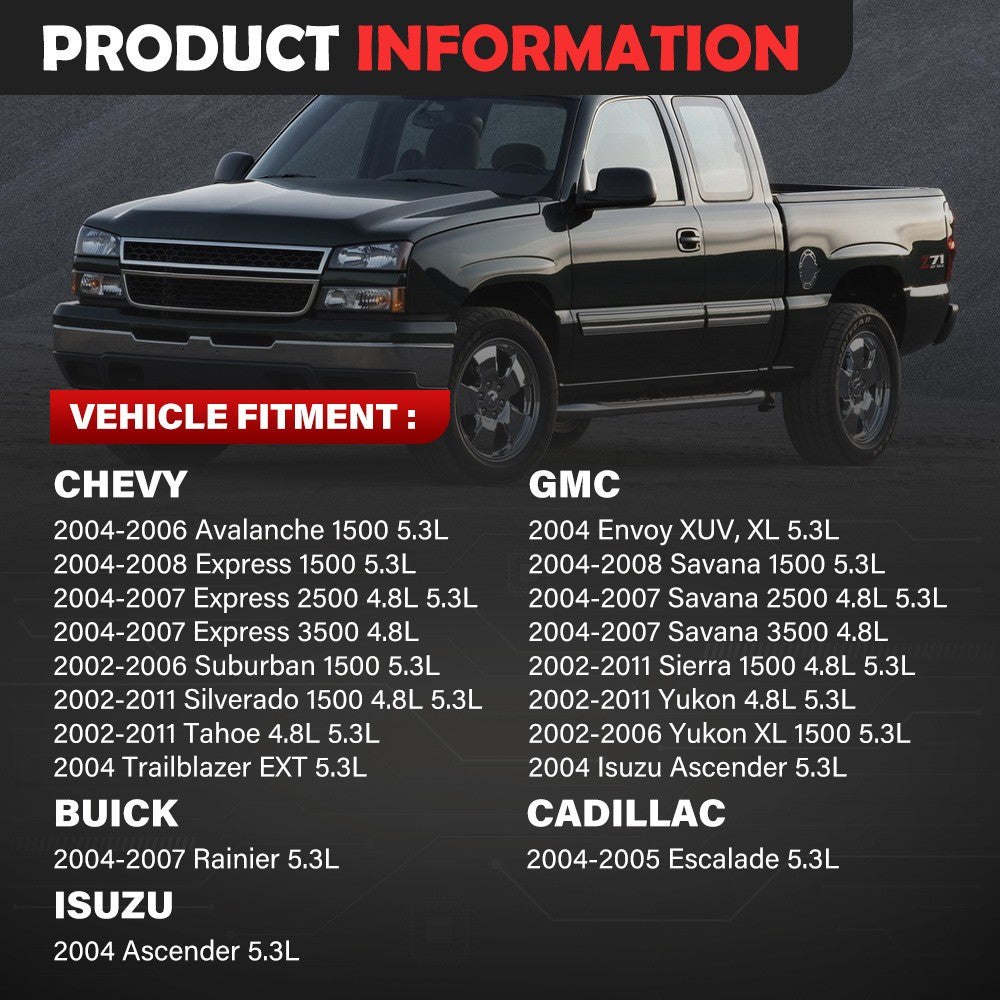

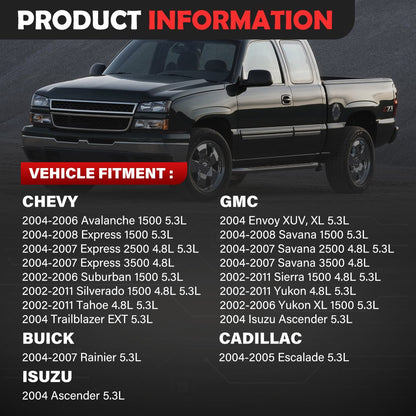

Compatibility

• 2004 Cadillac Escalade 5.3L V8 (RWD)
• 2005 Cadillac Escalade 5.3L V8 (RWD)

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT800 Escalade?

Yes, this is a direct fit for the 2004-2005 Cadillac Escalade equipped with the 5.3L LM7 engine; verify your 8th VIN digit as this kit does not fit 6.0L LQ9 or 6.2L configurations, and piston rings are not included.

Are new cylinder head bolts required during installation?

Yes, GM Gen III engines utilize torque-to-yield (TTY) cylinder head fasteners that permanently stretch during original assembly and must be discarded and replaced with new bolts.

The Cadillac Standard

Engineered to handle severe duty cycles, continuous highway trailering, and intense engine bay temperatures, this full overhaul kit ensures your GMT800 platform maintains peak cylinder compression and uncompromising fluid separation across hundreds of thousands of miles.
