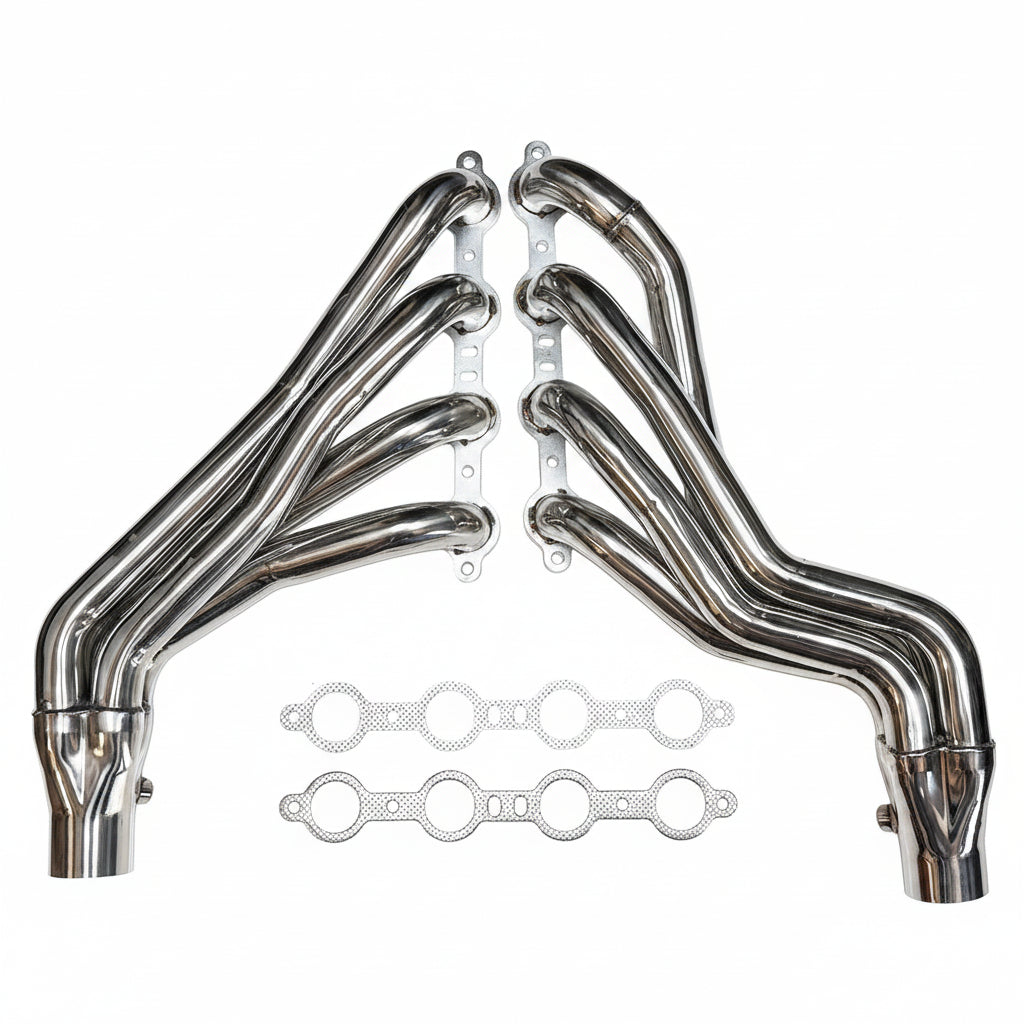

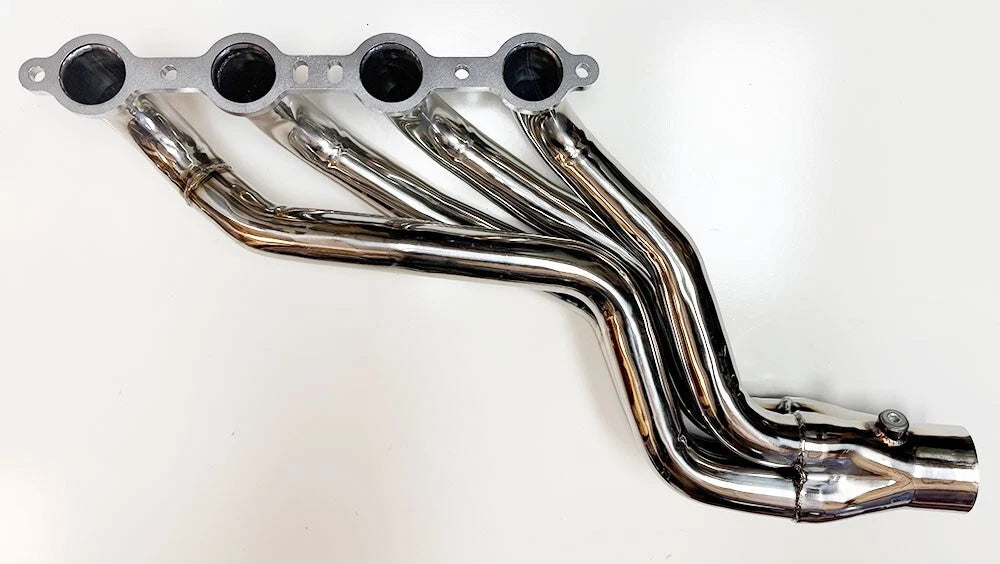

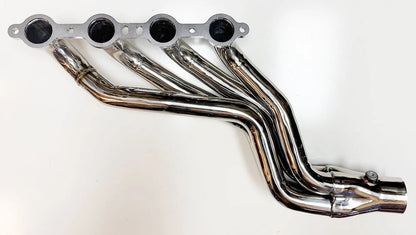

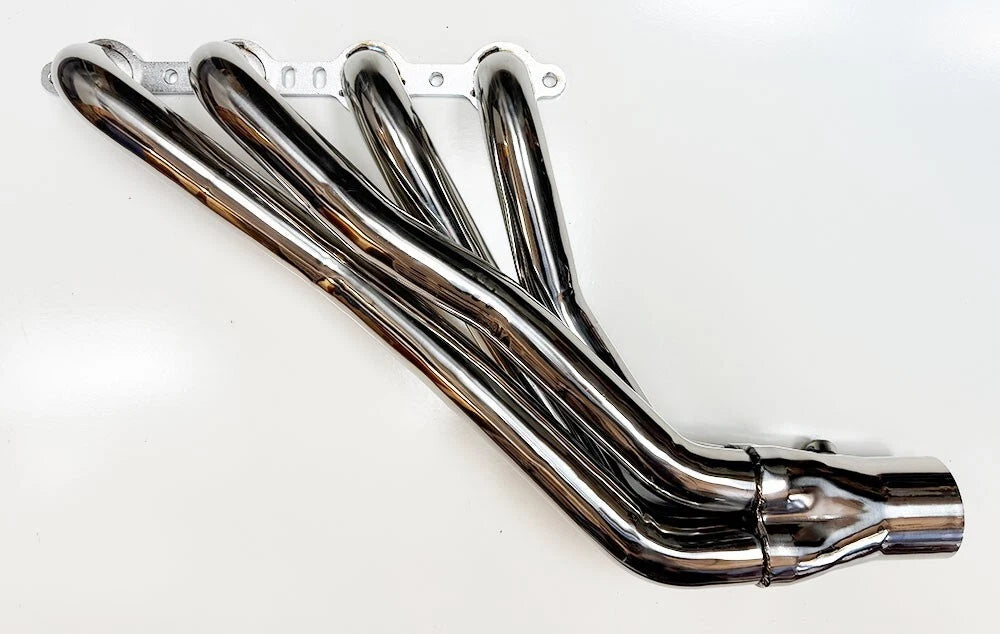

Manifold Headers for Chevy Camaro Pontiac Firebird (1982-1992) FBODY LS Swap 4.8L 5.3L 5.7L 6.0L 6.2L

High-Flow Manifold Headers for 1982-1992 Chevrolet, Pontiac Camaro, Firebird

Designed specifically for LS-swapped 3rd generation F-Body chassis, these headers maximize exhaust scavenging and provide necessary clearances for modern Gen III and Gen IV V8 engines.

The Stock 3rd-Gen F-Body Exhaust Constraints

When performing an LS-series engine swap into a 1982-1992 Chevrolet Camaro or Pontiac Firebird, the factory third-generation exhaust manifolds are entirely incompatible due to differing cylinder head port shapes, chassis constraints, and motor mount placement. Even if modified, OEM cast iron manifolds inherently suffer from severe flow restriction, boundary layer turbulence, and excessive heat retention. This restrictive design chokes the volumetric efficiency of high-displacement engines like the 6.0L or 6.2L, leading to elevated exhaust gas temperatures (EGTs), increased backpressure, and a significant reduction in exhaust scavenging capability across the powerband.

The Engineering Solution

These conversion headers are engineered from premium stainless steel, featuring robust TIG and MIG welded construction to withstand extreme thermal cycling without cracking under heavy engine load. The design utilizes optimized 1 7/8-inch primary tubes matched to a high-flow 3-inch collector outlet, ensuring optimal exhaust gas velocity and scavenging efficiency for high-output LS1, LS2, LS6, and LS7 engines. Heavy-duty 3/8-inch thick CNC-machined head flanges provide a warp-free mating surface, virtually eliminating exhaust leaks under high-stress conditions. The package includes exhaust starter tubes with integrated O2 sensor bungs, simplifying the integration of modern engine management systems. Note: Installing this system alongside bulkier transmissions, such as the 4L80E or legacy TH350/TH400, may require minor bellhousing modifications to achieve proper chassis clearance.

Technical Specifications

Compatibility

• 1982-1992 Chevrolet Camaro (LS Swap Applications)
• 1982-1992 Pontiac Firebird (LS Swap Applications)
• Works with Gen III/IV LS Engines: 4.8L, 5.3L, 5.7L, 6.0L, 6.2L
• Works with LS1, LS2, LS6, LS7 engine architecture
• Compatible with 4L80E, Turbo 350, Turbo 400 transmissions (Bellhousing ears may require trimming for clearance)

The F-Body Performance Caliber

Maximizing the horsepower and torque curve of an LS-swapped classic muscle car requires precision exhaust routing and unrestricted flow, ensuring optimal engine efficiency, reduced heat soak, and a commanding exhaust note.
