Ignition Coil and Iridium Spark Plugs for Saturn L300 LW300 (2001-2003) 3.0L

Direct-Replacement Ignition Coil Rail and Iridium Spark Plug Kit for 2001-2003 Saturn L300, LW300

What it Does: The ignition coil and iridium spark plug kit restores secondary ignition voltage and combustion efficiency on the 2001-2003 Saturn L300 and LW300 to eliminate high-load misfires and restore throttle response.

The Stock Saturn L300, LW300 Ignition Failure Modes

The 3.0L transversely mounted V6 runs demanding thermal cycles within the cramped engine bay of the GM2900 platform. The factory cassette-style ignition coil rails suffer from internal dielectric breakdown over time, particularly on the rear bank where radiant exhaust manifold heat degrades the epoxy potting compound and boots. This thermal stress causes micro-fractures in the coil housing, leading to secondary voltage arcing, carbon tracking, and intermittent misfires under load (DTC P0300 through P0306). Additionally, standard factory plugs suffer from electrode erosion and gap enlargement, which increases the required breakdown voltage and places excessive electrical strain on the coils.

The Engineering Solution

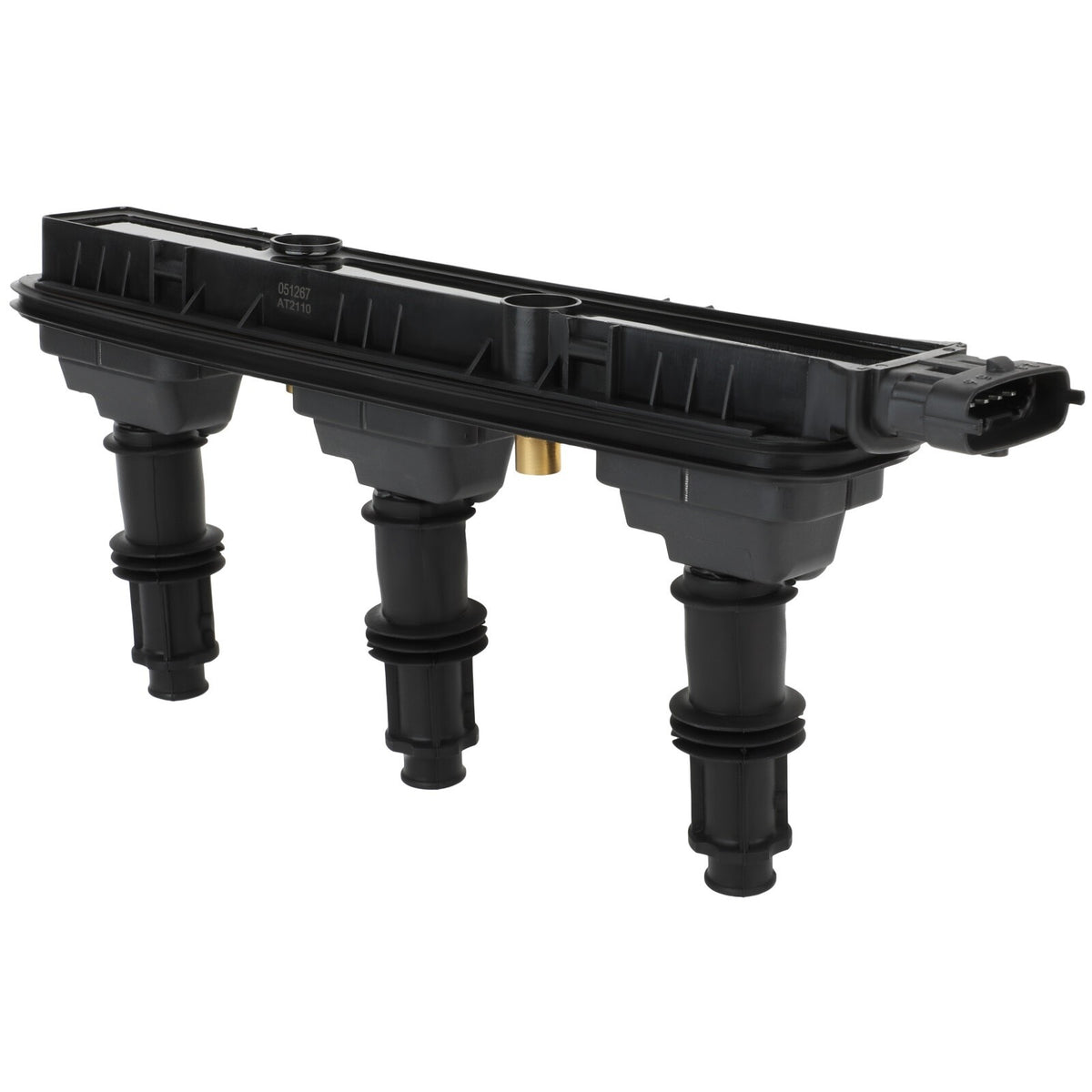

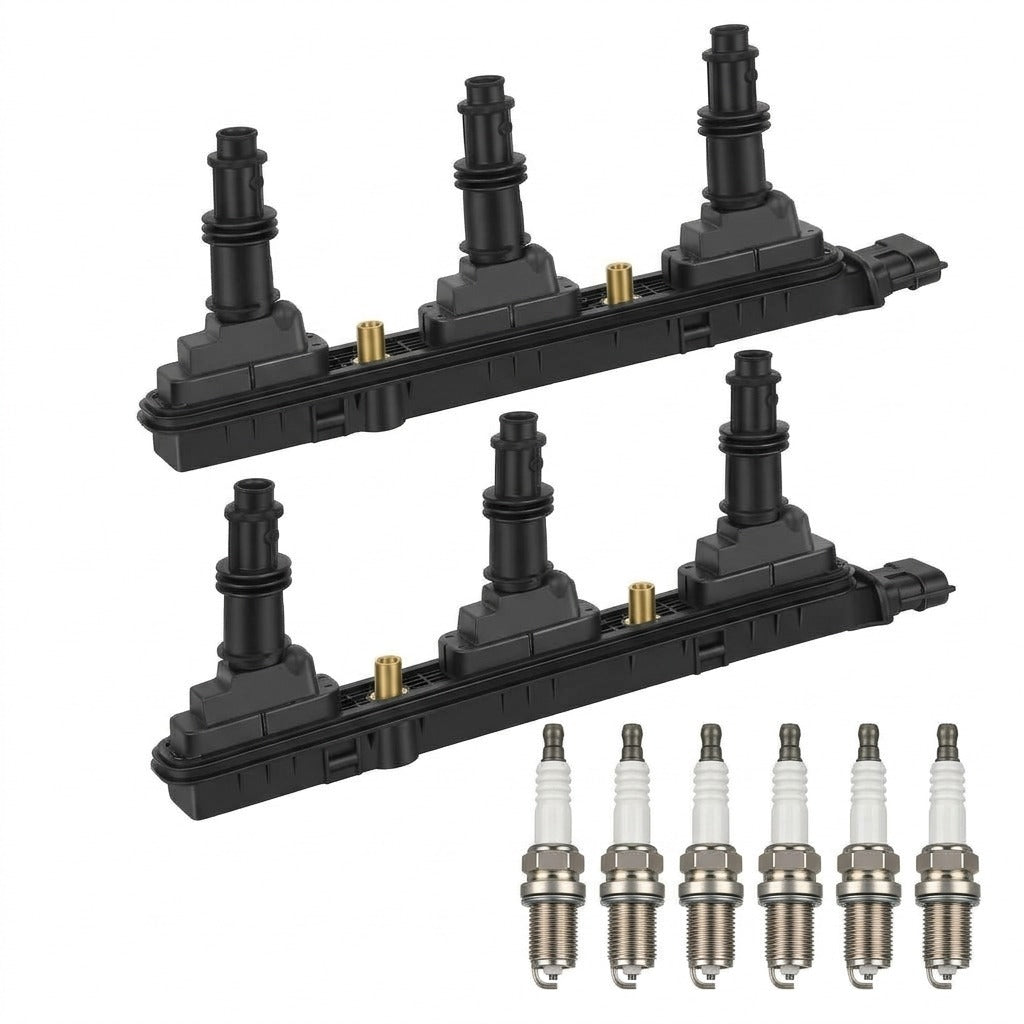

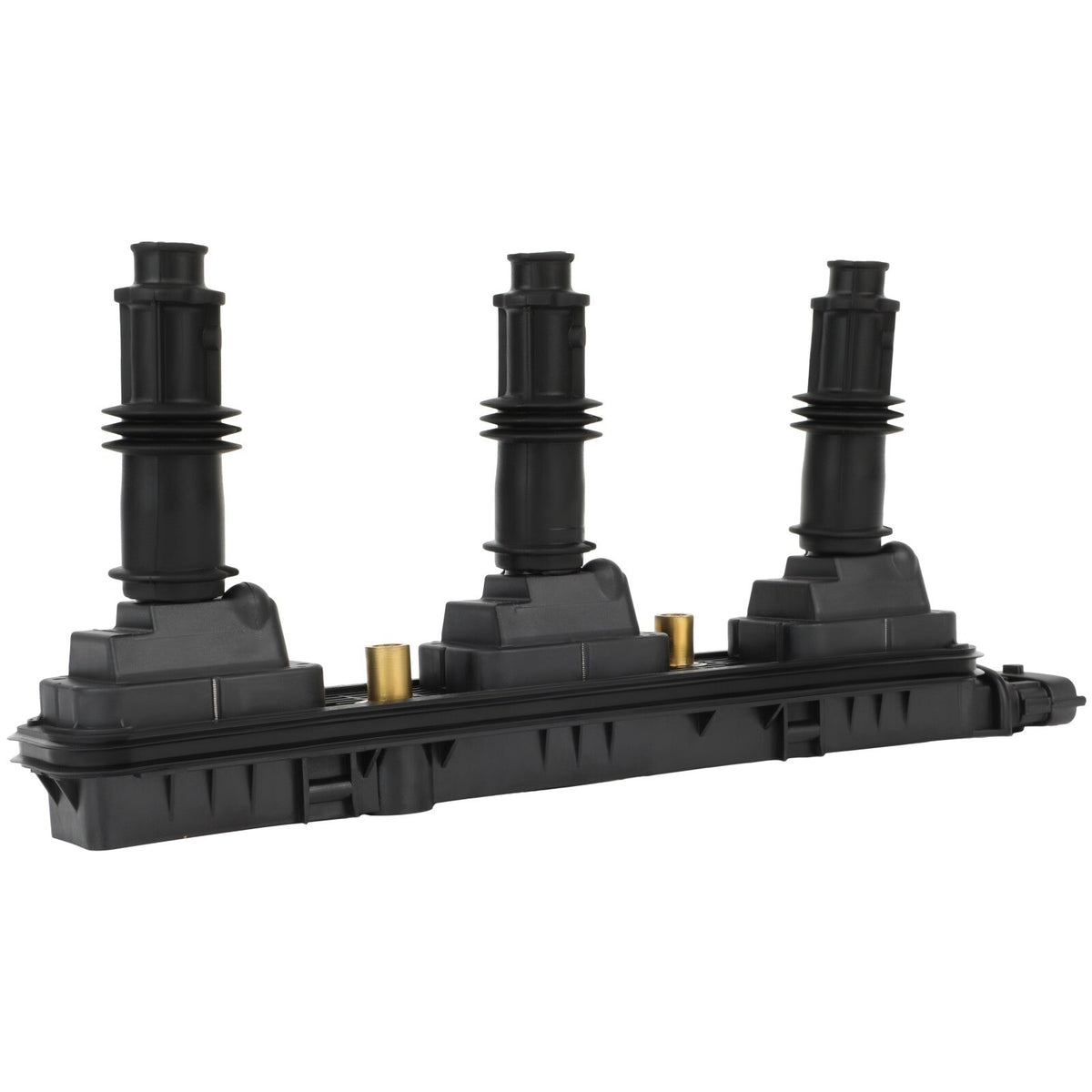

This complete tune-up kit provides two direct-fit ignition coil rail cassettes alongside six fine-wire iridium spark plugs engineered to withstand severe thermal cycling. The replacement coil packs feature high-grade magnetic core laminations and reinforced copper primary and secondary windings encapsulated in high-dielectric epoxy to resist internal shorting. Paired with laser-welded iridium fine-wire center electrodes, this package reduces required ignition firing voltage while delivering a hotter, more consistent kernel. The combination ensures stable flame-front propagation under high cylinder pressures and eliminates coil heat soak failure across the entire L81 operating envelope.

Technical Specifications

Compatibility

• 2001-2003 Saturn L300 Sedan 3.0L V6
• 2001-2003 Saturn LW300 Wagon 3.0L V6

Frequently Asked Questions

Does this fit the GM2900 L300, LW300?
Yes, this is a direct fit for the 2001-2003 Saturn L300 and LW300 equipped with the L81 3.0L DOHC V6 engine.

Are the iridium spark plugs pre-gapped for the L81 engine?
Yes, the plugs come pre-set to factory specifications, though verifying electrode gap before installation is always standard practice.

The Saturn Reliability Caliber

Engineered to handle long-distance highway duty and stop-and-go commuter thermal demands, this direct-replacement assembly resolves erratic idling, rough acceleration, and check engine lights without requiring ECU recalibration.
