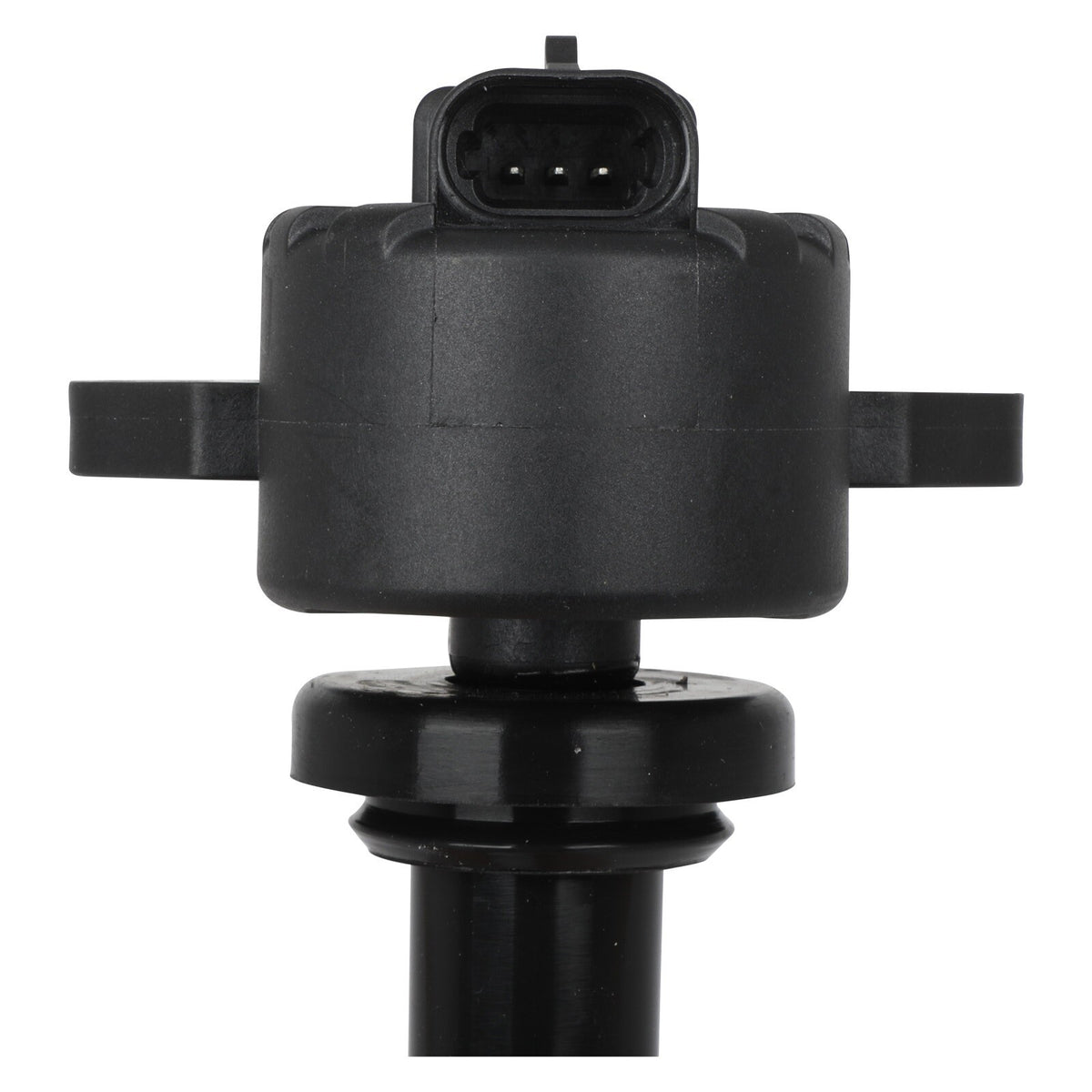

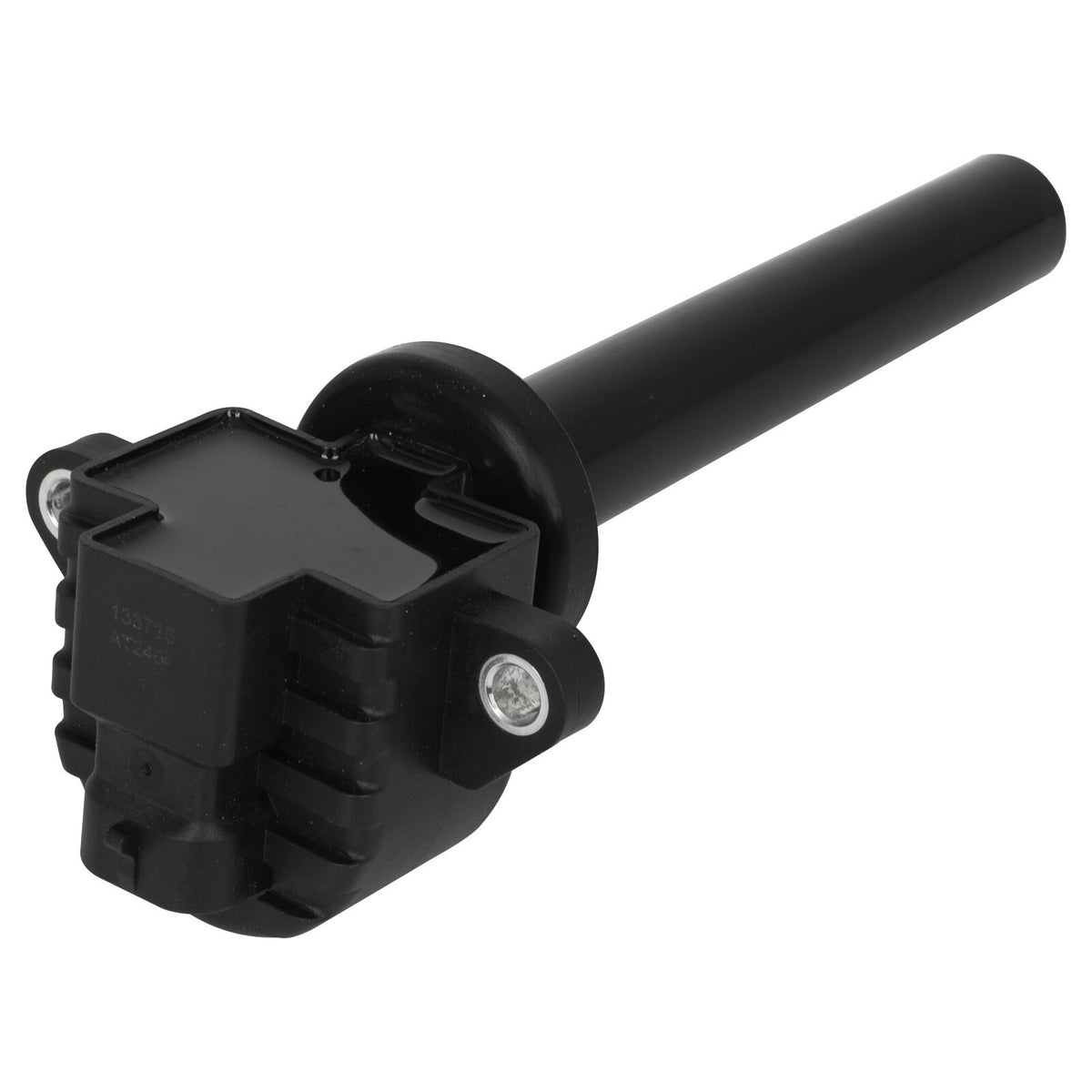

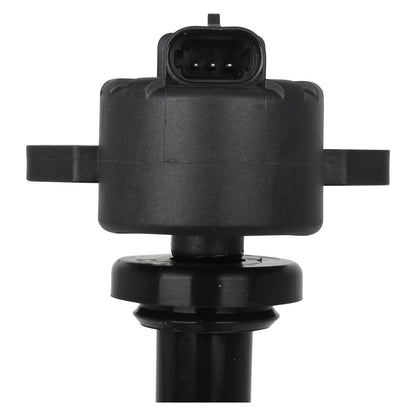

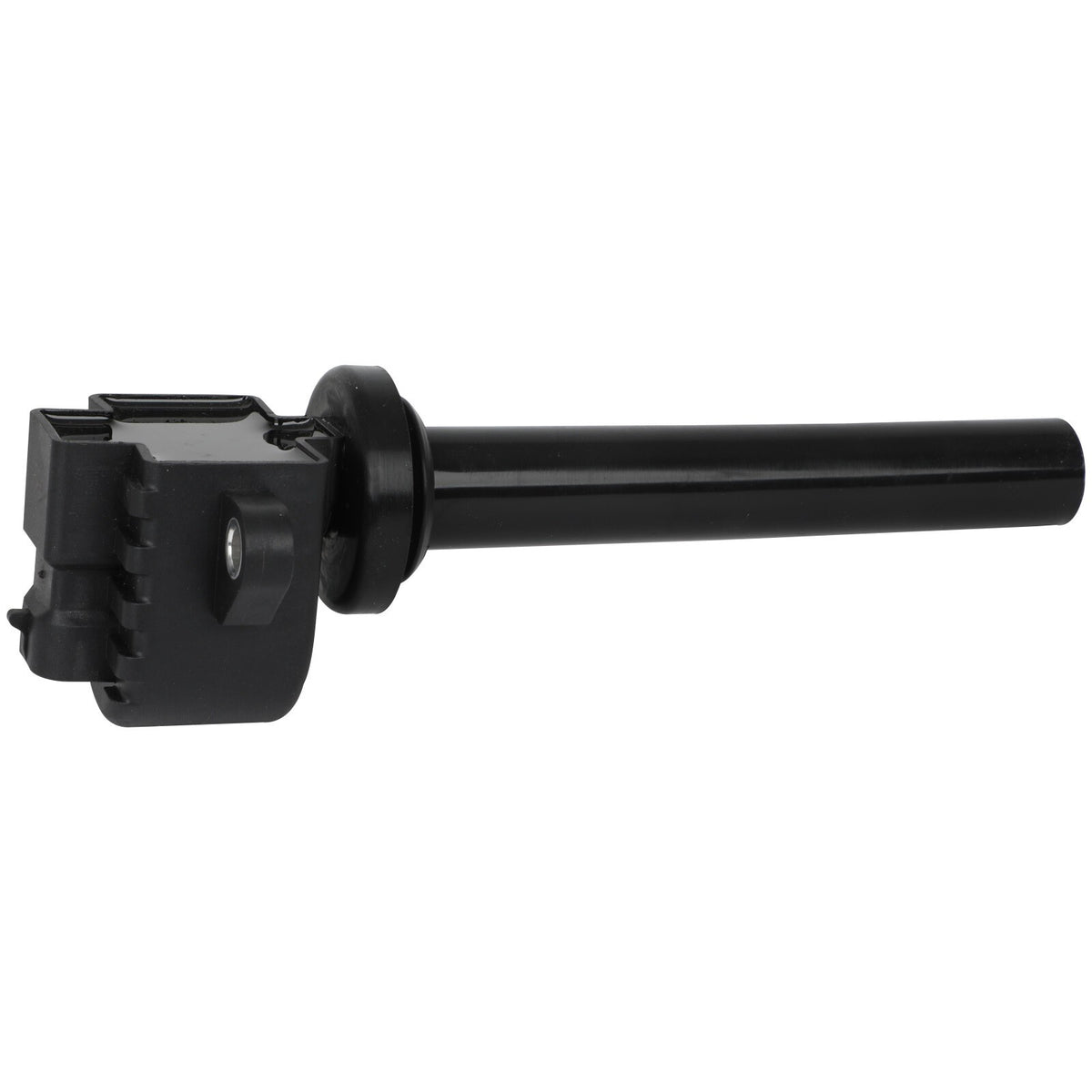

Ignition Coil and Iridium Spark Plugs for Isuzu Rodeo (2000-2004) 3.2L

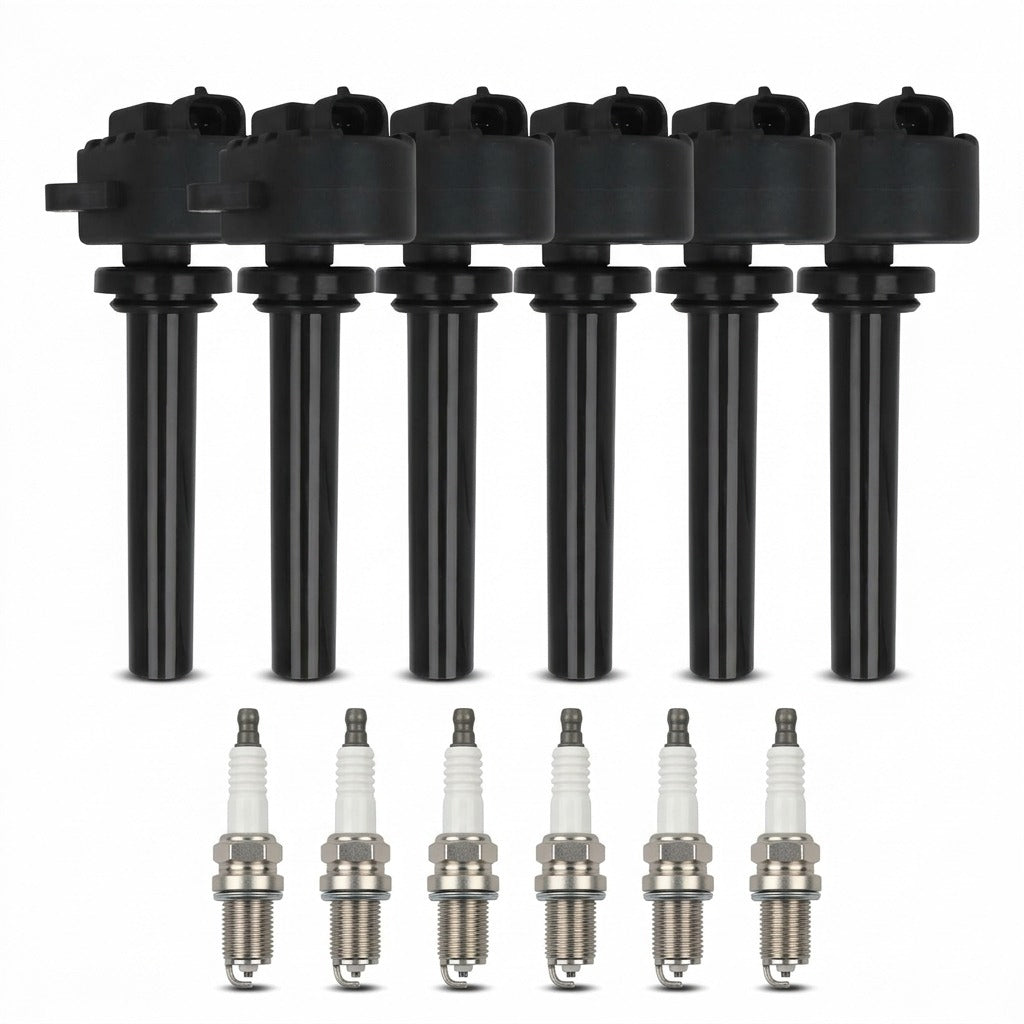

High-Dielectric Ignition Coil and Iridium Spark Plug Kit for 2000-2004 Isuzu Rodeo

What it Does: The Ignition Coil and Iridium Spark Plug Kit restores complete combustion efficiency on the 2000-2004 Rodeo to eliminate cylinder misfires, stabilize rough idle, and recover lost fuel economy.

The Stock Isuzu Rodeo Thermal Breakdown Problem

The factory ignition system on the 6VD1 3.2L engine is notoriously susceptible to thermal fatigue. Deep-well spark plug placement isolates the factory coil boots in extreme cylinder head heat zones. Over years of thermal cycling, factory epoxy potting hardens and fractures, leading to dielectric breakdown and internal winding shorts. Degraded factory boots permit high-voltage secondary arc-through to the cylinder head walls, creating intermittent misfire fault codes (P0300–P0306), unburnt hydrocarbon dumping into the catalytic converters, and sluggish load pickup during towing or hill climbs.

The Engineering Solution

This comprehensive service kit replaces fatigued ignition components with reinforced coil-on-plug assemblies and fine-wire iridium plugs. Each pencil coil features high-grade magnetic silicon steel core laminations and high-dielectric epoxy sealing to prevent internal thermal tracking and current leakage. Coupled with laser-welded iridium electrode plugs, this kit minimizes ignition quench, reduces required secondary strike voltage from the coils, and delivers a robust, reliable spark kernel across the entire powerband. Directly replaces OEM part numbers UF252, UF251, 8190052400, and 8190052490.

Technical Specifications

Compatibility

• 2000-2004 Isuzu Rodeo S 3.2L V6
• 2000-2004 Isuzu Rodeo LS 3.2L V6
• 2000-2002 Isuzu Rodeo LSE 3.2L V6

Frequently Asked Questions

Does this fit the UE Chassis Rodeo?
Yes, this is a direct fit for the 2000-2004 Isuzu Rodeo equipped with the 6VD1 3.2L V6 engine.

Are the iridium plugs pre-gapped for this application?
Yes, the iridium plugs come pre-set to factory 0.044-inch gap specifications, though inspecting clearance with a wire feeler gauge prior to install is recommended.

The Isuzu Utility Caliber

Built for the sustained thermal demands of utility hauling, backcountry trails, and daily towing, this ignition package delivers steady voltage saturation so your truck maintains dependable throttle response under heavy powertrain loads.
