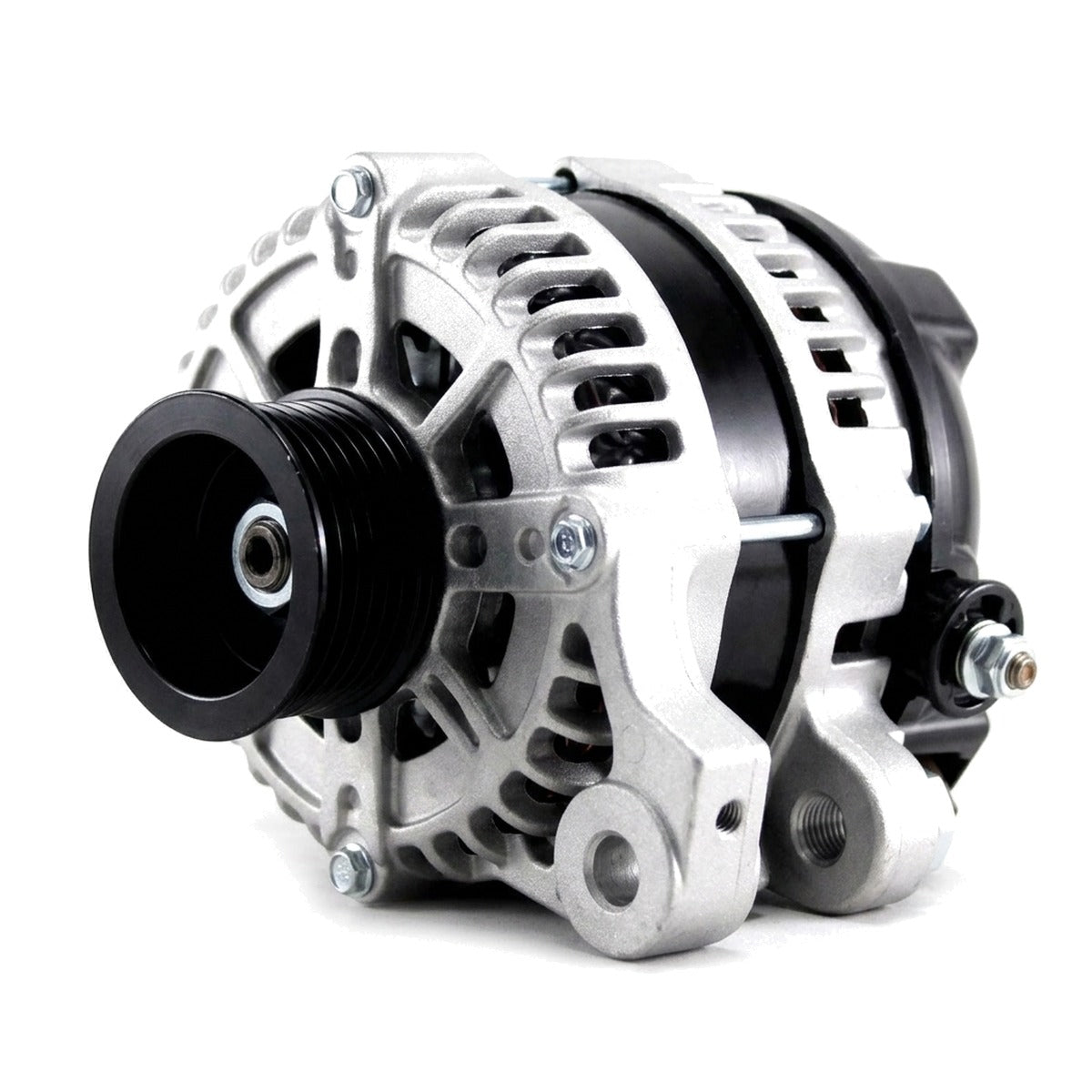

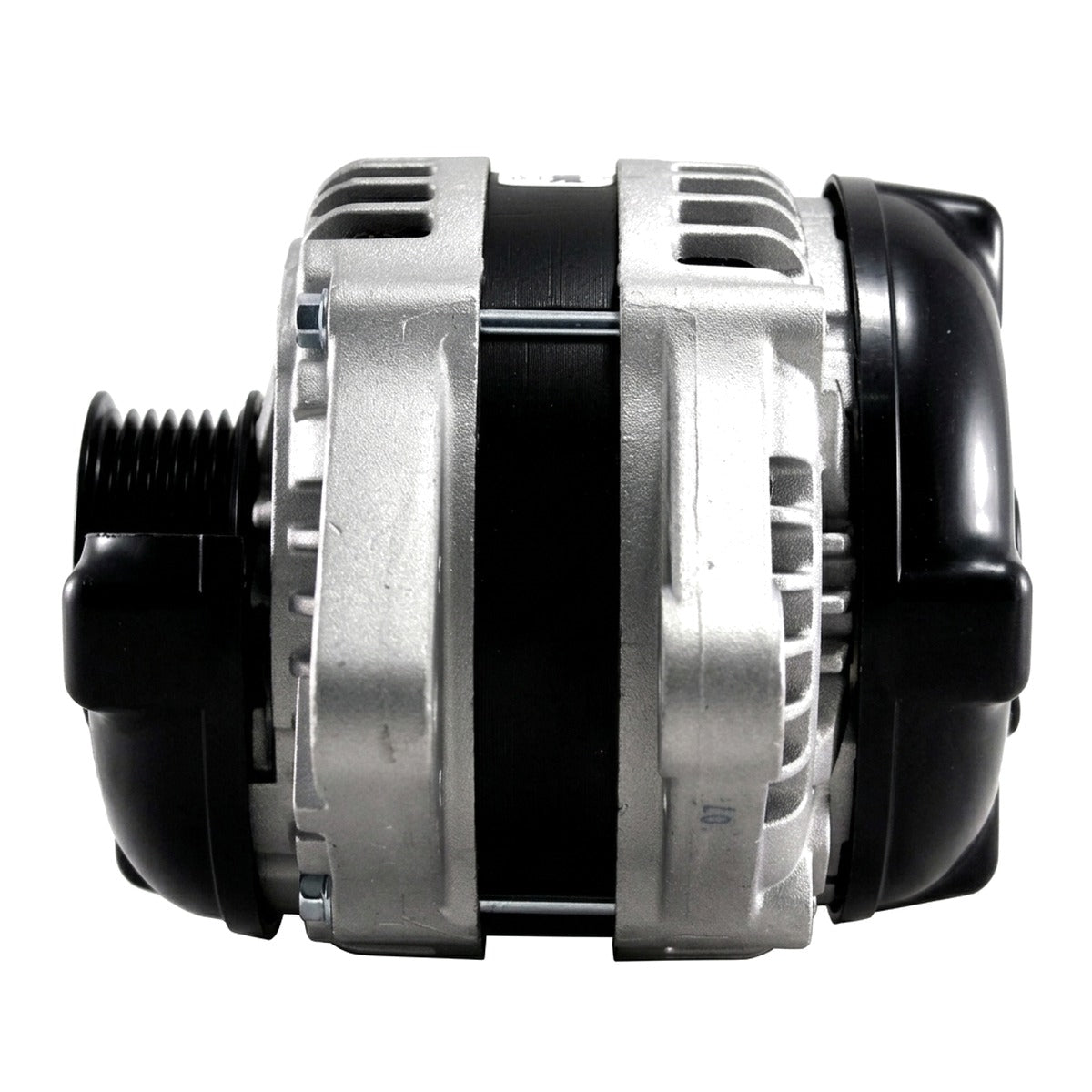

High Output Alternator for Toyota Tundra (2011-2014) 4.0L

High-Output 250-Amp Alternator for 2011-2014 Toyota Tundra (XK50)

What it Does: The high-output alternator upgrades the charging system on the 2011-2014 Toyota Tundra to deliver a continuous 250 amps, preventing electrical voltage drop under heavy auxiliary loads and winching demands.

The Stock Toyota Tundra Electrical Bottleneck

Factory charging systems on the XK50 platform utilize a standard 100A to 130A Denso alternator. When running high-draw secondary loads—such as multi-channel audio amplifiers, auxiliary LED light bars, overland refrigeration, or recovery winches—the stock unit quickly suffers from thermal saturation and catastrophic voltage drop. At idle, factory charging falls below 12.8V, starving sensitive CAN-bus network modules, overworking the battery, and causing premature diode rectifier failure due to continuous high-duty-cycle heat buildup.

The Engineering Solution

Engineered as a direct bolt-in replacement for the 1GR-FE 4.0L V6, this heavy-duty 250-amp unit utilizes hairpin stator winding geometry and high-grade copper windings to maximize current transfer efficiency across the entire RPM range. Fitted with heavy-duty avalanche diodes, oversized premium bearings, and an internal bridge rectifier capable of managing severe heat dissipation, it delivers rock-solid 14.4V regulation even at low-RPM curb idle. Direct bolt-in fitment preserves factory belt alignment and OEM harness connectivity without custom brackets.

What's Included

• 1 x 250-Amp High-Output Alternator

Technical Specifications

Compatibility

• 2011 Toyota Tundra 4.0L V6
• 2012 Toyota Tundra 4.0L V6
• 2013 Toyota Tundra 4.0L V6
• 2014 Toyota Tundra 4.0L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the XK50 Tundra?

Yes, this is a direct fit for the 2011-2014 Toyota Tundra equipped with the 1GR-FE 4.0L V6 engine.

Do I need to upgrade my main charging cables?

Yes, running a "Big 3" or "Big 4" wiring upgrade using 1/0 AWG cabling is strongly recommended to handle 250A safely and eliminate ground-side resistance.

The Toyota Caliber

Built to match the demanding commercial and hauling requirements of the XK50 platform, this high-output unit ensures consistent electrical output and long-term durability whether you are towing heavy payloads or powering high-amperage accessories off-grid.
