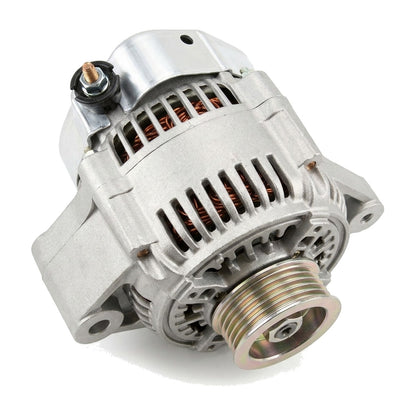

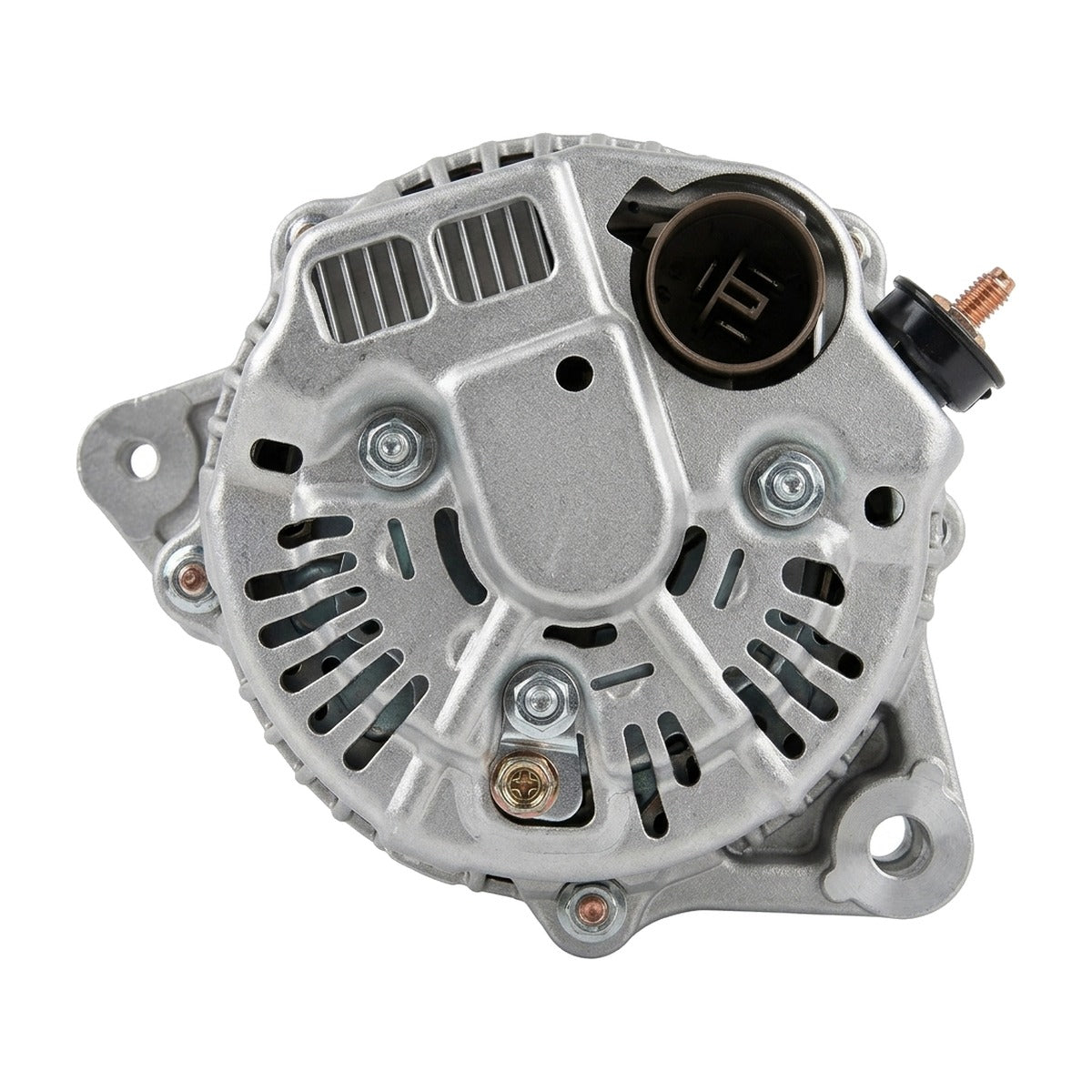

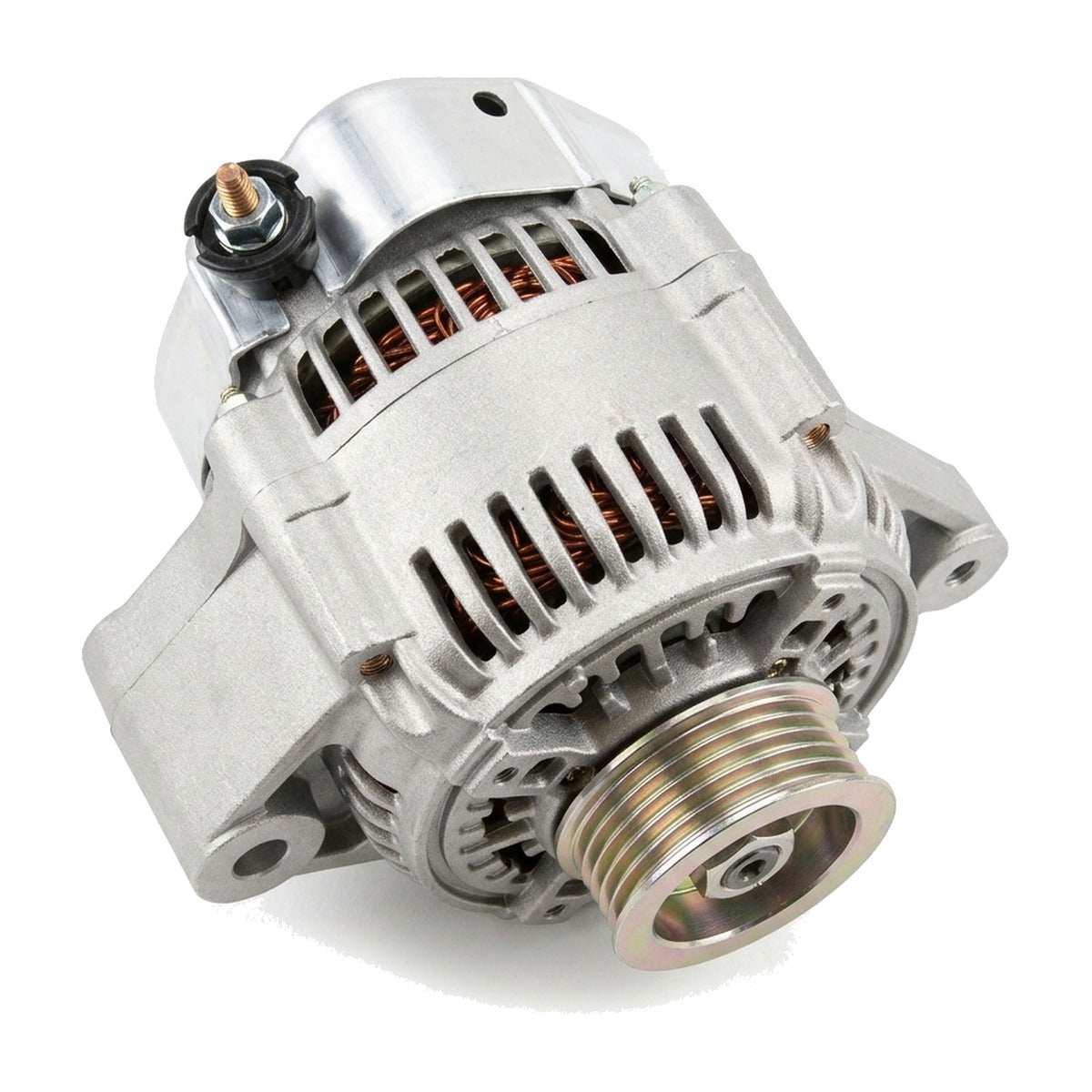

High Output Alternator for Toyota Supra Cressida (1989-1992) 3.0L

High-Output 160-Amp Alternator for 1989-1992 Toyota Supra, Cressida (A70 / MX83)

What it Does: The High Output Alternator replaces the low-output factory charging unit on the 1989-1992 Toyota Supra and Cressida to stabilize operating voltage and deliver 160 amps of continuous electrical current for modern auxiliary loads.

The Stock Toyota Supra,Cressida Electrical Output Shortcoming

Factory charging systems on the A70 Supra and MX83 Cressida were engineered around conservative 70- to 80-amp capabilities matched strictly to late-1980s stock cabin electronics. Decades of heat cycling deteriorate the internal rectifier diodes and carbon brush contacts, resulting in substantial voltage drops below 12.5V under load. When owners introduce modern electric cooling fans, high-flow fuel pumps, or aftermarket audio equipment, the OEM stator saturates rapidly, creating excessive thermal resistance, dimming instrument clusters, and leading to severe battery drain at engine idle.

The Engineering Solution

Engineered as a bolt-in replacement for the 7M-GE and 7M-GTE platforms, this 160-amp alternator features heavy-gauge, high-temperature copper stator windings wrapped around a precision-balanced rotor to maximize magnetic flux density without increasing physical housing dimensions. Premium high-speed sealed bearings reduce parasitic drag and combat shaft wobble at high RPM. A heavy-duty internal solid-state voltage regulator maintains a steady 13.5V to 14.5V output band across all operating temperatures, feeding power reliably into the factory harness connector without bracket modifications.

What's Included

• 1 High Output 160-Amp Alternator

Technical Specifications

Compatibility

• 1989-1992 Toyota Supra 3.0L Inline-6 (7M-GE)
• 1989-1992 Toyota Supra Turbo 3.0L Inline-6 (7M-GTE)
• 1989-1992 Toyota Cressida 3.0L Inline-6 (7M-GE)

Frequently Asked Questions & Fitment Warnings

Does this fit the A70 and MX83 Supra, Cressida?

Yes, this unit is a direct bolt-on fit for 1989-1992 Toyota Supra and Cressida chassis fitted with the 3.0L 7M-GE naturally aspirated or 7M-GTE turbocharged inline-6 engines.

Should I upgrade the main charging wire during installation?

To safely transmit the full 160-amp capacity without bottlenecking through aging stock wiring, upgrading to a 4-gauge B+ power cable and chassis ground is strongly recommended.

The Toyota JDM Performance Standard

Maintaining solid electrical overhead on classic inline-six Toyota platforms protects ignition fidelity under heavy boost, prevents lean fueling events caused by injector voltage drop, and ensures uninterrupted reliability on both street and track builds.
