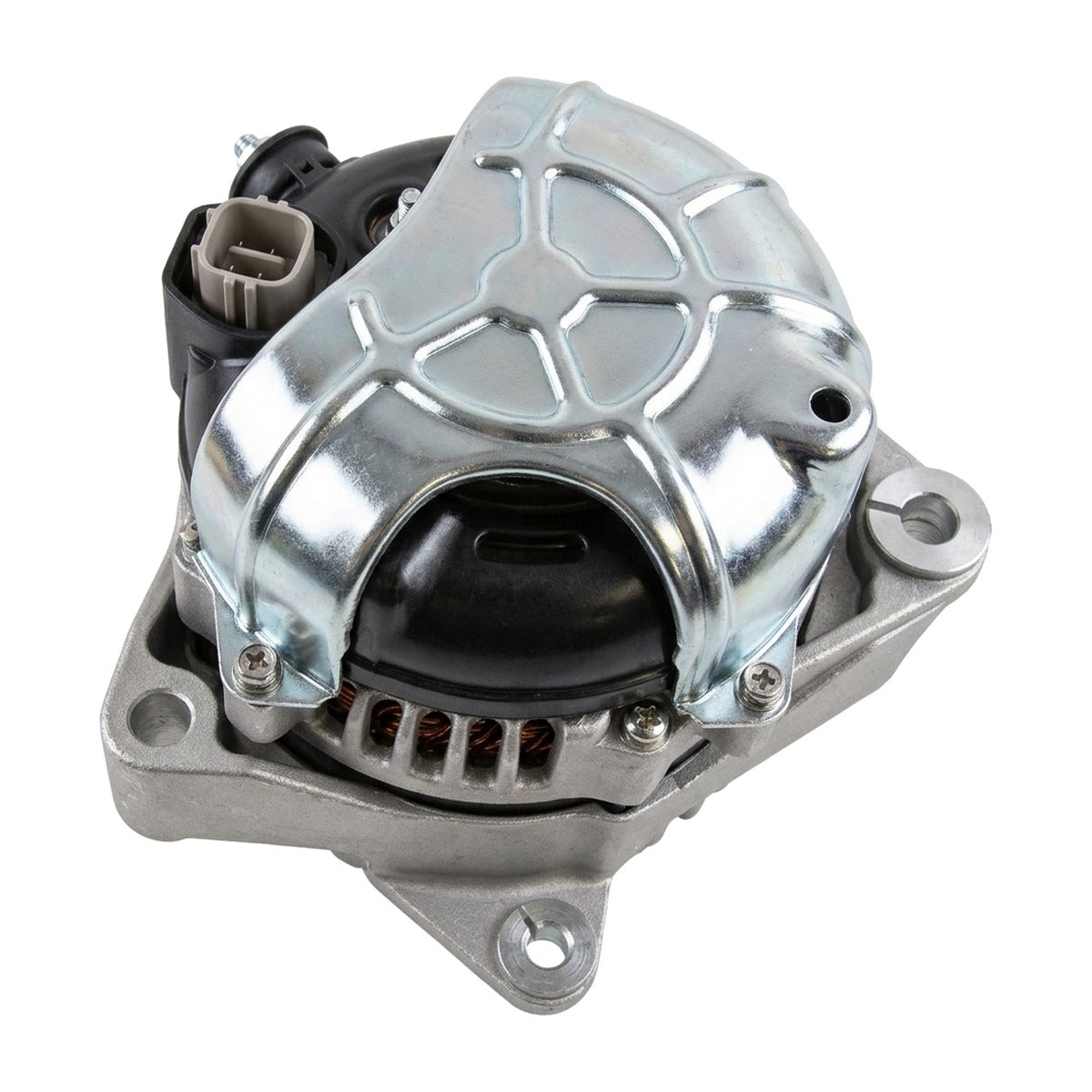

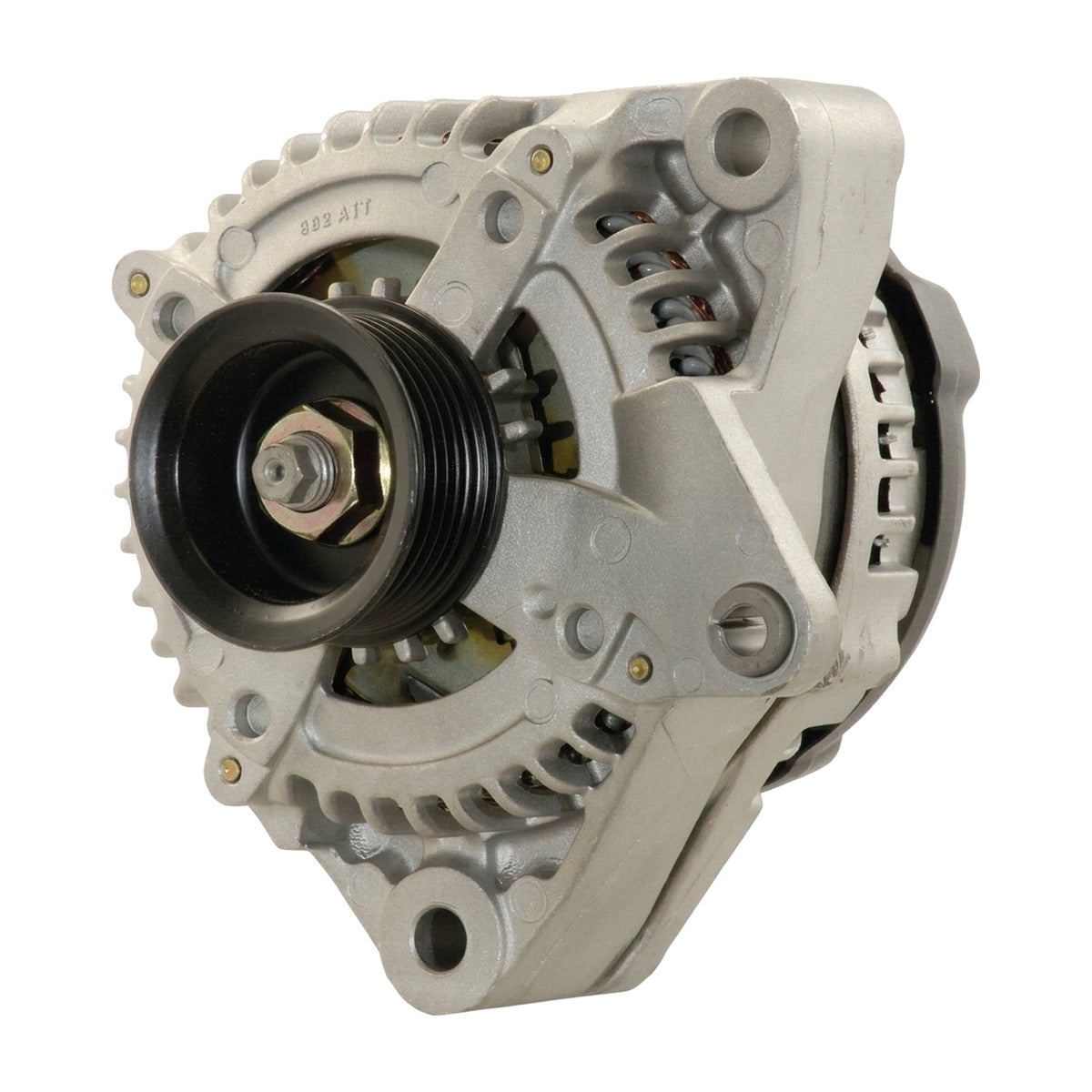

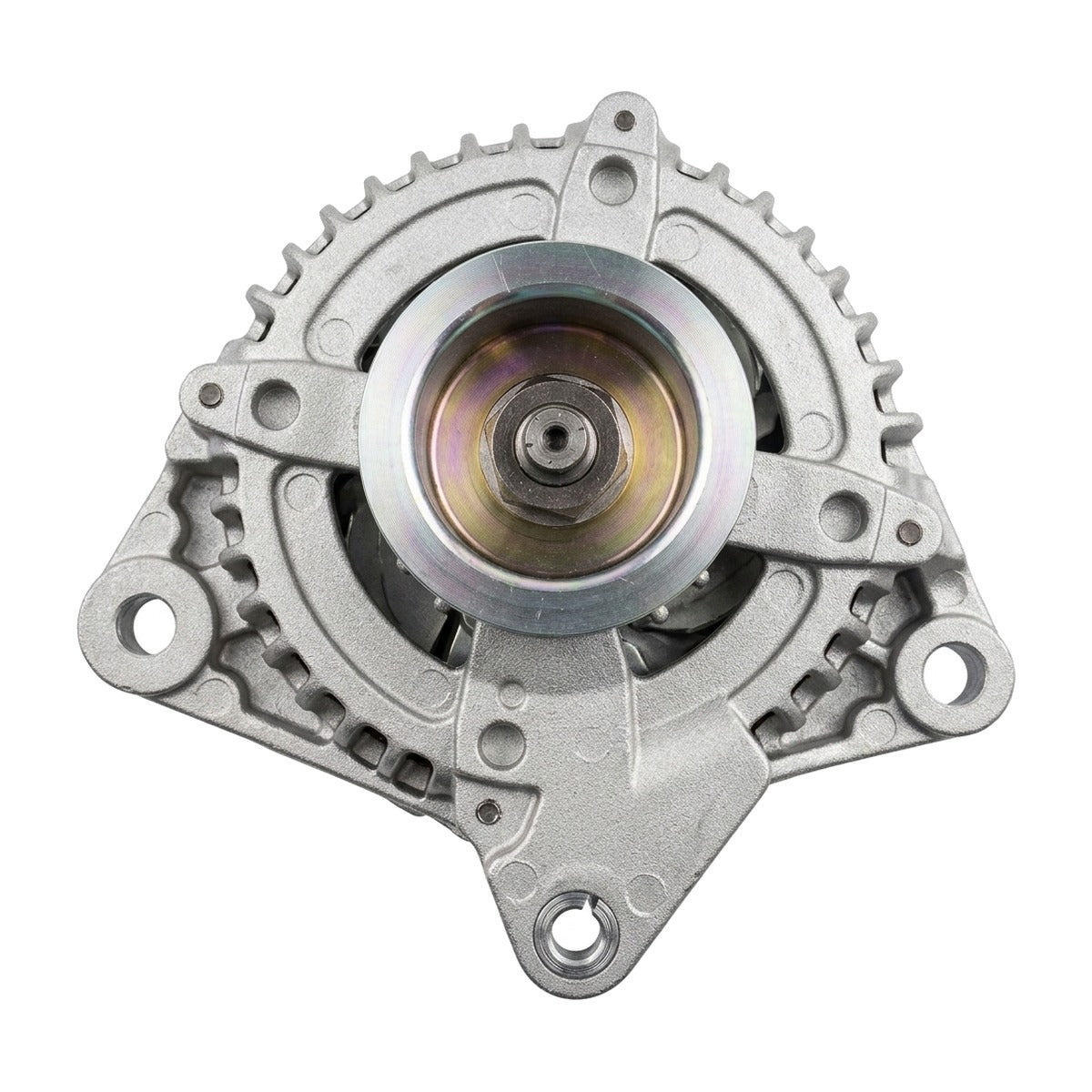

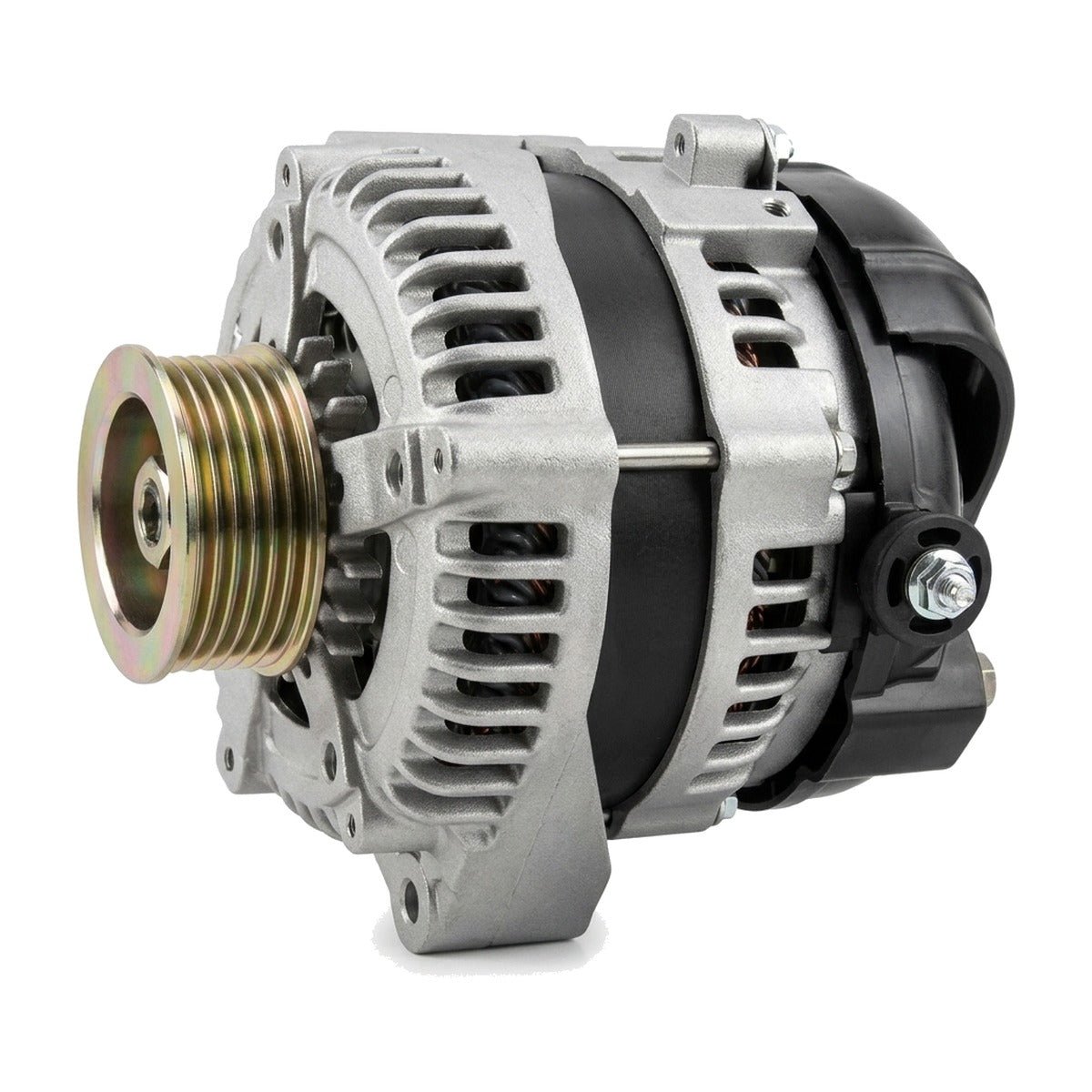

High Output Alternator for Toyota Land Cruiser (2003-2005) 4.7L

High-Amp Output Alternator for 2003-2005 Toyota Land Cruiser (J100)

What it Does: The 250-amp high-output alternator replaces the factory charging unit on the 2003-2005 Land Cruiser to deliver sustained electrical amperage under heavy auxiliary loads and prevent voltage sag at idle.

The Stock Toyota Land Cruiser Charging Limitations

Factory charging systems on the J100 platform generate roughly 100 to 130 amps, which falls critically short when overland rigs are equipped with recovery winches, auxiliary high-draw lighting, onboard refrigeration, and secondary battery systems. Under high electrical demand, stock stators suffer severe thermal saturation, causing voltage drop below 13.2V at low engine RPM. This chronic undervoltage induces rapid battery degradation, dimmer output, slower winch motor spooling, and premature rectifier diode failure due to excessive continuous thermal cycles.

The Engineering Solution

Engineered for high current delivery, this direct-replacement alternator produces a dedicated 250 amps of 12V DC power. Constructed using heavy-gauge, high-purity copper stator windings, it dramatically reduces internal resistance and thermal buildup during peak duty cycles. A precision-balanced rotor spinning on premium high-temperature sealed bearings prevents premature shaft runout and bearing whine under high belt tension. An integrated solid-state internal voltage regulator maintains a steady 13.5V to 14.5V output, protecting sensitive vehicle modules while supplying surplus current only as demanded by the vehicle's electrical system.

What's Included

• 1 High Output Alternator (250 Amp)

Technical Specifications

Compatibility

• 2003 Toyota Land Cruiser 4.7L V8 (2UZ-FE)
• 2004 Toyota Land Cruiser 4.7L V8 (2UZ-FE)
• 2005 Toyota Land Cruiser 4.7L V8 (2UZ-FE)

Frequently Asked Questions & Fitment Warnings

Does this fit the J100 Land Cruiser?

Yes, this is a direct fit for the 2003-2005 Toyota Land Cruiser equipped with the 2UZ-FE 4.7L V8 engine using factory mounting ears and harness plugs.

Do I need to upgrade my battery wiring for a 250A alternator?

While this alternator utilizes the factory connector and mounting points, upgrading the primary B+ charging lead and ground cables (Big 3 upgrade) to 1/0 or 2 AWG wire is strongly recommended to handle peak amperage safely.

The Toyota Durability Standard

Built to match the legendary reliability of the 100-Series platform, this heavy-duty unit delivers the stable amperage required for demanding overland expeditions, heavy trailer towing, and harsh off-road recovery scenarios without compromising factory charging reliability.
