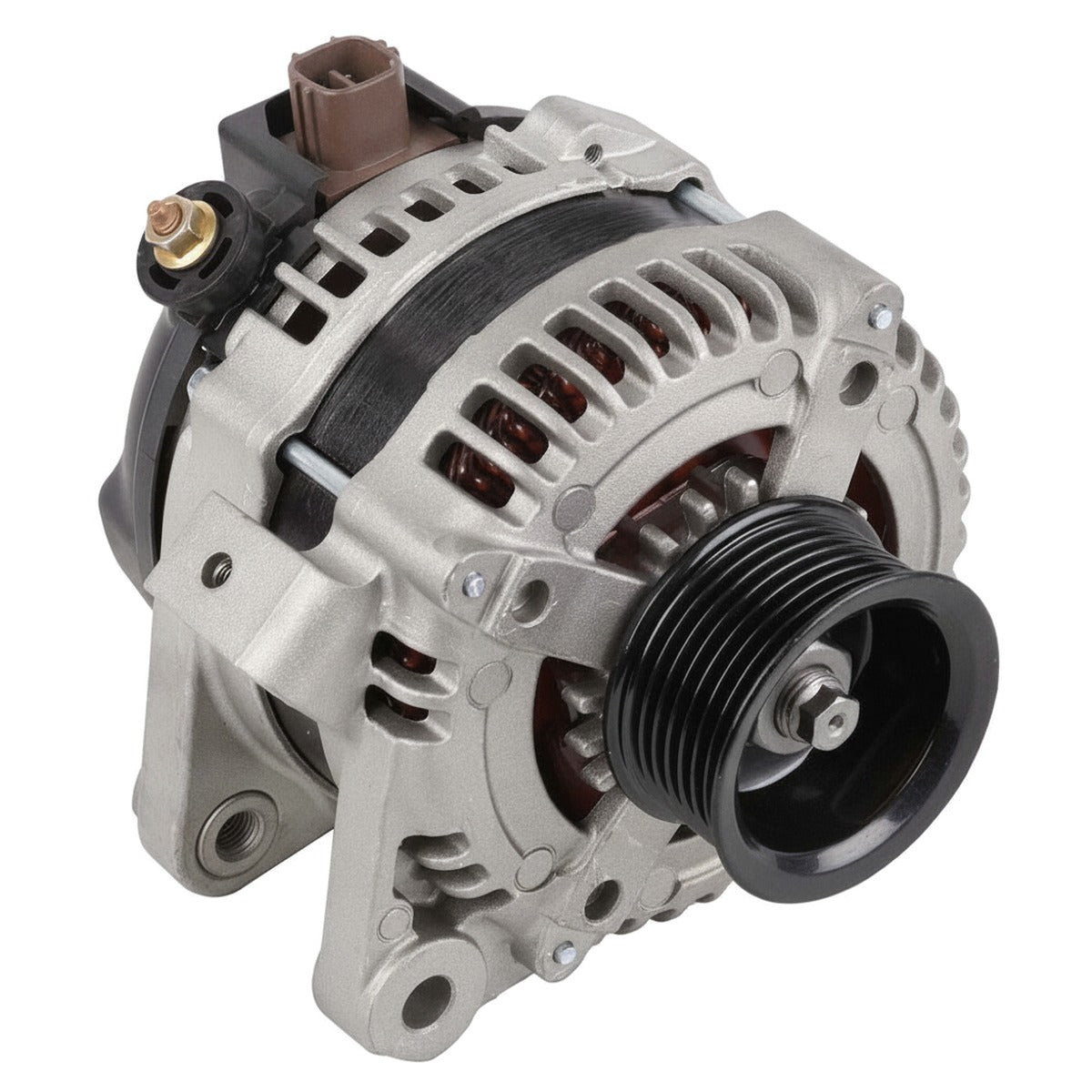

High Output Alternator for Toyota Highlander (2004-2007) 2.4L

High-Amp 250A Charging Upgrade for 2004-2007 Toyota Highlander (XU20)

What it Does: The 250-amp High Output Alternator replaces the low-output factory charging unit on the 2004-2007 Highlander to eliminate voltage sag and supply stable current to heavy auxiliary electronics and audio setups.

The Stock Toyota Highlander Electrical Capacity Limitations

Factory XU20 platforms housing the 2AZ-FE 2.4L inline-four roll off the line with an OEM alternator rated at just 80 to 100 amps. Under heavy accessory loads—such as aftermarket audio amplifiers, auxiliary lighting, inverters, or winches—the stock diode pack and undersized stators suffer thermal saturation. This leads to immediate system voltage drop below 12.6V, dimming headlamps, premature AGM battery depletion, and excessive heat soak that destroys factory brush holders.

The Engineering Solution

Engineered and assembled in the USA, this heavy-duty 250-amp unit bolts directly into the factory 2AZ-FE mounting brackets. It features heavy-gauge copper windings, premium dual-internal cooling fans, high-amperage avalanche rectifier diodes, and precision-wound stators engineered to generate exceptional current output at idle while maintaining full 14.4V regulation under maximum electrical demand. Direct OE-plug termination ensures factory wiring harness integration without triggering dash battery error indicators.

What's Included

• 1x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2004 Toyota Highlander Base 2.4L L4 (Gas)
• 2005 Toyota Highlander Base 2.4L L4 (Gas)
• 2006 Toyota Highlander Base 2.4L L4 (Gas)
• 2007 Toyota Highlander Base 2.4L L4 (Gas)

Frequently Asked Questions & Fitment Warnings

Does this fit the XU20 Highlander?

Yes, this is a direct fit for the 2004-2007 Toyota Highlander equipped with the 2AZ-FE 2.4L engine. Does not fit 3.3L V6 3MZ-FE or Hybrid models.

Do I need to upgrade my main power wiring?

To safely handle continuous 250-amp peak throughput and prevent thermal resistance in the factory charging harness, a fused 1/0 AWG Big 3 wiring upgrade between the alternator, battery, and chassis ground is strongly recommended.

The Toyota Caliber

Engineered to uphold legendary Japanese utility and daily operational dependability, this high-output conversion delivers steady voltage under extreme continuous loads without sacrificing engine bay reliability.
