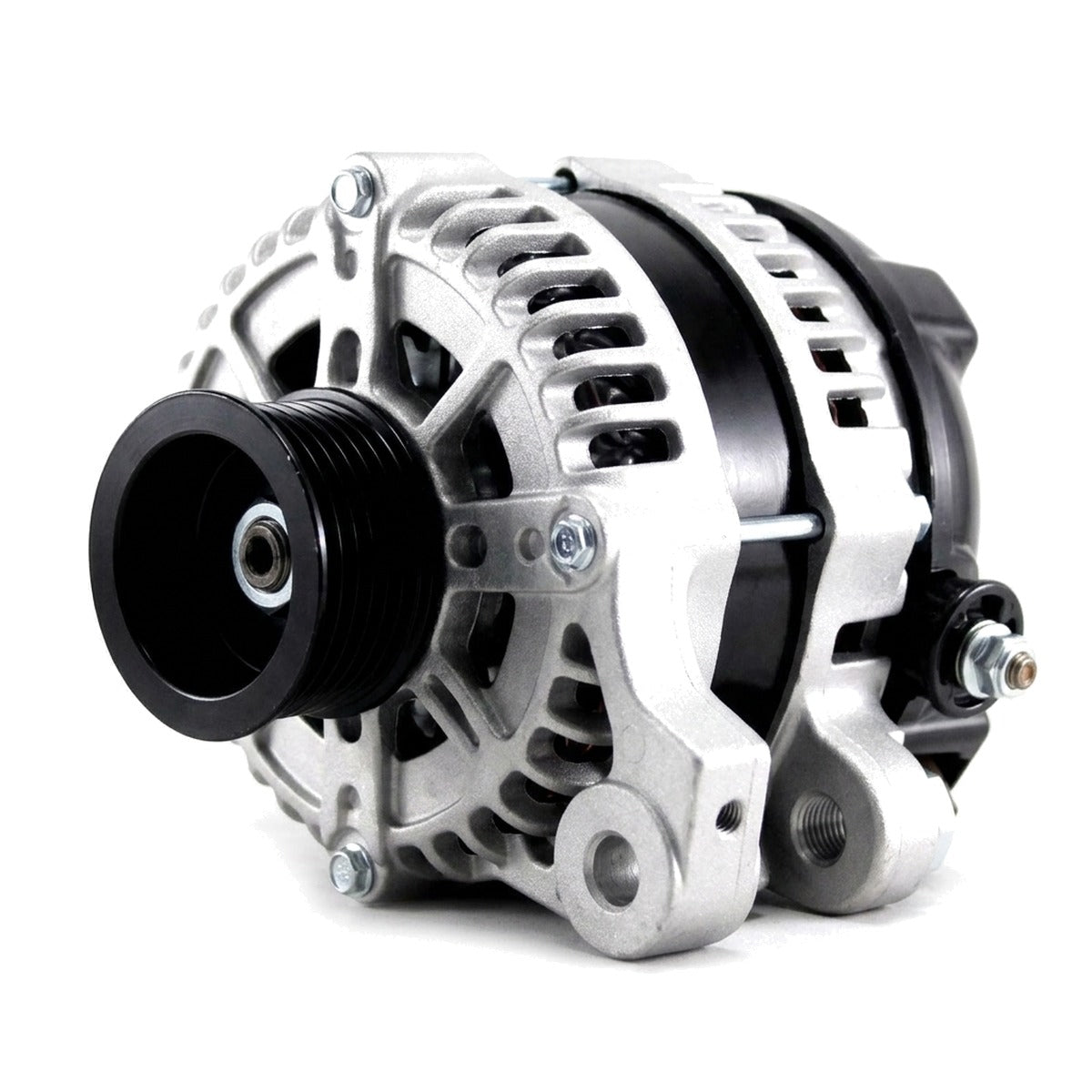

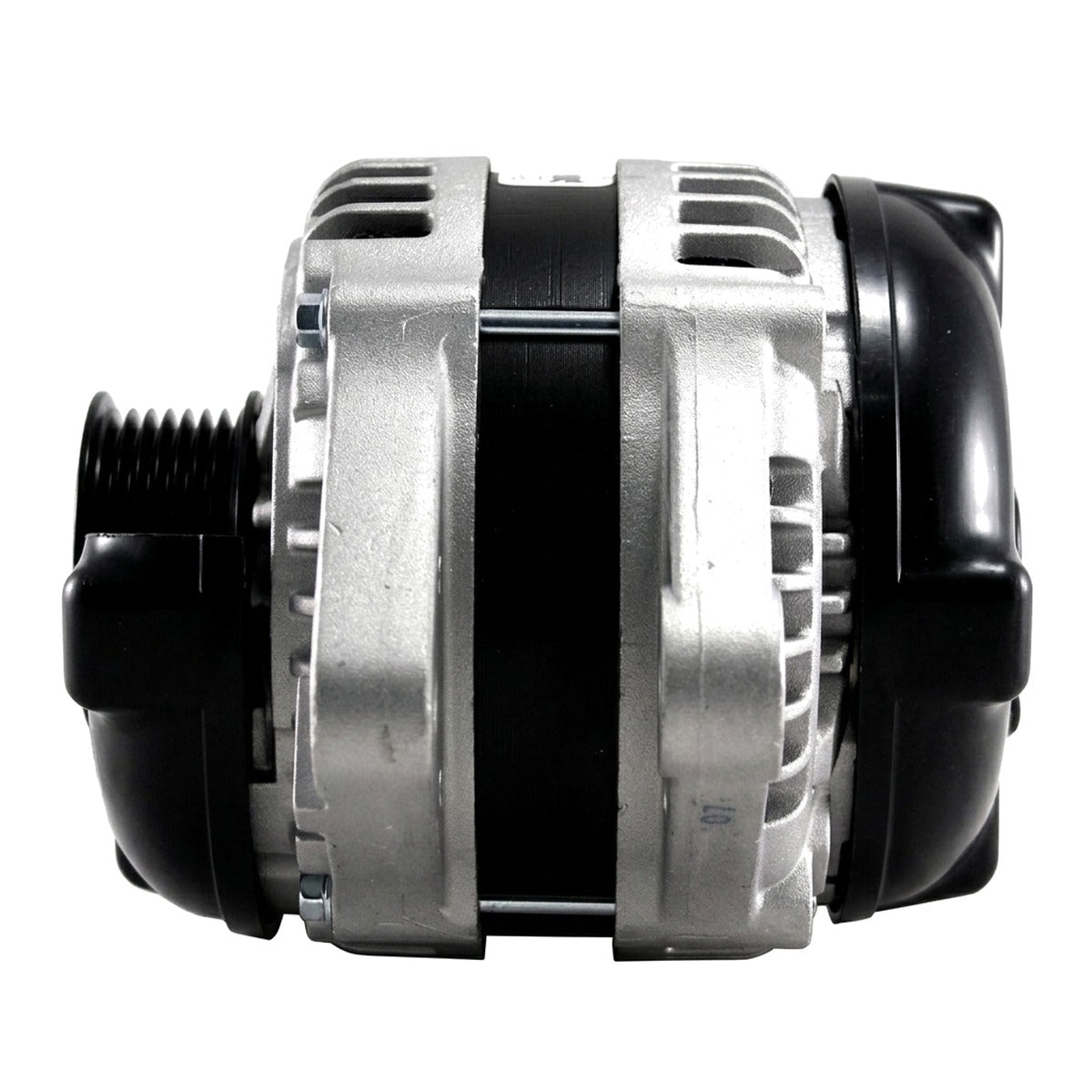

High Output Alternator for Toyota FJ Cruiser (2010-2014) 4.0L

High-Amp Heavy-Duty 250A Alternator for 2010-2014 Toyota FJ Cruiser (GSJ15)

What it Does: The 250 Amp High Output Alternator replaces the factory low-output charging unit on the 2010-2014 Toyota FJ Cruiser to supply stable, continuous 12V electrical current under heavy electrical auxiliary load.

The Stock Toyota FJ Cruiser Electrical Deficit

Factory GSJ15 platforms equipped with the 1GR-FE engine rely on an OEM alternator rated at either 100 or 130 amps. Once an overland rig is outfitted with high-draw accessories—such as recovery winches drawing in excess of 300 amps, high-wattage auxiliary LED arrays, onboard air compressors, and secondary AGM battery systems—the stock stator reaches magnetic saturation. Under sustained high demand and low-RPM crawling, the factory diode pack suffers from severe heat soak, causing rail voltage to drop below 12.8V. This voltage sag causes sluggish winch performance, auxiliary power cuts, and chronic battery discharge.

The Engineering Solution

This Made-in-USA 250-amp unit solves charging shortfalls by integrating heavy-gauge copper stator windings paired with an engineered high-efficiency rotor. Rectification is handled by high-amperage press-fit avalanche diodes embedded inside a heavy heat-sink housing that dissipates thermal build-up during prolonged peak loads. The casing matches OEM mounting ears for direct bolt-on installation to the 1GR-FE timing cover, maintaining factory serpentine belt alignment and native harness plug compatibility.

What's Included

• 1x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 2010-2014 Toyota FJ Cruiser Base 4.0L V6 (1GR-FE)
• 2010-2014 Toyota FJ Cruiser Trail Teams Special Edition 4.0L V6 (1GR-FE)

Frequently Asked Questions & Fitment Warnings

Does this fit the GSJ15 FJ Cruiser?

Yes, this is a direct fit for the 2010-2014 Toyota FJ Cruiser equipped with the Dual VVT-i 1GR-FE engine; it does not fit the 2007-2009 single VVT-i variants due to bracket and plug variations.

Do I need to upgrade the main charging wire?

Installing a heavy-gauge 1/0 or 2 AWG positive charging cable and chassis ground (Big 3 upgrade) is mandatory to safely carry the full 250-amp capacity without resistance bottlenecks.

The Toyota Trail Durability Standard

Built to handle severe off-road recovery duty and harsh trail vibrations, this alternator maintains peak current delivery so your auxiliary systems stay operational during remote backcountry travel.
